Summary of Contents for Rwo DEB 0.1

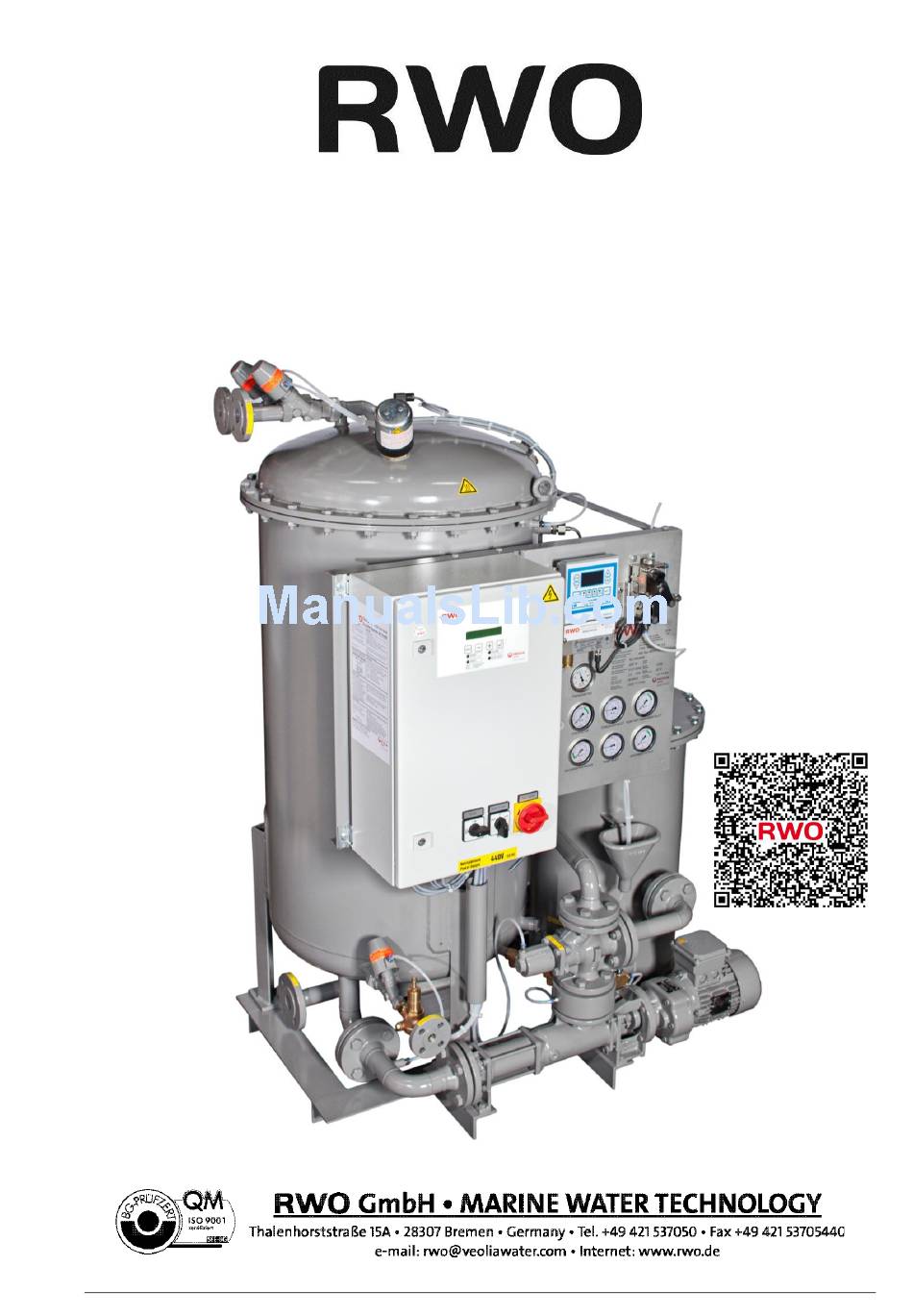

- Page 1 Instal lati o n, oper a ti ng a nd m ai nte na nce m anual S K IT/S -D E B acc. to IMO R e so l ut io n ME P C .107( 49) RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
- Page 2 This manual and all of its contents are property of RWO GmbH and have to be returned on demand at all times. RWO GmbH ● Marine Water Technology ● Bremen ● Germany...
-
Page 3: Table Of Contents
Oil detection and oil discharge 3.17 Oil monitor 3.17.1 Alarms 3.17.2 System status message 3.18 Optional control functions 3.18.1 Oil separator remote control 3.18.2 Oil tank overflow 3.18.3 Monitor flow controller Option RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... - Page 4 Automatic - control box Electrical connections of oil separator control system Installation plan ....................44 P&ID (pipeline and instrument diagram) Installation scheme – suggestion Process description ................... 45 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
- Page 5 Tools 13.11 Spare parts for control box Drawings ......................89 14.1 Adsorber (second stage) 14.2 Piston valve pos. 4, pos. 5 and pos. 15 SKIT/S-DEB 0.1 - 5.0m³/ RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
- Page 6 Piston valve pos. 4 / Pos. 5 SKIT/S-DEB 10.0 m³/h 14.4 Sensor electrode pos. 9 14.5 3/2-way piston valve pos. 23 and pos.58 at SKIT/S-DEB 0.1 - 1.0 m³/h 14.6 3/2-way piston valve pos. 23 and pos. 58 at SKIT/S-DEB 1.5 – 10.0 m³/h 14.1 Coalescer pos.
- Page 7 Fig. 11 Installation scheme.....................44 Fig. 12 Delivery condition ....................63 Fig. 13 Cap........................63 Fig. 14 Non-return flap ....................64 Fig. 15 Adsorber plug replacement .................67 Fig. 16 Replacing the solenoid valves ................69 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
-
Page 8: General
· No unauthorised alterations are carried out on the whole plant. Excluded from the guarantee are typical wear and tear parts, like e. g. · all rotating parts, gaskets, filters etc. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 9: List Of Tables Tab. 1 Contact Information
When ordering spare parts, please provide us with the serial number of the plant / unit (see cover page of these operation instructions or name plate of the plant / unit). Note Tab. 1 Contact information RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 10: General Safety Notes
· Modifications are to be carried out by authorised specialised personnel only and in coordination with the supplier. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 11: Specific Safety Notes And Symbols
The plant / unit must be operated by specially trained and authorized persons only, who know the operation instructions (such training can be booked through the service department (à1.5 Contact information)). RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 12: Basic Safety Measures During Maintenance
When exchanging heavy plant / unit parts, use suitable and functionable lifting devices only! · Make sure before starting maintenance and repair works that all parts are at room temperature. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 13: Basic Information On Personal Protection Equipment (Ppe)
(the relevant training sessions can be booked in our service department (à1.5 Contact information)) and must pay close attention to these installation and operating instructions. Your safety is concerned! RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 14: Sources Of Danger
If the bilge water oil separator is heated to the upper range with an electric heater or a steam heater, temperatures up to approx. 60 degreed celsius can occur. Risk of burns. CAUTION RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -

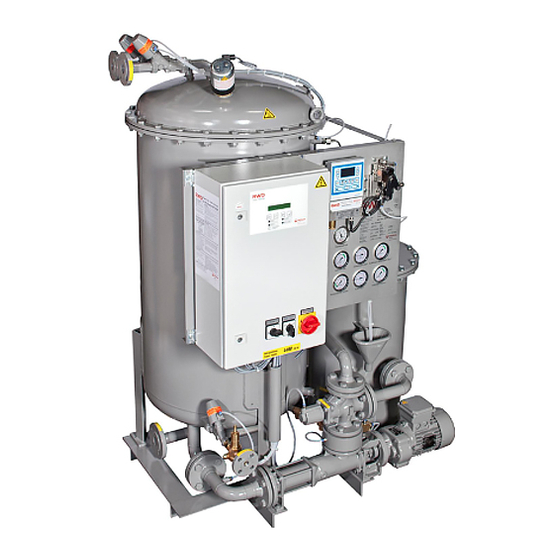

Page 15: List Of Figures Fig. 1 Component Overview
Safety valve (1.1 bar) Mono pump Funnel Coalescer vessel (1st stage) Pressure reducer Zinc anode Sampling valve Safety valve (3.3 bar) Adsorber (2nd stage) 3-way solenoid valve Bypass valve Venting RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 16: Tab. 2 Component Overview
Tab. 3 Component overview on pressure gauge board Standard scope of delivery The standard version of the oily water separator type series SKIT S-DEB is marked by the following characteristics: RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 17: General Function And Proper Use
An emulsion is a mixture of two or more components. In this case it includes oil and water. This mixture contains RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 18: Excerpt From The Imo Resolution Mepc.107(49)
3.8.1 15 ppm Bilge Separator; 3.8.2 15 ppm Bilge Alarm 3.8.3 Automatic stopping device RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 19: Mepc.107(49
15 ppm. The automatic stopping device should consist of a valve arrangement installed in the effluent outlet line of the 15 ppm Bilge Separator which automatically diverts the effluent mixture from being discharged overboard back RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 20: Fig. 3 Automatic Stop Device
Operating and Maintenance manuals. All routine and repair maintenance to be recorded, see “Routine and repair maintenance record” Tabelle in “Operation and maintenance instruction”. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 21: Tab. 4 Capacity, Dimensions And Weight, Electric Data
9 – 17 DEB 2.5 3.70 2.00 9 – 17 DEB 5.0 4.60 3.50 9 – 17 DEB 10.0 7.70 4.50 9 – 17 Tab. 5 Electric data RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 22: Tab. 6 Component Overview, Pipe Connections
Flushing water inlet Drain valve (1st stage) Drain valve (2nd stage) Funnel Safety valve 2nd stage Outboards To the bilge water tank Tab. 6 Component overview, pipe connections RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 23: Tab. 7 Pipe Connections
The oil separator starts automatically when the level in the bilge or bilge water tank switches the upper level sensor and stops automatically when the level switches the lower level sensor. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 24: Keys
If numbers are highlighted, you can set them by the digit with the -/+ buttons. To jump from one digit to the other, use the Enter button (see below). RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 25: Fig. 5 Potentiometer
LED is green. As soon as a specified amount of oil has been collected, the RWO automatic level system (pos. 3) opens the oil drain valve (pos. 4) and the flushing water inlet valve (pos. 15) so that the oil is discharged to the oil collector tank by means of the flushing water pressure. -
Page 26: Oil Monitor
The bypass valve (pos. 58) is switched to guide the water downstream of the oil separator passing through the adsorber. The recirculation valve (pos. 23) is switched to guide the cleaned water back to the bilge. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 27: Alarms
By factory default, the terminals X2-7 and X2-8 (NC) are bridged. The user can connect a level switch there. In case of oil tank overflow, the system switches into standby mode and activates the alarm output. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 28: Monitor Flow Controller Option
SBG approval date · USCC approval number · Year of construction · Operating pressure · Test pressure · Class (optional) · Steering wheel symbol · Number of notified body RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 29: Tab. 8 Type Test Certificates
National Certificate Germany National Certificate USCG USCG USCG National Certificate Canada National Certificate China National Certificate Croatia National Certificate RMRS RMRS RMRS Russia Tab. 8 Type test certificates RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 30: Environmental Requirements
45°C, excessive starting torque occurs in the motor due to thermal expansion of the materials of the rotating parts which means that the motor is in Note danger of being damaged beyond repair. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 31: Noise
The noise pressure level is below 80 dB(A). 3.23 Vibrations The unit is made and tested for the acceleration/vibration load which can be expected on board acc. to the IMO requirements. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 32: Important Terms And Definitions For Bilge Water Oil Separator
This surface decrease causes a reduction of the drop's friction resistance so that the drop rises or sinks faster than without coalescence. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 33: Fig. 6 Lifting Eyes X And Z
Depending on unit’s size it comes in adequate packaging. Protect the units by keeping them in the original packaging as long as possible. Store the unit dry and frost-free on a flat surface. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 34: Fig. 7 Maintenance Space Of Oil Separator
Electric installation acc. to the wiring diagram has to be carried out in proper workmanship by trained staff only adhering to valid regulations. Fig. 7 Maintenance space of oil separator RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 35: Fig. 8 Maintenance Height Of Oil Separator
Close all external valves (to prevent any feed into the unit) and disconnect the power line. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 36: Tab. 9 Supply Unit Consumption List
0.6 and 1 bar. *2 Average air amount in litres for a complete discharge process at a pressure of 6 bar RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 37: Fig. 9 Valve Terminal
(2 x 3/2-way). 5 of those are used by default, 1 is designed as spare in case a solenoid valve fails. Fig. 9 Valve terminal RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 38: Tab. 10 Valve Terminal
· Make sure that the max. operating data (see typeplate) are not exceeded! · Check that the assignment of the electric connections is as specified, on no account they may be mismatched! RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 39: Commissioning
Installed to the inlet of the oil separator is a non-return flap (figure 4, pos. 1) (for SKIT/S-DEB 0,1-2,5 on the inside of the container) which prevents a self-draining of the RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 40: Flushing Water Inlet
à3.14.3) must be laid without pressure back to the bilge or into the bilge water tank. Clean water outlet The clean water outlet is the connection at the 3-way valve (pos. 23 chapter à3.14.3) outboards. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 41: Pipelines
Pipelines For connecting the SKIT S-DEB oil separator system we recommend the following pipeline cross-sections, chapter à3.14.3 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 42: Tab. 11 Component Overview Of Control Box
A1.1 Control panel Tab. 11 Component overview of control box All system components are connected to the automatic control system (pos.3 à3.1) by factory default (as of type RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 43: Electrical Connections Of Oil Separator Control System
For a detailled description of the oil separator control system with micro processor see chapter à3.15. Electrical connections of oil separator control system See electric diagram RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 44: Tab. 12 Component Overview, Installation Scheme
23B/ Back to bilge, bilge water tank Outboard valve (optional) Overboard line R-thread or DIN 2633 PN16 Tab. 12 Component overview, installation scheme Fig. 11 Installation scheme RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 45: Process Description
15ppm (5ppm) residual oil content can get outboards. By factory default, the alarm threshold 2 is set to 15ppm RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... - Page 46 No voltage is applied to the 3- way valve (pos. 57), it guides sample water from the sample point downstream of the adsorber to the oil RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
- Page 47 3-way Back to No voltage sample point valve bilge / upstream of recirculati bilge the adsorber water every 5 tank RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
-
Page 48: Tab. 13 Process Overview
15ppm Bilge Alarm is replaced, procedures should be put in place to ensure the recorded data remain accessible on board for 18 months. To prevent tempering RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... - Page 49 A 3-way valve for flushing is fitted with a contact to ensure that during flushing of the alarm monitor an overboard discharge of polluted water is not possible. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
-
Page 50: Operation
Ensure compressed air supply of approx. 6-8 bar and flushing water supply ((1bar (max. 1.5 bar)). The pressure reducer valve must be set to an output of RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 51: Before Each Startup
Open the valves in the suction line Open the valves in the clean water line outboards. The pump is a displacement pump; it must not be operated upstream of closed fittings. Note RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 52: Commissioning The Skit/S-Deb
(water outboards). Now the pump starts up and draws from the bilge. The system is now ready for operation. The heater can now be switched on with the switch "Heater". RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 53: Tab. 14 Meaning Of The Message Lights
Flushing operation process is The display shows running "FLUSHING" Pump and electric heater are switched Valve 5 and 15 are open Tab. 14 Meaning of the message lights RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 54: Menu Structure
STAND BY, SEPARATE, OIL DISCHARGE or FLUSHING. If the selector switch is in position "0", the following display appears: BETRIEB STOP OPERATION STOP STAND BY STAND BY RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... - Page 55 Display only for oil separator with adsorber BETRIEB HAND OPERATION HAND ENTOELT MIT WATER PASS ADSORBER ADSORBER Display of alternating messages: LANGZEIT- LONG TIME BETRIEBSALARM ! RUNNING ALARM! RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
-
Page 56: Displays Initiated By Menu Control
Operation mode display (e.g. automatic operation / separating): BETRIEB AUTO OPERTION ENTOELEN SEPARATE After pressing the Enter button: Language selection (seeà 10.5.4) SPRACHE: LANGUAGE: DEUTSCH ENGLISCH GERMAN ENGLISH RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 57: Language Selection
(water). High numbers (e.g. 65) indicate a high resistance (oil). The second line contains the On/Off state of the inputs, indicated by 0 or 1. A total of 16 input data are displayed. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 58: Notes On Output Mapping
Pressing the Enter button after setting the forth digit will check the password. If the password is incorrect, the following message appears: PASSWORT FALSCH! WRONG PASSWORD! BITTE NEU EINGEBEN! PLEASE RETYPE PASSWD RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 59: Changing User Settings
If you branched to the user settings as described above, you must select "YES" to change the individual parameters (+ button). For the oil detection threshold, this means: RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 60: Tab. 15 Factory Settings
NEIN MODIFY? The flushing times depend on the oil separator performance, the factory settings are as follows: SKIT 0.1 0.25 0.5 10.0 Sec. 8 Tab. 15 Factory settings RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... - Page 61 If user settings have been changed or factory Note settings have been retrieved, you must restart the control software to accept the changes by switching the system off and on again. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
-
Page 62: Maintenance
· Check seals and piston valves. If necessary, replace damaged seals and components. · Check and clean the sensor electrode (pos. 9), if necessary, replace it. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 63: Mounting The Coalescer Non-Return Flap
Fig. 12 Delivery condition Remove the protective cap from the thread Fig. 13 Cap Mount the non-return flap The arrow must point towards the perforated plate. Note RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 64: Changing The Coalescer
Remove circlip from the diffuser (the pipe in the centre of the oil separator). Pull off coalescer cross from the diffuser and remove Screw out the diffuser using the coalescer key and pull it out. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 65: Mounting The Coalescer Package For Oil Separators Up To 2.5 M³/H
Use the coalescer key to screw the diffuser onto the threaded tappet at the lower part of the oil separator. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 66: Mounting The Oil Separator Lid
Insert cable in heater and connect. Attach loose cables at lid of oil separator by cable straps. 11.5.5 Commissioning the oil separator See operating instructions àchapter 0 11.6 Replacing the adsorber plugs RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 67: Open Adsorber Housing
The plugs are very fragile! Handle the plugs very carefully. Wetting the seal tappet facilitates inserting the Note plugs. Then press the plug connection nipple into the plugs RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 68: Close Adsorber Housing
Check if the lid is tight. If not, check if the lid seal is correctly in the flange groove. If necessary, re-tighten the screws until the lid is tight. RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 69: Replacing The Solenoid Valves
To mount the solenoid valve, insert the replacement solenoid valve carefully and observe the specified maximum tightening torques when tightening the screws. Fig. 16 Replacing the solenoid valves RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 70: Troubleshooting
Low delivery power at high The suction line or the rough filter Clean suction line vacuum display at the inlet are jammed and/or rough filter Valve closed in suction direction Open valves RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... - Page 71 System detects oil but Cable connection control box / Check cable discharges water electrode interrupted connection, replace if necessary Electrode clotted Clean contact surfaces of the electrode rods RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
- Page 72 Electric conductivity in the oil Avoid emulsion phase too high, possible formation. emulsion formation Contact RWO service (à1.5 Contact information) Oil binds water Contact RWO service (à1.5 Contact information) RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
-
Page 73: Tab. 16 Table Of Faults
Cable connection interrupted Replace cable connection PCB defective Check PCB; with "RED- OIL-DISCHARGE", 24 V DC must be applied between terminals X2- 9/10 and X2-13/14 Tab. 16 Table of faults RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 74: Spare Parts
23.4 Plug-in screw connection 6462121110 23.5 Sealing set for 3-way piston valve 5925S1200 Drain ball valve R1" coalescer container 5906030401 27 a Drain ball valve R1/2" adsorber 5906030151 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 75: Tab. 17 Spare Parts For Skit/S-Deb 0.1 M³/H
5920008090 Vacuum pressure gauge -1/+5 bar 5920008090 Sensor electrode R1" 5120302001 Heater element. Important: Check the voltage that is variable Orifice 6041100251 Safety valve R1" (1.1 bar) 5903015002 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... - Page 76 Base plate 6200000253 Adsorber element 10" 5911602019 1 set Adsorber element 10" 2840002501 4 pcs. Head plug 5911600002 Head plate 6200000254 Wing nut M8 8118008002 Threaded rod M8 8121008999 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
-
Page 77: Tab. 18 Spare Parts For Skit/S-Deb 0.25 M³/H
Funnel 6030020001 Coalescer container (1. stage) 6100050010 Coalescer lid 6100050011 Coalescer lid seal 8320050002 Thermometer (optional) 5921015001 Coalescer 2704002501 Pressure reducer valve 5912015001 Pressure gauge 0-6 bar 5920008092 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 78: Tab. 19 Spare Parts For Skit/S-Deb 0.5 M³/H
6462121110 Sealing set for piston valve 5924S2150 Pressure gauge 0-10 bar 5920008094 Vacuum pressure gauge -1/+5 bar 5920008090 Vacuum pressure gauge -1/+5 bar 5920008090 Sensor electrode R1" 5120302002 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... - Page 79 Sealing set for 3-way piston valve 5925S1250 Venting valve 5906030081 Non-return flap 5909020002 Base plate 6200001022 Adsorber element 20" 5911602020- 1 set Adsorber element 20" 2840010001 7 pcs. Head plug 5911600002 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
-
Page 80: Tab. 20 Spare Parts For Skit/S-Deb 1.0 M³/H
Drain ball valve R1" coalescer container 5906030401 27 a Drain ball valve R1/2" adsorber 5906030251 Funnel 6030020001 Coalescer container (1. stage) 6100150010 Coalescer lid 6100150011 Coalescer lid seal 8320150001 Thermometer (optional) 5921015001 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 81: Tab. 21 Spare Parts For Skit/S-Deb 1.5 M³/H
Pneumatic piston valve, complete (oil outlet) 5936002501 Plug-in screw connection 6462121110 Sealing set for piston valve 5924S2200 Pneumatic piston valve, complete (flushing 5936002001 water outlet) Plug-in screw connection 6462121110 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... - Page 82 5920008092 Manual 3-way valve 5905132001 3-way solenoid valve 5940033056 Pneumatic 3/2-way piston valve 5925113202 58.5 Sealing set for 3-way piston valve 5925S1320 Venting valve 5906030081 Non-return flap 5909032002 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
-
Page 83: Tab. 22 Spare Parts For Skit/S-Deb 2.5 M³/H
Plug-in screw connection 6462121110 23.5 Sealing set for 3-way piston valve 5925S1400 Drain ball valve R1" coalescer container 5906030401 27 a Drain ball valve R1/2" adsorber 5906030251 Funnel 6030020001 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 84: Tab. 23 Spare Parts For Skit/S-Deb 5.0 M³/H
Tab. 23 Spare parts for SKIT/S-DEB 5.0 m³/h 13.8 Spare parts for SKIT/S-DEB 10.0 m³/h Pos. Piece( Designation Article number Non-return flap 5909050001 Pneumatic piston valve, complete (oil outlet) 5919104002 Plug-in screw connection 6462121110 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... - Page 85 5912008L01 humidifier (optional) 54.1 Pressure gauge 0-6 bar 5920008092 54.2 Pressure gauge 0-6 bar 5920008092 Manual 3-way valve 5905150001 3-way solenoid valve 5940033056 Pneumatic 3/2-way piston valve 5925115002 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
-
Page 86: Tab. 24 Spare Parts For Skit/S-Deb 10.0 M³/H
5922032051 Suction sieve (optional) DN 50 5922050051 Suction sieve (optional) DN 50 5922050051 Compressed air reducer valve with de- 5912008L01 humidifier (optional) Tab. 25 Optional spare parts SKIT/S-DEB 0.1 m³/h to 10.0m³/h 13.10 Tools Pos. Piece( Designation Article number Tool Coalescer key –... -
Page 87: Tab. 26 Tools
Terminal block 1 yellow/green 5131807004 Terminal block 2 control 5131807005 Terminal block 3 control 5131807005 Terminal block 4 control Terminal block 5 control LED set DEB 5120210308 Valve terminal 5940652406 RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 88: Tab. 27 Component Overview Of Control Box
Installation, operating and maintenance manual SKIT/S-DEB 3rd print version page 88 13 – Spare parts 2 x 2/3-way solenoid valve insert for valve 59406524C1 terminal Tab. 27 Component overview of control box RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 89: Drawings
Installation, operating and maintenance manual SKIT/S-DEB 3rd print version page 89 14 – Drawings D r a wi n g s 14.1 Adsorber (second stage) RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 90: Piston Valve Pos. 4 / Pos. 5 Skit/S-Deb 10.0 M³/H
90 14 – Drawings 14.2 Piston valve pos. 4, pos. 5 and pos. 15 SKIT/S-DEB 0.1 - 5.0 m³/h 14.3 Piston valve pos. 4 / Pos. 5 SKIT/S-DEB 10.0 m³/h RWO GmbH ● Marine Water Technology ● Bremen ● Germany... -
Page 91: Sensor Electrode Pos
Installation, operating and maintenance manual SKIT/S-DEB 3rd print version page 91 14 – Drawings 14.4 Sensor electrode pos. 9 14.5 3/2-way piston valve pos. 23 and pos.58 at SKIT/S-DEB 0.1 - 1.0 m³/h RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 92: 3/2-Way Piston Valve Pos. 23 And Pos. 58 At Skit/S-Deb 1.5 - 10.0 M³/H
14 – Drawings 14.6 3/2-way piston valve pos. 23 and pos. 58 at SKIT/S-DEB 1.5 – 10.0 m³/h 14.1 Coalescer pos. 34 SKIT/S-DEB 0.1 m³/h – 2.5 m³/h RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 93: Coalescer Pos. 34 Skit/S-Deb 5.0 M³/H - 10.0 M³/H
Installation, operating and maintenance manual SKIT/S-DEB 3rd print version page 93 14 – Drawings 14.2 Coalescer pos. 34 SKIT/S-DEB 5.0 m³/h – 10.0 m³/h RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 94: Annex
(voltage applied at solenoid valve) and with a BETRIEB AUTO time delay the oil outlet valve (pos. 4) closes FLUSHING (no voltage applied to solenoid valve). Display in manual mode: BETRIEB HAND RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... - Page 95 Alarm monitor OMD alarm 1 is green "Off" The measuring cell contains clear water Alarm monitor OMD alarm 2 is green "Off" The measuring cell contains clear water RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
-
Page 96: Tab. 28 Checklist
(adsorber) valve The recirculation valve (pos. 23) guides the No voltage applied to the solenoid insufficiently cleaned water back to the bilge valve Tab. 28 Checklist RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10... -
Page 97: Record Of The Maintenance And Repair Works
Installation, operating and maintenance manual SKIT/S-DEB 3rd print version page 97 15 – Annex 15.2 Record of the maintenance and repair works RWO GmbH ● Marine Water Technology ● Bremen ● Germany Issue 2014-04-10...
