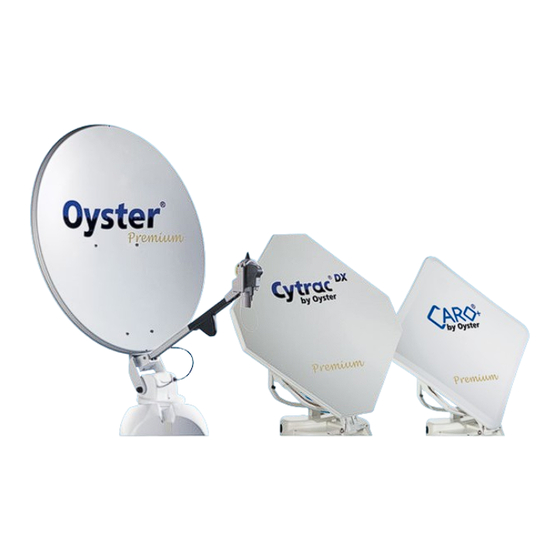

Oyster L188TRS Operator's Manual

Premium series
Hide thumbs
Table of Contents

Advertisement

Quick Links

www.ten-haaft.com
OPERATOR MANUAL
„Oyster
TV"
®
„ O y s t e r
T V "
®

Advertisement

Table of Contents
loading

Related Manuals for Oyster L188TRS

Summary of Contents for Oyster L188TRS

  • Page 1 „Oyster TV“ ® „ O y s t e r T V “ ® OPERATOR MANUAL www.ten-haaft.com...

  • Page 2: Table Of Contents

    4.2 General TV settings 4.3 Channel settings and search (DVB-T / T2) 4.4 Channel settings and search (DVB-S / S2) 4.5 Favourite list (satellite TV) 4.6 Recording with the "Oyster® TV" 4.7 Further functions 4.8 Technical data of "Oyster TV"...

  • Page 3: General Information

    Before switching on the system, make sure that the opening antenna does not face any obstacles such as branches or garage door. 1.2 Scope of supply "Oyster® TV" Premium system with remote control and control unit; external unit with antenna – optionally with SKEW pivoting unit for optimised reception 1.3 Intended use This product has been designed for permanent installation on mobile homes or camper trailers with a maximum speed of 130 km/h.
  • Page 4 1. GENERAL INFORMATION The TV set is fitted with a toggle switch that fully isolates the device from the on-board electric system to prevent deep discharging of the vehicle battery system. If this switch is not used, suitable measures must be implemented in the on-board electric system to prevent deep discharging of the vehicle battery systems.

  • Page 5: Safety Precautions

    Stop function via the remote control and isolation from operating voltage during service work The STOP button on the remote control stops the motion of the antenna. When servicing the antenna system, make sure that the entire "Oyster® TV" Premium system and the VISION III control box are isolated from operating voltage.

  • Page 6: Control Elements

    SWITCHING THE SYSTEM ON / OFF The system is switched into standby mode or completely off at the switch on the underside of the "Oyster® TV" Pre- mium system (see page 11, element 10). Operation is started by pressing the POWER button on the remote control.

  • Page 7: Remote Control

    2. CONTROL ELEMENTS 2.3 Remote control Button Function POWER: In standby mode, this button will switch the "Oyster TV" ® with integrated receiver into operating mode. 0 – 9 NUMBER BUTTONS: Press one of the number buttons (0 – 9) 1 - 9 to directly select a channel or enter a number via the menu.
  • Page 8 2. CONTROL ELEMENTS Button Function NAVIGATION UP: Press this button to navigate one menu item up. NAVIGATION LEFT: Press this button to switch between available options. NAVIGATION RIGHT. Press this button to switch between available options. NAVIGATION DOWN: Press this button to navigate one menu item down.
  • Page 9 2. CONTROL ELEMENTS Button Function Volume up Volume down Channel up Channel down Press to stop antenna motion STOP Press to start antenna motion START Press to retract antenna PARK Press to enter position. Useful after travelling any major distance COUNTRY Press to open a window showing details of the supply voltage BATT...

  • Page 10: Interfaces / Control Elements At Device

    2. CONTROL ELEMENTS 2.4 Interfaces / control elements at device Seen from above 1. Standby LED 2. Remote control sensor Control buttons 3. Setup TV – Press to open or close the setup menu. Press and hold for more than three seconds to start the channel search (terrestrial TV (DVB-T) only) 4.
  • Page 11 2. CONTROL ELEMENTS Left-hand side (seen from the front) Inputs/outputs 1. HDMI 1 / HDMI 2 2. USB port 3. 12/24 V DC input 4. Headphone socket 3.5-mm stereo jack 5. Audio input 3.5-mm stereo jack 6. Satellite input F-socket 7.
  • Page 12 2. CONTROL ELEMENTS COMMON INTERFACE (CI+) SLOT The CI+ slot holds a Conditional Access Module (CAM) with a SmartCard, allowing you to watch programmes and use offerings provided by pay-TV stations. Contact your provider for more information about agreements and modules. Note: Conditional Access Module and SmartCards are available separately.
  • Page 13 2. CONTROL ELEMENTS SIGNAL INPUTS HDMI / AV Setup The menus for HDMI or AV connections are similar to those of the standard TV reception, with the exception that you cannot change the channel settings. If there is no signal when HDMI is selected as input source, the following screen is shown: If no signal is found within 30 minutes, the system automatically switches into standby mode.

  • Page 14: Operating The System

    The receiver needs up to one minute to initialise after being switched on. The antenna then folds up and starts the automatic satellite search. Before switching on the "Oyster® TV" Premium system, make sure that the opening antenna does not face any obstacles such as branches or garage door.

  • Page 15: Button Functions

    Notice: If you wish to keep your antenna unfolded, eg. when using a secondary TV, press the STOP button and switch off the "Oyster® TV" within 15 seconds by pressing POWER. The START button will start the "Automatic Search". The system will search the satellite it was aimed at last.

  • Page 16: Operating The "Oyster® Tv

    4.1 Initial setup Your Oyster TV set is configured at the factory with a standard channel list and, depending on specifications, with favourite lists. (See section 4.5, Favourite lists (satellite TV) if you wish to create further lists.) Should any channels be missing or if you wish to add further channels, you need to start the automatic channel scan.

  • Page 17: General Tv Settings

    • Press to navigate in the menus. • Press Exit or Setup to exit the setup menu. IMAGE In this menu you can change the picture settings of the "Oyster TV". The following settings are available: ® SOUND In this menu you can change the sound settings of the "Oyster TV".
  • Page 18 4. OPERATING THE "OYSTER® TV" DIGITAL TV SETUP In this menu you can adjust the general settings for the reception of digital TV. The following options are avail- able: Audio Language Select your preferred primary and secondary language. Subtitle Language Set your preferred subtitling language.
  • Page 19 4. OPERATING THE "OYSTER® TV" LOCK Here you can restrict the access to specific functions of the TV set. If the lock is enabled, you need to enter a password before you can make changes in locked areas. Lock System Locks the system.
  • Page 20 4. OPERATING THE "OYSTER® TV" FUNCTIONS In this menu you can change the following options. OSD Language Changes the language of the display menus. Aspect Ratio The following options are available: • Auto • Zoom 1 • Zoom 2 • 16.9 •...

  • Page 21: Channel Settings And Search (Dvb-T / T2)

    4. OPERATING THE "OYSTER® TV" 4.3 Channel settings and search (DVB-T / T2) CHANNEL This menu contains the channel settings. DVB-T channel settings Here you can adjust the channels and their settings. Channel Select the channel you wish to adjust.
  • Page 22 4. OPERATING THE "OYSTER® TV" FURTHER SETTINGS FOR DVB-T CHANNELS When you switch the system on for the first time, the following screen is shown. Press to select a display language. Select "Auto Search" and press Note: The country setting cannot be changed.
  • Page 23 4. OPERATING THE "OYSTER® TV" When this screen is shown, wait until the scanning process finishes. This may take some minutes. Once the search is completed, the system will determine the target region. If more than one regional channel is...

  • Page 24: Channel Settings And Search (Dvb-S / S2)

    4. OPERATING THE "OYSTER® TV" 4.4 Channel settings and search (DVB-S / S2) Select and switch to satellite TV. Press and use to select "Channels". Select and then the sat- Source SETUP ellite you wish to scan. Check whether the signal and quality display shows any values. Switch to search option "Transponder"...
  • Page 25 4. OPERATING THE "OYSTER® TV" FURTHER SETTINGS Your system will find all free-to-air (FTA) or encrypted channels using the standard settings. If this is not the case, you can make changes to the satellite settings in the "Advanced Setup" menu. Wrong or incorrect settings in this menu may impair the correct function and operation of your system! The "Advanced Setup"...
  • Page 26 4. OPERATING THE "OYSTER® TV" Press to add symbol rate, frequency and polarity. Press to save your settings. Press to start scanning the new transponder. All new channels are added to the end of the channel list. BLUE...
  • Page 27 4. OPERATING THE "OYSTER® TV" TROUBLESHOOTING SATELLITE SETUP (DVB-S) 1. No channels were found, and the signal and quality display showed only small or no values at all. Check all cables between TV and LNB. Make sure that the antenna is aimed at the right satellite and that the view is not obstructed by trees or other obstacles.
  • Page 28 4. OPERATING THE "OYSTER® TV" EDIT CHANNELS (SATELLITE TV MODE) Press to open the menu and select "Channel". Select "Channel Edit". Press to select a PAGE+ PAGE- SETUP channel. Use the colour buttons to choose the following settings: Press to delete a channel. Use to select it.

  • Page 29: Favourite List (Satellite Tv)

    Channels already added are marked by a heart-shaped symbol. 4.6 Recording with the "Oyster® TV" You can use your "Oyster® TV" to record programmes. You can either record directly or by programming a re- cording session. Storage medium: Ideally, you should use an external hard disk with external power supply or a USB stick with 64 GB capacity.
  • Page 30 4. OPERATING THE "OYSTER® TV" 2. Check PVR File System Here you can check the PVR file system. The system shows the recording speed. Press to continue or to exit the menu. EXIT Press to exit the menu. EXIT 3. Format Formatting your USB stick or hard disk will delete all data saved on it.
  • Page 31 4. OPERATING THE "OYSTER® TV" DIRECT RECORDING Press to start recording. After recording, you can view the recording's details by pressing "Info". Caution! Make sure that your USB stick or hard disk has sufficient free memory space and that you have set up the PVR file system before recording.
  • Page 32 4. OPERATING THE "OYSTER® TV" Press to playback files from the list. Press to stop playback. Press to start recording for time-shifted TV playback. Time Shift Press start the playback of a time-shifted TV recording. Press to exit this mode.
  • Page 33 4. OPERATING THE "OYSTER® TV" to navigate through the channels and programmes. Press to navigate to the PAGE+ PAGE- subsequent events in the EPG. The number of days shown in the EPG may vary between channels (max. 7 days). to switch to the channel selected, however, this is only possible for the first event in the EPG as the other ones have notstarted yet.

  • Page 34: Further Functions

    4. OPERATING THE "OYSTER® TV" 4.7 Further functions VIDEOTEXT (NOT PROVIDED BY ALL CHANNELS) Videotext is an information system you can view on your TV set. You can use the corresponding control buttons to open the pages listed in the index.
  • Page 35 4. OPERATING THE "OYSTER® TV" Quick access Categories sorted by colour and subject are shown at the bottom of the videotext screen ( BLUE GREEN YELLOW • You can access these categories by pressing the buttons of the corresponding colour.
  • Page 36 4. OPERATING THE "OYSTER® TV" SUBTITLES If a channel broadcasts subtitles, press to show them. To change the language, press and then SUBT to confirm. PROGRAMME INFORMATION You can display information about the programme you are currently watching by pressing .
  • Page 37 4. OPERATING THE "OYSTER® TV" AUDIO You can select the audio language and track by pressing AUDIO Select a language using and press OK.

  • Page 38: Technical Data Of "Oyster

    4. OPERATING THE "OYSTER® TV" 4.8 Technical data of "Oyster TV" ® ten Haaft TV devices "Oyster TV" - 19“ "Oyster TV" - 21.5“ "Oyster TV" - 24“ "Oyster TV" - 32“ ® ® ® ® Type L188TRS L218TRS L248TRS...

  • Page 39: Service

    For optimal reception at the fringe of the satellites' footprints in southwestern and southeastern regions, the LNB may have to be rotated to compensate for the polarisation deviation caused by the earth's curvature. Oyster® systems are available with the optional SKEW function for automatic LNB adjustment. OBSTACLES IN FRONT OF THE ANTENNA At 42°...

  • Page 40: Reception In Remote Areas

    LNB SETTINGS IN DIFFERENT REGIONS: The following settings are needless at Oyster SKEW units. This section describes how to fine-tune the LNB to optimise reception in the fringe of a TV satellite’s footprint. This requires loosening the LNB or antenna bolts and turning either component by a specific angle.
  • Page 41 5. SERVICE OYSTER®: The following definitions apply to the tables and specified angles below: To determine the direction of rotation, the viewer must look at the front face of the antenna as does the LNB, i.e. the viewer must be standing in front of the antenna.
  • Page 42 5. SERVICE LNB settings in different regions: Country Eutelsat Thor Astra 4 Hotbird Astra 1 Astra 3 Astra 2 0.8° West 4.8° East 13° East 19.2° East 23.5° East 28.2° East 5° West Germany, Austria, -23° -16° -12° -6° 0° 4°...

  • Page 43: Troubleshooting

    5. SERVICE 5.3 Troubleshooting Malfunctions of the automatic antenna unit may occur if the antenna's motion is obstructed e.g. by branches or snow. Fault description Remedial action No satellite was found during Do you have a clear view to the South? search.

  • Page 44: Appendix

    6. APPENDIX 6.1 Declaration of conformity...

  • Page 45: Notes On The Protection Of The Environment

    6. APPENDIX 6.2 Notes on the protection of the environment EC End-of-Life Vehicle Directive The antenna system is certified and intended for use as an accessory of a motor vehicle. The system may be disposed of together with the vehicle in accordance with the End-of-Life Vehicle Directive ELV, 2000/53/EC. The antenna system does not contain any materials rated as hazardous to the environment according to the directive.
  • Page 46 NOTES...
  • Page 47 NOTES...
  • Page 48 ten Haaft GmbH Office hours: Neureutstraße 9 Monday – Friday 8:00 a.m. – 12:00 a.m. 75210 Keltern 12:30 a.m. – 4:30 p.m. Germany Telephone: +49 (0) 7231 / 58588-0 Telefax: +49 (0) 7231 / 58588-119 E-mail: service@ten-haaft.com www.ten-haaft.com Release 12/2017 · Part number: 3.150.0114...

This manual is also suitable for:

L327trsL248trsL218trs
