Page 1: Instruction Manual

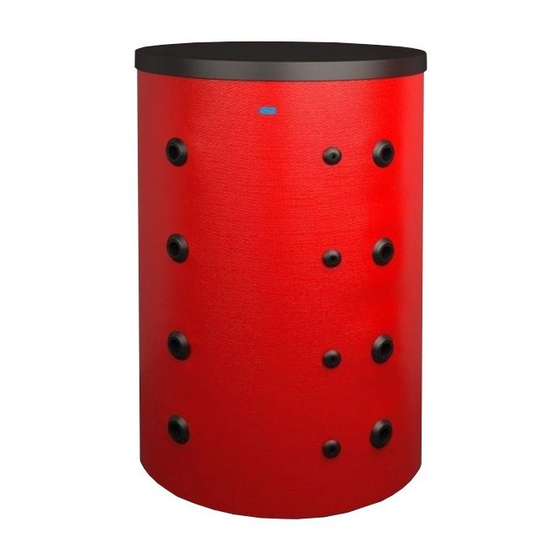

THE ACCUMULATION TANKS ATTACK® AK/AS, HR/HRS, TUV/TUVS, S/SS INSTRUCTION MANUAL W W W . A T T A C K . S K... -
Page 2: General Information
The tanks serve for accumulation and subsequent distribution of the heat energy from solid fuel boil- ers, heat pumps, electric boilers, etc. The accumulation tanks ATTACK AS, HRS, TUVS and SS are acces- sorized with an extra exchanger for a heat source with separated circuit (e.g. for solar system). The accu-... -
Page 3: Thermal Insulation
Accumulation tanks ATTACK Hr, HrS ....... page 6 – 7... - Page 4 ACCUMULATION TANKS ATTACK AK, AS 1 ½" 45° 45° 90° 1 ½" 1 ½" ATTACK AK ATTACK AS...
-
Page 5: Technical Parameters
ATTACK AK: 9× socket G 1 ½", 4× socket G ½" ATTACK AS: 9× socket G 1 ½", 4× socket G ½", 2× socket G 1" – solar circuit KEy fOr THE ACCUMULATION TANKS 7 –... - Page 6 ACCUMULATION TANKS ATTACK Hr, HrS ATTACK Hr ATTACK HrS...
- Page 7 ATTACK Hr: 9× socket G 1 ½", 6× socket G ½" ATTACK HrS: 9× socket G 1 ½", 6× socket G ½", 2× socket G 1" – solar circuit KEy fOr THE ACCUMULATION TANKS 1 – Flow connection – boiler ... . . 1 ½"...
- Page 8 ACCUMULATION TANKS ATTACK TUv, TUvS ½" ATTACK TUv ATTACK TUvS TECHNICAL PArAMETErS Of THE D.H.W. EXCHANGEr Material Stainless steel Heated area 3,9 m Volume 13 l Connection 3/4" Max. operating pressure 10 bar...
- Page 9 ATTACK TUv: 9× socket G 1 ½", 5× socket G ½", 2× socket G 1" – D.H.W. ATTACK TUvS: 9× socket G 1 ½", 5× socket G ½", 2× socket G 1" – solar circuit, 2× socket G 1" – D.H.W.
- Page 10 STrATIfIED STOrAGE TANKS ATTACK S, SS 1 ½" 45° 45° 10° 10° 90° 1 ½" 1 ½" ATTACK S ATTACK SS...
- Page 11 ATTACK S: 10× socket G 1 ½", 5× socket G ½" ATTACK SS: 10× socket G 1 ½", 5× socket G ½", 2× socket G 1" – solar circuit KEy fOr THE ACCUMULATION TANKS 1 –...
-
Page 12: Operation
4. OPErATION Tanks accumulate heat from the heating systems for domestic or industrial use. Different types of boilers and heating systems, renewable energy sources (heat pumps, sun collectors) or electricity can be used to heat the water in the accumulation tank. Heat in the tank is accumulated either by flow of the heating liquid from the heat source or by flow of the heating liquid and the heat transfer (e.g. -
Page 13: Maintenance
ACCUMULATION TANKS on the heat-exchange surfaces of device. Quality of the heating water depends on the quality of the water filled into the system by starting the operation and quality and amount of the water additionally filled into the system. Quality of the water additionally filled into the system is defined in the STN 07 7401. To prepare the D.H.W. - Page 14 SPECIfICATION Of THE ANNUAL CHECKS Of THE ACCUMULATION TANKS (performed by the authorized service) 1. CHECK Of THE STATE Of THE TANK The accumulation tank does not need a maintenance indeed, it is only necessary to make a check of the pressure and tightness of all the joints. In case of the water leakage from the tank or leakage of the liquid from the heating circuits, stop the operation of device and seal the joints to ensure the stated operating conditions.
- Page 15 ACCUMULATION TANKS NOTES:...
- Page 16 Tel: +421 43 4003 101 • Fax: +421 43 3241 129 • E-mail: kotle@attack.sk Export – tel: +421 43 4003 103 • Fax: +421 43 3241 129 • E-mail: export@attack.sk Výrobca ATTACK, s.r.o. si vyhradzuje právo technických zmien výrobkov bez predchádzajúceho upozornenia.
