SPA Bath

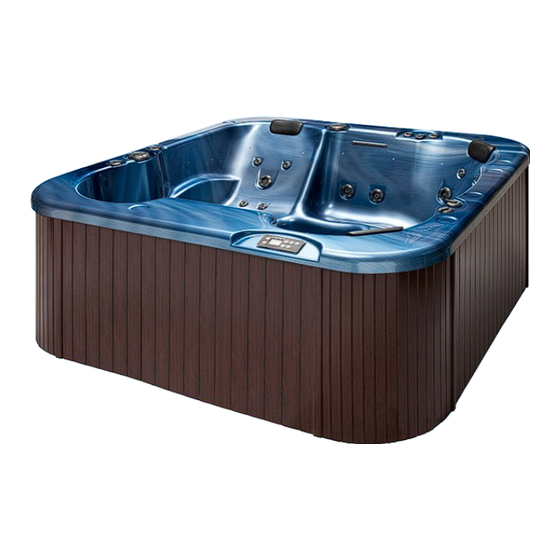

LAGUNA SPA 213 x 213
Installation and user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Laguna SPA and is the answer not in the manual?

Questions and answers

Related Manuals for Poolspa Laguna SPA

Summary of Contents for Poolspa Laguna SPA

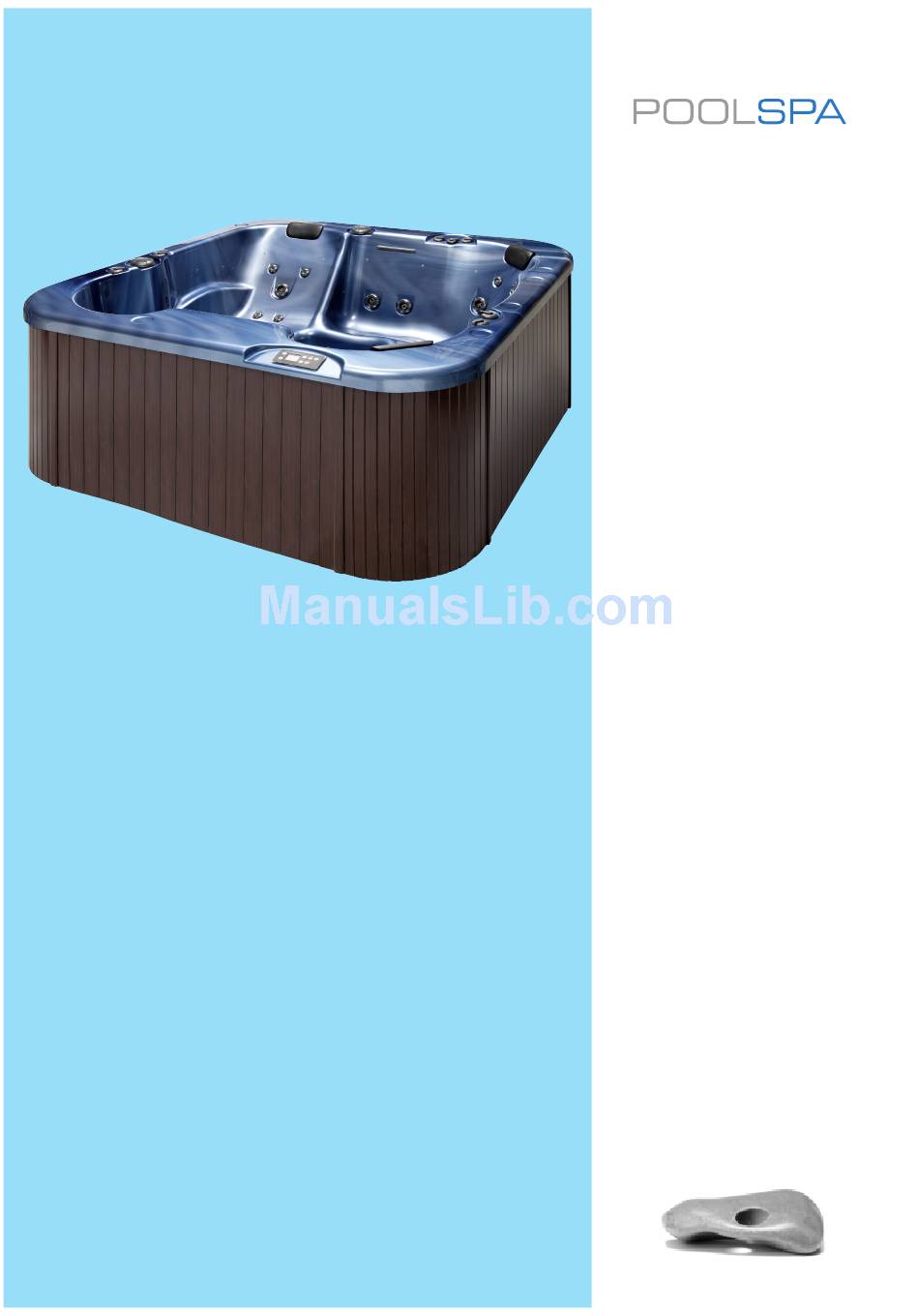

  • Page 1 SPA Bath LAGUNA SPA 213 x 213 Installation and user manual...
  • Page 2 Dear customers, Thank you for trusting us and buying our product! The POOL-SPA company, one of the leaders in the European hydromassage bath market, has been offering its world class quality products for many years. The endurance, reliability and safety of our baths has always been of greatest importance to us;...

  • Page 3: Table Of Contents

    1.6. Massage ......................... 30 1.7. Colourful led spotlight/multi-point led light (optional) ............31 1.8. Water ozonizing ......................32 1.9. Laguna SPA filtration system ..................32 1.10. Disinfection ........................33 1.11. Measurement and treatment formula set ..............33 1.12. Thermal cover (additional optional) ................35 1.13.

  • Page 4: Introduction

    Introduction In order to be able to fully use all functions of a SPA Laguna, please read all sections of this manual. You should remember that despite the therapeutic and relaxing function of a hydromassage treatment, seriously ill persons or persons suffering from heart disorder diseases or high blood pressure need to consider special conditions created inside the SPA baths and consult their physician before using such baths.

  • Page 5: Part 1 - Instruction Manual

    PART 1 - INSTRUCTION MANUAL Congratulations on buying a portable SPA Laguna! Hydromassage in the SPA Laguna can be enjoyed by even 5 people both outside the building and inside a large bathroom. The bath is equipped with an ozonator which makes it easier to keep the water clean and is very effective in beauty treatment.

  • Page 6: Technical Specification

    1.1. TECHNICAL SPECIFICATION 2130 SPA Laguna dimensions: - length: 2130 mm - depth: - height: mm +/- 20 mm Capacity: 1100 litres Weight: (empty bath) with panel and cover Material and construction: Acrylic strengthened by laminated polyester on an aluminum frame. Voltage: 3N 400V 50Hz, 3N 400V~, 50 Hz (option)

  • Page 7: Jets

    1.2. JETS SPA LAGUNA is equipped with an innovative jet system. Jets Number Photo fixed mini jets (A) 6 pcs. fixed mini jets (B) 8 pcs. fixed mini ozone jet (K) 1 pcs. large fixed jets (C) 3 pcs. large whirlpool jets (D) 4 pcs.

  • Page 8: Conservation Substances

    All jets are controlled. The hydromassage can be intensified by turning the jets in a clockwise direction (about 90°), and an anti-clockwise direction decreases hydromassage intensity and eventually closes the jets. Replacement of jet inserts with identical diameters. Grasp the jet insert firmly and turn it counter clockwise until the insert starts to move out slowly and remove the insert from the holder.

  • Page 9: User Interface And Programming Reference

    1.5. USER INTERFACE AND PROGRAMMING REFERENCE. Laguna SPA control panel 1.5.1. THE MAIN SCREEN Spa Status The main screen shows the most important information on the operation of the SPA bath. The screen allows the user to access the main features such as temperature adjustment. The current water temperature is displayed in the screen in large characters with the “Set temperature”...
  • Page 10 On the right side of the screen, the menu selections can be selected with the Up and Down Buttons. Use the Select Button to choose an item. Selecting one of these items will change to a different screen with additional controls.
  • Page 11 Shortcuts Jets 1 Jets 2 Back Light Ready in Rest Mode Heating Jets 3 1.5.3. THE SETTINGS SCREEN The Settings Screen is where all programming and other spa behaviors are controlled. This screen has several features that can be acted on directly. These features include Temp Range, Heat Mode, and Invert Panel.
  • Page 12 Filter cycles If the SPA bath has been configured for a 24-hour circulation, the heat pump will run continuously. As the filtration pump is always on, the system will maintain the required water temperature in the Ready mode and it will heat it if required. In the Rest mode the bath will heat water until the desired temperature is reached during the programmed filtration cycles only.
  • Page 13 1.5.5. SPA BEHAVIOR! Pumps On the Spa Screen, select a “Jets” button once to turn the pump on or off, and to shift between low- and high- speeds if equipped. If left running, the pump will turn off after a time-out period. The pump 1 low-speed will time out after 30 minutes.
  • Page 14 1.5.7. ADJUSTING FILTRATION Main Filtration Using the same navigation and adjustment as Setting the Time, Filter Cycles are set using a start time and a duration. Each setting can be adjusted in 15-minute increments. The panel calculates the end time and displays it automatically.
  • Page 15 Lock 102°F High Range Settings Back Panel Set: 104°F Unlock 8:32 PM Ozone Filter 1 Ready in Rest Mode Heating To release the lock, go to the [Lock] screen and the [Settings] field and use the navigation buttons in the following order: Utilities The Utilities Menu contains the following:...
  • Page 16 1.5.10. INFORMATION System Information System Information The System Information Menu displays various settings and Software ID (SSID) identification of the particular system. As each item in the menu Back System Model is highlighted, the detail for that item is displayed at the bottom Current Setup of the screen.
  • Page 17 Flow-Related Checks Check for low water level, suction flow restrictions, closed valves, trapped air, too many closed jets and pump prime. On some systems, even when spa is shut down by an error condition, some equipment may occasionally turn on to continue monitoring temperature or if freeze protection is needed. M0XX numbers are Message Codes.
  • Page 18 1.5.16. REMINDER MESSAGES General maintenance helps. Reminder Messages can be suppressed by using the Preferences Menu. Reminder Messages can be chosen individually by the Manufacturer. They may be disabled entirely, or there may be a limited number of reminders on a specific model. The frequency of each reminder (i.e. 7 days) can be specified by the Manufacturer.
  • Page 19 1.5.18. MUSIC SYSTEM (OPTION) To work correctly with the music system, the source device must have the following characteristics: • Communication protocol: 2.1 Bluetooth® or previous version. • Profile: A2DP, AVRCP. • Band frequency: 2.4GHz • Capacity (range of action): Class 2 – 10m •...
  • Page 20 1.5.19. CONTROL YOUR HOT TUB FROM YOUR SMARTPHONE (OPTION) The Balboa Worldwide App (bwa™), is an app for your smart device (Android™ or iPhone®) that allows you to access your hot tub via a direct connection anywhere in the local proximity of your tub, anywhere in your house that you can connect to your local Wi-Fi network, or anywhere in the World you have an Internet connection to your smart device via 3G, 4G, or Wi-Fi hot spots.
  • Page 21 Once you are connected to the BWG Spa network, start the bwa app and follow the prompts on the screen. (Your start screen maybe different.) Press the bwa button. Connect to the spa. When connected, you will be You are now directly taken to the main screen.
  • Page 22 On the next screen, you will select the Advanced button to set up your Wi-Fi network settings SETTINGS SCREEN ADVANCED SETTINGS THE WI-FI SCREEN The Settings screen Now select the Wi-Fi On the Wi-Fi screen you can If you have a router that allows you to select the Settings button, to select use the drop down menu to...
  • Page 23 CONFIGURATION IN iOS SYSTEM Type in the Service Set Then select the Key text Now you will save the SSID You may need to go to your Identifier (SSID) this is box to enter your password & password to the hot tub settings and connect to your the name of your wireless if you have one.
  • Page 24 You can now turn on your If you want to control your Depending on your On iOS devices, you will see pumps & lights by pressing tub away from your local coverage and data speed, a Back Button that you will the Controls button.
  • Page 25 BASIC OPERATION THE TEMPERATURE CAN BE OCCASIONALLY, YOU MAY TURN ON ANY PUMP WATER TEMPERATURE DISPLAYED IN °F OR °C SEE A - - - DISPLAYED AND LET IT RUN The temperature of the You can change the default This is normal if the The system will display water is displayed.
  • Page 26 MAIN PUMP AND ALL OTHER MAIN PUMP IS ON - MAIN PUMP AND HEAT ER PUMPS ARE OFF NOT HEATING STATUS The main pump is on and The icon is dark and is not The icon is blue/aqua and is the heater is on.
  • Page 27 AS YOU PRESS THE BUTTONS, THE YOU CAN TURN THE ICONS MAY CHANGE COLORS, CHANGE DEVICES ON/OFF BY PRESSING THE BUTTONS PICTURES, ETC. AS AN INDICATION OF OF THE EQUIPMENT YOU THE EQUIPMENT BEING ON/OFF, LOW/ WANT TO CONTROL HIGH SPEEDS, HEATING , ETC. Depending on your connection (local or cloud) and coverage / data...
  • Page 28 SETTINGS - ANDROID™ DEVICES SETTINGS - iOS™ DEVICES The Settings screen allows Toggle the buttons to Slide the bar to set the Slide the buttons to change you to select the change the temperature temperature you want the the temperature between Fº temperature of the spa, between Fº...
  • Page 29 USE YOUR DEVICE’S THE SYSTEM WILL SETTING DURATION TIME WHEEL TO SET THE AUTOMATICALLY CALCULATE DURATION THE END TIME Follow the same process if you are setting up Filter Cycle 2. Use the back/return key (Android™) or the Back button (iOS®) or to return to the main app screen.

  • Page 30: Massage

    1.6. MASSAGE There are water and air massage systems installed in the bath: 1.6.1. Hydromassage (whirl bath) Hydromassage is the pressure on defined muscles exerting by stream of water or stream of air and water. Water or air and water at high pressure bring out from regulated jets and hit on body surface. It tones and relaxes the skin, at the same time massaging and cleaning it.

  • Page 31: Colourful Led Spotlight/Multi-Point Led Light (Optional)

    SECTION 4 SECTION 4 + SECTION 5 + SECTION 6 SECTION 5 + SECTION 6 GEYSER GEYSER + SECTION SECTION SECTION SECTION SECTION SECTION Hydromassage zones 1.6.2. Airmassage (pearl bath) In air massage, heated air is pumped into water by a blower. Millions of bubbles come from the perforated bath bottom, actively relaxing the body.

  • Page 32: Water Ozonizing

    - prevents the smell of chlorine as well as skin and eye irritation (including eye redness) - is more environmentally-friendly than traditional methods. Ozonation and the UV lamp work only during filtration. 1.9. LAGUNA SPA FILTRATION SYSTEM SPA LAGUNA filtration system comprises: The system is composed of the following elements:...

  • Page 33: Disinfection

    Filter replacement 1. Tilt the hatch towards the inside of the bath, 2. Remove element B, 3. Remove filter C, and subsequently D, 4. Insert new filters in the opposite order - i.e. D and C. 5. Place element B in the rails of the skimmer cover. Recommended: Skimmer filter elements Rinsing every 2 days...
  • Page 34 Start set: test container and DPD and Phenolred tablets If the measured pH is outside the range 7,2 to 7,6 it will be necessary to use SPA Laguna granules to correct the pH value. 1. Dinominus - pH decreasing granules. Dosage: about 10 g/1000 litres to lower pH by 0.1 (in case of Laguna: 10g).

  • Page 35: Thermal Cover (Additional Optional)

    1.12. THERMAL COVER (ADDITIONAL OPTION) The SPA Laguna can be optionally provided with a thermal cover. When is it necessary to have a thermal cover? - when the bath is going to be used outdoors, i.e. in a garden (the cover prevents the water from excessive cooling down and keeps the bath clean), - when the bath is going to be used very frequently indoors (the cover...

  • Page 36: Part 2 - Installation Manual

    1900 kg. 2.4. PREPARATION OF ELECTRICAL AND WATER CONNECTIONS Laguna SPA requires at most ca. 7,8 or 10,8 kW of power, depending on configuration. In both cases, the minimum cross-section of the cord should be at least 5x4 mm .

  • Page 37: Grounding Cable Connection

    The SPA tub should be connected to the building’s electrical wiring permanently. The electrical wiring should be equipped with the appropriate manual cut-off mechanism, enabling the opening of contacts on each power supply pole. In addition, equipotential bondings must be made using the clamp located on the tub support frame.
  • Page 38 Zone 1 Zone 1 Zone 0 Zone 3 Zone 3 0,6 m 0,6 m Zone 3 Location of protection zones Water connection 1/2” for water filling Sewage connection 50 mm 0V electric connection with kW efficiency protected 5x4 mm Location of SPA Laguna connections...

  • Page 39: Test Run

    2.8. SERVICE VALVE In Laguna spa there are four gate valves, which shut off the water supply to the pump and heater. If valves are closed, they provide overhaul, repair or even replacement of equipment in a spa filled with water.

  • Page 41: Warranty Terms

    Social Care of 4 May 1990, Polish Journal of Laws No. 35. 8. This warranty shall be null and void if the sale of the LAGUNA SPA bath is not confirmed by the seller with a signature, seal and a date of sale in the warranty card included in the Polish version of this manual.

  • Page 43: Technical Product Sheet

    TECHNICAL PRODUCT SHEET MODEL, FITTINGS Laguna SPA FACTORY NUMBER DATE OF PRODUCTION AND TESTING NOMINAL POWER REQUIREMENTS FUSING REQUIREMENTS VOLTAGE / FREQUENCY THERMAL PROTECTION QUALITY CONTROL...
  • Page 44 ROCA POOL-SPA Sp. z o.o. ul. Wyczółkowskiego 20, 44-109 Gliwice tel. + 48 32 339 41 00 www.roca.pl, e-mail: infolinia@roca.pl ROCA POOL-SPA company has the policy of constant improvement of products and reserves the right to introduce changes to the specification and colours without a prior notification.
