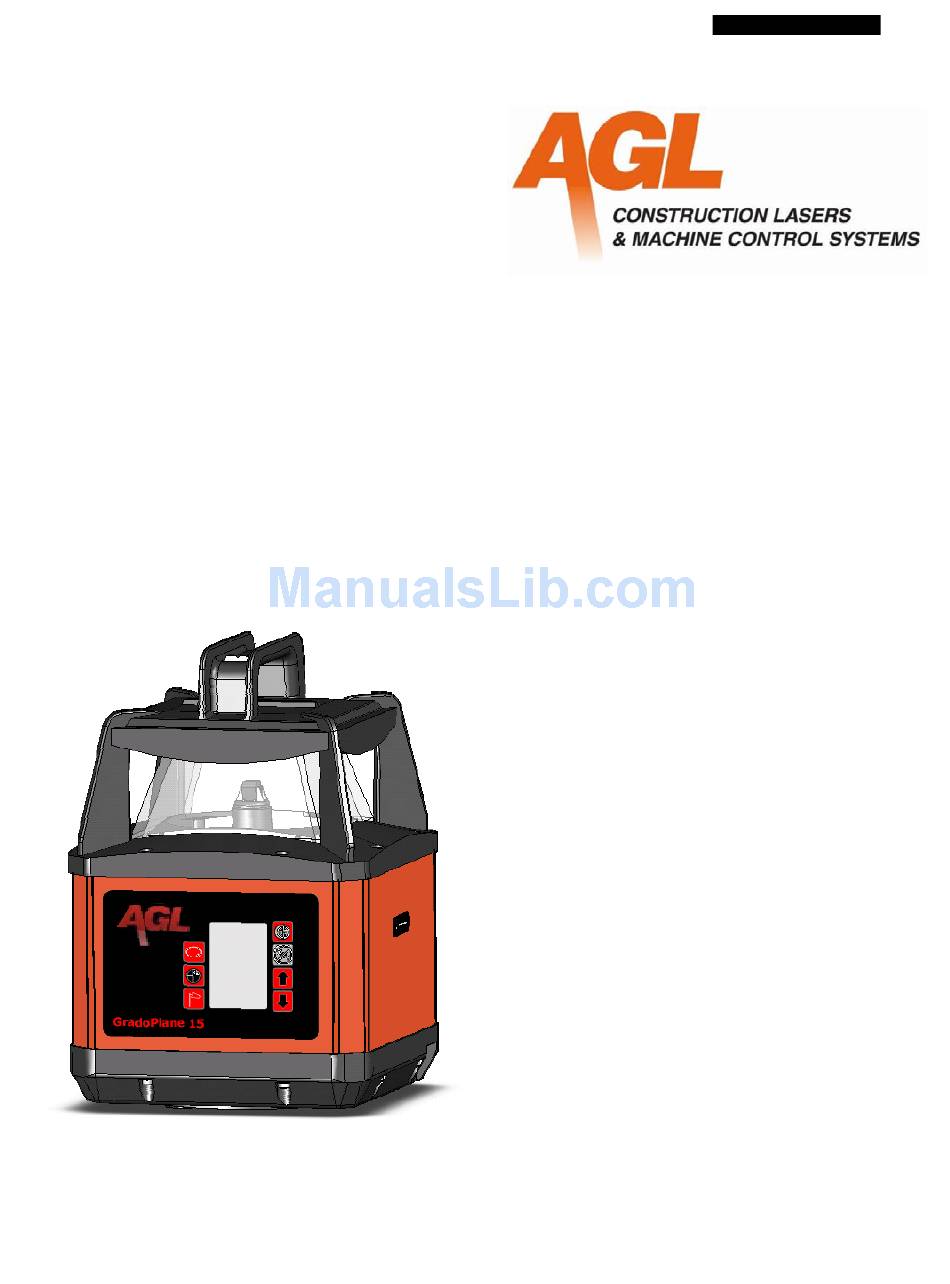

- Page 1 GradoPlane 15 Operator’s Manual Operation Instructions Mode d’emploi Istruzioni per l‘uso...
-
Page 2: Table Of Contents
Content General information................... 3 Safety information ..................... 4 FCC Warning..................... 5 Charging the instrument ..................6 Keypad: ......................7 Indications in the display: .................. 7 Starting up the instrument ................. 8 Entering a grade....................8 Tilt Function....................... 9 Rotation speed ....................9 Mask mode...................... -
Page 3: General Information
600 and 800 RPM. The GradoPlane 15 instrument is waterproof and can be used outside in the elements. An optional radio remote control is offered that can work all functions of the laser and has the same display as the laser instrument. -
Page 4: Safety Information
Safety information Laser Safety The GradoPlane 15 laser instrument is a class 2M laser according to EN 60825- 1:2007. Follow the instructions on the warning labels which are shown in the following illustration: GradoPlane 15: 635nm, P ≤ 1mW Laser Class 2M (IEC 60825-1 2007) Do not remove the attached warning labels. -
Page 5: Fcc Warning
INFORMATION TO USER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 6: Charging The Instrument
Charging the instrument The GradoPlane 15 laser has integrated rechargeable batteries. Connect the charger to an AC outlet and attach the plug at the charge socket. The battery symbol in the display is shown while the charging procedure is active. -
Page 7: Keypad
Keypad: ON-OFF Switch Change the rotation speed of the laser Masking mode, turns off the laser beam in the selected sectors Wind sensitivity, decreases the sensitivity against vibrations, in the Display MRS (motion resistant system) is shown Enters a grade in X and Y direction: X/Y button press once for X direction, press again for entering the Y value Indications in the display:... -
Page 8: Starting Up The Instrument
Starting up the instrument Place the instrument on a tripod in a horizontal position. Turn the laser on with the Power Button button.. In the display a flashing level bubble is shown as long as the laser is self levelling. When this is finished the symbol turns off. The actual rotation speed and the battery condition are shown in the display. -
Page 9: Tilt Function
Tilt Function in grade mode If the laser while working with grades is tilted or disturbed the laser will stop and in the display the failure symbol will flash. By pressing the X/Y and rotation button for 2 seconds at the instrument or the remote control the levelling will be done again and the laser will again start to work. -
Page 10: Manual Mode
Manual Mode To use the instrument also for larger grades , e.g. roofs, it is possible to switch off the automatic levelling. To activate this manual mode press and hold the on button for at least 2 seconds. The display shows the 2 Sec hand symbol. -
Page 11: Special Functios
Special functions: The following functions can be adjusted in the GRADOPLANE 15: - Maximum rotation speed - Change of the communication channel - Grade enter in percent or per mill Menu GRADOPLANE 15: (Info -and Adjustment menu) Buttons pressed for 5 Seconds. -
Page 12: Remote Control Menu
Menu remote control: To change the function in the remote control hold the arrow down key button pressed and then press the arrow up key multiple (as described below): + 3 x Serial number: Display e.g. 135350 + 4 x Software Version: Display e.g. -
Page 13: Checking The Calibration
Checking the calibration The laser instrument should be checked, like all measure instruments, before use. The inspection can be carried out most easily by doing a reverse measurement. Therefore do the following steps: Set up the instrument onto a stable fixing. Turn the laser on and let it level. -
Page 14: Positions Of Laser Warning Labels
Positions of laser warning labels [JCS1] [JCS2]... -
Page 15: Specifications
Specifications: GRADOPLANE 15 : Laser Diode: 635nm Laser class: 2M (IEC60825-2007) Levelling range: ± 5° Grade range: grade ± 10% in X and Y direction Working range: 1500 ft (450m) Accuracy: ± 1/16” @ 100’ or 10 arc sec (± 4,8 mm @ 100m) at 68°F (20°C) -
Page 16: Warranty And Service
You have received a CE marked product that was checked in our works. In case of any claims please contact your AGL dealer or AGL Construction Lasers directly. In case of own attempts of repair as well as detectable improper treatment the claim for warranty is invalid.
