- Page 1 Clare Video Doorbell Version 2 User Manual...
-
Page 3: Table Of Contents
Index Doorbell buttons and features ................3 What’s included in the box ..................4 Clare Video Doorbell power requirements ..........5 Wi-Fi signal strength requirements ..............6 Getting started ......................7 Preparing the Video Doorbell for wall mounting ........8 Connecting power to the Video Doorbell ........... -
Page 4: Doorbell Buttons And Features

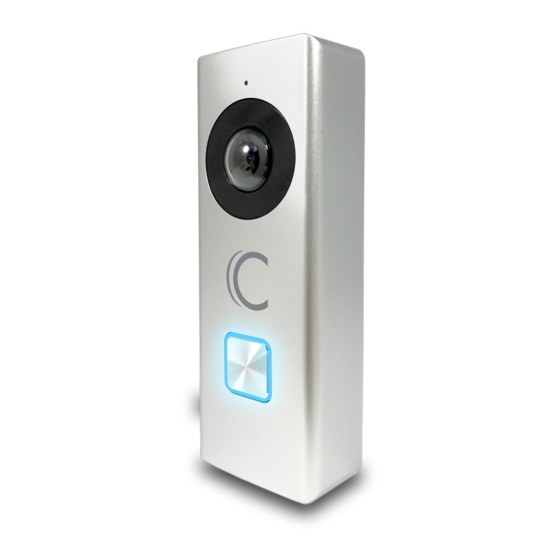

Welcome To Your New Clare Getting Started Video Doorbell Omni-directional Microphone 180º 2MP HD Camera Uses Existing Doorbell Wiring Mode Button Doorbell Button Micro-SD card... -
Page 5: What's Included In The Box
Check Out What’s Included Getting Started In The Box. Clare Video Mounting 4 Interchangeable Wedge and spacer Doorbell camera faceplates template 2 Wire extensions 3 Mounting 3 Wedge or 4 Terminal 2 Security screws spacer screws screws screws 3 Wall anchors 4 Wire connectors 1 Resistor 1 Drill bit... -
Page 6: Clare Video Doorbell Power Requirements
Clare Video Doorbell Getting Started Power Requirements The Clare Video Doorbell will work with mechanical and digital doorbells that use 16-24VAC power only. NOTE: If you are unsure what voltage your doorbell uses, please consult your original doorbell packaging or a licensed electrician. Mechanical Digital FRONT... -
Page 7: Wi-Fi Signal Strength Requirements
Wi-Fi Signal Strength Getting Started Requirements The Clare Video Doorbell can only be connected to a 2.4GHz wireless network, and requires a minimum of -60dBm of Wi-Fi signal strength at the installation location. We recommend downloading a Wi-Fi analysis tool for your phone or tablet to check signal strength. -
Page 8: Getting Started
Getting Install Step 1 Started Before starting installation, make sure to shut off the power being supplied to your doorbell at the breaker panel. Diagram 1 Next, remove your existing doorbell and disconnect the wires connected to the screws on the back. -
Page 9: Preparing The Video Doorbell For Wall Mounting
Preparing The Video Doorbell Install Step 2 For Wall Mounting Remove the faceplate attached to the Video Doorbell to access the mounting holes used for installation. Refer to diagram 2 on how to easily remove the faceplate. Diagram 2 Next, refer to diagram 3 to mount the supplied spacer or wedge plate to the doorbell location using the supplied wedge or spacer mounting screws. -
Page 10: Connecting Power To The Video Doorbell
Connecting Power To The Install Step 3 Video Doorbell Next, refer to diagram 4 to connect your existing doorbell wiring to the leads located on the back of the Video Doorbell. If your existing wiring is not long enough, follow the instructions below to extend your wiring. -
Page 11: Mounting The Video Doorbell And Restoring Power
Mounting The Video Doorbell Install Step 4 and Restoring Power Once wiring is complete, install the doorbell using the supplied mounting screws. Required Wedge or hardware spacer screws Diagram 6 Diagram 6 Restore the power at the breaker and follow the instructions for setting up the Video Doorbell in the ClareVision Plus App. -
Page 12: Installation When Using A Digital Doorbell Chime
Installing The Supplied Resistor Optional Step • The resistor must be used when installing the Video Doorbell with a digital doorbell chime. • The resistor can also be installed when using a mechanical chime to eliminate potential doorbell buzzing. A resistor must be installed on the leads of the chime for proper operation. -
Page 13: Getting Started With The Clarevision Plus App
Getting Started With The ClareVision Plus App Step 1 Download and open the ClareVision Plus App for iOS and Android. After opening the App, tap on the cloud device icon on the bottom menu bar and follow the on-screen instructions to create a new account. -
Page 14: Setting Up The Video Doorbell In The Clarevision Plus App
Setting Up The Video Doorbell Step 2 In The ClareVision Plus App The camera is ready to configure once the LED on the front of the doorbell is solid red. For troubleshooting and LED status see page 16. Tap the cloud device icon in the bottom menu, and then tap icon in the top right corner to add your doorbell. -
Page 15: Setting Up The Video Doorbell In The Clarevision Plus App
Setting Up The Video Doorbell In The ClareVision Plus App Step 3 Tap on the generated QR code to enlarge it, then hold your mobile device 4-6 inches from the lens of the doorbell. The doorbell will scan the QR code on the screen of your mobile device. The Doorbell will beep when it recognizes the QR code. -
Page 16: Installing The Faceplate And Restoring Power
Installing The Faceplate Done! and Security Screw After the Video Doorbell has been installed, reinstall the faceplate by pressing gently until it clicks into place. Refer to diagram 6 to install the security set screw located on the bottom of the doorbell faceplate. Required Security hardware... -
Page 17: Troubleshooting And Light Status
Troubleshooting & Light Status Factory Reset Press and hold the Mode button for up to 15 seconds or until the device says “Your device is rebooting”. This will factory reset your Clare Video Doorbell camera to default settings. (You can only factory reset the doorbell after it has been connected to a Wi-Fi network. -
Page 18: Configuring The Motion Detection Area
Configuring The Motion Detection Area By default, the Clare Video Doorbell is set to record the full field-of- view of the camera. In certain situations, some objects may trigger an undesired amount of notifications. Follow the below steps to adjust the motion detection area of the doorbell. -
Page 19: Adjusting The Sensitivity Of The Motion Detection Area
Adjusting Sensitivity of The Motion Detection Area You can also adjust how sensitive the doorbell detects motion by changing the sensitivity settings under the Alarm Notification menu. Low Sensitivity: Notifications from people or large moving objects Medium Sensitivity: Notifications from pets or medium moving objects High Sensitivity: Notifications from insects... -
Page 20: Using The Clarevision Plus App
Using the ClareVision Plus App Live and Recorded Video Settings 2-Way Audio Take Photo Take Video HD/Basic Video Live View Configuration Stop/Start Volume Camera View Zoom Main Menu Settings Back Settings Add Device Gallery... -
Page 21: Frequently Asked Questions
The Clare Video Doorbell is IP54 rated for direct rain and water. It is not recommended to pressure wash the doorbell. Warranty Clare Controls offers a three (3) year limited warranty on original Clare Controls components, from the date of shipment from Clare Controls. To view complete limited warranty details, including limitations and exclusions, visit www.clarecontrols.com/warranty. -
Page 22: Customer And Technical Support
We’re Here To Help! Clare Support is here to assist and help answer questions 6 days a week. You can also visit www.ClareControls.com to learn more and watch helpful installation setup videos. ClareCare Support: US: 941.315.2273 (CARE) Canada: 844.360.4816 help@clarecontrols.com Dealer Technical Support US: 941.404.1072 Canada: 844.360.4806... - Page 24 www.clarecontrols.com Doc ID: 2017-11-1563-07...
