Winston Industries CA8522 Owner's Manual

Ca85 series cook & hold cabinet
Hide thumbs Also See for CA8522:

Advertisement

Quick Links

Download this manual
COOK & HOLD CABINET
Owner's Manual
CA85 Series
CA8509
CA8522
DOC080408B Rev8 wp 10-18-17

Advertisement

loading
Need help?

Need help?

Do you have a question about the CA8522 and is the answer not in the manual?

Questions and answers

Related Manuals for Winston Industries CA8522

Summary of Contents for Winston Industries CA8522

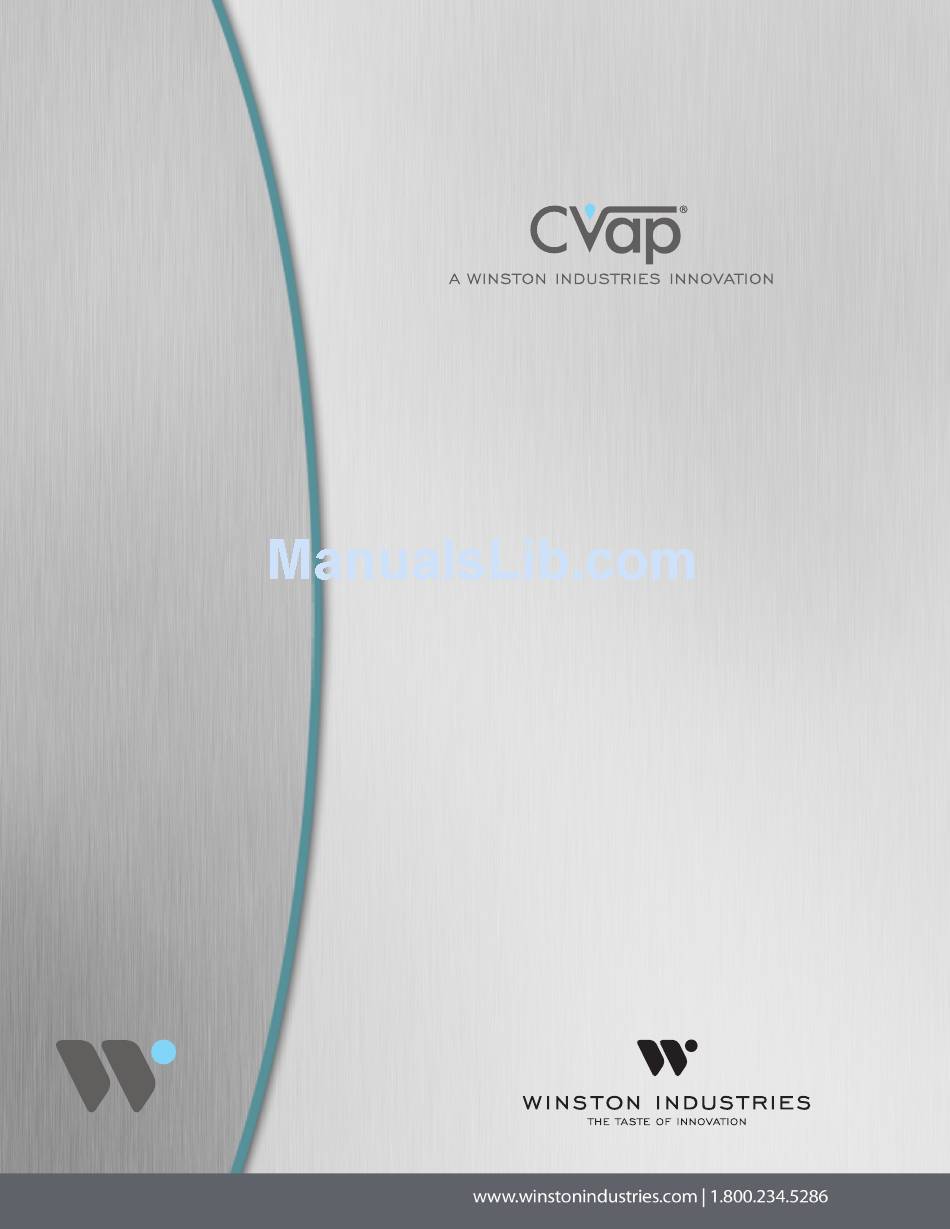

  • Page 1 COOK & HOLD CABINET Owner’s Manual CA85 Series CA8509 CA8522 DOC080408B Rev8 wp 10-18-17...
  • Page 2 – Winston Shelton Copyright© 2017 Winston Industries, LLC. All rights reserved. CVap is a registered trademark of Winston Industries, LLC. The CVap logo is a trademark of Winston Industries, LLC. All other company and product names may be trademarks of their respective companies.
  • Page 3 Failure to follow proper cleaning procedures can void your warranty. Models CA8509, CA8522 Email customerservice@winstonind.com • Phone 1.800.234.5286 | 1.502.495.5400 | 1.502.495.5458 • Mail 2345 Carton Drive | Louisville, KY 40299 USA...
  • Page 4 1. Retain Damaged Items - The damaged items, shipping cartons, and all inner packing materials must be held in the receiving area until a carrier representative inspects them or waives the opportunity to inspect. Models CA8509, CA8522 www.winstonfoodservice.com | 1.800.234.5286...

  • Page 5: Ventilation Requirements

    Check local health and fire codes for specific requirements. CAUTION: Corrosion Hazard – Can cause damage to equipment. Clean equipment daily to avoid corrosion damage. Models CA8509, CA8522 Email customerservice@winstonind.com • Phone 1.800.234.5286 | 1.502.495.5400 | 1.502.495.5458 • Mail 2345 Carton Drive | Louisville, KY 40299 USA...
  • Page 6 20 and 150 psi ARE NOT COVERED UNDER WARRANTY. This unit is to be (1.4 Kgf/cm2 to 10.5 Kgf/cm2 (kilogram-force installed to comply with the applicable federal, state, per sq. centimeter)). or local plumbing codes. Models CA8509, CA8522 www.winstonfoodservice.com | 1.800.234.5286...
  • Page 7 US/CAN 6-50P 23.7 7716 US/CAN 15-30P 32.2 7716 US/CAN 6-50P Not available for the international market at this time. Models CA8509, CA8522 Email customerservice@winstonind.com • Phone 1.800.234.5286 | 1.502.495.5400 | 1.502.495.5458 • Mail 2345 Carton Drive | Louisville, KY 40299 USA...

  • Page 8: Component Identification

    Note: Equipment shown with optional rail supports. important for servicing and parts orders. Plate also Standard unit comes with wire rack supports. displays electrical data. Model shown is CA8522. Highlighted features are common to all models. Models CA8509, CA8522 www.winstonfoodservice.com | 1.800.234.5286...
  • Page 9 Short Press - Press button, hold for less than 1 second. Long Press - Press button, hold for more than 1.5 seconds. Models CA8509, CA8522 Email customerservice@winstonind.com • Phone 1.800.234.5286 | 1.502.495.5400 | 1.502.495.5458 • Mail 2345 Carton Drive | Louisville, KY 40299 USA...
  • Page 10 A. Turn Power Switch on. IDLE will display on the LED Refer to guidelines on pages 14 through 16. readout until operator selects mode. Note: Unit will not preheat until program button is selected. Models CA8509, CA8522 www.winstonfoodservice.com | 1.800.234.5286...
  • Page 11 A Hold A Hold A Hold A Hold A Hold CnST CnST CnST CnST CnST CnST CnST CnST Models CA8509, CA8522 Email customerservice@winstonind.com • Phone 1.800.234.5286 | 1.502.495.5400 | 1.502.495.5458 • Mail 2345 Carton Drive | Louisville, KY 40299 USA...
  • Page 12 NO HOLD cycle. NOTE: This also activates the selected channel. egg timer. To cancel cycle, depress channel button. Start/Stop button is non-functional in this mode. H. Make sure evaporator has full load of water. Models CA8509, CA8522 www.winstonfoodservice.com | 1.800.234.5286...
  • Page 13 Press the HACCP button a third time for total water and air temperature. Models CA8509, CA8522 Email customerservice@winstonind.com • Phone 1.800.234.5286 | 1.502.495.5400 | 1.502.495.5458 • Mail 2345 Carton Drive | Louisville, KY 40299 USA...
  • Page 14 (e.g., pulled pork ribs), large proteins and combination foods (e.g., casseroles), vegetables 190110 (fresh, frozen, canned), and desserts (e.g., individual cookies, rolls, pies, cakes). Retherm (minutes) Thawed 12-30 Frozen 30-70 Hold Auto Moist Hold Food Temp 150˚F (66˚C) Food Texture 160˚F (71˚C) Models CA8509, CA8522 www.winstonfoodservice.com | 1.800.234.5286...
  • Page 15 Baked potatoes or casseroles. Rapid Retherm Retherm (minutes) Thawed 15-40 Frozen 30-90 No Hold. Remove product when Retherm cycle is completed. Models CA8509, CA8522 Email customerservice@winstonind.com • Phone 1.800.234.5286 | 1.502.495.5400 | 1.502.495.5458 • Mail 2345 Carton Drive | Louisville, KY 40299 USA...
  • Page 16 Food Temp 150˚F (66˚C) Food Texture 180˚F (82˚C) Channel 8 Menu Holding of foods with moist/firm texture. General Holding Retherm (minutes) Thawed - Constant Frozen - Constant General Hold Food Temp 150˚F (66˚C) Food Texture 180˚F (82˚C) Models CA8509, CA8522 www.winstonfoodservice.com | 1.800.234.5286...
  • Page 17 • Time and temperature settings are recommended guidelines only. Due to variations in the products’ quality, weight, and desired degree of doneness, the cooking times may need to be adjusted accordingly. Models CA8509, CA8522 Email customerservice@winstonind.com • Phone 1.800.234.5286 | 1.502.495.5400 | 1.502.495.5458 • Mail 2345 Carton Drive | Louisville, KY 40299 USA...

  • Page 18: Daily Cleaning

    Leaks directions listed on descaling agent package. caused by corrosion, which is caused by a failure to clean daily, are not covered under the manufacturer's warranty. Models CA8509, CA8522 www.winstonfoodservice.com | 1.800.234.5286...
  • Page 19 8. Rinse, dry, and replace rack supports. 9. Verify that valve is closed. 10. Reconnect equipment to electrical power and make ready for use. Models CA8509, CA8522 Email customerservice@winstonind.com • Phone 1.800.234.5286 | 1.502.495.5400 | 1.502.495.5458 • Mail 2345 Carton Drive | Louisville, KY 40299 USA...
  • Page 20 Please have the following information on hand when contacting Winston Industries regarding product service. Model Serial # (located on name plate) Your name...

  • Page 21: Troubleshooting

    Injury or accident - call manufacturer ..............Administer first aid. If necessary, call 911 for emergency assistance. Then contact Winston at 1.800.234.5286 Models CA8509, CA8522 Email customerservice@winstonind.com • Phone 1.800.234.5286 | 1.502.495.5400 | 1.502.495.5458 • Mail 2345 Carton Drive | Louisville, KY 40299 USA...
