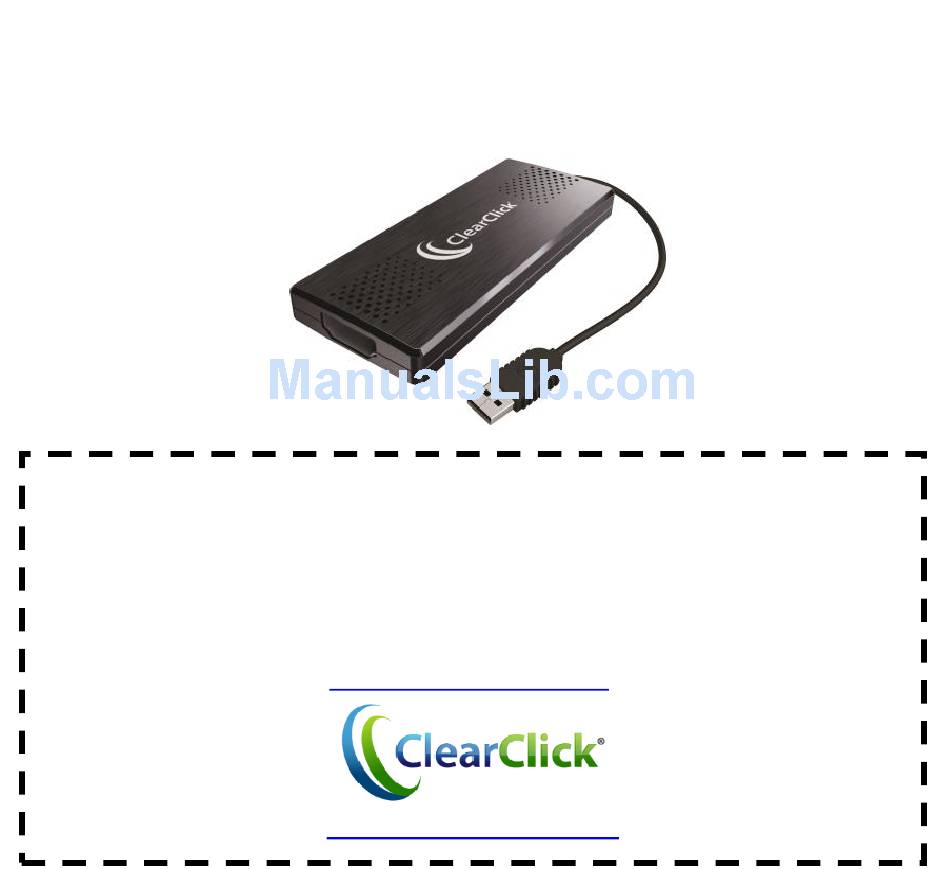

ClearClick HD Video Capture Stick Quick Start Manual

720p/1080p
Hide thumbs

Advertisement

Quick Links

Download this manual
®
ClearClick
720p/1080p
™
HD Video Capture Stick
Full 1-Year Warranty &
Free USA-Based Tech Support
This product comes with ClearClick®'s full 1-year warranty & free
USA-based tech support. As a small business, we're here to serve you!
If you have any issues with our product, please contact us at
support@clearclick.tech.
www.ClearClick.tech

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD Video Capture Stick and is the answer not in the manual?

Questions and answers

Related Manuals for ClearClick HD Video Capture Stick

Summary of Contents for ClearClick HD Video Capture Stick

  • Page 1 Full 1-Year Warranty & Free USA-Based Tech Support This product comes with ClearClick®’s full 1-year warranty & free USA-based tech support. As a small business, we’re here to serve you! If you have any issues with our product, please contact us at support@clearclick.tech.
  • Page 2 Full 1-Year Warranty & Free USA Tech Support We’re ClearClick®, a small business based in California. We try to provide the best experience possible with our products. We provide free USA-based tech support for our products. All of our products also come with a full 1-year warranty.

  • Page 3: Table Of Contents

    Table of Contents What’s In The Box ..............3 Windows Quick Start Guide ..........4 Macintosh Quick Start Guide ..........14 Live Streaming with XSplit Software on PC ....... 20 Live Streaming with OBS Software on PC or Mac ....27 Tech Support &...

  • Page 4: What's In The Box

    What’s In The Box? a. HD Video Capture Stick™ b. HDMI Cable c. Micro USB Cable d. User’s Manual e. Software/Driver CD f. USB To Type C Adapter (for Mac) Part missing or broken? Please email us at parts@clearclick.tech and we’ll be happy to help you out!

  • Page 5: Windows Quick Start Guide

    & drivers. Continue through the installation. The DXPlayer setup program will automatically install the drivers for the HD Video Capture Stick™. If you receive the “Windows Security” message as shown on the next page, click the “Install” button.
  • Page 6 2. Plug In Your HD Video Capture Stick™ Locate the included micro USB cable and plug the small end of it into...
  • Page 7 HD Video Capture Stick™ (see [1] in diagram on previous page). Plug the other end of the cable into your computer. Next, connect your HDMI video source to the HDMI port on the HD Video Capture Stick™ (see [2] in diagram on previous page).
  • Page 8 3. Open & Register DXPlayer Software Run the DXPlayer software on your computer: When you first run the software, DXPlayer will prompt you to register the software using your name, email, and registration code. (We recommend doing this immediately, because without registering the software, the recording time is limited to 10 minutes.)
  • Page 9 4. Start Recording Video! If a live signal is coming from your HDMI video source, you will see a live video preview in the DXPlayer software.
  • Page 10 To start recording, click the record button. To stop recording, click the stop button. To pause recording, click the pause button. To capture a frame (take a still photo) of your video, press the screenshot button.
  • Page 11 To play back recorded clips, first press the folder icon at the bottom of the screen. Then press the play button next to the file you’d like to view. Or to open the folder that contains the clip, press the folder button next to the clip’s name.
  • Page 12 To schedule recording for a certain time, use the “Schedule Recording” feature. (Accessible through the settings section.) You can have the software start recording at a certain time for a set amount of time. You may have the software do this once or repeat every day.
  • Page 13 In the “Setup” window, you can adjust various settings for the DXPlayer software. For an explanation of all the settings, please see the next page.
  • Page 14 Video Resolution: Sets the recording resolution. 1080p, 720p and 480p are available. Video Bitrate: Sets the quality of recording. High, Mid, Low are available. Video Render: Sets the video rendering technology. Video Mix Render9 and Internal YUV Render are available. Audio Render: Sets the audio rendering technology.

  • Page 15: Macintosh Quick Start Guide

    1. Install Software & Drivers Insert the installation CD into your Mac. (If your Mac doesn’t have a CD drive, please contact us at support@clearclick.tech for a download link.) Browse the CD contents and double-click the “MAC-Driver.pkg” file. The installation window will open. Continue through the installation to install the...
  • Page 16 2. Plug In Your HD Video Capture Stick™ Locate the included micro USB cable and plug the small end of it into the HD Video Capture Stick™ (see [1] in diagram above). Plug the other end of the cable into your computer.
  • Page 17 An example of what your setup could look like:...
  • Page 18 3. Open QuickTime Player Open the QuickTime Player software on your Mac. Click File  New Movie Recording.
  • Page 19 Click the arrow next to the “Record” button. Make sure both the “Camera” and “Microphone” are set to: “HD Video Capture Device.” For quality, make sure “High” is selected. (Note: selecting “Maximum” will result in very large video files, due to uncompressed video) Make sure the volume is turned up part way.
  • Page 20 4. Start Recording Video! If a live signal is coming from your HDMI video source, you will see a live video preview in the DXPlayer software. Simply press the “Record” button to start recording video. When you are done recording, press the “Stop” button. Your video file will be saved in MOV format in your Videos or Documents folder.

  • Page 21: Live Streaming With Xsplit Software On Pc

    Live Streaming with XSplit Software on PC You can use the HD Video Capture Stick™ to stream your HDMI video source (such as a video camera or gaming device) over the internet. To do this, you will need the XSplit Broadcaster or OBS streaming software.
  • Page 22 3. Click Settings. Under Audio Input, select “HD Audio Device.”...
  • Page 23 4. Click Outputs  Set up a new output  (Choose a website)
  • Page 24 5. Enter your username and password for the selected website or social network (you will need an account set up with the website already).
  • Page 27 6. After the setup is completed, click Outputs  Twitch (or other site)  ClearClick123 (your account name) to start streaming.

  • Page 28: Live Streaming With Obs Software On Pc Or Mac

    Live Streaming with OBS Software on PC or Mac 1. Download the latest version of OBS software from www.obsproject.com and install it. The software is compatible with Windows, Macintosh, and Linux. 2. Open the OBS software and click the “Settings” button.
  • Page 29 3. Click “Stream“ → Set your desired “Service” (streaming website) → Enter your Stream Key → Click "OK.” (To find your streaming key, go to your streaming service’s website and look in the settings. For example, on Twitch, click Dashboard, Settings, Show Key.)
  • Page 30 4. Click Sources → Add → Select Video Capture Device → Device → Select “HD Video Capture Device.”...
  • Page 31 5. In the settings, under “Audio Output Mode,” select “Output desktop audio (DirectSound)” and click OK.
  • Page 32 6. Click the “ Start Streaming ” button.

  • Page 33: Tech Support & Contact Us

    Need help? Open a support ticket and we’ll get back to you within 24-48 hours! (Monday-Friday) Just visit: http://Support.ClearClickSoftware.com or email us at: support@clearclick.tech www.ClearClick.tech...
