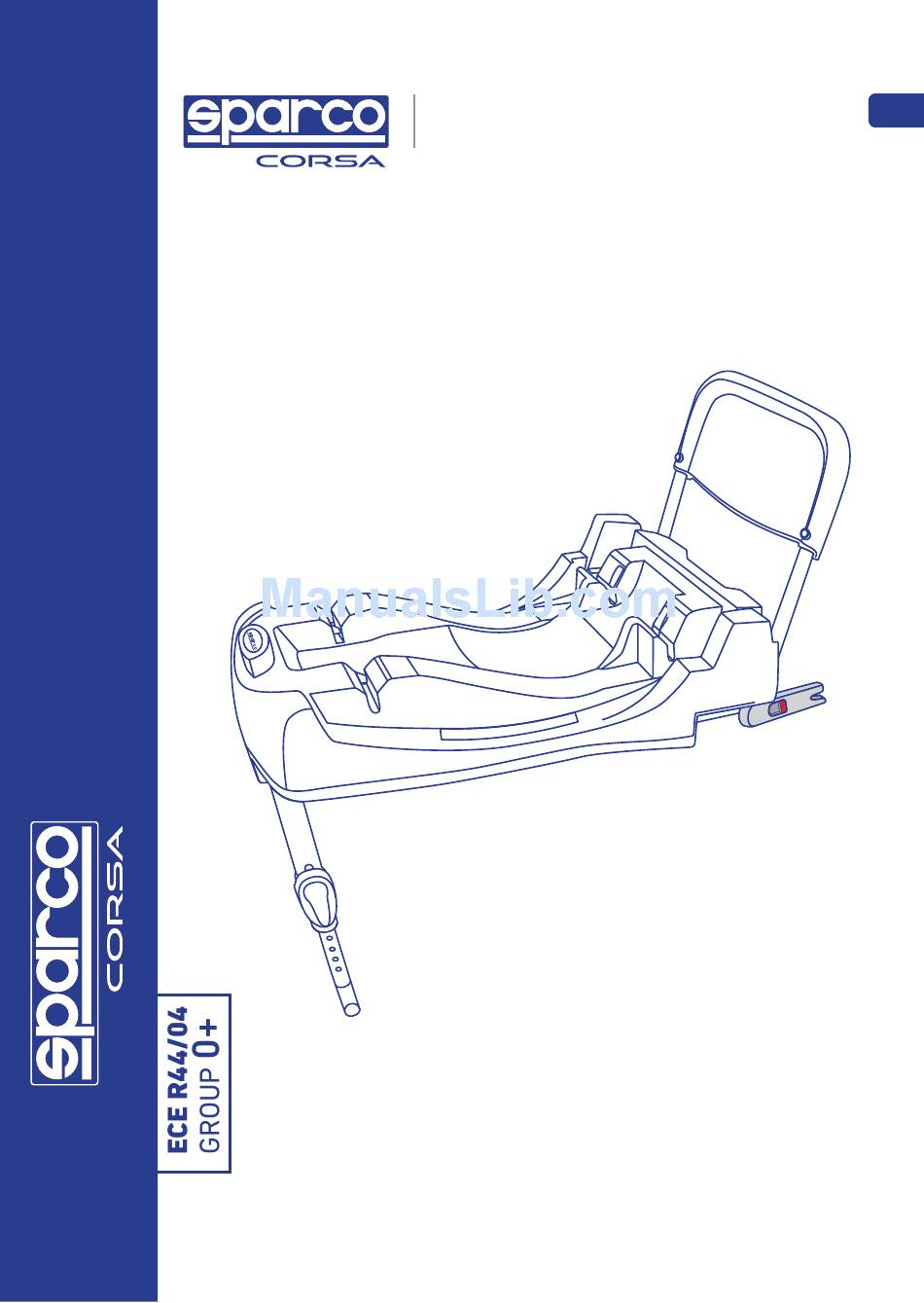

- Page 1 0+ Sparco F300i ISOFIX BASE for Group INSTRUCTION MANUAL...
- Page 2 Know Your Infant Carrier Base 1. ISOFIX install label 2. Shock bar 3. Infant carrier axis solid system 4. Grey release button 5. Safety leg 6. Adjustment button 7. Support leg 8. ISOFIX base 9. ISOFIX release buttons 10. Locking arms 11.
- Page 3 Suitability These infant carriers are marked with the ISOFIX symbol. Caution! Neither of these two parts may be used in combination with other ISOFIX adapters or infant carrier. EU Standard ECE R44 04 Group Weight Orientation Fixing of child Group Backward Child seat belt 0-18...
-
Page 4: Use In The Vehicle
Use in The Vehicle DANGER! DO NOT use on a passenger seat with a front airbag! An airbag hitting the infant carrier can cause serious injuries to your child, possibly resulting in death. Please observe the instructions in your vehicle manual for the use of child seats. -
Page 5: Installation In The Vehicle
Installation in the vehicle For the protection of your baby Please do not leave your child unattended in the child safety seat in the vehicle. Do not place any objects in the foot well in front of your ISOFIX-Adapter. For the protection of all vehicle occupants In the case of an emergency stop or an accident unsecured persons or objects may cause injury to other vehicle occupants. - Page 6 1. Fastening the infant carrier using the ISOFIX adapter Clip the two yellow insert guides, recess facing upwards, to the two ISOFIX fastening points. (3-D) Tip! The ISOFIX fastening points are located between the surface and the backrest of the vehicle seat. Fold the shock bar and the two locking arms on the ISOFIX base in an upwards direction.
- Page 7 2. Adjusting the support leg Press the adjustment button and pull out the support leg until it rests firmly on the floor of the vehicle. (3-I) Caution! The support leg must never be suspended in mid-air or supported by other objects. Also ensure that the support leg does not raise the ISOFIX base from the seat surface.
- Page 8 3. Locking the infant carrier Ensure that the top surface of the ISOFIX base is free of foreign bodies. Ensure that the handle is in the upper position A. (3-L) Position the infant carrier on the ISOFIX base against the direction of travel (baby facing backwards) and lock the infant carrier in place.
- Page 9 Removal 1. Removal the infant carrier Press the grey release button, lifting the infant carrier at the same time. (4-A) Tip! For day-to-day use, you can leave the ISOFIX base installed in your vehicle, and remove only the infant carrier. 2.
- Page 10 Fitting your infant carrier with ISOFIX base correctly For your baby's safety, please check that... The ISOFIX base is engaged on both sides with the locking arms into the ISOFIX fastening points. (5-A) The support leg is firmly on the vehicle floor and the ISOFIX base does not move away from the seat surface.
-
Page 11: Care Instructions
Care instructions To retain the protective e ect In an accident at a collision speed above 10 km/h the child safety seat could su er damage which is not necessarily obvious. In such cases it is extremely important that you replace the child seat. - Page 12 NOTICE 1. This ISOFIX base is only compatible to our SPC3004 child seat. 2. Please read this manual to install the ISOFIX base into the SPC3004 child seat before using it in vehicles fitted with ISOFIX anchorages system. 3. This is an ISOFIX CHILD RESTRAINT SYSTEM; It is approved to Regulation No.44, 04 series of amendments for general use in vehicles fitted with ISOFIX anchorages systems.
