kincrome K7107 Assembly Instructions

Assembly Instructions
Mobile storage rack
Model No.: K7107
Dimension: 85.5*39*169.5cm
Safety Rules and Instructions
1. The mobile storage rack must be assemble and used on a level surface.
2.Evenly distribute the weight of load on each shelf, place the heaviest items on the
bottom shelf.
Do not overload.
3.DO NOT STAND ON OR USE THE UNIT AS A LADDER.
4. Should there ever be a need to change the level of the shelf, be sure to disassemble
and reassemble one level at a time.
5.Use a mallet to drive the rivet to the bottom of slots on the post. Hit the beam close
to the connection.
6. Be sure that the rivets seat at the bottom of the slot.
7.To facilitate assembly we recommend having two persons assemble the rack.
MADE IN CHINA
Kincrome Australia Pty Ltd
MADE IN CHINA
Tool Required: Rubber Mallet

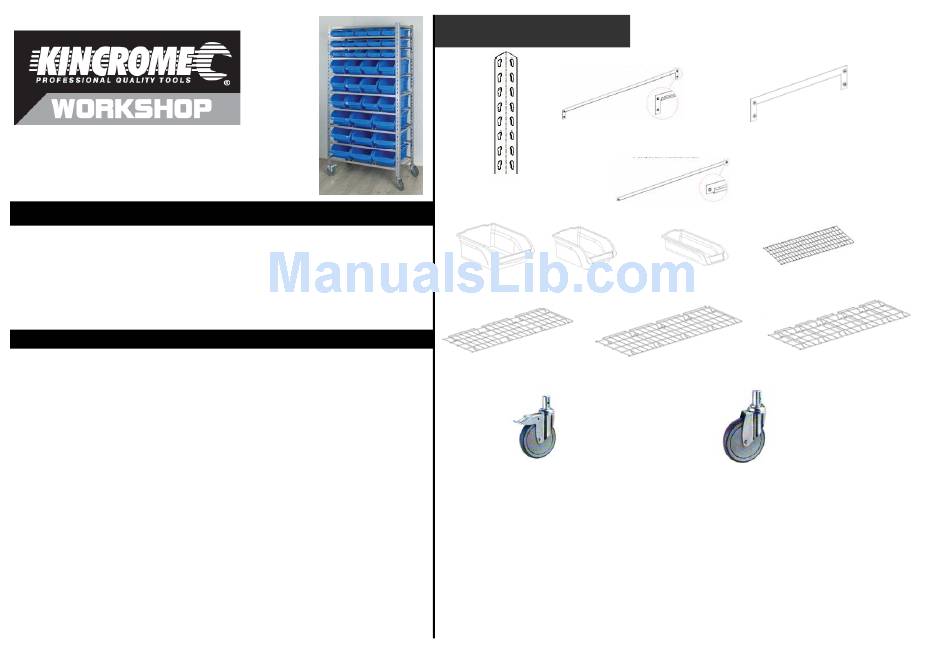

PARTS OVERVIEW
2.Long Double Rivet Beam (DRB)
1. Long Angel Post
5.Big bin 6.Medium bin
9.Wire Deck for Big Bins 10.Wire Deck for Medium Bins
12 Caster with brake
Contents
Item Discrition
1 Angel post
2 Long Double rivet beam
3 Short Double rivet beam
4 Long Single rivet beam
5 Big bin
6 Medium bin
7 Small bin
3.Short Double Rivet Beam
4.Long Single rivet beam (SRB)
7.Small bin 8.Top wire decking
11.Wire Deck for Small Bins
13 Caster without brake
Q'ty Item Discrition
4 8 Top wire decking
6 9 Wire decking for big bins
10 10 Wire Deck for Medium Bins
14 11 Wire Deck for Small Bins
9 12 Caster with brake
12 13 Caster without brake
15
Q'ty
1
3
3
3
2
2
