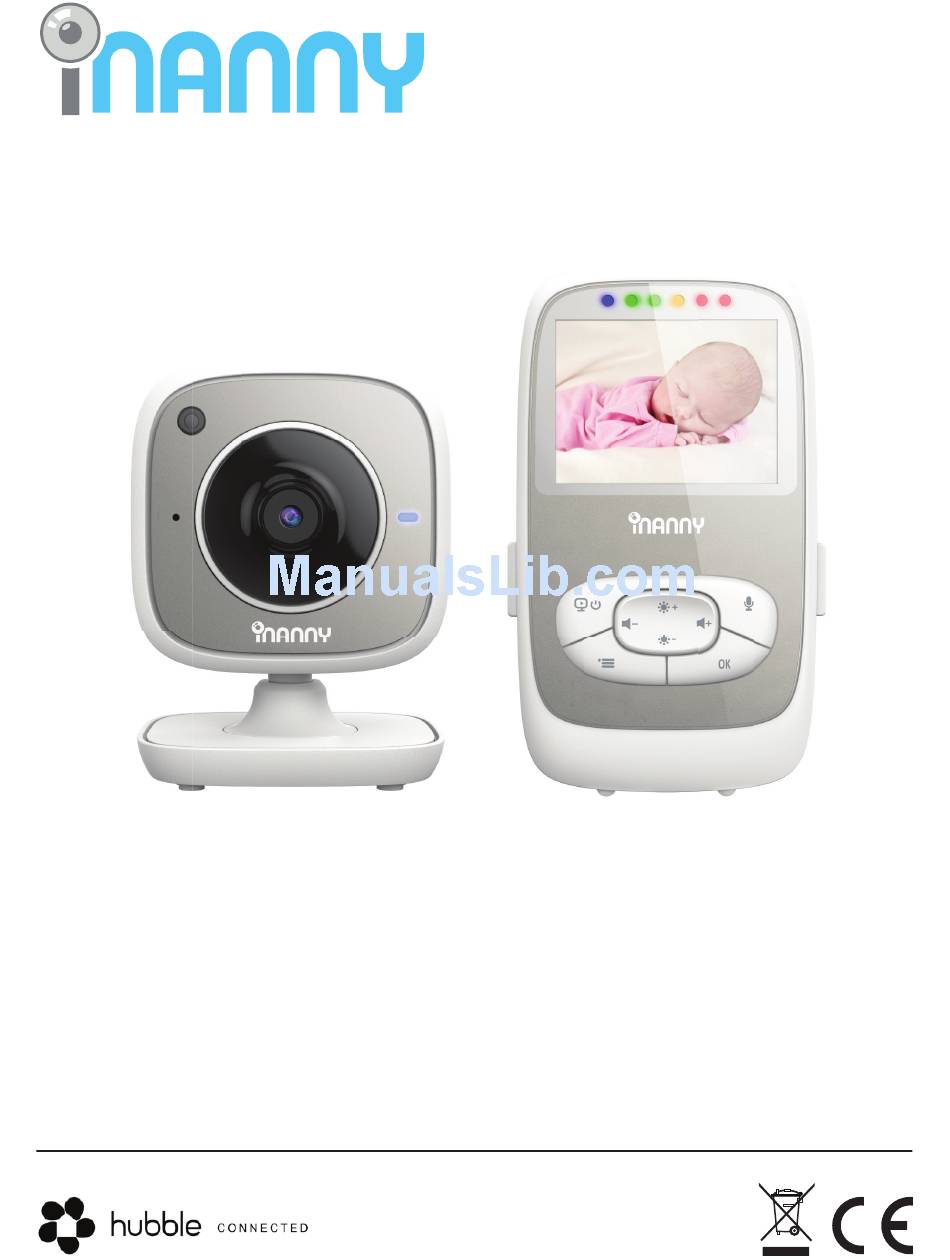

- Page 1 NM288 Video Baby Monitor Local and Remote Monitoring User Guide...
-
Page 2: Table Of Contents
ENGLISH Read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain. Table of contents 1. Getting to know your device ..... 2 9.3.2 Setting the notification sensitivity ..11 9.4 General settings ........12 2. -
Page 3: Getting To Know Your Device
Wall-mounting ture (camera) Using the app provides you with the following functions: Video monitoring via WLAN with the iNanny Monitor app powered by Hubble Timeline function (events are displayed chronologically in the app) Range control with acoustic signal Push noti ations for movements / noises / temperature... -
Page 4: Signs And Symbols
- Internet Explorer version 8.0 or higher - Firefox version 11.0 or higher - Chrome version 18.0 or higher - Safari version 5.1 or higher Camera: - 802.11 b/g/n (2.4 - 2.4835 GHz) WLAN - Protected by at least WEP 2. - Page 5 Place the camera 2 m away from your baby, in order to minimise the possibility of electros- mog pollution and noise pollution. Make sure that cables are not accessible to your child. Always make sure that the Video Baby Monitor is fully functioning before use and check that the battery in the parent unit is sufficiently charged when operating the device with the battery.
-
Page 6: How The App Works
Batteries must be charged correctly prior to use. The instructions from the manufacturer and the speci ations in these instructions for use regarding correct charging must be ob - served at all times. 5. How the app works Local NM288 WLAN-Router Smartphone, Tablet, PC Internet Hubble-Server Note If there is an active internet connection, the camera sends all recordings via the Hubble server. -
Page 7: Unit Description
6. Unit description 6.1 “Baby” HD camera PAIR 1. Brightness sensor (night vision function) 5. ON/OFF button 2. Camera lens 6. Pair button 3. Function light 7. Connection for “Baby” mains part plug 4. Microphone 8. Temperature sensor *Function light status Function light lights up blue Camera warm-up phase ~ 1 minute Function light... -
Page 8: Display Description
6.3 Display description Signal strength Temperature display Alarm clock Infrared night vision Lullaby Intercom function Alternating camera image Camera number Battery state Energy-saving mode menu Camera menu Temperature menu Alarm clock menu Lullabies menu Zoom menu 7. Initial use of parent unit 7.1 Initial use of camera 1. -
Page 9: Initial Use Of Parent Unit With Mains Part Plug
6. Press the ON/OFF button to switch on the parent unit. If the camera is already switched on, the transmission image from the camera will automatically appear on the screen. If the camera is still switched off , an acoustic signal is emitted and the following symbol appears on the monitor: 7.3 Initial use of parent unit with mains part plug 1. - Page 10 You can navigate through the menu using the ( ) and ( ) buttons. Zoom function The parent unit has a zoom function to increase the size of the transmission image. To activate the zoom function, proceed as follows: Use the up/down direction arrows ( ) to select the zoom function you require (1x or 2x).
- Page 11 Now hold down the PAIR button on the rear of the camera until an acoustic signal is heard and the transmission image from the camera that has been added appears on the screen. Note Additional cameras are available in stores under item number 952.64. Delete camera If you wish to delete the connection to a camera, proceed as follows: Use the left/right direction arrows (...
-
Page 12: Initial Use Via Smartphone/Tablet
Open the Google Play Store on your Android device. Look up the app “iNanny Monitor” and download it. Start the app and create a user account. Follow the further instructions in the app. As soon as the camera registration has been suc cessfully completed, the transmission image of the installed camera appears. -
Page 13: General Settings
In the general settings you can set the clock mode (12h / 24h) and temperature mode (°C/°F). In addition, you can also activate the “ Do not disturb ” function. 1. When you see the current transmission image, tap the iNanny Monitor logo on the top left. You are taken to the camera menu. -
Page 14: Account Settings / Signing Out
In the account settings you can, amongst other things, change your password, view your app version or log out. When you see the current transmission image, tap the iNanny Monitor logo on the top left. You are taken to the camera menu. -
Page 15: Lullabies
10.6.3 Lullabies You can activate one of lullabies that will then be played over the camera: Tap the note symbol ( Tap to choose your required lullaby. The lullaby now plays on the camera. To deactivate the lullaby, tap it again. 10.6.4 Temperature display Tap the thermometer symbol ( ). -
Page 16: What If There Are Problems
The maximum battery capacity can only be reached after it has been charged several times and is dependent on many factors (battery state, ambient temperature, means and frequency of charging, etc.). Protect the camera and the parent unit from knocks, damp, dust, chemicals, drastic changes in temperature, electromagnetic and nearby sources of heat (ovens, heaters). - Page 17 Problem Solution If no transmission is possible, you have the 1. Switch on the camera and parent unit. option to retune the device signals digitally = 2. Delete the camera in the menu of the parent unit pairing. and then set up the camera again as described in the “Add camera”...
-
Page 18: Disposal
14. Disposal Batteries must be disposed of through specially designated collection boxes, recycling points or electronics retailers. You are legally required to dispose of the batteries. For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the unit at a suitable local collection or recycling point. - Page 19 FCC and IC regulations FCC Part l5 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 20 WARNING Changes or mod cations, to this equipment not expressively approved by the party responsible for compliance could avoid the user’s authority to operate the equipment. The socket-outlet shall be installed near the equipment and shall be easily accessible. Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including...
