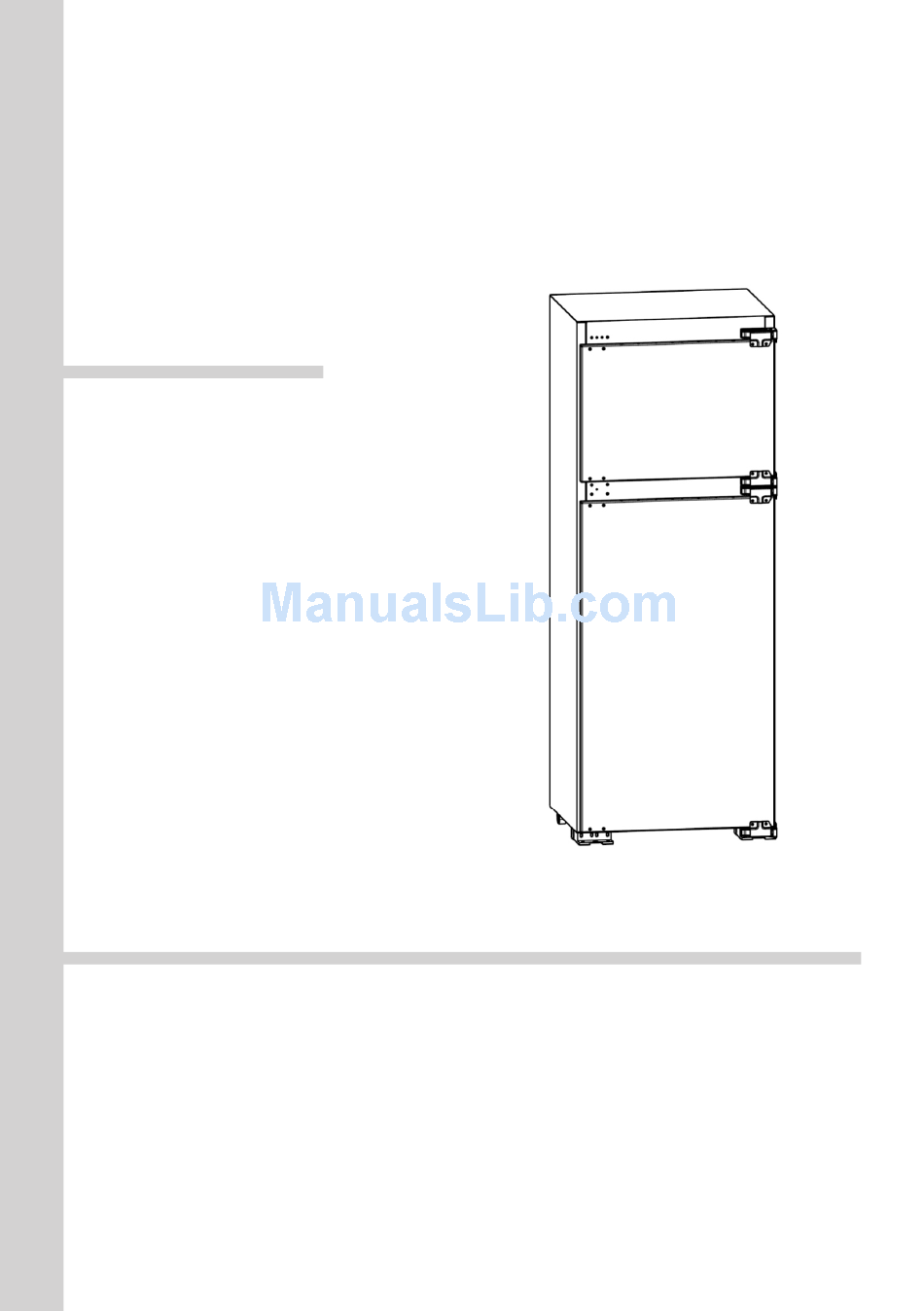

- Page 1 IT6029R IT6029L Operating In struc tions REFRIGERATORS-FREEZERS...
- Page 2 GB/IE The refrigerator/freezer was developed taking the different storage requirements of food items into consideration. Some must be stored cold - others require a little higher temperature. A few must be stored separately so as not to impart flavour and odour to other items of food.
-
Page 3: Table Of Contents
GB/IE Content Disposal .................... 3 Safety Measures ..................4 Product Characteristics ................5 Before You Start ..................7 Operation.....................9 Maintenance and Service ............... 12 Spare parts ................... 14 Warning Changes in internal and external appearance of a product, not affecting its functionality and safety, (e.g. -
Page 4: Safety Measures
GB/IE Safety Measures Before you turn the refrigerator on. * When placing, moving or lifting the refrigerator, do not hold the door handle, do not pull the condenser at the back of the refrigerator, and do not touch the compressor unit. * After placing the refrigerator, wait two hours before you turn it on, for it could have been excessively tilted in transport. - Page 5 GB/IE Product Cha rac te ri stics IT6029R IT6029L This single-compressor refrigerator / freezer (Fig.2) is designed for household use. The refridgerator chamber should be used exclusively for storage of fresh grocery products and the freezer chamber for freezing fresh produce, storage of frozen food, and making ice cubes only.
-
Page 6: Product Characteristics
GB/IE Product Cha rac te ri stics Technical IT6029R IT6029L parameters Height 1220 mm Width 558 mm Depth 540 mm Net capacity: total 132 l refrigerator 102 l freezer 30 l Freezing abi li ty 2 kg/24 h Power sup ply... -
Page 7: Before You Start
GB/IE Before You Start Placement of the product * Unpack the product, remove the tape securing the door and the accessories. capillary Remove the remains of the glue, if any, tube with mild cleaning detergent. * Do not throw the Styrofoam element of the packaging away. - Page 8 GB/IE Connection to the power sup ply sys tem If the fixed power supply cable is damaged, it should be replaced by the manufacturer or at an authorized servicing outlet, or by a qualified person to avoid danger. Electrical connection The appliance is intended for connection to alternating current.
-
Page 9: Operation
GB/IE Operation Control panel Temperature adjustment Change in the knob adjustment causes temperature change in the fridge-freezer. Possible knob adjustment: l the appliance is off – 0 position; l intermediate temperatures range between and 0 position; The lowest temperature in the fridge-freezer (the coldest) - max The highest temperature in the fridge-freezer (the warmest) - min Do not put food into the fridge freezer before it has reached its opera-... - Page 10 GB/IE Temperature inside the fridge / freezer chamber Do not change the temperature settings due to the change in the season of the year. The ambient temperature increase will be detected by the sensor and the compressor will be switched on automatically for a longer period of time in order to maintain the temperature set inside the chambers.
- Page 11 GB/IE Defrosting the refrigeration chamber Frost settles on the rear wall of the fridge chamber. It is removed automatically. During the defrosting, the condensate, which contains contaminants may clog the opening in the through. Should it occur, ca- refully unclog the opening with the cleaning Fig.5 plug (Fig.5).
- Page 12 GB/IE Defrosting the freezer chamber l It is recommended to combine de- frosting the appliance with washing l Excessive accumulation of ice on the freezing areas impairs the appliance’s freezing capacity and increases the energy consumption. l Defrost the appliance at least once or twice a year.
-
Page 13: Maintenance And Service
GB/IE Maintenance and Service Solution Problem Reason - make sure the plug is pro per ly A gap in the electric The appliance does inserted into the socket, system circuit not work - make sure there is elec tri ci ty in the socket by plugging in ano ther elec- tric device, such as a ni ght lamp, - make sure the power supply cord... -
Page 14: Energy Saving
GB/IE Maintenance and Service Energy saving * Place the refrigerator away from heat sources (such as radiators and ovens (Fig.6). * Make sure air can circulate freely around the refrigerator, move it away from the wall at least 1 cm. * Let dishes cool down before putting them into the refrigerator, at least to room temperature. -
Page 15: Spare Parts
Stoney Lane Prescot Merseyside L35 2DX Customer service Telephone number: 0871 222 2505 THE APPLIANCE ASSEMBLY IN A FURNITURE NICHE IS TO BE CARRIED OUT ACCORDING TO THE FOLLOWING „FURNITURE BUILD-IN ASSEMBLY INSTRUCTION”: IZ 00257/IZ-00257a - for the appliance types: IT6029R/IT6029L... - Page 16 IOAL-819 (03.2009/2)
