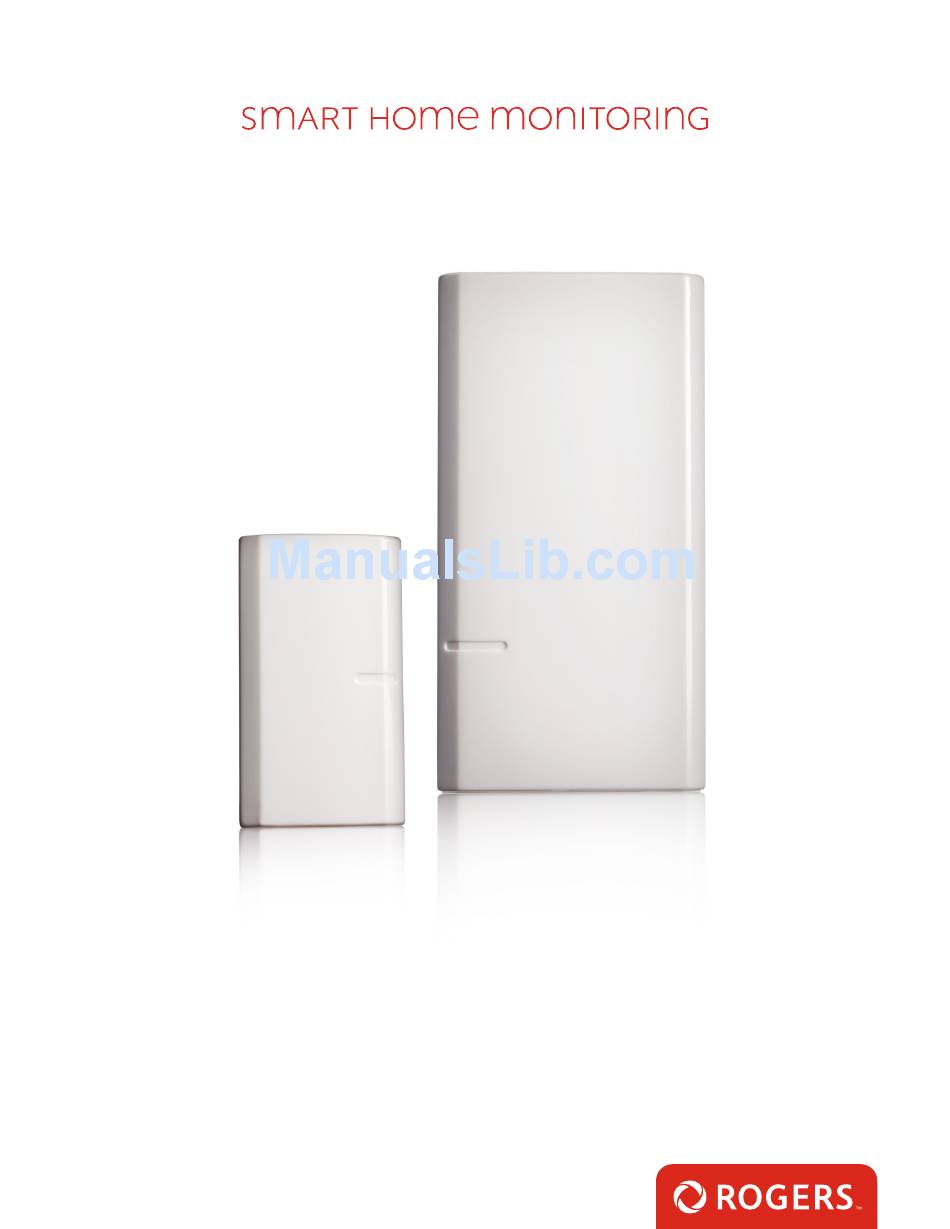

- Page 1 Door/Window Sensor Set-Up Guide...
- Page 2 Thanks for choosing Rogers Smart Home Monitoring! Once you’ve set-up your Door/Window Sensor, you can receive notifications if a window or door in your home opens unexpectedly. You will also be able to set-up automation rules for your Door/Window Sensor, such as turning a light on when someone opens a door.
-
Page 3: Helpful Hints
If you encounter a problem setting up your device, or wish to book a Rogers technician to come set it up, please call Rogers Technical Support at 1-888-764-3771 or visit www.rogers.com/install. - Page 4 If you encounter a problem setting up your device, or wish to book a Rogers technician to come set it up, please call Rogers Technical Support at...
- Page 5 Pairing the Door/Window Sensor with your smartphone Before you begin: The below steps should be followed once you have completed the activation of your Smart Home Monitoring Basic Kit. Smart Home Monitoring | Door/Window Sensor | Smartphone Set-Up...
- Page 6 Login to your Rogers Smart Home Monitoring app. (Can’t remember your login info? Visit rogers.com to retrieve your username or password). On My Home screen, tap Settings, then Manage Devices then Devices. Door/Window Sensors. Smart Home Monitoring | Door/Window Sensor | Smartphone Set-Up...
- Page 7 Prepare your Door/Window Sensor to be paired following the simple instructions on your screen. For more detailed instructions, you can tap More. Pull the plastic tab from your Door/Window Sensor. Once your Door/Window Sensor is ready to be paired, tap Continue to allow the Hub to start scanning for the Door/Window Sensor.
- Page 8 Once the Door/Window Sensor is detected you will see the Sensor icon, and Pairing... will appear. Once pairing is complete, the Sensor icon will change to the Zone icon and a blue check mark will appear to the right. Please note the Hub may take between 1 to 3 minutes to detect the Door/Window Sensor. Continue to complete pairing.
- Page 9 Edit to configure the Door/Window Sensor. The naming box shows the default name of Door/Window Sensor. Tap on this box to customize its name (e.g. Front Door). Tap the appropriate icon to configure the Door/Window Sensor as either a Door or a Window Sensor.
- Page 10 Now you can monitor your doors and windows remotely with your smartphone app and through the Web Control Centre. Start using this device: Use your smartphone app or visit the Web Control Centre at smarthome.rogers.com • Set-up rules such as turning lights on when someone opens a door. •...
- Page 11 How to remove this device from your system: Should you need at any point in the future to remove your Door/Window Sensor from your Rogers Smart Home Monitoring system, follow the steps below: Log in to your Rogers Smart Home Monitoring mobile app.
- Page 12 Pairing the Door/Window Sensor with your Touchpad On the Touchpad, select the Home Settings app from the Screen. When prompted for your Master code, enter Technician Code: 4381. Smart Home Monitoring | Door/Window Sensor | Touchpad Set-Up...
- Page 13 On the Tech ID page enter 4381 and click Done. Select Sensors & Zones. Smart Home Monitoring | Door/Window Sensor | Touchpad Set-Up...
- Page 14 Select Add a Sensor/Zone. Pull the exposed plastic tab from the Door/Window sensor to put it in pairing mode. Smart Home Monitoring | Door/Window Sensor | Touchpad Set-Up...
- Page 15 Click Next on the Locating Wireless Sensors screen. The Touchpad will now look for a sensor for up to 10 minutes. Wait for the icon Trip to Pair to appear as shown on the left. If you are unable to pair the sensor, refer to the reset to factory section and return back to Step 3 and continue through...
- Page 16 Click Next on the following screen. A list of all of the sensors currently paired to your Touchpad will appear. Select the sensor you have just paired (labelled Zone #). Modify the zone function as desired. Zone functions for the Door/Window are listed on the left.
- Page 17 Each function is explained below: Entry/Exit Perimeter For Doors to enter or exit the premise. When Primarily for windows. When armed, faulting armed, faulting this zone starts an Entry Delay this zone starts an alarm immediately. countdown instead of sending an immediate alarm.
-
Page 18: Troubleshooting
In addition to the limitations of liability set out at Section 9 of the Terms, to the maximum extent permitted by applicable law, the Rogers Parties will not be liable to you or to any third party for any direct, indirect, special, consequential, incidental, economic or punitive damages (including... - Page 19 Now you can monitor your doors and windows remotely with your smartphone app and through the Web Control Centre. Start using this device: Use your smartphone app or visit the Web Control Centre at smarthome.rogers.com • Set-up rules such as turning lights on when someone opens a door. •...
