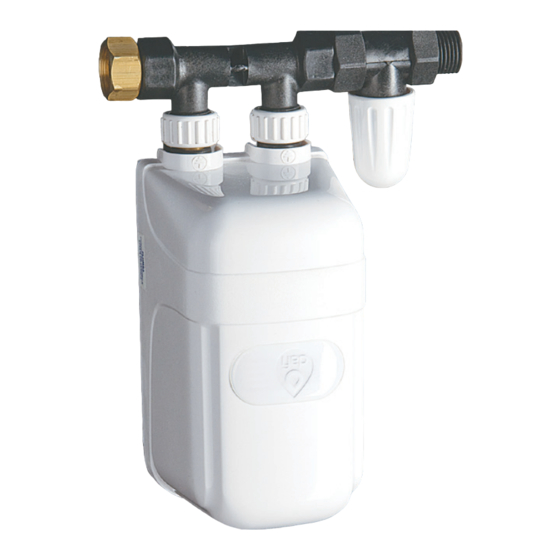

dafi IPX4 Instruction For Attachment And Use

dafi IPX4 Instruction For Attachment And Use

Electric a flow heater with an open outlet water
Hide thumbs Also See for IPX4:

Advertisement

Quick Links

IPX5
IPX4
Electric
a flow heater
with an open
outlet water DAFI.
Instruction for attachment and use

Advertisement

loading
Need help?

Need help?

Do you have a question about the IPX4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for dafi IPX4

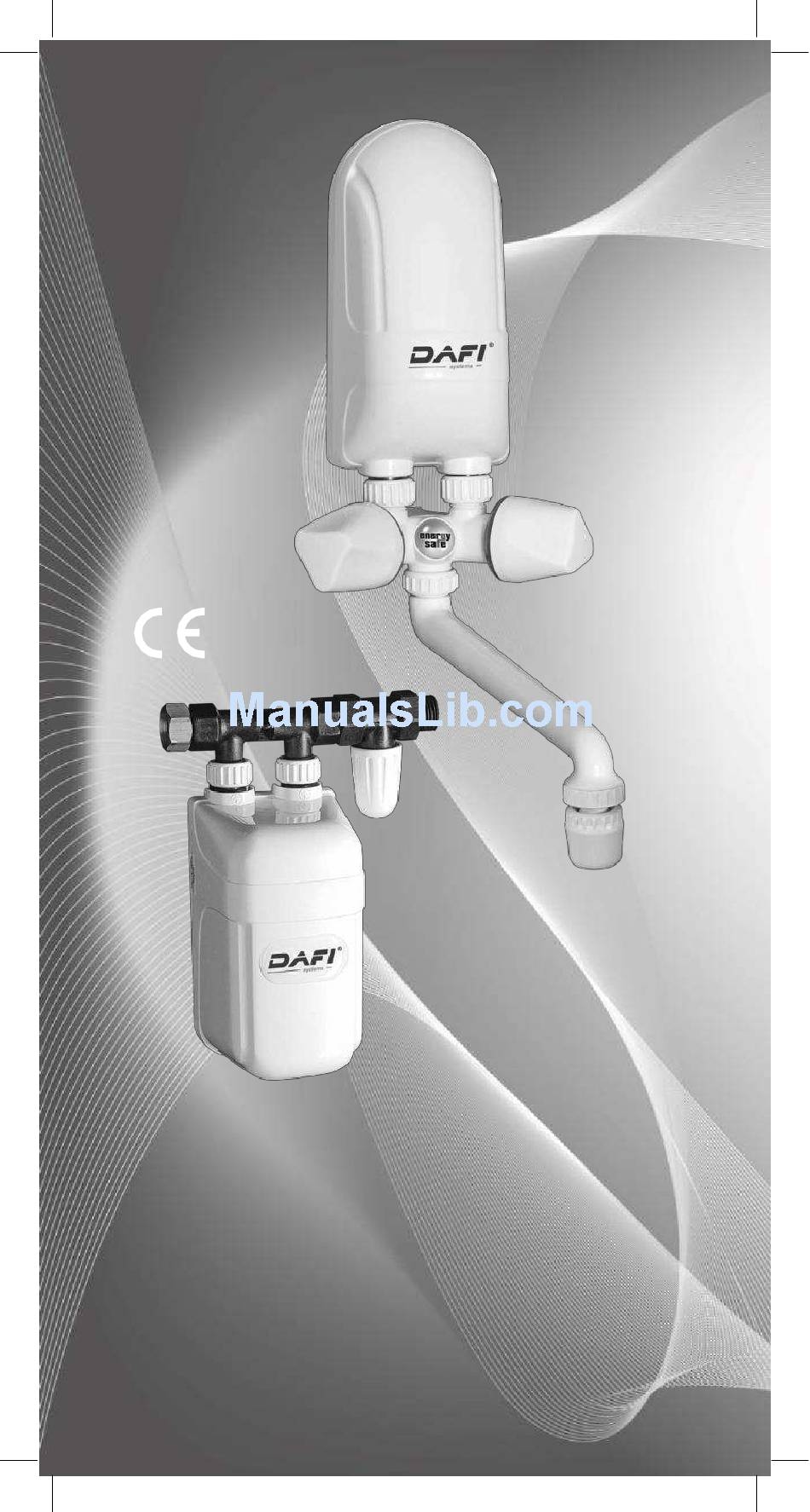

  • Page 1 IPX5 IPX4 Electric a flow heater with an open outlet water DAFI. Instruction for attachment and use...
  • Page 2 No. 53535/95. 2. Characteristics heater DAFI DAFI heater is intended to heat the water supply. It is mounted at the outlets of water, washbasins, kitchen sinks, showers, etc. It can be installed to one or more of the domestic hot water. The heater is particularly useful buildings and facilities not equipped with gas installation.
  • Page 3 3. Construction of the water heater DAFI heater consists of a heating block, mounted to the assembly of water. Team Water is built from the base of having connections inflow of cold and warm water outflow. Inside the heater is heating block, and in the water channels of the heating element (heating coil) and elements for the power supply.
  • Page 4 - prohibits the use of damaged or faulty device, - it prohibits the installation of the heater in the showers. Any use of the heater DAFI contrary to its intended purpose means that the manufacturer is not liable for any damage caused. The manufacturer does not take responsibility for the damages and consequences resulting from unauthorized alterations and repair heater.
  • Page 5 DAFI water heater can be installed with its own battery, with connection nipples and reducers. When installing the connector and nipples on the water inlet to the heater it is recommended to install shut-off valve DAFI. If the valve is not in the kit can be purchased in retail stores.
  • Page 6 4 the heater / g 7.1.h point (Fig. 10). You can install the heater DAFI on an existing wall battery bathroom or kitchen. Battery in place of the spout can be screwed: a) elbow with internal threads M22x1.5 and G½" which is screwed into the battery heater DAFI (Figure 11).
  • Page 7 Install connection to him and mount water heater fig 9 DAFI. When connected, it is important that the cold water has been introduced into the heater nozzle as indicated (arrows) on the back of the furnace. (fig 13).
  • Page 8 It is recommended to install a mechanical filter DAFI before the water heater DAFI. 9. Manual connection to the mains using a junction box DAFI (available as accessory) Heaters with a capacity of 3.7 kW according to the change to the Polish...
  • Page 9 (A list of service points located in the package) The buyer is obliged to provide the heater DAFI to the service along with the warranty card. No warranty card, or damage the seal will void the warranty.
  • Page 10 11. The causes of disruptions heater - when the heater heats the water too low, you should: a) check the mains power supply and remove any causes of voltage drop, -when the heater heats the water too much, you should: a) clean aerator (fut.
  • Page 11: Housing Assembly

    22,5 27,5 Current Rating [A] Automatic fuse [A] Capacity of water measured in liters/min. the temperature of ° incoming water 15 C and a pressure of 200 000 Pa. AquaDaf wishes of satisfaction with the operation of the heater DAFI...
  • Page 12 Sample connection with the three-way M 24 x 1 M 24 x 1 G ½” G ⅜” M 18 x 2 reducing nipples valve G ½” G ½” M 18 x 2 FORMASTER S.A 25-818 KIELCE Certificate PCBiC S.A FABRYCZNA 24, POLAND Atest PZH SHOP –...

This manual is also suitable for:

Ipx5
