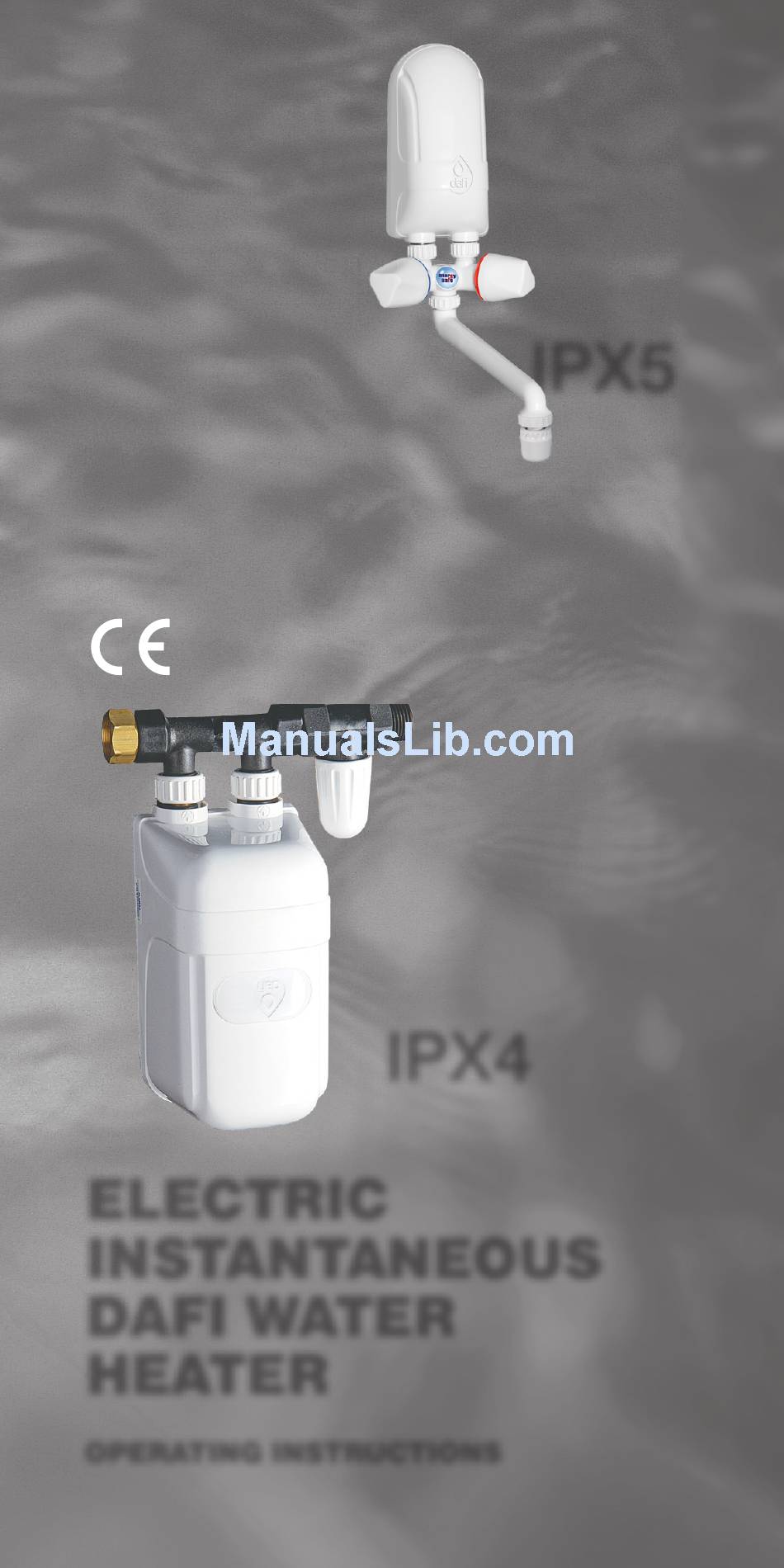

- Page 1 IPX5 IPX4 ELECTRIC INSTANTANEOUS DAFI WATER HEATER OPERATING INSTRUCTIONS...
- Page 2 Patent Office of the Republic of Poland No. 53535/95. 2. DAFI heater characteristics The DAFI heater is intended for heating the tap water. It is mounted at water draw-off points of wash basins, kitchen sinks, showers, etc. It may be fixed to one or several hot water draw-off points.
- Page 3 3. Construction of the water heater The DAFI heater consists of the heating block placed on the water unit. The water unit is made of the base which is provided with short stub pipes for supply of cold water and discharge of hot water. Inside the heater, there is the heating block provided with water channels with the heating element (heating strand) and elements used for supplying electricity.
- Page 4 6. Sequence for connection of the device to the water supply system and the wiring system. In the first place, the DAFI water heater must be connected to the water system. Only after deaeration of the water supply system and the heater, the device may be connected to the wiring system.
- Page 5 In the case of installation with the connection and nipples, it is recommended to install the DAFI shut-off valve at the water inlet to the heater. If the valve is included in the set, it may be purchased in the retail network.
- Page 6 Install the connection and fix the DAFI water heater to it. During this activity, it is important to supply the cold water into the stub pipe of the heater in accordance with the marking (arrows) at...
- Page 7 The installation of the DAFI heater in this system fig 9 enables its installation next to the shower enclosure or under the wash basin or sink with the three-way faucet.
- Page 8 Other heaters should be connected on a permanent basis to the wiring system. For such a connection, we can use the DAFI junction box (fig. 15, fig. 16, fig. 17 and fig. 18).
- Page 9 In accordance with the International Safety Standards, heating equipment should be subject to periodical surveys every 30 months. The average life of the DAFI water heater, if it is operated in accordance with the operating instructions and recommendations of the manufacturer is about 7-8 years.
- Page 10 - the cause of breaks in the operation of the heater is: a) excessively low or decreasing water pressure in the water supply network. The repairs of the device must be performed in the authorised service centre exclusively. Information for the user on the removal of the waste electrical equipment In pursuance of the Waste Electrical and Electronic Equip- ment Act of 29 July 2005 (Journal of Laws dated 20 Septem-...
-
Page 11: Specifications
Recommendations: • Installing a composite pipe from your DAFI water heater to the point of usage will further reduce heat loss and save more energy. • For optimum performance enhancement Spray Nozzle provided should be attached to tap. For models 3.7 kW & 4.5 kW 5. - Page 12 Manufacturer: FORMASTER S.A 25-818 KIELCE, Fabryczna 24 str., Poland phone.: +48 41 3464810 ext 123 fax +48 41 3464870 www.formaster.com...
