EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

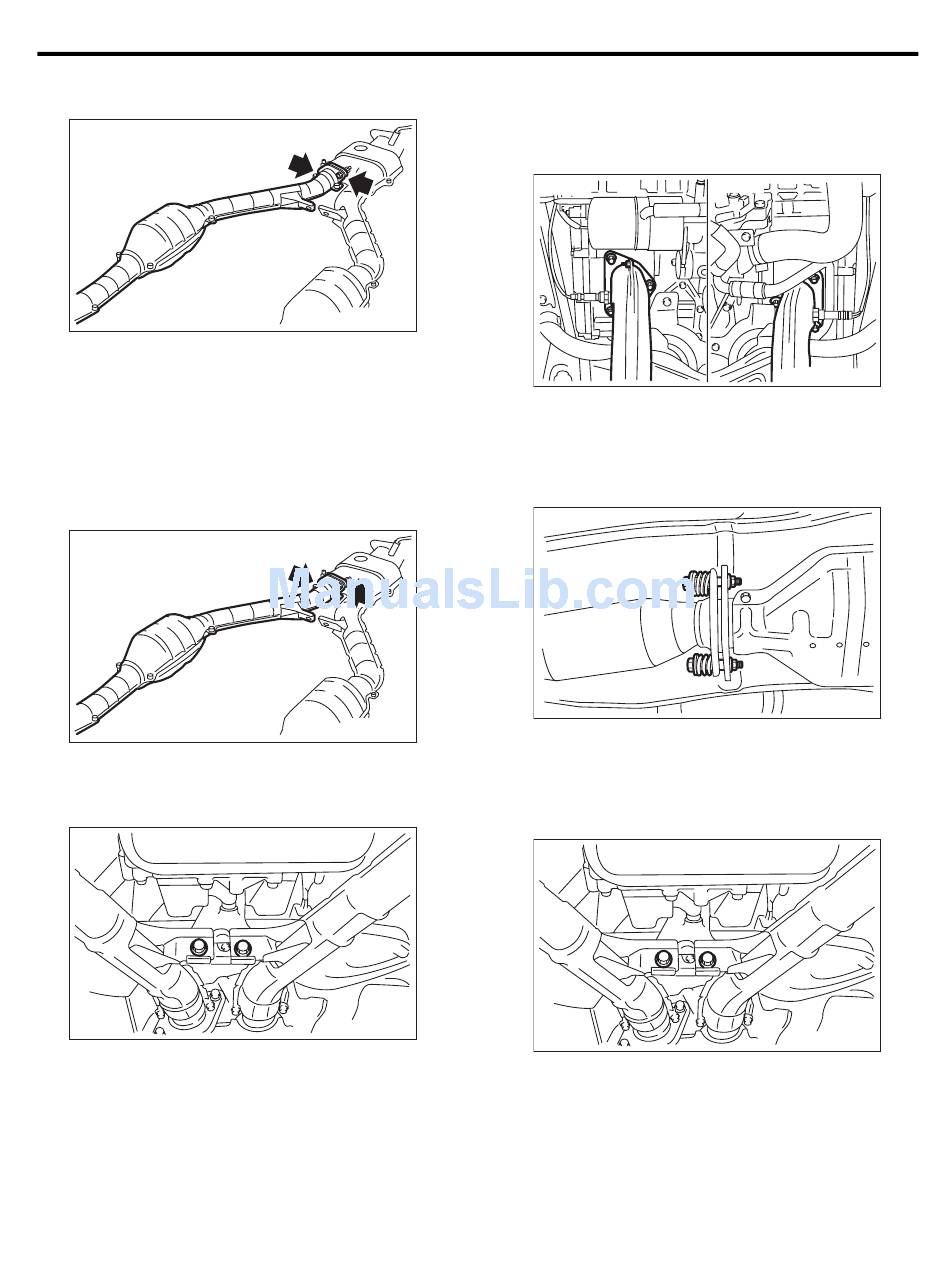

12) Separate front catalytic converter (RH) from

front exhaust pipe.

B: INSTALLATION

NOTE:

Replace gaskets with new ones.

1) Install front catalytic converter (RH) to front ex-

haust pipe.

Tightening torque:

30 N·m (3.1 kgf-m, 22.4 ft-lb)

2) Install front exhaust pipe assembly to the vehi-

cle. And temporarily tighten bolt which installs front

exhaust pipe to hanger bracket.

FRONT CATALYTIC CONVERTER

EX-00062

EX-00061

EC(H6DO)-4

3) Tighten nuts which hold front exhaust pipe onto

cylinder heads.

Tightening torque:

30 N·m (3.1 kgf-m, 22.4 ft-lb)

RH side

4) Tighten bolts which secure front exhaust pipe

assembly to rear exhaust pipe.

Tightening torque:

18 N·m (1.8 kgf-m, 13.0 ft-lb)

5) Tighten bolt which holds front exhaust pipes to

hanger bracket.

Tightening torque:

35 N·m (3.6 kgf-m, 26.0 ft-lb)

LH side

EX-00060

EX-00059

EX-00061
