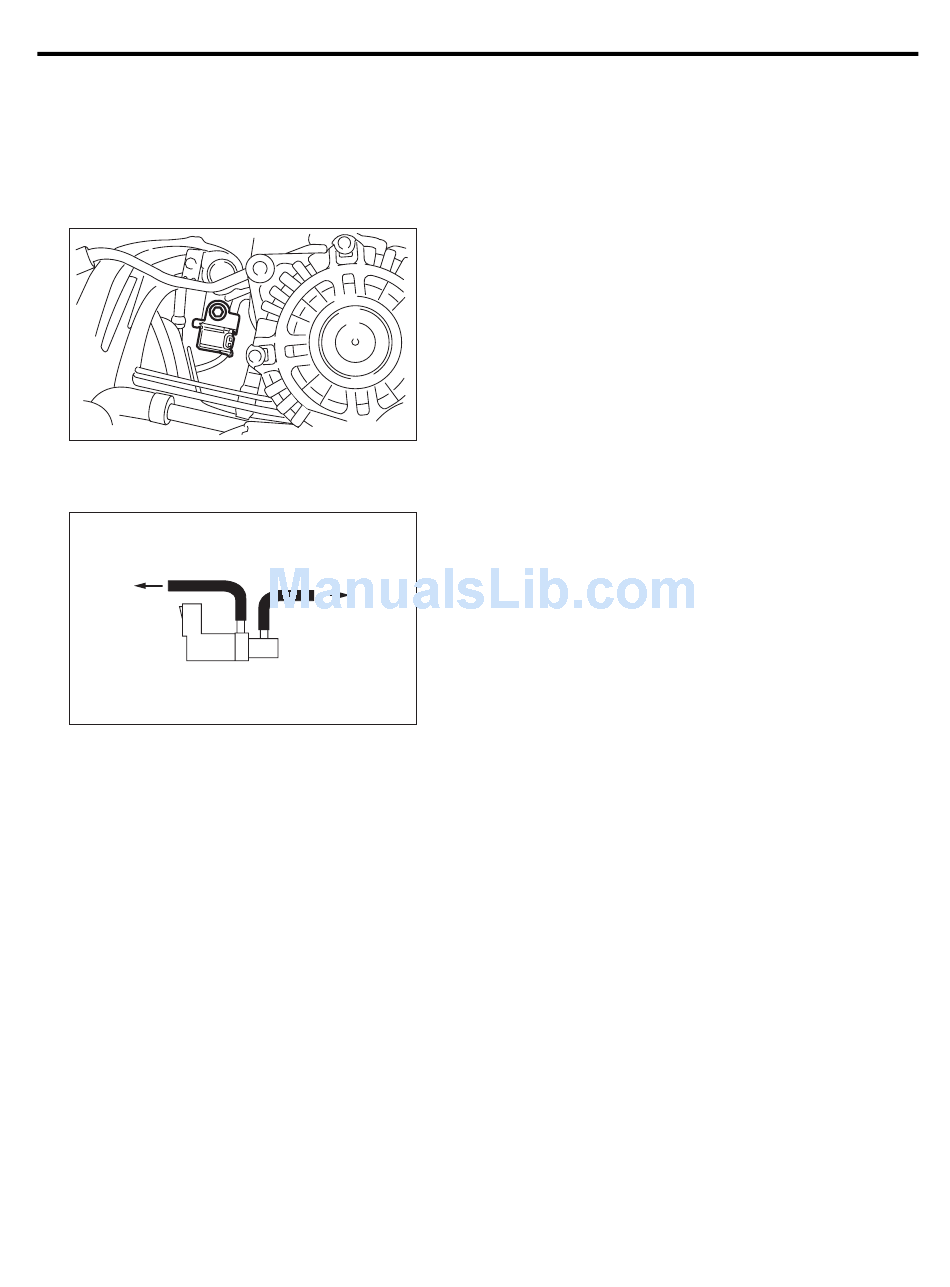

5) Take out purge control solenoid valve through
the bottom of the intake manifold.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
19 N·m (1.9 kgf-m, 14 ft-lb)
CAUTION:
Carefully connect the evaporation hoses.
A
A: To fuel pipe
B: To intake manifold
C: INSPECTION
Make sure hoses are not cracked or loose.
PURGE CONTROL SOLENOID VALVE
EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)
EC-00110
B
EC-00111
EC(H6DO)-9
