Hearth Products F-071XX1 series User, Installation And Servicing Instructions

Thermes balanced flue room sealed gas fire
Hide thumbs
Table of Contents

Advertisement

Quick Links

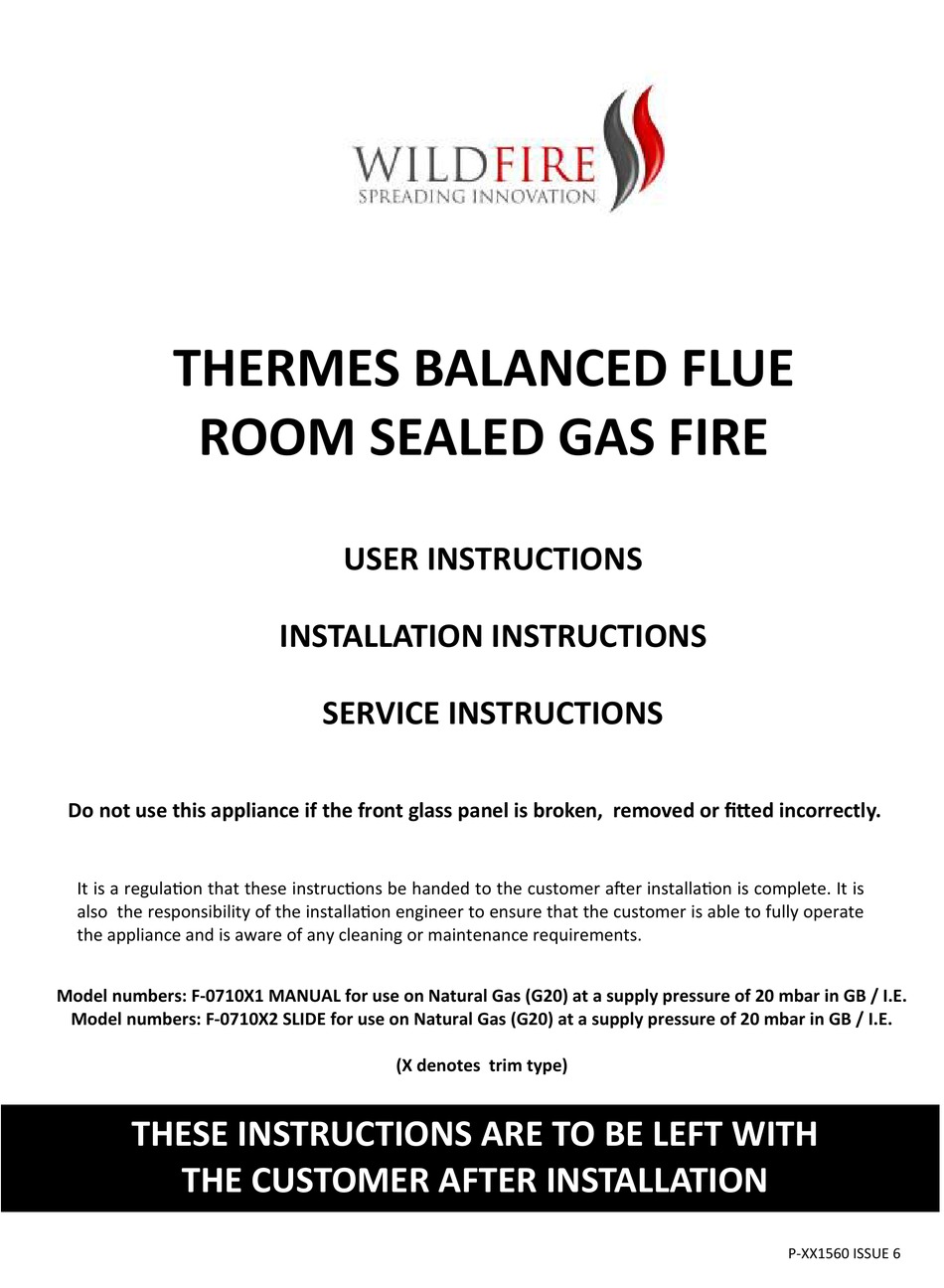

THERMES BALANCED FLUE
ROOM SEALED GAS FIRE

USER INSTRUCTIONS

INSTALLATION INSTRUCTIONS

SERVICE INSTRUCTIONS

Do not use this appliance if the front glass panel is broken, removed or fied incorrectly.
It is a regulaon that these instrucons be handed to the customer aer installaon is complete. It is
also the responsibility of the installaon engineer to ensure that the customer is able to fully operate
the appliance and is aware of any cleaning or maintenance requirements.
Model numbers: F-0710X1 MANUAL for use on Natural Gas (G20) at a supply pressure of 20 mbar in GB / I.E.
Model numbers: F-0710X2 SLIDE for use on Natural Gas (G20) at a supply pressure of 20 mbar in GB / I.E.
(X denotes trim type)
THESE INSTRUCTIONS ARE TO BE LEFT WITH
THE CUSTOMER AFTER INSTALLATION
P-XX1560 ISSUE 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-071XX1 series and is the answer not in the manual?

Questions and answers

Related Manuals for Hearth Products F-071XX1 series

Summary of Contents for Hearth Products F-071XX1 series

  • Page 1: User Instructions

     THERMES BALANCED FLUE ROOM SEALED GAS FIRE USER INSTRUCTIONS INSTALLATION INSTRUCTIONS SERVICE INSTRUCTIONS Do not use this appliance if the front glass panel is broken, removed or fied incorrectly. It is a regulaon that these instrucons be handed to the customer aer installaon is complete. It is also the responsibility of the installaon engineer to ensure that the customer is able to fully operate the appliance and is aware of any cleaning or maintenance requirements.

  • Page 2: Table Of Contents

      CONTENTS Regulatory Informaon and Installaon Requirements …………………………... 3 Regulatory requirements for Flue Terminal installaon……..…………………….. 4 Sing the Appliance and preparing opening….………………………………………… 5 Clearances from combusble shelf…...……………………………………………………. 7 Elevated installaon……………………………………………………………………………….. 8 Preparing the gas supply for the appliance ……………………………………………. Fixing the Appliance and the Flue………………………………………………………...…...

  • Page 3: Regulatory InformaOn And InstallaOn Requirements

    REGULATORY INFORMATION AND INSTALLATION REQUIREMENTS THE FOLLOWING MUST BE NOTED PRIOR TO THE INSTALLATION OF THIS APPLIANCE.  This gas appliance MUST be installed by a GAS SAFE registered installer by law. It must be installed in accordance to these installaon instrucons and the GAS SAFETY (Installaon & Use) REGULATIONS 1998 as amended.

  • Page 4: Regulatory Requirements For Flue Terminal InstallaOn

    In the republic of Ireland the installaon must conform to the relevant secons of IS813 ‘Domesc Gas Installaons’. Hearth Products recommend that the terminal guide be fied in any area where it may be damaged or contact could be made with the flue terminal.

  • Page 5: SiNg The Appliance And Preparing Opening

    SITING THE APPLIANCE AND PREPARING THE OPENING  Figure 2 Figure 2 shows the maximum length flue aached to the appliance. If the distance from the front face of the back panel to the outside wall exceeds 624mm the installaon cannot proceed. In most installaons the flue secon will need to be cut to the appropriate size.
  • Page 6  It may be necessary to install a lintel above the cavity that has been created. If a lintel is required to support the recess in the inner leaf (brickwork) then it should either be steel or reinforced precast concrete. The lintel should be the depth of the inner brickwork and be approximately 700mm long. Ensure that all dust and rubble is removed from the area.

  • Page 7: Clearances From CombusBle Shelf

    This fire is suitable for fing to non-combusble fireplace back panels with a temperature rang of at least 150 . (This is also known as CLASS”O” - If in doubt please contact the supplier of the back panel to check suitability. It is recommended that the back panel be constructed of 3 secons with joints ...

  • Page 8: Elevated InstallaOn

    In addion it is imperave that ONLY fascia/trim arrangements that are supplied by Hearth Products are deemed suitable to be used with Hearth Products appliances in a ‘hole in the wall’ installaon.

  • Page 9: Fixing The Appliance And The Flue

    Fixing the Appliance. If the appliance is being installed with a spacer kit, this should be aached to the appliance using the screws included and the fire retardant foam strip which is supplied with the appliance should be affixed to the rear ...
  • Page 10 This installaon DOES NOT require the burner tray to be removed from the firebox. Thread the cables from the FRONT base of the fire at the two posions le and right. The cable can be pulled through the firebox at each side.

  • Page 11: ConnecNg The Appliance To The Gas Supply

    Fing the Terminal Guard  The terminal guard can now be assembled and fied the outside wall. The terminal guard supplied with this appliance is required to be fied, when installed in England or Wales if the terminal could come into contact with people moving around the building or if the terminal could become damaged.

  • Page 12: Appliance Data InformaOn

     Appliance Data Gas Type Natural Gas Inlet Pressure 20mbar 1mbar Gas Connecon 8mm pipe Injector Pilot (Manual Control) P-XX1313 Pilot (Slide Control) P-XX1314 Input High Rate (Gross) 4.2kW (0.4m /hr) Input Low Rate Manual Control (Gross) 2.9kW (0.27m /hr) Input Low Rate Slide Control (Gross) 2.7kW (0.26m /hr)

  • Page 13: Removal Of Glass Panel

     Removal of the front glass panel. The top glass clamp is held in place with 6 screws. This panel is concealed behind the top cover strip which is held in place by two magnets. The two magnets are fied to the top glass clamp as shown in this diagram.

  • Page 14: Checking OperaOn Of Appliance

    Install the ceramics and the glass panel to the appliance according to these instrucons—see pages 13 and 20  Test the operang pressure of the appliance by aaching a pressure gauge to the test point of the appliance. This connecon should take place when the appliance is OFF. Ensure that gas is turned on at the gas meter and purge the air from the appliance by : MANUAL CONTROL UNITS: Rotang the control to the...

  • Page 15: CompleNg The InstallaOn

    Compleng the Installaon of the Appliance  Remove the protecve covering (if applicable) from the face of the decorave trim. Fit the trim to the appliance with the magnets provided. One magnet should be placed in each corner of the trim at the top of the appliance and on each side about 120mm from the base of the appliance.

  • Page 16: Cleaning InstrucOns

    Maintenance of the Appliance The following procedures can and should be performed by the customer at regular intervals depending upon use of the appliance.  Appliance Technical Informaon Gas Type : Natural Gas Category : I Inlet Pressure: (Cold) 20mbar Heat Input Gross : 4.2kW Injector : 162 Desnaon Countries : GB/ IE...

  • Page 17: Service InstrucOns

    The following procedures can and should only be performed by a Gas Safe registered installer.  This appliance should be serviced annually by a Gas Safe registered installer. Removal / Replacement of Gas Carrying Components. The removal and replacement of all the gas carrying components will require the removal of the burner tray. The following informaon details the removal of this tray.
  • Page 18 Re-assemble the burner tray into the firebox (see previous page) Only replacement components supplied by the manufacturer should be used in the service of this appliance. Contact details for Hearth Products Ltd can be found on the back page of these instrucons.

  • Page 19: User InstrucOns

    OPERATING INSTRUCTIONS This appliance is available with two operang methods, namely manual control and slide control. The following  instrucons detail both methods of operaon however the basic operaon of the appliance involves the ignion of a pilot burner , then the control of the main burner with LOW and HIGH sengs. This glass panel on this appliance is very hot when in use and as with all heang appliances a fireguard should be used for the protecon of children, the elderly and infirm.

  • Page 20: Coal Layout InstrucOns

    FUEL BED LAYOUT (COAL) The following instrucons detail how the ceramic fuel bed and loose components are to be installed  onto the appliance. Great care should be taken when handling these ceramic parts as they are fragile and can easily be broken. Do not force any component into posion, if it does not fit easily then you are not fing the part correctly.
  • Page 21 Step 3 Fit the front le side front ceramic rail in front of the burner as shown in the picture below. Ensure its’ lower edge is sing down onto the support bracket.  Step 4 Fit the upper right side ceramic rail as shown in the picture below. Step 5 Fit the upper le...

  • Page 22: Product Fiche

    mers are not used. This is not to be confused with the net efficiency, or useful efficiency of the appliance (shown in the tables above). This product MUST be installed by a Gas Safe Registered Installer. Full details are provided in this manual. Hearth Products Ltd. Unit 14 Tollgate Industrial Estate, Stafford, ST16 3SU...

  • Page 23: Spare Parts List

    P-XX1184 Ceramic Upper – LH P-XX1185 Ceramic Upper – RH P-XX1395 Glass Panel Hearth Products Ltd Unit 14 Tollgate Industrial Estate, Stafford, ST16 3SU Www.hearthproducts.co.uk Tel: 01785 225401 Fax: 01785 225501 Email: info@hearthproducts.co.uk Due to our policy of connual product improvement, some diagrams and small details may not be accurate however if there is any...
