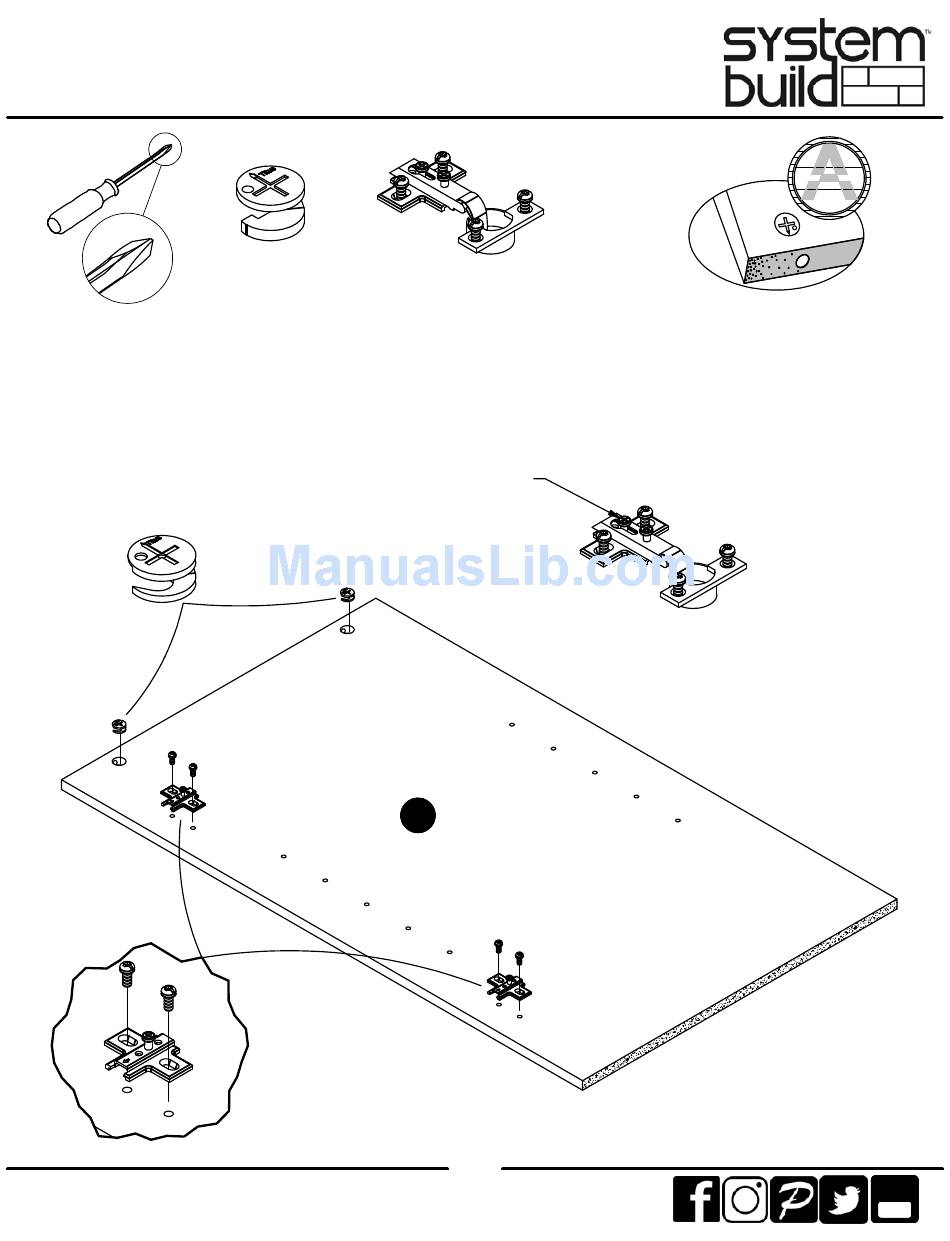

STEP 1
Loosen screw on the hinge and separate the two parts. Insert two hinge plates to left panel (A).
Insert two cam locks.
systembuild.com
(x2)
(x2)
#A22570
#A65615
Loosen to seperate
A
8
Quick
Assembly
Tip
Proper orientation of CAM LOCK
* raw edges are shaded
