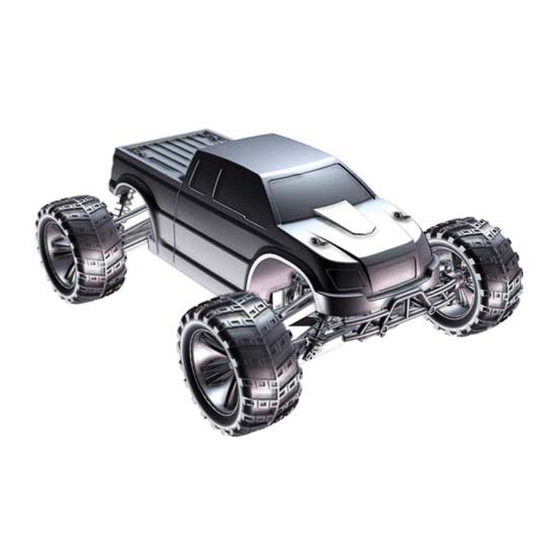

- Page 1 ™ WARHAWK 1/10 4WD ELECTRIC SHORT COURSE TRUCK FCES03002T1/T2 ™ OUTBREAK 1/10 4WD ELECTRIC MONSTER TRUCK FCES03001T1/T2 INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
Parts Diagram (Center Chassis) ..........15 After Driving ................8 Recommended tools..............15 Motor care ................8 Parts Diagram (Front End) ............16 Maintenance ................9 Parts Diagram (Rear End) ............17 Electronic Speed Control (esc) ............ 9 ™ ™ WARHAWK OUTBREAK... - Page 3 WATER-RESISTANT VEHICLE WITH WATER-RESISTANT ELECTRONICS • Driving in wet conditions can reduce the life of the motor. The Your new Force RC Oubreak or Warhawk has a special water- additional resistance of operating in water causes excess resistant coating on the electronics to ensure reliable strain.
-
Page 4: Box Contents
BOX CONTENTS ® 1. Force RC Outbreak ™ (FCES03001T1/T2) or Warhawk (FCES03002T1/T2) Truck ™ ® 2. Force RC Pistol Grip Transmitter (FCE13000) 3. 200mA Battery Charger (DYNC1031) 4. Dynamite Speedpack SPEEDPACK 2000MAH ® ™ 4 AA BATTERIES 7.2V Ni-MH battery (DYNB0020) -
Page 5: Installing Transmitter Batteries
4. Install the clip. If desired, you can put foam blocks (ECX1053) in front of the battery so the weight of the battery increases rear traction or in back of the battery to increase steering response. ™ ™ WARHAWK OUTBREAK... -
Page 6: Transmitter Controls
THROTTLE TRIGGER Reverse (when TH. REV switch on N). Forward Stop (when TH. REV switch on N). Controls power to motor for forward or reverse (see TH. REV switch). ™ ™ WARHAWK OUTBREAK... -
Page 7: Getting Started
IMPORTANT: Seat the motor brushes by driving smoothly on a fl at surface during use of the fi rst battery charge. Properly seating the motor brushes will increase the life and performance of the motor. INSTALLING THE VEHICLE BODY ™ ™ WARHAWK OUTBREAK... -
Page 8: Operation
• Over-temperature protection is installed on the ESC to • Prolong motor life by preventing overheating conditions. prevent circuit damage, but cannot protect the motor from Undue motor wear results from frequent turns, stops and driving against heavy resistance. ™ ™ WARHAWK OUTBREAK... -
Page 9: Maintenance
Included Part # Replacement Part # Description DYNS1215 Motor DYN1062EC DYN1060 7.2V Battery SPMSS6170 Steering Servo FCES13001 FCES13001 Receiver DYNS2211 DYNS2210 Electronic Speed Control (ESC) Channel 1 Channel 2 Bind Button DYNC1031 DYNC0500 Battery Charger ™ ™ WARHAWK OUTBREAK... -
Page 10: Component Specifi Cations
Description FCESS233002 Shock Spring/Cap Set: 1:10 4wd All FCESS233003 Front/Rear Shock Body & Rod End Set: 1/10 4WD All FCESS233004 Front/Rear Shock Shaft & Seal Set: 1/10 4WD All FCESS235000 Fastener Set, 38pcs: 1/10 4WD All ™ ™ WARHAWK OUTBREAK... -
Page 11: Troubleshooting Guide
Motor/ ESC Combo More speed, longer run times SPMSS6180 Steering Servo Waterproof, better steering authority SPM2335 DX2E ACTIVE Transmitter/ Spektrum compatibility, Waterproof receiver, Telemetry options: SR310 Receiver Combo SPM6743 DX2E ACTIVE Speedometer Bundle, SPM6744 DX2E ACTIVE Dashboard Bundle ™ ™ WARHAWK OUTBREAK... -
Page 12: Limited Warranty
Horizon directly. This will enable Horizon Product for a period of 60 days from notifi cation, after which to better answer your questions and service you in the event that you it will be discarded. 10/15 ™ ™ WARHAWK OUTBREAK... -
Page 13: Contact Information
20 centi- meters between the radiator and your body. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ™ ™ WARHAWK OUTBREAK... -
Page 14: Replacement Parts
FCES43000 Wheel & Tire Set: 1:10 4wd Outbreak LOS43006 Wheels (2) Warhawk LOS43016 Tires (2) Warhawk LOS43015 Wheel and Tires set, mounted (4), Warhawk FCESS230000 Body, Black: 1/10 Outbreak FCESS230001 Body, Red: 1/10 Outbreak FCESS230002 Body, Purple/Black: 1/10 Warhawk FCESS230003 Body, White/Blue: 1/10 Warhawk ™... -
Page 15: Parts Diagram (Center Chassis)
PARTS DIAGRAM (CENTER CHASSIS) RECOMMENDED TOOLS 2 mm 1.5 mm ™ ™ WARHAWK OUTBREAK... -
Page 16: Parts Diagram (Front End)
PARTS DIAGRAM (FRONT END) ™ ™ WARHAWK OUTBREAK... -
Page 17: Parts Diagram (Rear End)
PARTS DIAGRAM (REAR END) ™ ™ WARHAWK OUTBREAK... - Page 18 45,46 43,44 ™ ™ WARHAWK OUTBREAK...
- Page 19 Printed 09/2017 Force RC, the Force RC logo, Warhawk, Outbreak, Dynamite, Speedpack and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
