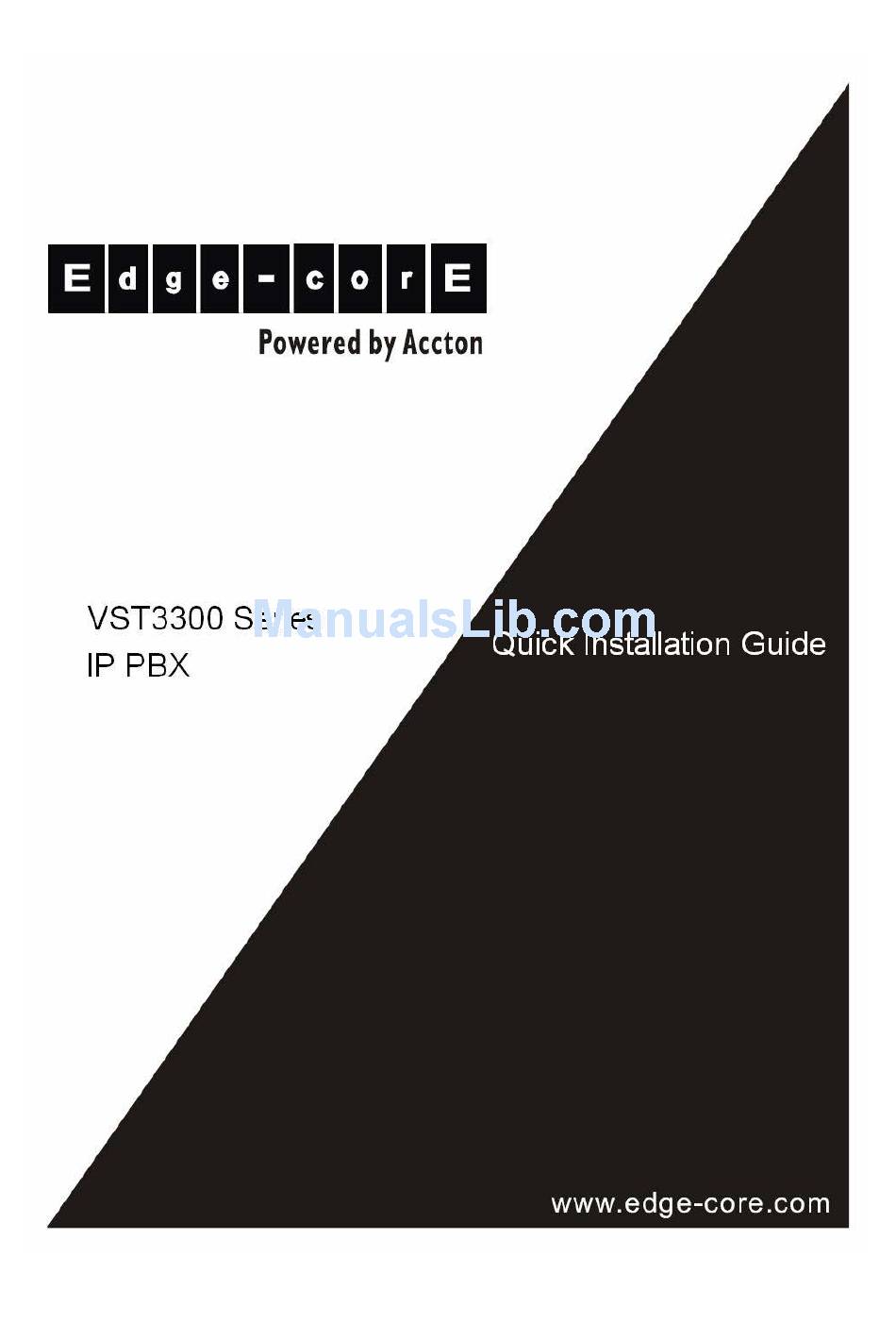

- Page 2 Attention: This is draft e VST3300 Series Quick Installation Guide Edition 1.0 Update：2006/04/25 DOC No.: 9172018701...
-
Page 3: Table Of Contents
Quick Installation Guide Table of Contents Safety Instructions ..................3 Package Contents and Related Environmental Requirements....4 Contents ......................4 Hardware and network requirements..............5 Device Figure ..................6 Panel ........................ 6 LED indicators ....................6 Connectors ....................... 6 Hardware Installation................7 General Connection..................7 4.1.1 Connection with Telephone Line ................ - Page 4 Quick Installation Guide Checking before Dialing ..............211 Enter Web to Verify..................21 Check Related Configurations ................ 22 7.2.1 Basic Information ..................... 22 7.2.2 IP Setting ......................... 23 Restart ......................23 Check LED Status................... 24 Trouble Shooting .................... 25 7.5.1 The configuration is not correct................25 7.5.2 LED Errors .......................
-
Page 5: Safety Instructions
Quick Installation Guide Safety Instructions Warning 1. Do not attempt to service the product yourself. Any servicing of this product should be referred to qualified service personnel. 2. To avoid electric shock, do not put your finger, pin, wire or any other metal objects into vents and gaps. -
Page 6: Package Contents And Related Environmental Requirements
Requirements 2.1 Contents Includes： VST3300 Series Device x 1 Model Name Analog Channels SIP Channels (Default) SIP Lines SIP Trunks VST3305 1 FXO + 2 FXS VST3306A 2 FXO + 2 FXS VST3306B 4 FXS VST3306C 4 FXO VST3318A 8 FXO + 8FXS... -
Page 7: Hardware And Network Requirements
Quick Installation Guide 2.2 Hardware and network requirements This product requires the basic environment listed below. 1. Broadband IP network, fixed IP (Public or Private IP) is suggested. This device may connect to a router using dynamic IP (PPPoE). 2. Bi-directional, 64~512 Kbps bandwidth or more is recommended depending on port usage. -
Page 8: Device Figure
For analog phone sets or FAX machines Voice For public lines or trunk from Analog PBX BROADCAST (for For an amplifier, speakers or earphones VST3305 only) Network To WAN (MDI-X) RJ-45 MDI-X terminal, for WAN To LAN (MDI) RJ-45 MDI terminal, for LAN... -
Page 9: Hardware Installation
Quick Installation Guide Hardware Installation 4.1 General Connection 4.1.1 Connection of Telephone Line There are 2-wire and 4-wire telephone lines. A 2-wire line is OK for this machine. The connector type is RJ-11. ♦ The FXS or Phone port of this machine can connect to phone set or Trunk card/FXO port of an analog PBX only. -
Page 10: Connection With Network Cables
Quick Installation Guide 4.1.2 Connection of Network Cables There are 2 kinds of LAN cables, straight through cables and crossover cables. Both connectors are RJ-45 type although they appear the same. Using the wrong cable type will not damage the machine. The figure below is for your reference. Internet/LAN MDI/MDI-X VST3300... -
Page 11: Connection Of 16 Port Model
Quick Installation Guide 4.2 Connection of the 16 Port Model 4.2.1 Installation of Modules There are 3 available modules: MP3008+, MP3108+ and MP3208+. Modules can be installed into the S1 or S2 bays freely according to the needs of the structure. -
Page 12: Connection Between Idc Connector And Phone Set
Quick Installation Guide Prepare materials. Insert the insulated wires directly into the block. Push here Push the block down until it is locked to flush the conductor with the probe. Cut off the conductor part on the outside edge to avoid from causing a short circuit. 4.2.4 Connection between IDC Connector and Phone Set The Voice interfaces (FXS and FXO ports) of this machine use IDC connectors and can be connected to a phone set with an extension or the PSTN. -
Page 13: Connection Of Basic Structure
Quick Installation Guide 4.3 Connection of Basic Structure The figure below is the basic structure; please ignore the connections inside the dotted line. When your machine is configured correctly for the Internet, these services will be available (extra charge is required for some services) Community User private PSTN... -
Page 14: Initial Settings For A Single Device
Quick Installation Guide Initial Settings for a Single Device 5.1 Phone Set Configuration (Phone Set Programming Mode) The system management has a special password (the default password is 9999). You can unhook any phone set connected to the device and dial *0 09 9999 # (If there are no FXS ports, connect a FXO port to trunk (PSTN) -
Page 15: Configuration Of Ip Address
Quick Installation Guide France Taiwan Germany Thailand Hong Kong Britain Italy Japan 5.3 Configuration of IP Address This Chapter explains how to configure the IP Address of this device. Before configuration, apply for an IP from your system administrator. It can be a fixed Public IP. If fixed private IP is used, you have to refer the description of section 6.2 Open Server Port to Penetrate NAT to penetrate NAT (Firewall, Router) device. -
Page 16: Restart
Quick Installation Guide Example: Assume the information below. Country Code：86 (China) Area Code：21 (Shanghai) Phone Number：46286434 Attention: The 3 items above are required for all calls, no matter if they are long distance calls, international calls or not. Step 3 Continued from last section (still in phone set programming mode) 50 21 # Du Du Du (50 is the parameter. -
Page 17: Configuration Of Router
Quick Installation Guide Configuration of Router A Router is a connection between the LAN and Internet. It may also have other functions, such as Firewall, DHCP Server, etc. A DHCP Server can dispatch IP Addresses to PCs and devices in a LAN environment. In this example, we assume that this router has a DHCP Server activated. - Page 18 Quick Installation Guide Choose the Network connection type, right click and select Properties Local Area Connection Properties will pop up. Select Internet Protocol (TCP/IP) Select Obtain an IP address automatically and Obtain DNS Server address automatically.
- Page 19 Quick Installation Guide To confirm that the PC had gotten the IP address from Router click Start and Run. In the Run window enter “cmd” Input "ipconfig" into the window that will appear to see if an IP was received. (The IP you get will not be the same.)
-
Page 20: Open Server Port To Penetrate Nat
Quick Installation Guide 1) Enter the Web management of a Router by opening a browser and inputting the Router’s IP address. (This example uses Edge-Core’s VR-50 VPN Router with IP address 192.168.1.1) 2) Click General Settings from the selection on the left for the WAN settings. - Page 21 This should be reflected in the mapping port of the IP Sharing device. Example: Opening UDP ports 10000~10999 for Voice Packets (Edge-Core’s VR-50 VPN Router is used for this example) A) In VR-50’s Web management, select Advanced/Forwarding. Click Service Management B) A window will pop up.
- Page 22 Quick Installation Guide C) In the Service drop down menu, select the Service Port you just created (RTP 10000-10999). Enter the IP Address that packets will directed to (192.168.1.36). Enable.
-
Page 23: Enter Web To Verify
Quick Installation Guide Checking before Dialing 7.1 Enter Web for verification Enter Web Interface 1. Open a browser, enter the IP address (192.168.1.36) configured for the device by phone set in section 5.3 Configuration of IP Address and used in the server port configuration in section 6.2 Open Server Port to Penetrate NAT 2. -
Page 24: Check Related Configurations
Quick Installation Guide 7.2 Check Related Configurations Enter the Web page below to verify the settings 7.2.1 Basic Information Web Path: 1.System\1.1Basic Information Check to make sure it is correct. To identify this unit easily, input an ID name If it is not correct, change it and click Apply Example... -
Page 25: Ip Setting
Quick Installation Guide 7.2.2 IP Setting Web Path: 5.IP Settings Fixed IP, type is Manual Example IP info 192.168.1.36 255.255.255.0 192.168.1.1 7.3 Restart To implement the settings when all configurations are done, restart this machine by clicking -Restart- at left bottom of Web page. Wait a moment for the restart to complete. Attention: Should the Router also require a restart it, first restart the router and then the VST3300 Series device. -
Page 26: Check Led Status
Quick Installation Guide 7.4 Check LED Status Check related LED indicators to ensure the devices are useable VST3300 Series Label Description Status 10/100 Link/Activity Network Link Up Ethernet Sending/Receiving data FLASH OK packets 100Mbps Transmission Rate is 100Mbps Transmission Rate is 10Mbps OFF Possible failure. -
Page 27: Trouble Shooting
Quick Installation Guide 7.5 Trouble Shooting 7.5.1 The configuration is not correct If you find the configuration at section 7.2 Check Related Configuration is different from the setting you configured by phone set, then modify the settings from Web and click the button. -
Page 28: Making Phone Calls
Quick Installation Guide Making Phone Calls When the basic settings above have been configured, you can make ordinary calls as shown in the following. 8.1 Dialing between Extension FXS ports of this product act as PBX extensions. Extension numbers are from 1011 to 1026 (depending on model’s port number). -
Page 29: Making A Call To The Distributor
Quick Installation Guide auto-attendant is heard caller dials 1011 1011 rings User of Ext. 1011 answers the phone. 8.3 Making a Call to the Distributor The VST3300 Series should have the support from its distributor. In addition to a PSTN phone number, they should also provide Network Phone Number. - Page 30 Quick Installation Guide Dialing Method: Not only the number structure, but also dialing method of IP Phone Numbers are the same as traditional telecoms. First, what is the number you want to dial? Compare it with your own number. If the country code and area code are the same, you only need to dial **+office code+ subscriber number+# If the country code is the same, but area code is different, you need to dial **+long distance access code+area code +office code+subscriber number+#...
-
Page 31: Other Important Notices
Quick Installation Guide Other Important Notices 9.1 Change Password A set of management passwords should be configured to prevent network invasion. Passwords for FTP and Console must be set by Console. Web passwords can be set in the Web management page. 9.1.1 How to Use Console or Telnet Entering Console management interface After connecting the PC to the VST3300 Series device via a Console cable, Power on... -
Page 32: Change Web Password
Quick Installation Guide Example: telnet 192.168.1.36 9.1.2 Change Web Password Configure a set of management passwords to prevent network invasion. Specify 1~6 digits or English letters. This password can be changed by Web or Console. Configure it from Web Web Folder: 1.System\1.1Basic Information Input User Name and repeat the Password twice Click the button when it is done. -
Page 33: Change Password Of Ftp, Telnet And Console
Quick Installation Guide 9.1.3 Change Password of FTP, Telnet and Console Configure a set of Console password (shares with Telnet and FTP) to prevent network invasion. Specify 1~6 digits or English letters. Configure it from Console or Telnet By Console: (In this example, configure Console and FTP password to 123, Input is in Red-Bold) IP PBX... -
Page 34: How To Enter System With Customized Service Port
Quick Installation Guide System need to restart PBX(config)#service_port telnet 7070 System need to restart PBX(config)#service_port ftp 6060 System need to restart PBX(config)#exit PBX#restart This command resets the system. System will restart operation code agent. Reset system, [Y]es or [N]o or [P]end? Yes 9.2.2 How to Enter System with Customized Service Port. -
Page 35: Other References
Quick Installation Guide Greeting Description of Greeting Example of Message number Greeting (5) For holiday greetings, off duty This is off-duty time, please dial an messages, etc. extension number directly or call again during office hours Greeting (6) For no answer Your call has not been answered, please dial another extension number or 0 for Operator...
