Page 2: Fcc Certifications
FCC Certifications This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Table Of Contents
Table of Contents UNPACKING INFORMATION ....... 5 INTRODUCTION ..........5 ........... 5 ENERAL ESCRIPTION .............. 5 EATURES ............6 RONT ANEL LEDs Definition ............6 ............7 ANEL INSTALLATION ..........8 ..........8 ESKTOP NSTALLATION ..........8 MOUNT NSTALLATION ........... 9 NSTALLING ETWORK ABLES... - Page 4 Load Default Setting ..........14 Firmware Upgrade ..........14 ............. 15 ANAGEMENT Port Configuration ..........15 Port Mirroring ............16 Bandwidth Control ..........16 Broadcast Storm Control ........17 VLAN S ............18 ETTING Group VLAN Setting ..........18 Multi to 1 Setting ..........18 ............
-
Page 5: Unpacking Information

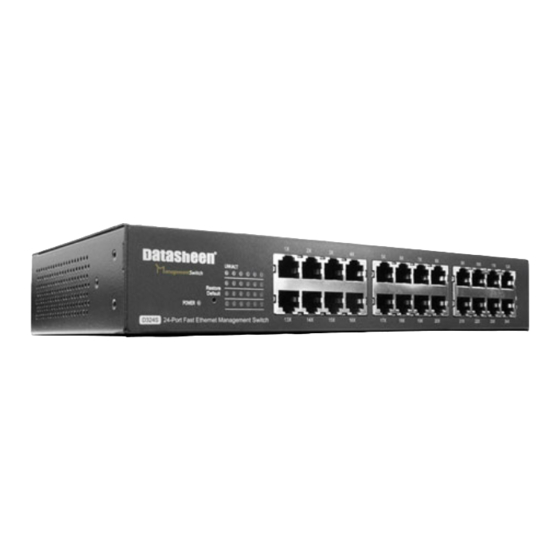

Unpacking Information Thank you for purchasing the D316S 16-Ports/D324S 24-Ports Fast Ethernet Web Smart Switch. Before you start, please verify that your package contains the following items: 1. One 16/24-Ports Fast Ethernet Web Smart Switch 2. One power cord 3. Rack-mount brackets and screws (optional) 4. -
Page 6: The Front Panel
D316S / D324S Front Panel The front panel consists of LED indicators. Please refer to the following paragraph for information. LEDs Definition LED for the device: The switch provides a power LED for the device. Status Operation Steady Green The switch is powered on... -
Page 7: The Rear Panel
following operation modes: Media Speed Duplex Mode 10/100Mbps(copper) 10Mbps Full Duplex Half Duplex 100Mbps Full Duplex Half Duplex Restore Default Button You can use this button to reset the switch or restore factory default settings. To reset the switch, press the button once. To restore factory default settings, press and hold the button for three seconds. -
Page 8: Installation
Installation This switch can be placed on your desktop directly, or mounted in a rack. Please refer to the instructions for installation. Before installing the switch, we recommend: The switch is placed with appropriate ventilation environment. A minimum 25mm space around the unit is recommended. The switch and the relevant components are away from sources of electrical noise such as radios, transmitters and broadband amplifiers The switch is away from environments beyond recommend moisture... -
Page 9: Installing Network Cables
Installing Network Cables 1. Crossover or straight-through cable: All the ports on the switch support Auto-MDI/MDI-X functionality. Both straight-through crossover cables can be used as the media to connect the switch with PCs as well as other devices like switches, hubs or router. 2. -
Page 10: Functional Description
Functional Description Flow Control and Back Pressure Flow control and Back Pressure both contributes for lower and higher speed devices to communicate to each other hence ensures the correctness of data transmitting. The 802.3x flow control and Back Pressure mechanisms work respectively for full and half duplex modes. -
Page 11: Management Guide
Management guide Access the Switch This section instructs you how to enter and proceed the advanced management capability, which can be accessed by Telnet session / Internet Browser over the network (in-band). To access the Web-based management interface, you should configure the management station with an IP address and subnet mask that compatible to your switch. -
Page 12: Homepage
Homepage After authentication procedure, the welcome page shows up as the Homepage. You may click the hyperlinks on the left side of each page to get access to each management functions. -
Page 13: Administrator
Administrator Authentication Configuration Specify the username/password for accessing this Graphic User Interface. Please fill in your desired username and password in the designated boxes respectively then click the update button to perform changes. Note: The default username/ password is admin/ admin. System IP configuration This page allows users to change the IP addresses of this device. -
Page 14: System
System The system information of this device Items Functions MAC Address The MAC address of this device.. Number of Ports The amounts of the ports of the device. Comment Your note or identification for this switch System Version The firmware version of this device. Load Default Setting This page allows users to load the default settings of the device. -
Page 15: Port Management
Port Management Port Configuration This page shows the status on each port, and provides port properties configuration. To configure each port: 1. Select the port that you are going to configure on the Port No. drop list. 2. Select each item in drop list. 3. -
Page 16: Port Mirroring
Port Mirroring The Mirror function copies all the packets that are transmitted by the source port to the destination port. It allows administrators to analyze and monitor the traffic of the monitored ports. Mirror Configuration: 1. Select those ports that are going to be monitored by marking the checkboxes in “Source Port”... -
Page 17: Broadcast Storm Control
Broadcast Storm Control This function prevents the bandwidth from overloaded by broadcast packets. To activated this function: 1. Mark the “Enable” checkbox. 2. Select the rate of the broadcast packets that are going to be dropped by the Broadcast Filter. 3. -
Page 18: Vlan Setting
VLAN Setting VLAN divides the network members into groups to reduce packets collisions and improve the network efficiency. Please follow the instructions to configure. Group VLAN Setting 1. Select a group in the “Group NO” drop list. 2. Select the members of the group by marking the “Member Port” checkbox. -
Page 19: Trunk Setting
3. Click the Update button to activate. Note: While the group setting in “Multi to 1” conflicts with “Group VLAN setting” the system ignore your configuration on “Multi to 1” function. Trunk Setting To set up the Port trunk groups: 1. -
Page 20: Qos Setting
QoS Setting Priority Mode This page allows users to designate a QoS mode of this switch. You can select from three modes: First-In-First-Service The QoS function is disabled. The switch deliver the packets according to the time that the packets came All-High-Before-Low The QoS function is enabled and the switch will deliver low-priority packets only after high-priority packets are completely delivered. -
Page 21: Class Of Service Configuration
Class of Service Configuration Use this page to configure the priority level for each port. To set the priority, please mark the ports that you would like to set as high priority on the “Port Base”, “VLAN Tag” or Ipv4 TOS/Ipv6 Traffic Class” checkbox. Note: 1. -
Page 22: Configuration Backup/Recovery
5. To change the MAC addresses, fill in the new addresses and click the Read Button. Configuration Backup/Recovery This function provides a quick applying while a configuration is going to be applied on several of this product. Please follow the instruction below to Save and load a configuration. -
Page 23: Product Specifications
1.5M bits buffer Memory Emission FCC Class A, CE, VCCI, RoHS Operating ~ 40 C (32 ~ 104 Temperature Operating 10% - 90% (non-condensing) Humidity Power Supply Internal power supply 3.3V/4A 100-240V/ 50-60Hz universal input © Datasheen Corporation. 2009. Taiwan...
