Summary of Contents for Wicked lasers S3 Krypton Series

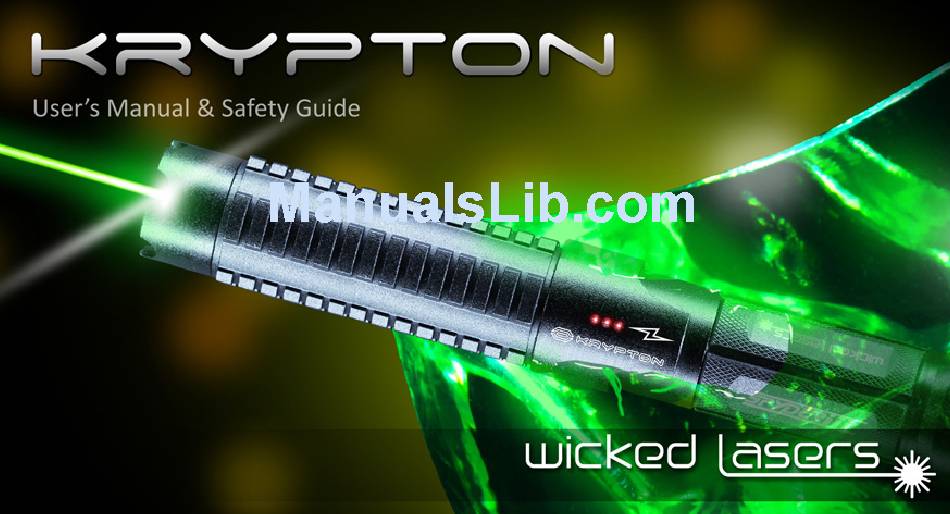

  • Page 3 User’s Manual and Laser Safety Guide www.wickedlasers.com...
  • Page 4 F O R E W O R D First and foremost, we are laser enthusiasts. We desire nothing more than to achieve perfection in our craft. For us, pushing the limits of technology is part of our daily routine. It’s only impossible if we don’t try. As we continue to advance in our search for perfection, we’ve set benchmarks for others to follow and new limits for us to test.
  • Page 5 U ser ’s Manual & Laser Safety Gui de | 3...
  • Page 6 We wanted to create the world’s most powerful handheld laser - we succeeded and inadvertently set a world record in doing so. We are extremely proud to be included in the Guinness Book of World Records for 2007. This will serve as a testament to our commitment to providing the world with the most sophisticated laser products technology can offer.

  • Page 7: Table Of Contents

    Table of Contents S3 Krypton Series Technical Specifications Spyder 3 Laser Diagram Using Your Laser: How to Power On Using Your Laser: The SmartSwitch SmartSwitch Codes Recap FDA Compliant Endcap Diagram Color Perception Chart Using Your FDA Compliant Endcap Safety and Maintenance...
  • Page 8 WW W.W I CK E D L ASE RS. C OM S3 Kr y pto n Se ri es | 2...

  • Page 9: S3 Krypton Series Technical Specifications

    Technical Specifications Model Name: S3 Krypton Series Laser Product Class: Wavelength: 520nm Laser Type: Direct Diode Laser Power: >900mW Beam Shape: 2mm x 7mm Beam Divergence: 2.5mrad Size: 257mm x 35.8mm NOHD* 84.83 meters Beam Distance 0.25 Lux 34142 meters Required Eyewear O.D.

  • Page 10: Spyder 3 Laser Diagram

    WWW.W I CK E DL A SE R S. C OM S3 Kry pt on Se ri e s | 4...

  • Page 11: Using Your Laser: How To Power On

    Using Your Laser : How To Power On At the back of the laser, rotate endcap Insert one Li-Ion Type 18650 IMR Push the button located on the tail cap to counter clockwise to open. rechargeable battery negative (-) end first. operate laser.

  • Page 12: Using Your Laser: The Smartswitch

    WWW.W I CK E DL A SE R S. C OM WW W.W I CK E DL A SE R S . C OM Using Your Laser : The SmartSwitch The S3 Series are the world’s first and only hand held lasers equipped with SmartSwitch™...
  • Page 13 Using Your Laser : The SmartSwitch After pressing the power-button on the To unlock the laser you only need to push To switch to medium-power mode, you tail cap, the laser is now waiting for the the SmartSwitch quickly three times and may hold the SmartSwitch button until unlocking code to be entered.
  • Page 14 WWW.W I CK E DL A SE R S. C OM Using Your Laser : The SmartSwitch To switch to high-power mode, you From any mode, 1 quick click will put the To set the laser to full-power/momentary may hold the SmartSwitch button until laser into tactical standby mode.

  • Page 15: Smartswitch Codes Recap

    Using Your Laser : The SmartSwitch SmartSwitch™ Codes Recap: ▪ Unlocking code - 3 quick clicks + 2 short holds will turn on the laser. ▪ Low, Medium, High power mode - Pressing and holding the SmartSwitch will cycle through the power modes.

  • Page 16: Fda Compliant Endcap Diagram

    WW W.W I CK E D L ASE RS. C OM FDA Compliant Endcap Diagram Screw Safety Interlock Contact Guard Screw S3 Kr y pto n Se ri es | 1 0...
  • Page 17 WWW. W I CKE D LA SERS .CO M Using Your FDA Compliant Endcap Removing the Safety Interlock from Another way to disable the laser is by Remove screws to detach Contact Guard and the Endcap will disable the laser. unscrewing the Contact Guard as shown here.

  • Page 18: Color Perception Chart

    WWW.W I CK E DL A SE R S. C OM Color Perception Chart How Intensely the Human Eye Perceives Different Colors Based on the human eye’s perception: equal powers of green 520nm light is around 16 times brighter than blue 445nm light, 6 times brighter than red 650nm light, and 150 times brighter than purple 405nm light.

  • Page 19: Safety And Maintenance

    Safety and Maintenance CAUTION - Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. No scheduled maintenance necessary to keep the Do not take apart, modify or dismantle the laser or product in compliance.

  • Page 20: Lens Cleaning Procedure And Troubleshooting

    WWW.W I CK E DL A SE R S. C OM Lens Cleaning Procedure and Troubleshooting What you need : Procedure : Microfiber Cloth - Please make sure the Wash your hand with soap and water. Make sure to dry them properly. microfiber cloth is specifically designed for cleaning lenses.

  • Page 21: Types Of Common Lens Problems

    This condition can be repaired the beam emitted will look similar to the above pictures. by Wicked Lasers, however, will not be covered in your Simply follow the cleaning instructions to restore the spot warranty. A repair cost will apply.
  • Page 22 WWW.W I CK E DL A SE R S. C OM Types of Common Lens Problems Mode Shifts - A mode shift may occur under extreme temperatures. If your laser unit is too hot or too cold, the beam may appear unstable and look similar to the above pictures.
  • Page 23 You will not be able to clean this as water has condensed inside the lens and/or crystal set. This condition can be repaired by Wicked Lasers, however, will not be covered in your warranty. A repair cost will apply.

  • Page 24: Class 4 Laser Safety Instructions

    WWW.W I CK E DL A SE R S. C OM Class 4 Laser Safety Instructions DANGER CLASS 4 LASER : All visible lasers with beams over 500 milliwatts (1/2 watt) are classified as Class 4. EXTREME DANGER, MUST BE USED CAREFULLY ●...
  • Page 25 Class 4 Laser Safety Instructions AVOID EXPOSURE TO BLUE LIGHT Blue laser light can cause photochemical eye damage. Avoid prolonged exposure to blue light (light from 530nm green to 380 ultraviolet can be hazardous, with the peak danger at 440nm blue). There is a hazard even from prolonged exposure to diffused “room glow”...
  • Page 26 WWW.W I CK E DL A SE R S. C OM Class 4 Laser Safety Instructions DO NOT BURN OR DAMAGE MATERIALS DO NOT LOOK OR STARE The beam can char, burn or ignite materials. AT DIFFUSED REFLECTIONS Especially avoid dark, thin, and combustible Looking at the laser “dot”...
  • Page 27 Class 4 Laser Safety Instructions OTHER IMPORTANT SAFETY AND USE CAUTIONS: DO NOT USE AS A LASER POINTER. This Class 4 laser is too bright to be safely used for laser pointing purposes. NOT FOR CHILDREN OR UNAWARE PERSONS. The user must be mature, and must be aware of the direct and reflected beam hazards to eyes, skin, materials and aircraft.

  • Page 28: Limitation Of Liability

    Limitation of Liability In no event shall Wicked Lasers or any of its subsidiaries or affiliates be liable for any indirect, special, incidental or consequential injury to persons or damage to property caused by the use of any of our products. By purchasing from Wicked Lasers, you hereby indicate that you understand and agree to the following: I am 18 years of age or older.

  • Page 29: Manufacturer's Warranty

    Our warranty guarantees your laser to be free from defects in manufacture and workmanship. All defective lasers will be replaced or repaired subject to the full discretion of Wicked Lasers. Ownership of the warranty is not transferable and will expire exactly 12 months from the date of receiving the purchase.
  • Page 30 Manufacturer’s Warranty This warranty does not include defects or damages attributable to misuse, normal surface weathering, or damages caused by accidents or fire or other casualty or force majeure or any other causes or occurrences beyond the manufacturer’s control. To claim your warranty, please send this form or email support@wickedlasers.com with the following information: Full Name: Address:...
  • Page 32 1-877-952-7377 Unit 1010, Miramar Tower, 132 Nathan Road, Tsim Sha Tsui Kowloon, Hong Kong www.wickedlasers.com | support@wickedlasers.com...
