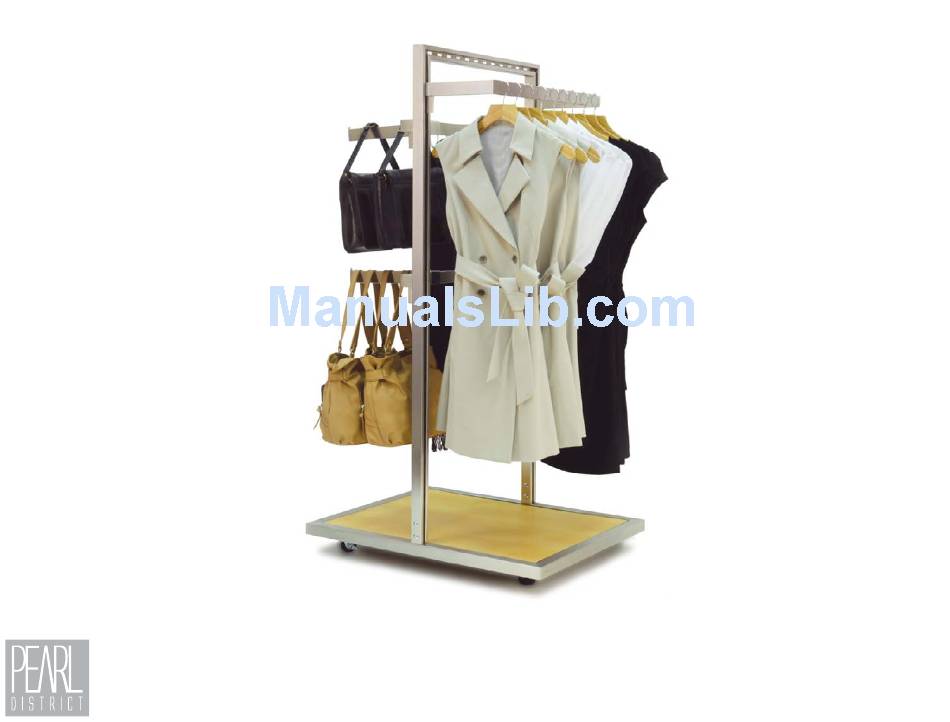

- Page 1 PEARL DISTRICT // 2-WAY ASSEMBLY INSTRUCTIONS...
- Page 2 PEARL DISTRICT 2-WAY // ASSEMBLY INSTRUCTIONS #290-2WAY-MP/BE STEP ONE 1. Remove all items from the box 2. Place the shelf into the base frame Shelf Base GRAND + BENEDICTS | 800.547.7005 | www.grand-benedicts.com...
- Page 3 PEARL DISTRICT 2-WAY // ASSEMBLY INSTRUCTIONS #290-2WAY-MP/BE STEP TWO 1. Attach upright to frame base and secure with bolts (provided). Upright 2. Tighten ALL 4 bolts with an Allen wrench. Bolts Bolts Base GRAND + BENEDICTS | 800.547.7005 | www.grand-benedicts.com...
- Page 4 PEARL DISTRICT 2-WAY // ASSEMBLY INSTRUCTIONS #290-2WAY-MP/BE COMPLETED 2-WAY 1. The 2-Way Rack is complete and ready to accessorize (see the following page). GRAND + BENEDICTS | 800.547.7005 | www.grand-benedicts.com...
- Page 5 PEARL DISTRICT 2-WAY // ASSEMBLY INSTRUCTIONS #290-2WAY-MP/BE 2-WAY ACCESSORIES | Use with Hangbar (B) Faceout 290-HW-FO12 12” Projection | 1½” rectangular tube | Includes mounting brackets Hangbars 290-WAY-WHB-2 2” Projection Hangbar 290-WAY-WHB-9 9” Projection Hangbar | Use with Hangbar (B) Peghooks 6”...
