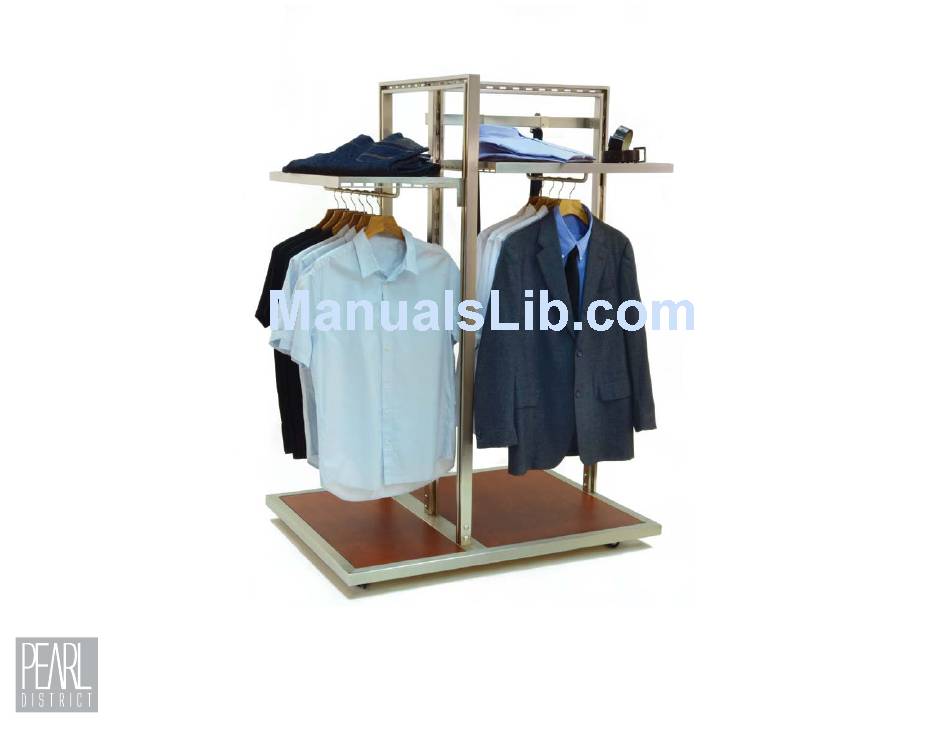

- Page 1 PEARL DISTRICT // 3-WAY ASSEMBLY INSTRUCTIONS...
- Page 2 PEARL DISTRICT 3-WAY // ASSEMBLY INSTRUCTIONS #290-3WAY-MP/BE STEP ONE 1. Remove all items from the box 2. Place both shelves into the base frame Shelf Shelf Base GRAND + BENEDICTS | 800.547.7005 | www.grand-benedicts.com...
- Page 3 PEARL DISTRICT 3-WAY // ASSEMBLY INSTRUCTIONS #290-3WAY-MP/BE STEP TWO 1. Attach frame Upright A to frame Base hole faces inward and line up the bolt holes. NOTE: Attach Upright A with the pre- drilled hole at the top facing in, toward...
- Page 4 PEARL DISTRICT 3-WAY // ASSEMBLY INSTRUCTIONS #290-3WAY-MP/BE STEP THREE 1. Position Upright A and B as shown in the diagram and secure Upright B to the base with the bolts provided. 2. Tighten the bolts with an Allen wrench. Upright B...
- Page 5 PEARL DISTRICT 3-WAY // ASSEMBLY INSTRUCTIONS #290-3WAY-MP/BE Upright frame B has STEP FOUR hole in the middle. 1. Attach Upright A to Upright B by inserting the single screw (provided) as shown in the diagram Insert screw securly through the pre drilled holes in Upright A &...
- Page 6 PEARL DISTRICT 3-WAY // ASSEMBLY INSTRUCTIONS #290-3WAY-MP/BE 3-WAY ACCESSORIES | Use with Hangbar (B) Faceout 290-HW-FO12 12” Projection | 1½” rectangular tube | Includes mounting brackets Hangbars 290-WAY-WHB-2 2” Projection Hangbar 290-WAY-WHB-9 9” Projection Hangbar | Use with Hangbar (B) Peghooks 6”...
