Carmelli NG1022M Assebly Instructions

Triple threat 3-in-1 game table
Hide thumbs Also See for NG1022M:
Table of Contents

Advertisement

Quick Links

Download this manual

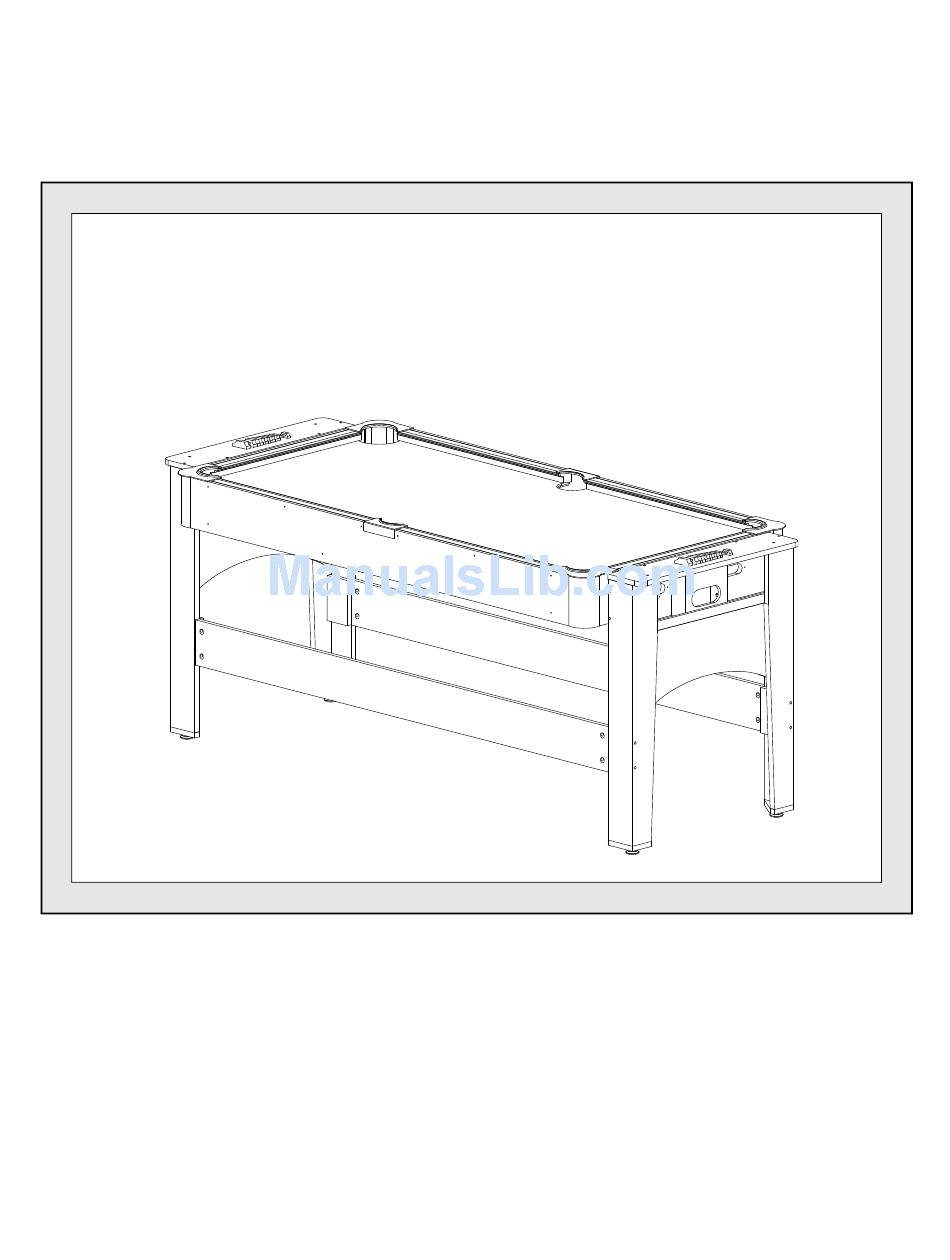

NG1022M
Triple Threat 3-in-1 Game Table
3 IN 1 GAME TABLE
1

Advertisement

Table of Contents
loading

Related Manuals for Carmelli NG1022M

Summary of Contents for Carmelli NG1022M

  • Page 1 NG1022M Triple Threat 3-in-1 Game Table 3 IN 1 GAME TABLE...
  • Page 2 Thank Y 3 in 1 Game Table Thank you for your purchase of our product. We work around the clock and around the globe to ensure that our products maintain the highest possible quality. However, in the rare instance that your product is defective or missing parts, contact Challenger Manufacturing at 800-759-0977 to submit parts requests or warranty claims.

  • Page 3: Parts Identifier

    3 in 1 Game Table Parts Identifier Parts Identifier Part Part Part Illustration/ Illustration/ Illustration/ No./ No./ No./ Order Number Order Number Order Number Qty. Qty. Qty. Cabinet End Panel Allen Wrench Order No. 2-256 Order No. 2-257 Order No. 2-116 Qty.
  • Page 4 3 in 1 Game Table Parts Identifier F4 x 2" Screw F4 x 1" Screw Qty. Qty. Qty. F3 x 1/2" Screw Order No. 2-274 Order No. 2-134 Order No. 4-124 Qty. Qty. Qty. Table Tennis Ball Table Tennis Paddle Table Tennis Net with Posts Order No.

  • Page 5: Preparing For Assembly

    3 in 1 Game Table Preparing for Assembly • Be sure to unpack all of the parts included in this package. Check inside any tubes or sleeves. Save all packing material until the product is fully assembled and functional. • Compare the parts in your package with the Parts Identifier description •...

  • Page 6: Assembly Tips

    3 in 1 Game Table Assembly Tips Make sure you understand the following before you begin to assemble your game table. 1. READ THIS MANUAL all the way through before beginning assembly. 2. When installing parts that have more than one bolt, start ALL bolts in that part by hand before tightening anything.
  • Page 7 3 in 1 Game Table STEP 1 - ASSEMBLE THE LEGS 1. Select one of the leg pieces (#9 or #10) and lay it flat on the floor. Do not bend the hinge in the leg backwards. Damage to the outer surface will occur. 2.
  • Page 8 STEP 2 - ATTACH THE TABLE LOCKS AND CATCH BOX 1. Insert the table locks (#14) into the end panel (#3). Use four screws (#27) to secure each one. 2. Hold the catch box (#4) in position. Insert four screws (#25) from the back side of the end panel.
  • Page 9 3 in 1 Game Table STEP 3 - ASSEMBLE BALL RETURN BOARD 1. Attach the ball return boards (#5) to the bottom of the end panels (#3). Use four screws (#25) per ball return board. 2. Tighten the screws.
  • Page 10 3 in 1 Game Table STEP 4 - ASSEMBLE LEGS TO END PANELS 1. Insert four barrel nuts (#22) into the left and right holes of an end panel (#3). Attach a left leg (#9) and a right leg (#10) to an end panel (#3) using two bolts (#16) per leg. 2.
  • Page 11 3 in 1 Game Table STEP 5 - ATTACH LEG BRACES 1. Insert four barrel nuts (#23) into the holes of the leg braces (#7) as shown. Attach the leg braces (#7) between the assembled legs using four washers (#21) and four bolts (#17) per leg brace.
  • Page 12 3 in 1 Game Table STEP 6 - ASSEMBLE CABINET (TABLE TOP) TO LEGS All bolts and screws from previous steps must be tight. Two adults are recommended for this step. 1. Engage all four table locks. 2. Locate the two large bolts (#18). Place a washer (#19) onto each bolt. 3.
  • Page 13 3 in 1 Game Table STEP 7 - ASSEMBLE TOP SIDE PANELS AND SLIDE SCORERS 1. Attach the two top end panels (#6) to the top of the end panels (#3) using eight screws (#25) for each top end panel. 2.
  • Page 14 3 in 1 Game Table STEP 8 - ADJUST THE LEVELERS 1. With the help of another person, lock the table in position. Turn each leg leveler until the table rests level. 2. Check with a carpenters level placed cross-wise and length wise on the table top. 3.
  • Page 15 3 in 1 Game Table STEP 11 - TABLE TENNIS NET WITH POSTS ASSEMBLY 1. When you want to play table tennis, put the tennis surface (#12) carefully on top of the game table. 2. Insert the table tennis net with posts (#30) into the holes of the table tennis surface (#12). 12 12 To rotate the table: CAUTION: This should be performed by an adult.
  • Page 16 3 in 1 Game Table Care and Use of your Table • This product is intended for INDOOR use only. • DO NOT sit, climb, or lean on the table. • DO NOT drag the table when moving it. This will damage the legs. •...

  • Page 17: 90-Day Limited Warranty

    3 in 1 Game Table 90 Day Limited Warranty This Challenger Manufacturing product is warranted to the original purchaser to be free from defects in material or work manship for a period of ninety days from the date of the original retail purchase. This warranty does not cover defects or damage due to improper installation, alteration, accident or any other event beyond the control of the manufacturer.

  • Page 18: Parts List

    PARTS LIST N G1022M NAME: Product Description Parts Identifier Number NGP5813 TABLE TOP CABINET NGP5814 END PANEL NGP5815 CATCHER BOX NGP5816 BALL RETURN BOARD NGP5817 TOP END PANEL NGP5818 LEG BRACE NGP5819 LEG PANEL NGP5820 LEFT LEG NGP5821 RIGHT LEG NGP5822 LEG BASE NGP5823 TABLE TENNIS SURFACE NGP5824 LEG LEVELER...
