FLASHLOGIC: ADSAHRPWR
MODULE
M1
FLASHLOGIC: FLPROG
MODULE
M10
4 PIN BLACK CABLE
FLASHLOGIC: FLWLMAN1, FLWLMAP1
MODULE
M10
4 PIN BLACK CABLE
FLASHLOGIC: BASEC / VOXX: DUB1, CAGBS, MV3, AS9492A, AS94954P
MODULE
M2 07 BROWN•BLACK DOT - SIREN (+) OUTPUT
MODULE
M13
U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2017
M1 01 ORANGE - ACCESSORY (+) 01 ORANGE - ACCESSORY (+)
02 RED - POWER (30A) 02 RED - POWER (30A)
2 1
03 PURPLE - STARTER (+) 03 PURPLE - STARTER (+)
4 3
04 PINK/WHITE - PROG. RELAY #4 - IGNITION 2 (+) (DEFAULT) 04 PINK/WHITE - PROG. RELAY #4 - IGNITION 2 (+) (DEFAULT)
05 PINK - IGNITION (+) 05 PINK - IGNITION (+)
6 5
06 WHITE - PROG. RELAY #5 (10A) - PARKING LIGHTS (+) (DEFAULT) 06 WHITE - PROG. RELAY #5 (10A) - PARKING LIGHTS (+) (DEFAULT)
8 7
07 RED - POWER (30A) 07 RED - POWER (30A)
08 BLACK - GROUND 08 BLACK - GROUND
OPTIONAL SENSORS

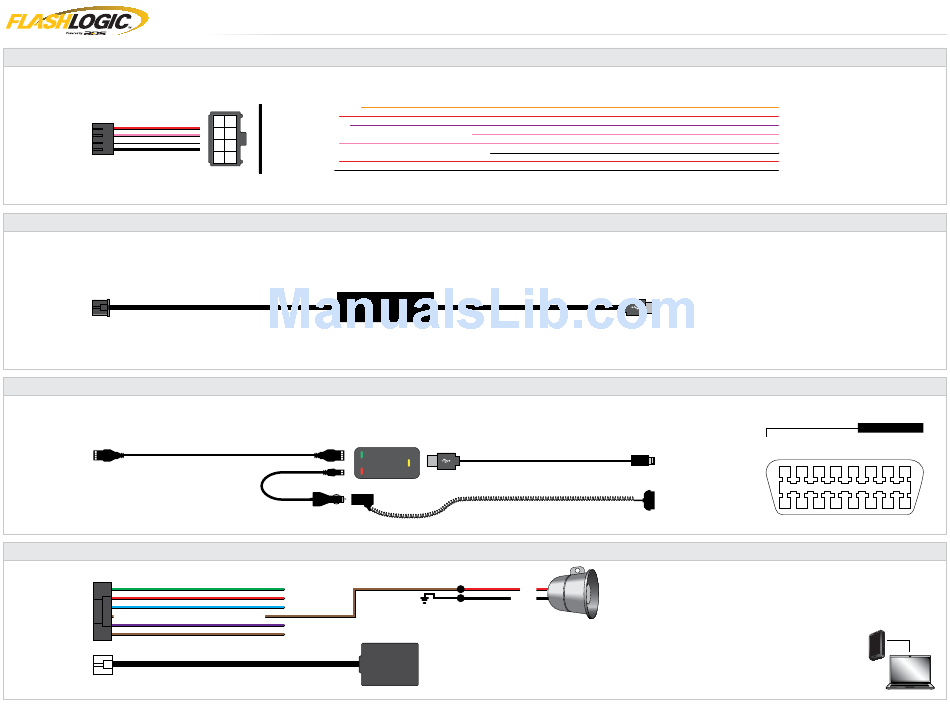

COMPATIBLE ACCESSORIES - 1 OF 2

HIGH CURRENT HARNESS

WEBLINK CABLE

WEBLINK MOBILE

SECURITY PACKAGE

RED
BLACK
BASEC SIREN
DUB1: DIGITAL TILT SENSOR : DIGITAL TILT SENSOR
CAGBS: GLASS BREAK SENSOR : GLASS BREAK SENSOR
MV3: FIELD DISTURBANCE/MOVEMENT SENSOR : FIELD DISTURBANCE/MOVEMENT SENSOR
AS9492A: DUAL STAGE PIEZO SHOCK SENSOR : DUAL STAGE PIEZO SHOCK SENSOR
AS94954P: DUAL STAGE INFRASONIC SHOCK SENSOR : DUAL STAGE INFRASONIC SHOCK SENSOR
FLRSBA
COMPUTER
USB PORT
MOBILE DEVICE
PORT
1 2
OBDII CONNECTOR
9 10 11
TO ACTIVATE THE BUILT-IN TILT & SHOCK SENSOR, TO ACTIVATE THE BUILT-IN TILT & SHOCK SENSOR,
THE SHOCK SENSOR PORT FOR COMPATIBLE ACCESSORIES AND THE SIREN OUTPUT: THE SHOCK SENSOR PORT FOR COMPATIBLE ACCESSORIES AND THE SIREN OUTPUT:
1-LOG INTO YOUR WEBLINK ACCOUNT. 1-LOG INTO YOUR WEBLINK ACCOUNT.
2-CONNECT YOUR CONTROL MODULE AND FOLLOW THE PROGRAMMING STEPS. 2-CONNECT YOUR CONTROL MODULE AND FOLLOW THE PROGRAMMING STEPS.
3-SELECT BASEC AND ENTER THE 16 DIGIT ACTIVATION CODE. 3-SELECT BASEC AND ENTER THE 16 DIGIT ACTIVATION CODE.
4-PROCEED WITH THE PROGRAMMING STEPS AND INSTALLATION. 4-PROCEED WITH THE PROGRAMMING STEPS AND INSTALLATION.
PAGE 5 OF 52
• 20171103
SOLD SEPARATELY
SOLD SEPARATELY
SOLD SEPARATELY
OBDII CONNECTOR
3 4 5 6 7 8
12 13 14 15 16
SOLD SEPARATELY
PRESTIGE
