PAPER BAG REMOVAL AND REPLACEMENT
Featherlite
®
and Featherlite
1.
SCENT TABLETS
(OPTIONAL): As you vacuum, air freshener tablets leave your home smelling clean and fresh while stale odors disappear. The tablets are non-toxic
and formulated to last the life of the disposable paper bag. TO USE, remove an air freshener tablet from the wrapper and place it directly into the disposable paper bag. Add a
new tablet every time you change your paper bag.

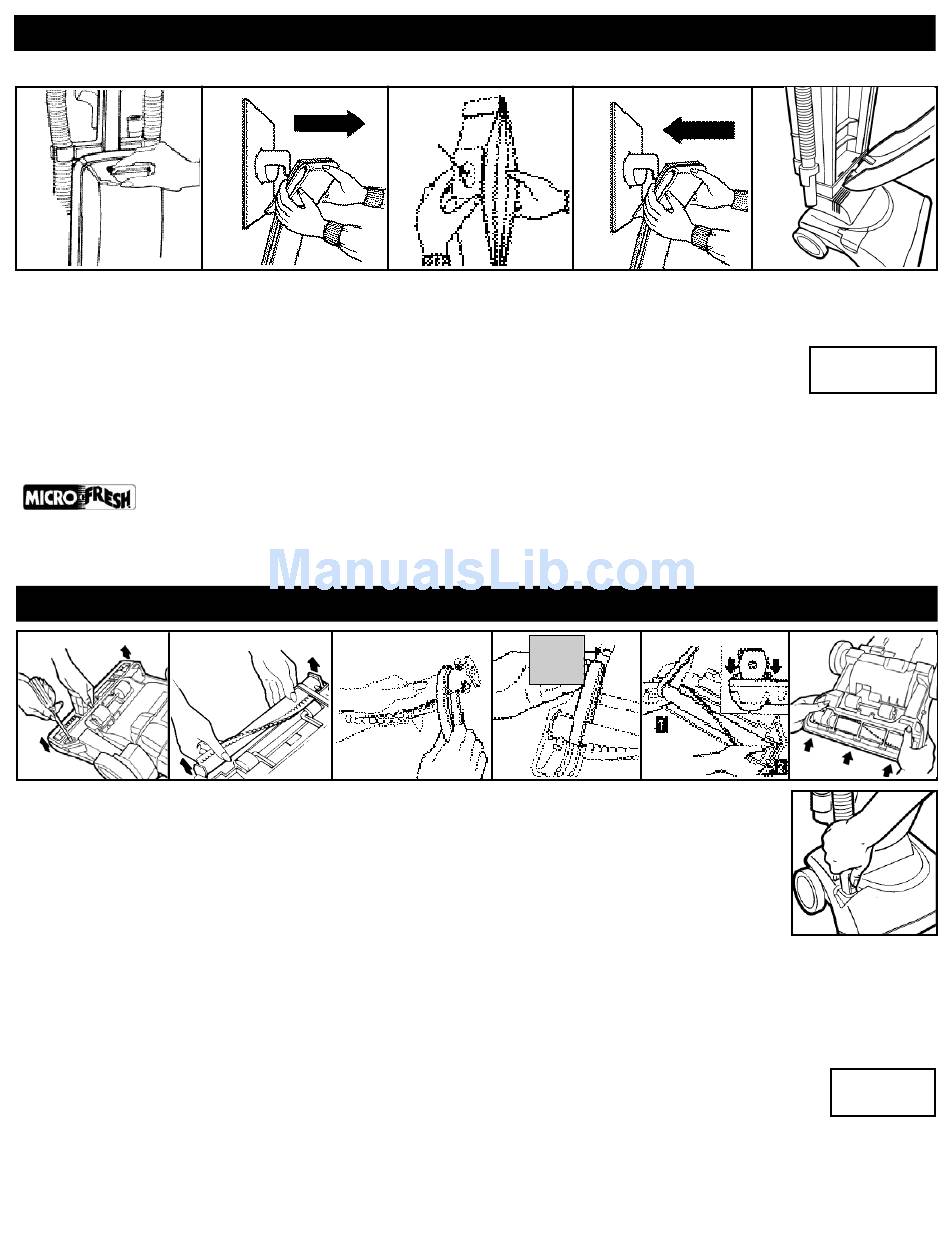

PAPER BAG REMOVAL & REPLACEMENT
NOTE: Unplug cleaner before changing paper bag. Cleaner must have paper bag in place at all times.
1. To Remove: Squeeze front panel release lever and pull towards you (Diagram 1).
2. Grasp cardboard collar of paper bag with both hands and pull past raised locking tabs on the dirt tube. Dispose of old paper bag, (Diagram 2).
3. IMPORTANT: Extend bag away from hole before installing. Press in opening to clear paper away from hole, (Diagram 3).
4. To Install: Push cardboard collar past raised locking tabs on the dirt tube with both hands. Be sure paper bag is fully extended and tucked in at the top and bottom,
(Diagram 4).
5. Replace front panel by putting the two bottom tabs in the slots on the vacuum. Push front panel so release lever attaches, (Diagram 5).
FILTRATION PAPER BAGS
• Dirt Devil
®
's filtration system for 99% "fresh" exhaust air.
• Ideal for allergy sufferers.
MicroFresh
™
disposable paper bags are lined with electrostatically charged fibers that trap fine dust and pollen particles down to 0.1 microns in size.
See an authorized Royal
®
dealer, a participating retailer or the enclosed quick parts mailer for MicroFresh
BELT OR BRUSHROLL REMOVAL AND REPLACEMENT
1.
2.
BELT OR BRUSHROLL REMOVAL AND REPLACEMENT:
TOOL REQUIRED: PHILLIPS SCREWDRIVER
NOTE: Unplug cleaner before changing belt or brushroll. Turn cleaner over. Base should lay flat and face up. Screwdriver required. To remove
nozzle guard, remove two screws near rollers. Next, release two hooks on nozzle guard by pushing outward as shown by the arrows, (Diagram 1).
Gently push up on rear of nozzle guard. (NOTE: Some models may also have two screws at the rear of the nozzle guard).
TO REMOVE BELT: Be sure belt is off motor shaft. Lift and remove brushroll. Dispose of old belt, (Diagram 2).
TO REPLACE BELT:
1. Slip brushroll through belt. Place belt in area of brushroll without bristles, (Diagram 3).
2. Loop belt around motor shaft, (Diagram 4).
3. Insert brushroll into side holder #1 and then #2. Follow direction of arrows on brush end caps, (Diagram 5a.). Rotate brushroll to make sure belt is not twisted, (Diagram 5).
4. Replace nozzle guard. Match the front tabs to the slots on the nozzle base first. Swing down to snap hooks. Press firmly on entire nozzle guard to fit into place. Replace all
screws, (Diagram 6).
IMPORTANT: Rotate brushroll by hand before starting cleaner.
HOW TO CHECK FOR A CLOG: If there is no suction at the end of the hose, a clog may be in the base of the unit. To clear clog: 1. Remove hose from
the nozzle. Press latch on nozzle connector and pull up. Lift door on the nozzle and gently clear the blockage, (Diagram 7) or 2. Remove nozzle
guard (See belt/brushroll removal section above - Pg. 4) and gently clear the blockage.
®
with stretch hose
2.
(OPTIONAL):
3.
3.
™
4.
Motor
Shaft
4
4.
high filtration paper bags.
5a.
5.
5.
D
BAG
TYPE:
6.
7.
BELT
5
STYLE:
