Summary of Contents for Verano VER-24

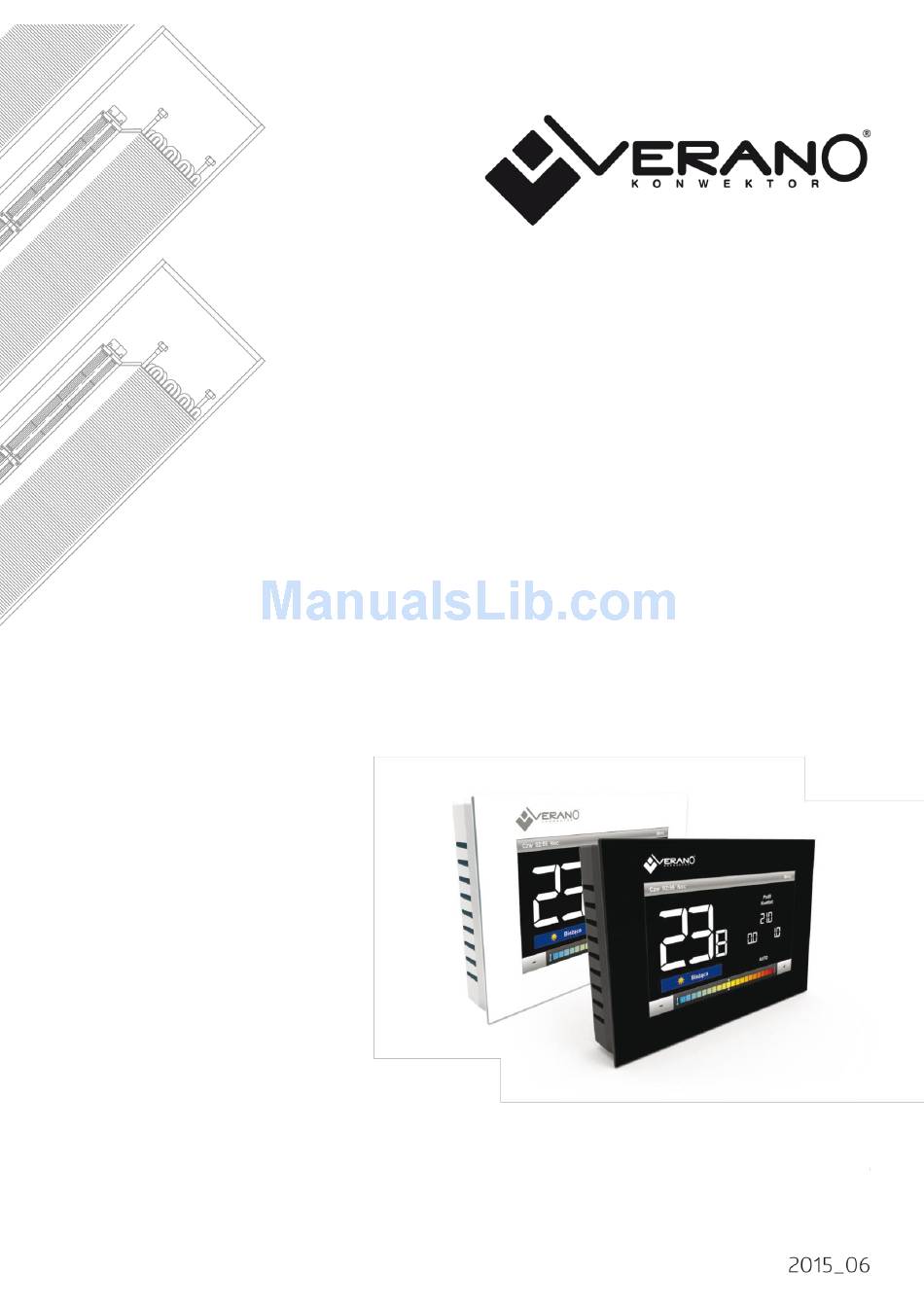

- Page 1 User’s manual VER-24...
-
Page 3: Table Of Contents
Safety ..........................3 Device description ......................4 III. Installing the controller....................4 Operating the controller ....................7 IVa) Principle of operation ..................... 7 IVb) Description of main screen ..................... 7 IVb) Controller operation modes .................... 8 Controller functions – main menu options ................9 V.a) Selecting the profile..................... -
Page 4: Safety
Safety Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries and device damage. The user's manual should be stored in a safe place for further reference. In order to avoid accidents and errors it should be ensured that every person using the device has familiarized themselves with the principle of operation as well as security functions of the device. -
Page 5: Device Description

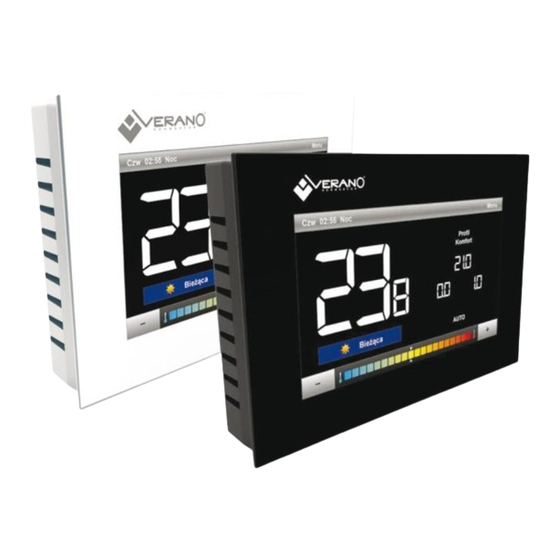

II. Device description The application of the VER-24 regulator ensures convenient control over the Verano fan coil. The VER-24 regulator has the following functions: Controlling the room temperature Smooth adjustment of the fan's revolutions Smooth adjustment of the valve's opening degree ... - Page 6 First, the user should mount the rear installation cover to the wall where the room regulator will be connected in the electrical junction box. Then, the user should connect the power supply cables. The room regulator should be installed on catches...
- Page 7 CONNECTION SCHEME BLOCK CONNECTION SCHEME...
-
Page 8: Operating The Controller
IV. Operating the controller IVa) Principle of operation The VER-24 regulator controls the fan as well as the valves in order to maintain the set temperature in the room. Depending on the selected mode, it increases the temperature in the room (heating mode) or decreases it (cooling mode). -
Page 9: Ivb) Controller Operation Modes
5. Information on the controller's active operation profile. 6. Entering the controller's main menu. 7. Fan revolution speed 8. Icons informing on the current fan speed: - all three icons displayed – the fan operates with full speed - two icons displayed – the fan operates with medium speed - one icon displayed –... -
Page 10: Controller Functions - Main Menu Options
Controller functions – main menu options During the regulator's normal operation the graphic display displays the main screen.. After the user presses the menu button, it is possible to edit the controller's functions. Due to the controller's complexity (great number of parameters to be edited), the menu was divided into the main menu and the service menu –... -
Page 11: V.a) Selecting The Profile
V.a) Selecting the profile The parameters in this submenu are used to select the controller's operation profile. Profiles available in the controller are used to maintain the temperature in the room at the set level. The user may select 3 various profiles (comfort, eco, protection) as well as three different schedules (1, 2, 3). - Page 12 ECO, PROTECTION: The profile PROTECTION operates similarly to the ECO profile. The only difference are the default values of set temperatures settings: Minimum temperature PROTECTION < minimum temperature ECO Maximum temperature PROTECTION > Maximum temperature ECO The profile PROTECTION is used to maintain optimum values in the room protecting the system against freezing or overheating.
-
Page 13: V.b) Temperatures Settings
Profile schedule 1, 2, 3 • Enabling one of the three schedules will cause the controller to operate according to the previously defined program – the parameter Schedule settings The schedules allows the user to adjust the requested profile (comfort, eco, protection) in a given hour of the day (Menu / Schedule settings ). -
Page 14: V.d) Schedule Settings
V.d) Schedule settings parameters this submenu used programming particular schedules. After the user selects the schedule the settings of which the user wishes to edit, the display will show the following settings screen. Using the icons the user changes the time interval (settings with accuracy to one hour). The icons allow the user to change the profile assigned to a given hour. -
Page 15: V.g) Controller Settings
- The user adjusts the waking hour with the use of the "up" and "down" arrows. - When the alarm clock is to be active only on selected days of the week, the user should mark the days on which the alarm clock is to be activated. -
Page 16: V.h) Protections
Fan revolution settings • This function allows the user to adjust the value of the fan's revolutions in the manual operation mode (see chapter Description of main screen) for particular speeds. V.h) Protections After the user presses the icon Protections in the main menu, a panel used for changing the parental lock settings appears. -
Page 17: V.k) Stand-By Mode
V.k) Stand-by mode This function is used to activate the stand-by mode – the controller proceeds to the stand-by mode. It will not control the operation of the fans or valves. This is an energy-saving mode. The controller proceeds into its regular operation mode after the user touches the main panel. V.1) Service settings The service settings are used to adjust the advanced parameters of the controller's operation and should be operated by qualified persons. -
Page 18: Vi.a) Temperature Settings
VI.a) Temperature settings The parameters in this submenu are used to adjust the deltas temperature values particular operation profiles. The delta value determines the moment in which the controller switches into smooth control over the valve and the fan – this is described in detail in the chapter Profile selection. -
Page 19: Vi.d) Output Configuration
Manual heating / cooling - the user may change the operation mode from the level of the • main screen – by pressing the icon for changing the operation mode VI.d) Output configuration The parameters in this submenu are used to configure the operation of outputs: Output Q1 •... -
Page 20: Vi.e) Fan Advanced Settings
VI.e) Fan advanced settings The parameters in this submenu are used to adjust the fan's operation. Heating activation temperature • This parameter determines the shift downwards in the scope of the fan's adjustment as compared to set temperature in the heating mode. Heating adjustment range •... -
Page 21: Alarms
OK button. VII. Alarms The VER-24 room temperature regulator will signal all alarms that occur in the controller. When an alarm is activated, the room regulator will send an acoustic signal and the display will show an appropriate message. - Page 22 Declaration of conformity no 169/2015 The company TECH, based in Wieprz 1047A, 34-122 Wieprz, declares with complete liability that our temperature regulator VER-24 meets the requirements of the Act dated April 13, 2007 on electromagnetic compatibility (Journal of Laws 07.82.556) implementing the provisions of Directive (EMC) 2004/108/EC, and the Regulation of the Minister of Economy dated May 8, 2013 "on basic requirements on...
- Page 23 Care for the natural environment is our priority. Being aware of the fact that we manufacture electronic devices obligates us to dispose of used ele- ments and electronic equipment in a manner which is safe for nature. The symbol of a crossed out rubbish bin on a product means that the product must not be thrown out to ordinary waste bins.
- Page 24 The manufacturer reserves the right to change the structure or change the determined colors. The illustrations may contain additional equipment. The printing technology may affect differences in shown colors. Current information will be provided by dealers of Verano-konwektor products.
