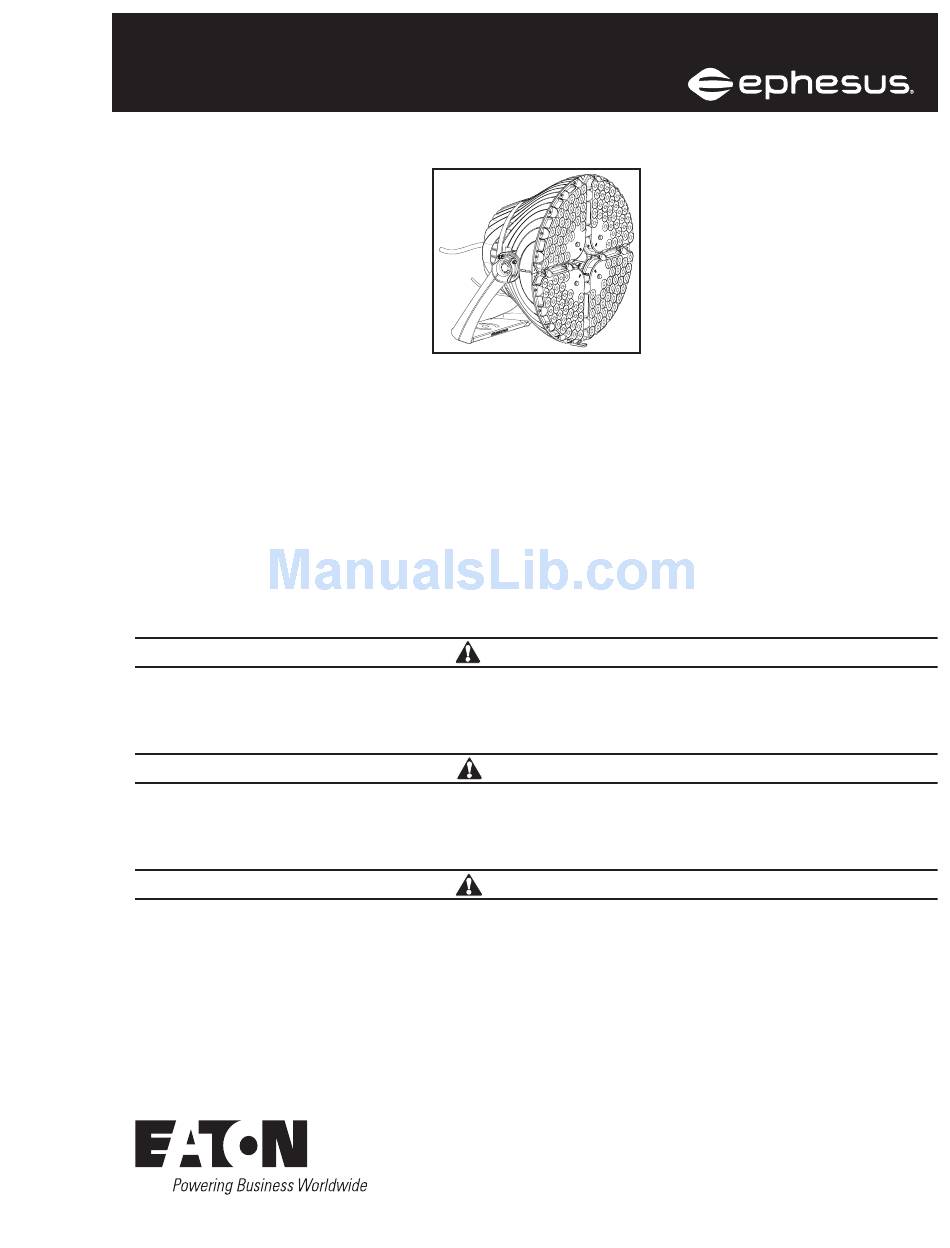

IB528002EN
Installation Instructions - Stadium Series
This manual applies to the following models of luminaires:
1.
Stadium Pro
2.
Stadium
SAFETY INSTRUCTIONS
Read and understand this entire manual before attempting to assemble, operate, or install the LED Luminaire. If you
have any questions regarding the product, please call Ephesus Customer Service at (315) 579-2873.
1.
All electrical work must conform to the National Electric Code (NEC) and all applicable local codes and ordinances.
2.
Only qualified personnel shall install and maintain the luminaires. Ephesus recommends that a licensed electrician
install and maintain the luminaire. Verify the safety of existing power distribution system before beginning
installation. FAILURE TO FOLLOW OPERATING INSTRUCTIONS MAY LEAD TO DEATH, SEVERE INJURY, OR
PROPERTY DAMAGE.
Turn off power before performing any electrical or control work. FAILURE TO FOLLOW THIS WARNING MAY LEAD
TO DEATH, SEVERE INJURY, OR PROPERTY DAMAGE.
DO NOT make or alter any open holes in the luminaire. Do not modify the luminaire.
Follow all applicable safety procedures and use Personal Protective Equipment such as hardhats, safety glasses,
reflective vests, electrical safety gloves, fall protection equipment and safety toe boots during the installation,
operation, and maintenance of the luminaire. FAILURE TO FOLLOW THIS WARNING MAY LEAD TO DEATH,
SEVERE INJURY, OR PROPERTY DAMAGE.
Risk of eye injury! Eye protection is required at all times during the installation, operation, and maintenance of
the luminaire. The high intensity light produced by the luminaire can cause severe damage to the eye if viewed
directly at close range. Avoid being in front of a luminaire that is on or wear suitable light blocking protective
eyewear such as welding goggles.
WARNING
WARNING
WARNING
Brand Logo
reversed out of
black
INS #
INS #
Advertisement
Table of Contents
Related Manuals for EPHESUS Stadium
Summary of Contents for EPHESUS Stadium
-
Page 1: Safety Instructions
All electrical work must conform to the National Electric Code (NEC) and all applicable local codes and ordinances. Only qualified personnel shall install and maintain the luminaires. Ephesus recommends that a licensed electrician install and maintain the luminaire. Verify the safety of existing power distribution system before beginning installation. -
Page 2: Table Of Contents
Step 4 – Aim the Luminaires Supply Power Specifications Ephesus LED light fixtures are not traditional incandescent lights, they are high-tech, new generation solid-state devices. To protect your valuable investment, the electrical power shall be clean and have stable voltage and current and undistorted waveforms. - Page 3 Branch power circuits feeding Stadium fixtures shall be 240V, 277V, 347V, or 480V AC only. WARNING Do not attempt to connect Stadium fixtures to any circuits with nominal voltage below 240V or above 480VAC. FAILURE TO FOLLOW THIS WARNING MAY LEAD TO LUMINAIRE INTERNAL DAMAGE AND FAILURE.
-
Page 4: Installation
Installation Instructions - Stadium Series Stadium 1000 Current Draw Voltage (Volts AC) Current (Amps) Table 3. Power Quality The voltage on the lighting circuits must stay within 3% of nominal at 60Hz. Voltage that is consistently too high or low shall be corrected before LED luminaires are installed. - Page 5 THIS WARNING MAY LEAD TO LUMINAIRE INTERNAL DAMAGE AND FAILURE. There are two different ways to mount the Stadium fixture – Standard and Inverted. Standard mounting is when the luminaire sits on top of the mounting structure, and Inverted is when the luminaire hangs from underneath the structure.
-
Page 6: Step 2 - Label The Luminaires (If Required)
Installation Instructions - Stadium Series Hex Bolt Mounting Structure Flat Washer Hex Nut Figure 3. Inverted Mounting Refer to the project photometrics or Installation Drawings to determine luminaire installation locations. For each fixture location, install a luminaire that has the correct lens type. Unless otherwise noted, fixtures that share the same lens type are identical. -
Page 7: Step 3 - Make Electrical Connections
Installation Instructions - Stadium Series Step 3 – Make Electrical Connections WARNING Never connect the luminaire to an electrical system that is not grounded. Installing a luminaire in an ungrounded electrical system could allow the metal housing to become energized in the event of an electrical short, resulting in the risk of electrical shock for anyone who comes into contact with the fixture. - Page 8 Installation Instructions - Stadium Series WARNING Do not damage or cut the wire insulation (covering) during installation. Do not permit wires to contact any surface having a sharp edge, as this may damage the wire insulation and create the risk of electrical shock. FAILURE TO FOLLOW THIS WARNING MAY LEAD TO DEATH, SEVERE INJURY, OR PROPERTY DAMAGE.
-
Page 9: Step 4 - Aim The Luminaires
A. Precision Laser Aiming by Coordinates Laser aiming is the most effective and preferred technique for aiming Ephesus LED sports lighting. This method uses a laser mounted to the luminaire to point the fixture at a predetermined point on the playing surface using (X, Y) coordinates. - Page 10 Figure 8. Orient Unless otherwise noted, Orient values shown in Ephesus photometrics or project Installation Drawings are based on 0° being Plan East. Plan East means 0° is heading to the right side of the sheet as you hold it in front of you, which is not necessarily geodetic or True East.
- Page 11 Minimum tilt angles: The side set screws will not allow the Stadium to be tilted downward at an angle of more than 60° relative to the horizontal axis. If the fixture must be tilted down at an angle greater than 600 from the horizontal, remove the side set screws.
- Page 12 Installation Instructions - Stadium Series Laser and Mount Figure 10. Aiming Laser & Mount Aiming Laser or Tube Set Screw Hex Screw Mounting Hardware Figure 11. Aiming Slightly loosen the fixture aiming screws just enough to allow the fixture to rotate and tilt. Push on the laser apparatus to ensure it is tightly pressed onto the heat sinks.
-
Page 13: Step 5 - Finishing Touches
Installation Instructions - Stadium Series Hardware Torque Value Mounting bolt/nut 110-125 ft-lbs Mounting Set bolt (if used) 45-55 ft-lbs Side Hex screw 60-70 ft-lbs Side Set screw 35-75 in-lbs Table 7. Briefly turn the laser back on or re-check view through tube to verify that the luminaire aim did not shift during tightening. -
Page 14: Care And Maintenance
Installation Instructions - Stadium Series Straighten up all cabling. Tie down all cables neatly. For all outdoor projects, use UV rated tie wraps and wire ● ● management (to resist UV sun damage and weather harm). CARE AND MAINTENANCE All luminaires are prepared with a powder-coated finish. The finish on exterior luminaires may weather over time, depending on the environmental conditions at the installation site. -
Page 15: Eaton Ib528002En Installation Instructions Rev
Installation Instructions - Stadium Series EATON IB528002EN Installation instructions rev 20171011... - Page 16 Warranties and Limitation of Liability Please refer to www.eaton.com/LightingWarrantyTerms for our terms and conditions. Garanties et limitation de responsabilité Veuillez consulter le site www.eaton.com/LightingWarrantyTerms pour obtenir les conditions générales. Garantías y Limitación de Responsabilidad Visite www.eaton.com/LightingWarrantyTerms para conocer nuestros términos y condiciones. Eaton 1121 Highway 74 South Peachtree City, GA 30269...
