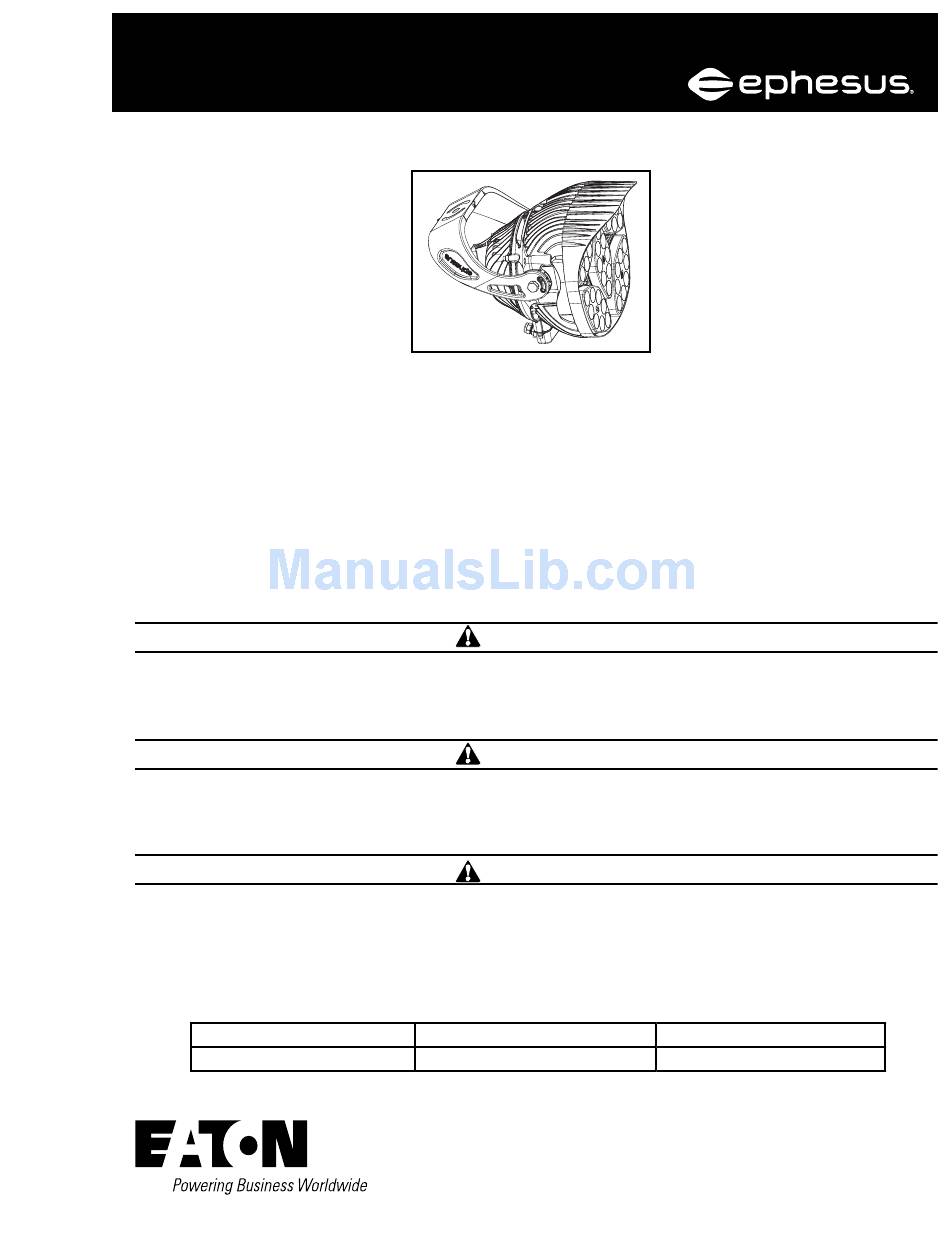

MN507001EN
Installation Instructions - All Field LED Luminaire
This manual applies to the following models:
All Field 750/550
Arena 750/650/550
SAFETY INSTRUCTIONS
Read and understand this entire manual before attempting to assemble, operate, or install the LED Luminaire. If you
have any questions regarding the product, please call Ephesus Customer Service at (800) 573-3600.
1.
All electrical work must conform to the National Electric Code (NEC) and all applicable local codes and ordinances.
2.
Only qualified personnel shall install and maintain the luminaires. Ephesus recommends that a licensed electrician
install and maintain the luminaire. Verify the safety of existing power distribution system before beginning
installation. Failure to follow Operating Instructions may lead to death, Severe Injury, or Property Damage.
Turn off power before performing any electrical or control work. FAILURE TO FOLLOW THIS WARNING MAY LEAD
TO DEATH, SEVERE INJURY, OR PROPERTY DAMAGE.
DO NOT make or alter any open holes in the luminaire. Do not modify the luminaire.
Follow all applicable safety procedures and use Personal Protective Equipment such as hardhats, safety glasses,
reflective vests, electrical safety gloves, fall protection equipment and safety toe boots during the installation,
operation, and maintenance of the luminaire. FAILURE TO FOLLOW THIS WARNING MAY LEAD TO DEATH,
SEVERE INJURY, OR PROPERTY DAMAGE.
Risk of eye injury! Eye protection is required at all times during the installation, operation, and maintenance of
the luminaire. The high intensity light produced by the luminaire can cause severe damage to the eye if viewed
directly at close range. Avoid being in front of a luminaire that is on or wear suitable light blocking protective
eyewear such as welding goggles. The luminaire should be positioned so that prolonged staring into the
luminaire at a distance closer than 10m is not expected
Store luminaires in a clean, dry place, protected from dirt, water, and sunlight. See table for required storage and
operating conditions:
Storage Temperature
-40°C to +75°C (-40°F to 167°F)
Storage and Operating Conditions
WARNING
WARNING
WARNING
Operating Temperature
-40°C to +55°C (-40°F to 131°F)
Brand Logo
reversed out of
black
INS #
INS #
Humidity
5% to 95% non-condensing
Advertisement
Table of Contents
Related Manuals for EPHESUS All Field 750
Summary of Contents for EPHESUS All Field 750
-
Page 1: Safety Instructions
All electrical work must conform to the National Electric Code (NEC) and all applicable local codes and ordinances. Only qualified personnel shall install and maintain the luminaires. Ephesus recommends that a licensed electrician install and maintain the luminaire. Verify the safety of existing power distribution system before beginning installation. -
Page 2: Table Of Contents
Installation Instructions - All Field LED Luminaire TABLE OF CONTENTS Safety Instructions .................................1 Required Materials & Tools ..............................2 Supply Power Specifications ..............................3 Installation Instructions ................................4 Step 1 – Mount the Luminaires ............................4 Step 2 – Label the Luminaires (If Required) ........................7 Step 3 –... -
Page 3: Supply Power Specifications
Installation Instructions - All Field LED Luminaire SUPPLY POWER SPECIFICATIONS Ephesus LED light fixtures are not traditional incandescent lights, they are high-tech, new generation solid-state devices. To protect your valuable investment, the electrical power shall be clean and have stable voltage and current and undistorted waveforms. -
Page 4: Installation Instructions
Installation Instructions - All Field LED Luminaire Power Quality The lighting circuits shall have surge protection. If you require assistance in checking your power system or designing or implementing solutions, contact Eaton’s Electrical Engineering Services and Systems. Find more information at www.eaton. com. - Page 5 Installation Instructions - All Field LED Luminaire Standard Mounting This is the most common mounting. The luminaire sits on top of mounting structure. Refer to the project Installation Drawings to determine luminaire installation locations and lens type. For each fixture location, install a luminaire that has the correct lens type. Unless otherwise noted, fixtures that share the same lens type are identical.
- Page 6 Installation Instructions - All Field LED Luminaire Mounting Bracket Hex and Set Screws Figure 3. Inverting the Mounting Bracket Hex Bolt Mounting Structure Washers Locknut Figure 4. Inverted Mounting EATON MN507001EN Installation instructions rev 170117...
-
Page 7: Step 2 - Label The Luminaires (If Required)
Installation Instructions - All Field LED Luminaire Step 2 – Label the Luminaires (If Required) For outdoor applications where smaller groups of luminaires are installed on poles, it is not necessary to label the fixtures. If you are installing fixtures on poles or other applications where labeling is not required, skip this step and proceed to step 3. For indoor applications where many luminaires are installed in a row along a catwalk, the fixtures are typically labeled to facilitate identifying each one at a glance from the catwalk. - Page 8 Installation Instructions - All Field LED Luminaire Equipment Required: 3/16” Allen driver (or metric equivalent) ● ● Power cable ● ● Electrical splicing connectors. For all outdoor installations, silicone filled water resistant connectors are highly ● ● recommended. Fixture Junction Box Power Cord Grip Figure 6.
-
Page 9: Step 4 - Aim The Luminaires
Precision Laser Aiming by Coordinates Laser aiming is the most effective and preferred technique for aiming Ephesus LED sports lighting. This method uses a laser mounted to the luminaire to point the fixture at a predetermined point on the playing surface using (X,Y) coordinates. - Page 10 Orient by rotating the luminaire mounting bracket relative to the mounting structure. Unless otherwise noted, Orient values shown in Ephesus photometrics or project Installation Drawings are based on 0° being Plan East. Plan East means 0° is heading to the right side of the sheet as you hold it in front of you, which is not necessarily geodetic or True East.
- Page 11 Installation Instructions - All Field LED Luminaire Minimum tilt angles: The side set screws will not allow the All Field to be tilted downward at an angle of less than 30° relative to vertical. If fixture must be tilted between 20-30°, remove the side set screws. If the fixture must be aimed at less than 20°...
- Page 12 Installation Instructions - All Field LED Luminaire Insert the laser or tube into the aiming mount and tighten the holding screw. Insert the aiming mount onto the fixture aiming pin until it is fully seated. Aiming mount must be tight against the fixture because any movement or wiggle in the mount will cause aiming to be inaccurate.
-
Page 13: Step 5 - Finish
Installation Instructions - All Field LED Luminaire After aiming is complete, tighten all bolts and screws including hex and set screws on side of fixture and mounting hardware. Briefly turn the laser back on or re-check view through tube to verify that the luminaire aim did not shift during tightening. -
Page 14: Care And Maintenance
Installation Instructions - All Field LED Luminaire If using the Ephesus Air Mesh control system, see the Air Mesh Installation Manual for more information on controlling the luminaires. Care and Maintenance All luminaires are prepared with a powder-coated finish. The finish on exterior luminaires may weather over time, depending on the environmental conditions at the installation site. - Page 15 Installation Instructions - All Field LED Luminaire EATON MN507001EN All Field Installation Manual rev 20170324...
- Page 16 Warranties and Limitation of Liability Please refer to www.eaton.com/LightingWarrantyTerms for our terms and conditions. Garanties et limitation de responsabilité Veuillez consulter le site www.eaton.com/LightingWarrantyTerms pour obtenir les conditions générales. Garantías y Limitación de Responsabilidad Visite www.eaton.com/LightingWarrantyTerms para conocer nuestros términos y condiciones. Eaton 1121 Highway 74 South Peachtree City, GA 30269...
