GlobalTop HG-100 User Manual

Hud gps speed meter with bluetooth
Hide thumbs Also See for HG-100:
Table of Contents

Advertisement

Quick Links

Download this manual

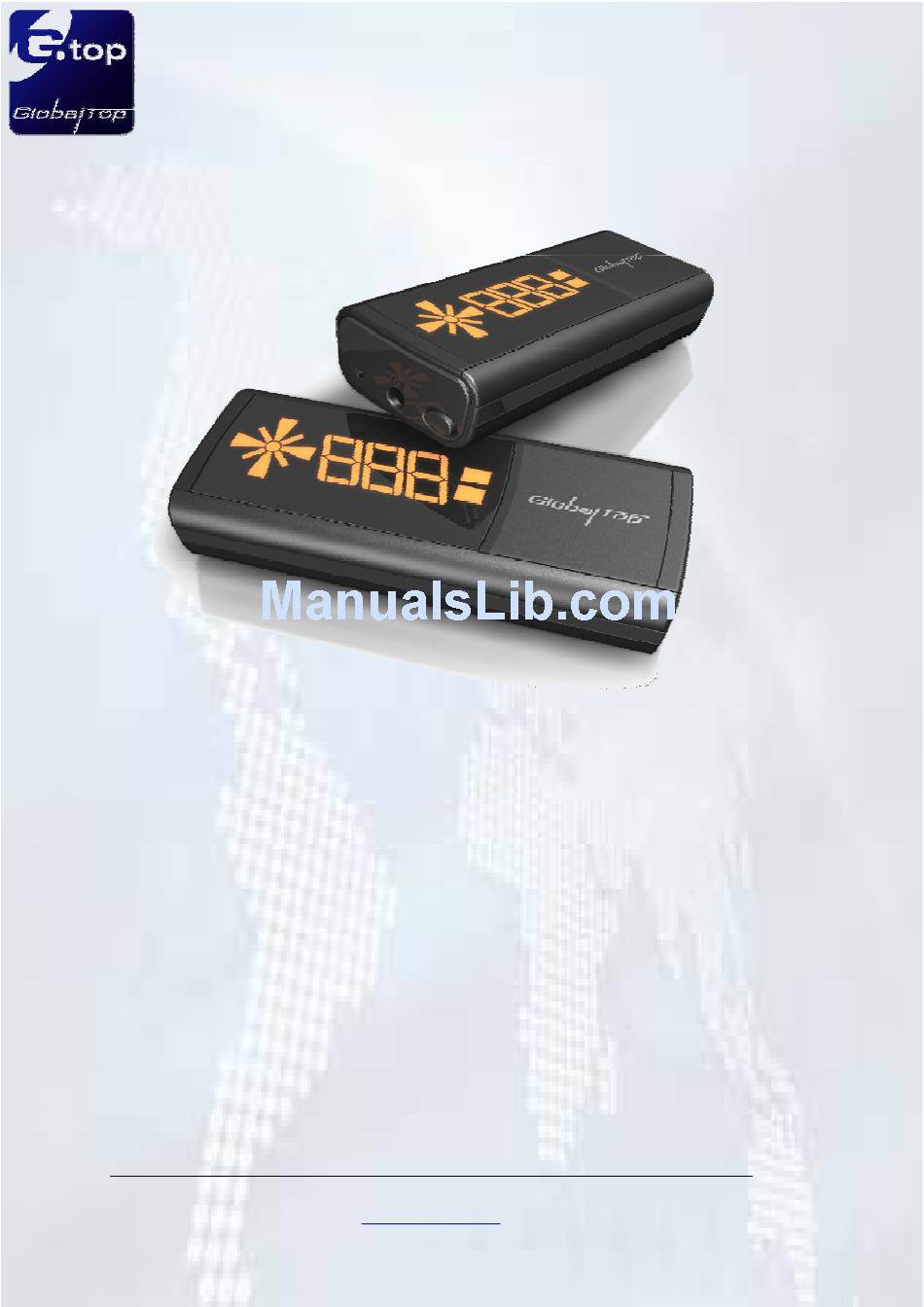

HUDGPS
User Manual
Rev.A00
HUD GPS Speed Meter
with Bluetooth
By MTK Chipset
HG-100
1
GlobalTop Technology Inc.
th
16 Nan-ke 9
Rd Science-based Industrial Park, Tainan 741, Taiwan, R.O.C.
Tel:+886-6-6007799 Fax:+886-6-5053381
http://www.gtop-tech.com
email:sales@gtop-tech.com
© Copyright 2006 GlobalTop Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HG-100 and is the answer not in the manual?

Questions and answers

Related Manuals for GlobalTop HG-100

Summary of Contents for GlobalTop HG-100

  • Page 1 HUDGPS User Manual Rev.A00 HUD GPS Speed Meter with Bluetooth By MTK Chipset HG-100 GlobalTop Technology Inc. 16 Nan-ke 9 Rd Science-based Industrial Park, Tainan 741, Taiwan, R.O.C. Tel:+886-6-6007799 Fax:+886-6-5053381 http://www.gtop-tech.com email:sales@gtop-tech.com © Copyright 2006 GlobalTop Inc.
  • Page 2 Please return defective one to your dealer or agent. Personal disassemble or repair is not permitted and guaranteed. GlobalTop Technology Inc. 16 Nan-ke 9 Rd Science-based Industrial Park, Tainan 741, Taiwan, R.O.C. Tel:+886-6-6007799 Fax:+886-6-5053381 http://www.gtop-tech.com email:sales@gtop-tech.com © Copyright 2006 GlobalTop Inc.

  • Page 3: Chapter 1 Product Introduction

    HG-100 has also the Over-Speed Alert function to remind drivers with condition of vehicles in real time. The GPS technology, based on MediaTek Inc.

  • Page 4: Electrical Characteristics

    5%~95%, Non-Condensing Operation Humidity HUD function Vehicle Speed, Heading, Speed Warning Plug-in Car charger Availability of HUD GlobalTop Technology Inc. 16 Nan-ke 9 Rd Science-based Industrial Park, Tainan 741, Taiwan, R.O.C. Tel:+886-6-6007799 Fax:+886-6-5053381 http://www.gtop-tech.com email:sales@gtop-tech.com © Copyright 2006 GlobalTop Inc.
  • Page 5 HUDGPS User Manual Rev.A00 1.3 System Operating Chart HUD display Bluetooth Connection for GPS Navigation GlobalTop Technology Inc. 16 Nan-ke 9 Rd Science-based Industrial Park, Tainan 741, Taiwan, R.O.C. Tel:+886-6-6007799 Fax:+886-6-5053381 http://www.gtop-tech.com email:sales@gtop-tech.com © Copyright 2006 GlobalTop Inc.

  • Page 6: Product Appearance

    Indicate the speed of the moving vehicles for 1~999 Indicator Speed Indicate the speed unit, kilometer/hour and mile/hour Unit GlobalTop Technology Inc. 16 Nan-ke 9 Rd Science-based Industrial Park, Tainan 741, Taiwan, R.O.C. Tel:+886-6-6007799 Fax:+886-6-5053381 http://www.gtop-tech.com email:sales@gtop-tech.com © Copyright 2006 GlobalTop Inc.
  • Page 7 Green LED Battery Indicator Indicator Blue LED Bluetooth is connected or not connected Permanent The location of permanent magnet Magnet GlobalTop Technology Inc. 16 Nan-ke 9 Rd Science-based Industrial Park, Tainan 741, Taiwan, R.O.C. Tel:+886-6-6007799 Fax:+886-6-5053381 http://www.gtop-tech.com email:sales@gtop-tech.com © Copyright 2006 GlobalTop Inc.

  • Page 8: Quick Hardware Installation

    2. Put the iron plate below the heat insulation film. Check the image of the iron plate is projected to the area of the heat insulation film. 3. Put HG-100 on the iron plate and check the projecting area is in the heat insulation film to get the most comfortable view angle.
  • Page 9 1. Starting your car and plug in the car charger to the HG-100. 2. Press the power button of the HG-100 last 2 seconds. 3. Put the HG-100 on the iron plate and it will be magnetic fixed on the plate. 4. HG-100 will show “GPS” until get position fixed.

  • Page 10: Chapter 2 Basic Operation Instruction

    Chapter 2 Basic Operation Instruction 2.1 Note before Use The HUD function of HG-100 is only activated with the car charger plug-in. But without car charger plug-in, the GPS and Bluetooth function still remain. Keep HG-100 embedded battery charged firstly at least 1 hrs.
  • Page 11 0.5 sec button pressed HUD will change km/h and mile/h every time. Speed Unit Set 1 sec button pressed HG-100 will keep the speed unit. GlobalTop Technology Inc. 16 Nan-ke 9 Rd Science-based Industrial Park, Tainan 741, Taiwan, R.O.C. Tel:+886-6-6007799 Fax:+886-6-5053381 http://www.gtop-tech.com...
  • Page 12 OFF, 30, 40, 50, 60, 65, 70, 75, 80, 90, 100, 110, 120, 130 Speed Warning Set 2 sec button pressed HG-100 will keep the setting of Speed Warning. GlobalTop Technology Inc. 16 Nan-ke 9 Rd Science-based Industrial Park, Tainan 741, Taiwan, R.O.C.

  • Page 13: User Manual

    HUDGPS User Manual Rev.A00 2.5 HG-100 Light Indicate Red LED GPS is fixed or not fixed / Power On Green LED Battery Indicator LED Indicator Blue LED Bluetooth is connected or not connected Symbol Color Behavior Description Blinking in 3 pulses/sec Searching for Bluetooth host...
  • Page 14 Rev.A00 2.6 HG-100 Button Function Power ON/OFF and Screen ON/OFF Press 2 seconds Power ON and OFF Power Button When power on, HG-100 will switch on and off Press 1 second the screen Speed Unit Mode Press 1 second HG-100 will into the speed unit mode.

  • Page 15: Chapter 3 Bluetooth Connection

    Chapter 3 Bluetooth Connection 3.1 Configuration setup with PC connection Here is a sample to show you how to connect the HG-100 with your PC, software install and basic function test. 1) First, select a PC with Bluetooth interface. Or you can purchase Bluetooth adapter for your PC.
  • Page 16 Please refer to the configuration as above to uncheck it. 5) Power on HG-100. If the battery is ready, you should see 2 LED light up the blue LED blink 3 times/sec means Bluetooth is activated and waiting for connection.
  • Page 17 11) And the connection successful message: 12) Back to the Bluetooth service view, you should see the icon changed to GlobalTop Technology Inc. 16 Nan-ke 9 Rd Science-based Industrial Park, Tainan 741, Taiwan, R.O.C. Tel:+886-6-6007799 Fax:+886-6-5053381 http://www.gtop-tech.com email:sales@gtop-tech.com © Copyright 2006 GlobalTop Inc.
  • Page 18 13) If you wish to use the connection more easily next time, you can create a shortcut for this 14) You will see the shortcut you just created: GlobalTop Technology Inc. 16 Nan-ke 9 Rd Science-based Industrial Park, Tainan 741, Taiwan, R.O.C. Tel:+886-6-6007799 Fax:+886-6-5053381 http://www.gtop-tech.com email:sales@gtop-tech.com © Copyright 2006 GlobalTop Inc.
  • Page 19 PDA models. 1) Power on your PDA and the Bluetooth host. 2) Power on HG-100. If the battery is ready, you should see 2 LEDs indication the blue for Bluetooth blinks 3 times/sec. It means the Bluetooth module is activated and waiting for connection.
  • Page 20 Bluetooth GPS. [SPP slave] should appear in the service list box, click it and click [Next] to finish shortcut creation. Don’t forget to uncheck the secure connection box. GlobalTop Technology Inc. 16 Nan-ke 9 Rd Science-based Industrial Park, Tainan 741, Taiwan, R.O.C. Tel:+886-6-6007799 Fax:+886-6-5053381 http://www.gtop-tech.com email:sales@gtop-tech.com © Copyright 2006 GlobalTop Inc.
  • Page 21 8) You may start to use any map/navigation software and use the GPS function now. GlobalTop Technology Inc. 16 Nan-ke 9 Rd Science-based Industrial Park, Tainan 741, Taiwan, R.O.C. Tel:+886-6-6007799 Fax:+886-6-5053381 http://www.gtop-tech.com email:sales@gtop-tech.com © Copyright 2006 GlobalTop Inc.

  • Page 22: Appendix A. Warranty

    User Manual Rev.A00 Appendix A. Warranty HG-100 with one-year warranty is except these cases, like abnormal use, natural disaster, accidence damage and un-authorized repairing, etc. High temperature environment should be avoided. One year warranty is not included under the following conditions Damages caused by natural disaster, accidents etc.

  • Page 23: Appendix B. Trouble Shooting

    Rev.A00 Appendix B. Trouble Shooting Problem of Setup Error/Problem Cause Trouble shooting Check if HG-100 is installed Can not find the GPS Install not correct or battery properly, and confirm the battery device through level is suitable (green LED Bluetooth interface...
  • Page 24 Inside forests, or too many covers, GPS signal is disturbed. If you use HG-100 inside the car, some anti-sunlight windscreen film will make the GPS signal degraded or signal blank. GPS satellite is owned by America military; sometimes they will tune-down the accuracy by some reason.
  • Page 25 HUDGPS User Manual Rev.A00 GlobalTop Technology Inc. 16 Nan-ke 9 Rd Science-based Industrial Park, Tainan 741, Taiwan, R.O.C. Tel:+886-6-6007799 Fax:+886-6-5053381 http://www.gtop-tech.com email:sales@gtop-tech.com © Copyright 2006 GlobalTop Inc.

  • Page 26: Fcc Caution

    FCC Caution The device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
