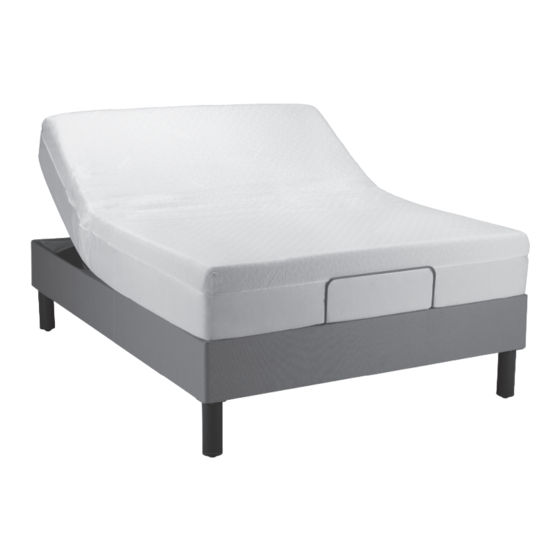

Sealy Reflexion-UP Foundation Installation

Download this manual

Installation Instructions

Before discarding any packing materials, check the

Re exion

-UP Foundation carton and verify the

following items in the parts list are included:

PARTS LIST

A. Wired Remote Control – hard wired to bed (1)

B. Connection Y-Cable (1) - (Only on Twin Long, and

Split CA King)

C. Mattress Retainer Bar (1)*

D. Retainer Bar Plate (2)*

E. Retainer Bar Screw (2)*

F. 9-Volt Batteries (2)

TEMPUR SEALY CUSTOMER SERVICE DEPARTMENT: 1–800–499–1965

*Attached to foundation for shipping.

Appearance of some parts may differ from photos.

Installation

Table of Contents

Do you have a question about the Reflexion-UP Foundation and is the answer not in the manual?

Page 1: Installation Instructions
A. Wired Remote Control – hard wired to bed (1) B. Connection Y-Cable (1) - (Only on Twin Long, and Split CA King) C. Mattress Retainer Bar (1)* D. Retainer Bar Plate (2)* E. Retainer Bar Screw (2)* F. 9-Volt Batteries (2) TEMPUR SEALY CUSTOMER SERVICE DEPARTMENT: 1–800–499–1965...
Page 2: Pre-Delivery Procedure
Test the foundation by pressing the buttons in the following sequence. 1. Head Lift 2. Flat NOTE: Only press each button long enough to hear or see the function activate on the foundation. TEMPUR SEALY CUSTOMER SERVICE DEPARTMENT: 1–800–499–1965...
Page 3: Delivery Procedure
Dispose of the packaging materials. STEP 3D NOTE: In order to prevent the movement of this Keep the user manual at hand for the operators. product, all four casters should be in the locked position. TEMPUR SEALY CUSTOMER SERVICE DEPARTMENT: 1–800–499–1965...
Page 4 STEP 12 Ensure the power switch on the surge protector is in the “on” position and that it is plugged into the wall outlet. Check the system for functionality with the mattress in place. TEMPUR SEALY CUSTOMER SERVICE DEPARTMENT: 1–800–499–1965...
Page 5 STEP 6 any future use. Plug one of the provided Wired Remote Controls into the “Control Input” side of the Y-Cable. STEP 3 Remove and extend one of the provided Y-Cables from the frame. TEMPUR SEALY CUSTOMER SERVICE DEPARTMENT: 1–800–499–1965...
