Open Mesh A60 Quick Start Manual

Ethernet or junction box mount
This access point can be mounted to any US or European-style
junction box for secure installations in hotel and resort guest
rooms, dorms, care facilities and more.
Attach the universal mounting plate with the smooth side
against the wall to a junction box using the designated screw
holes. Connect the small Ethernet cable (included) to the
female connection in the wall, then pull it through the
mounting plate and plug into Ethernet 1. Connect any pass-
through device to Ethernet 2 and position the cable in the
bottom channel of the access point. Next, place the access
point over the mounting plate and slide down until it locks
into place.
To unlock, insert a small, flat screwdriver into the hole on the
side of the access point. Slide the access point until it disen-
gages from the mounting plate.
Note: The pass-through port (Ethernet 2) is data only. No
power is passed through the second port.
We help professionals create powerful, easy-to-use networks that automatically spread Internet
Ò openmesh.com/a-ethernet
connections throughout hotels, apartments, retail stores, restaurants, small and medium-sized
businesses—and just about anywhere else.
The Open Mesh A Series access points are a modular, plug-and-play professional WiFi solution
that works with CloudTrax, a free cloud-based network controller that can manage
an unlimited number of switches, access points and networks around the world.
openmesh.com
© 2016 Open Mesh, Inc. All Rights Reserved.
#400 5 Centerpointe Drive, Lake Oswego, OR USA 97035
Mounting
1.
This access point can be mounted to any wall or pole.
Attach the universal mounting plate to any wall or pole
using screws or zip ties (not included). The small tabs should
be at the top of the plate so the cable exits through the bottom
of the access point.
Open the slit in the side of the rubber gasket and place the
Ethernet cable through the hole. Plug the cable into Ethernet 1.
Place the rubber gasket into the channel surrounding the ports
on the access point. Place the rear cover on the access point
and snap into place. Finally, place the access point over the
mounting plate and slide down until it locks into place .
To unlock, insert a small, flat screwdriver into the hole on the 2.
side of the access point. Slide the access point until it disen-
gages from the mounting plate.
Ò
openmesh.com/a-mount

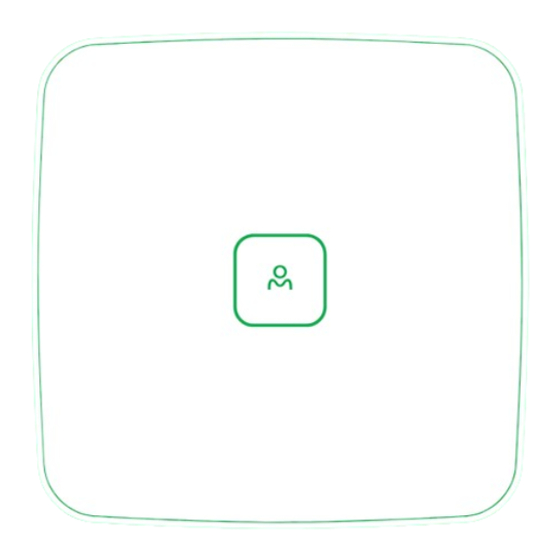

A60
WiFi Access Point
Quick Start Guide
