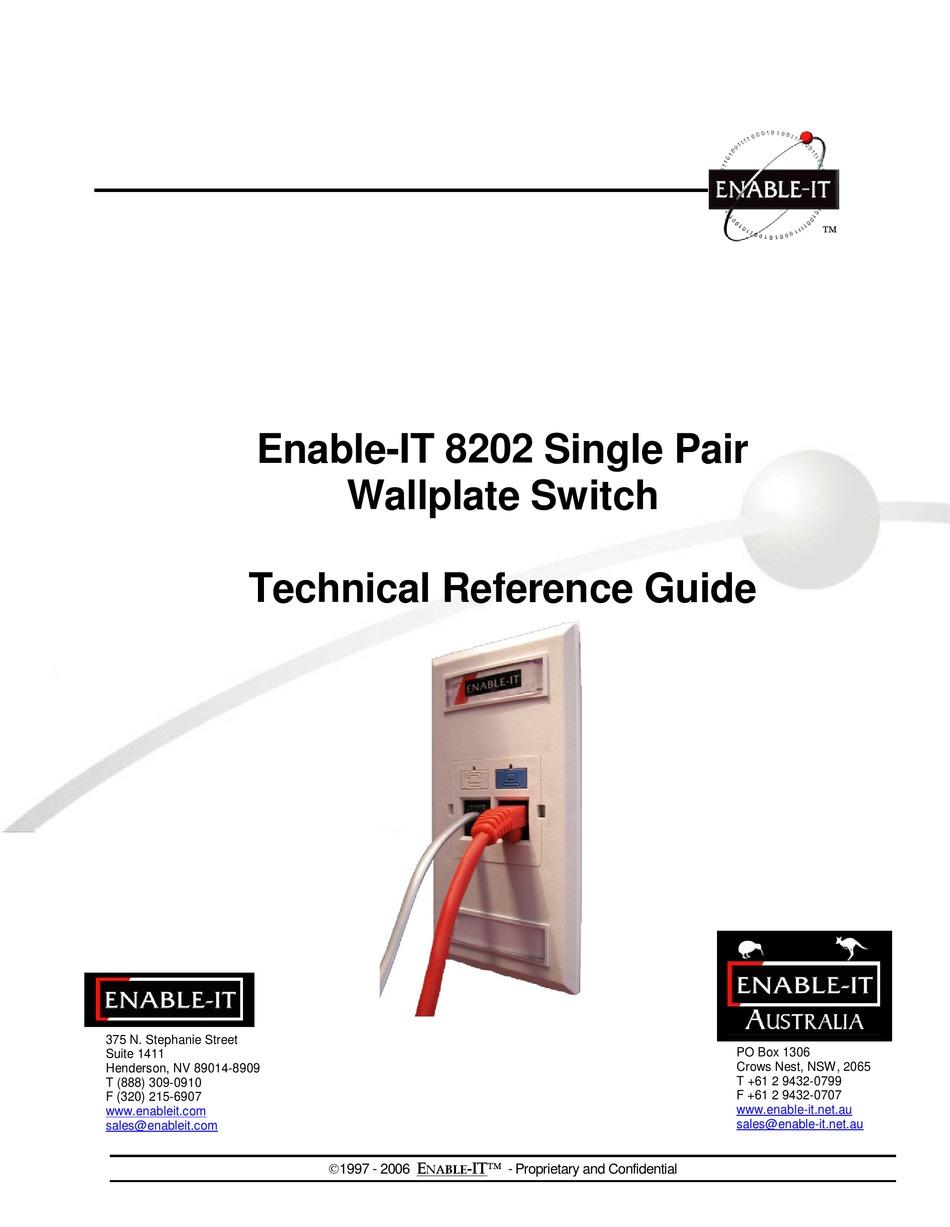

Enable-IT 8202 Single Pair
Technical Reference Guide
375 N. Stephanie Street
Suite 1411
Henderson, NV 89014-8909
T (888) 309-0910
F (320) 215-6907
www.enableit.com
sales@enableit.com
Wallplate Switch
1997 - 2006
E
-IT
NABLE
- Proprietary and Confidential
PO Box 1306
Crows Nest, NSW, 2065
T +61 2 9432-0799
F +61 2 9432-0707
www.enable-it.net.au
sales@enable-it.net.au
Advertisement
Related Manuals for Enable-IT 8202
Summary of Contents for Enable-IT 8202
- Page 1 Enable-IT 8202 Single Pair Wallplate Switch Technical Reference Guide 375 N. Stephanie Street PO Box 1306 Suite 1411 Crows Nest, NSW, 2065 Henderson, NV 89014-8909 T +61 2 9432-0799 T (888) 309-0910 F +61 2 9432-0707 F (320) 215-6907 www.enable-it.net.au...
- Page 2 Enable-IT, Inc. Enable-IT, Inc. reserves the right to revise this documentation and to make changes in content from time to time without obligation or notice on the part of Enable-IT, Inc. to provide notification of such revisions or changes.
- Page 3 INGLE ALLPLATE WITCH The 8202 Single Pair Wallplate Switch has a maximum distance restriction of 328ft or 100m over Category 3 or better Telco wiring from 8212 Single Pair Ethernet Concentrator. Therefore site surveys and installation planning are highly recommended, including a worst case distance scenario test.
- Page 4 8212 controller wire order numbering to install into the 8202 Single Pair Wallplate Switch. If the location for the 8202 Single Pair Wallplate Switch is the main point of entry for the room wiring and there is another in-room extension wire connecting, then combine the wires and insert into the crimping posts of the 8202 Single Pair Wallplate Switch.
- Page 5 It is key to remember that the initial voice pair will need to run all the way to the 8202 CPE first, and then use spare extension pairs from the OUT of the 8202 CPE to wire voice back to all remaining in-room jacks.
- Page 6 8212 concentrator to your switch. If no connectivity is detected, try another 8212 port, hydra-cable, or swap the 8202 Single Pair Wallplate Switch . If you still do not get a connection, plug your PC directly into the switch to verify your PC is operating correctly.
- Page 7 Connect only the jack needed for the location of the Enable-IT 8202 Single Pair Wallplate Switch and test for both data and voice. If the Enable-IT 8202 Single Pair Wallplate Switch is to be located past the main point of entry jack, we recommend using butt splices for the voice wiring to bridge the extension wiring directly to the main point of entry wiring.
- Page 8 Connect the pair of extension wiring (Orange) that was connected to the voice of the first wallplate in position C to the OUT PINS 3 & 4 on the back of the 8202 CPE. Test voice on the wallplate in position C.
-
Page 9: Product Warranty
"Warranty Period"), the Product will be substantially free from defects in materials and workmanship under normal use and conditions. If authorized by Enable-IT to return a Product which does not conform to the warranty set forth above, the End User must: (1) obtain a return materials authorization (RMA) number from Enable-IT by contacting the Customer Service Dept. - Page 10 Remedies for Breach of Warranty In the event of a breach of the foregoing warranty, Enable-IT will, in its sole discretion and at its cost and subject to the terms of the following paragraph, repair the non-conforming Product, replace the non-conforming Product with a new or reconditioned Product or refund of the purchase price for the Product.
- Page 11 2. LIMITATION OF LIABILITY IN NO EVENT SHALL ENABLE-IT BE LIABLE TO THE END USER OR ANY THIRD PARTY FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH OR ARISING OUT OF THE SALE OR USE OF THE PRODUCT (INCLUDING BUT NOT LIMITED TO LOSS OF...
