- Page 1 Version 2.0.1 24 October 2017 Spider 6 Instruction Manual Applicable for the Spider 6. Appends: • Minor Modification Summary Report • Structure Test Procedure • Electromagnetic Compatibility Test Procedure • RTCA DO-160 Test Reports...
-
Page 2: Table Of Contents
3.7.Rate of altitude change events 4. Troubleshooting 4.1. Discontinuous Tracks 4.2. Lost GPS 4.3. Lost Iridium Connectivity Appendix (A)Spider 6 Minor Modification Summary Report (A)1.Description (A)2.Modification Approval Basis (A)3.Configuration Control Data (A)4.Post Installation Testing (A)5.Operation and Limitations (A)6.Weight and Balance (A)7.Electrical Load... - Page 3 (B)5.Test Procedure (B)6.Pass/Fail Criteria (B)7.Test Record (C)Spider 6 Electromagnetic Compatibility Test Procedure (C)1.Test Definition (C)2.Special Tools and Equipment (C)3.Test Conditions (C)4.Test Procedure (C)5.Pass/Fail Criteria (C)6.Test Record (D)Wiring Diagram - Power Lead (E) RTCA DO-160 Test Reports...
-
Page 4: Record Of Revision And Approvals
Record of Revision and Approvals RECORD OF REVISIONS AND APPROVALS Pages Date Description Released by Approved by Affected 24. Nov. 2015 Initial release S. Ridder D. Blackwell Rephrasing of chapter 1.0.1 30. May 2016 S. Ridder L. McCarthy Revised and broadened 2.0.0 03. -
Page 5: Installing Your Spider
Correct positioning of the Spider’s antenna is critical in achieving effective performance from the Spidertracks system as a whole. When installing any Spider product that has the antenna integrated within the device, particular attention is required. In this case the Spider should be mounted up on top of the instrument panel in the aircraft, as far forward under the glare shield as possible to maximise visibility with the sky, and free from any obstructions. -
Page 6: Power
The Spider is not subject to Specific Absorption Rate testing, however, it is recommended to have separation of at least 200mm between the device and a person. Secure the Spider to the airframe using the bracket supplied. Please allow 12 hours for the VHB tape to cure. -
Page 7: Installation

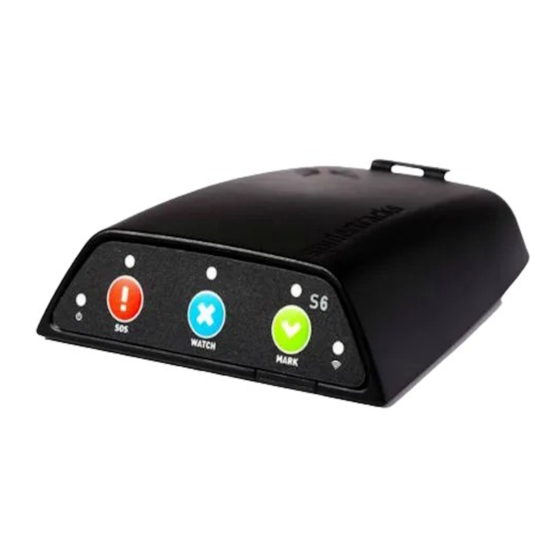

Figure 2 provides a visual reference for content discussed within Sections 2 and 3 of this document. Figure 2: Spider 6 Keypad 2.1. Start Up When the Spider is first powered the LEDs will cycle through a start-up sequence (that indicates firmware version) and should then display a solid Power LED indicator only. -
Page 8: Operation
flight, ground personnel would not be alerted to this unless there was a conscious SOS button press by the crew. In watch mode, the Spidertracks system is actively monitoring the status of the flight. If communication with the aircraft is lost for a period of ten minutes a tier one alert will be... -
Page 9: Emergency Management Framework
3.1.2. Emergency Management Framework The Spidertracks system comes with a two tiered emergency management framework, which are aligned with the ICAO definitions of uncertainty and alert. Recipients of these alert notifications are fully customisable within the Organisational Settings of the website. -
Page 10: Adjusting The Led Brightness
3.6. Spidertxt 2.0 The Spider 6 is equipped with Low Energy Bluetooth (BLE) technology and is compatible with Spidertxt 2.0. This enables two-way freeform messaging to/from the cockpit using a mobile device connected to the Spider. -
Page 11: Troubleshooting
4.3. Lost Iridium Connectivity If the Spider can not connect to an Iridium Satellite for a short period of time there will be a transmission delay. If the delay exceeds 120 seconds, the GPS LED on the Spider 6 will turn orange. -
Page 12: Appendix
Appendix... -
Page 13: (A)Spider 6 Minor Modification Summary Report
(A)Spider 6 Minor Modification Summary Report (A)1.Description The subject modification consists of the installation of a Spider 6 real-time aircraft tracking device. (A)2.Modification Approval Basis Spidertracks recommends classifying the subject modification as a minor modification. This recommendation is based on the evaluations of the modification against: (1) Transport Canada Civil Aviation Standard 571 Appendix A, Criteria for the Classification of... -
Page 14: (A)7.Electrical Load
(A)7.Electrical Load Installation of the Spider 6 introduces a maximum continuous draw of 1.0A at 12VDC. Update the aircraft electrical load analysis report as required. (A)8.Continuing Airworthiness Maintenance of the modification is in accordance with the applicable OEM maintenance manual. Instructions for Continued Airworthiness (ICA) are not required. -
Page 15: (B)Spider 6 Structure Test Procedure
(B)5.Test Procedure The following procedures detail the methodology for the structural test. 1. Record the serial number of the Spider 6 being used in the test and complete the test record information. 2. Apply the minimum loads listed in Chapter 3.4 to the centre of the Spider 6 in... -
Page 16: (B)6.Pass/Fail Criteria
(B)6.Pass/Fail Criteria When no damage or permanent deformation occurs after 7 seconds of applied static load in all directions, the Spider 6 installation is acceptable. Should permanent deformation occur after 3 seconds, reinforcements are required (e.g. doubler installation) to the affected structure and repeat test. -
Page 17: (C)Spider 6 Electromagnetic Compatibility Test Procedure
The purpose of these test procedures is to demonstrate Electromagnetic Compatibility (EMC) between the aircraft’s electrical or electronic systems, and the Spider 6 being tested. This test procedure is an aircraft-level test to determine if there is any electromagnetic or radio frequency interference (EMI/RFI) to the various critical aircraft systems, radios and installed equipment. -
Page 18: (C)5.Pass/Fail Criteria
2. Record the serial number of the Spider 6 being used in the test and complete the test record information. 3. Power up the Spider 6. The left LED on the keypad of the Spider will glow green and the right LED will turn amber when it has a GPS fix. -
Page 19: (C)6.Test Record
(C)6.Test Record Date of Test Spider 6 S/N Location of Test A/C Registration Aircraft System Test Instructions Passed Observations Under Test Open squelch. Tune to 118, 120, 124, 128, 132, 136MHz. Listen for ☐ VHF 1 noise. Verify transmit and reception. - Page 20 Aircraft System Test Instructions Passed Observations Under Test Tune in to local stations and/or ☐ ILS 1 use ramp tester. Verify GS / LOC display and station audio ident. Tune in to local stations and/or ☐ ILS 2 use ramp tester. Verify GS / LOC display and station audio ident.
- Page 21 Aircraft System Test Instructions Passed Observations Under Test ☐ HSI/DG 1 Monitor for erratic indications. ☐ HSI/DG 2 Monitor for erratic indications. Monitor for erratic attitude and ☐ AHRS 1 heading indications. Monitor for erratic attitude and ☐ AHRS 2 heading indications.
- Page 22 Aircraft System Test Instructions Passed Observations Under Test Perform a system function test. ☐ ADC 2 Verify correct display of airspeed, altitude, TAT, TAS. ☐ HEATER / ECS Operate in all modes. Monitor for erroneous or erratic ☐ FUEL QUANTITY indications.
- Page 23 Aircraft System Test Instructions Passed Observations Under Test Verify for normal operation and ☐ CYCLIC TRIM monitor for inadvertent activation. Verify for normal operation and ☐ ENGINE TRIM monitor for inadvertent activation. Verify for normal operation and ☐ CARGO HOOK monitor for inadvertent activation.
-
Page 24: (D)Wiring Diagram - Power Lead
(D)Wiring Diagram - Power Lead... -
Page 25: (E)Rtca Do-160 Test Reports
(E)RTCA DO-160 Test Reports Links to download: • DO-160F Sections 15 and 21: Magnetic Effect & RF Emissions • DO-160G Sections 7 and 8: Shock and Vibration • DO-160G Section 17: Voltage Spike • DO-160G Section 26: Flammability...
