Ai2 Robot Trouble Shooting Guide

One or both motors not driving

Prior to starting this section of the trouble shooting guide, it would be worth while tightening

up the screws on each of the motor modules to make sure the fault is not a loose connection.

If when you attempt to start a function, your Ai2 robot resets back to the main Ai2 screen and

does nothing, your batteries may require replacement. Once you have replaced your

batteries, install a battery saver when your Ai2 robot is not in use to conserve battery power.

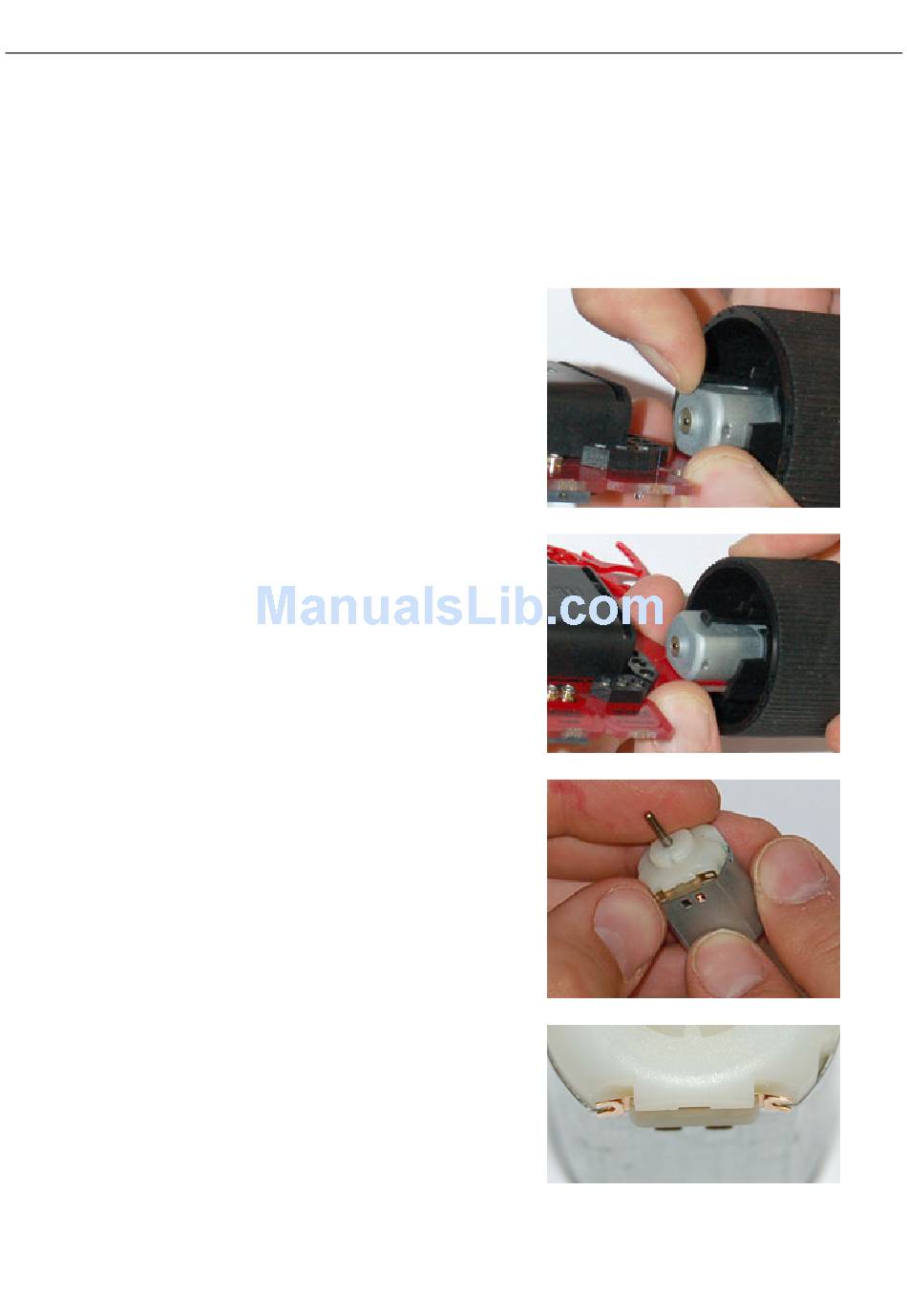

Gently lift the clip on the gear box just enough to

slip over the motor.

Pull the gear box & wheel assembly away from the

motor.

If your terminals have not been folded in half, or

have been folded incorrectly, fold them in half now.

Once your terminals have been folded in half, they

should look like this.
