User Manual
Operating Instructions
RF Repeater System
Product No.: JD55-PR
JD TECK LTD.
.

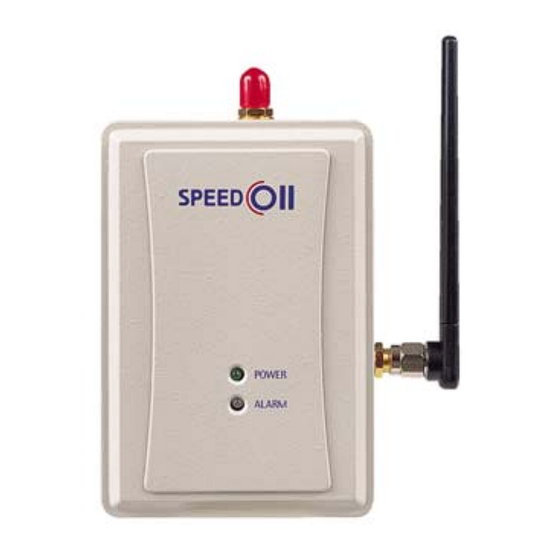

Thank you for choosing the JD55-PR RF Repeater System
For your safety, we shall recommend to read these instructions carefully before using, operating
and adjusting this product. This operating instruction applies only to the JD55-PR RF Repeater
System.
Advertisement
Table of Contents
Related Manuals for JDTECK JD55-PR
Summary of Contents for JDTECK JD55-PR
-

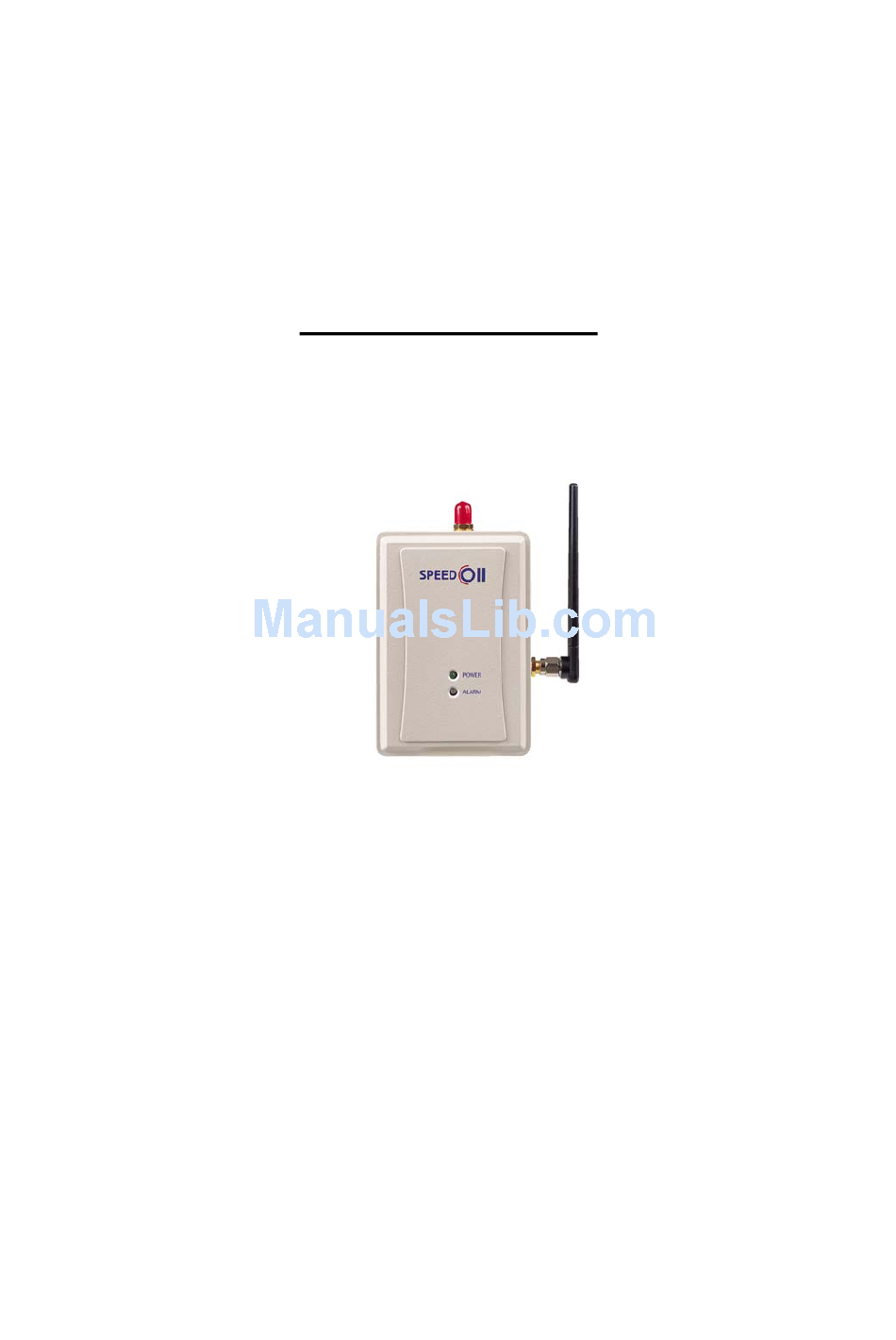

Page 1: Operating Instructions
JD TECK LTD. Thank you for choosing the JD55-PR RF Repeater System For your safety, we shall recommend to read these instructions carefully before using, operating and adjusting this product. This operating instruction applies only to the JD55-PR RF Repeater System. - Page 2 For PCS 1900 MHz System JD55-PR RF Repeater System is a bi-directional amplifier designed specially for in- building RF Coverage extension ( about 100 ㎡ and more) for cellular services. If you have a coverage problem in your home, office, small shop and restaurant, the...
-
Page 3: Function Of Each Part
For PCS 1900 MHz System 2. Function of Each part 1) DONOR ANT. Port for connecting Donor antenna ( Patch Antenna ) 2) SERVICE ANT. Port for connecting Service antenna ( Dipole Antenna ) 3) GAIN CONTROL SWITCH Switch for controlling the system gain to optimize the service environment of Repeater. For using this function, refer to the instructions of LED Alarm and Gain Control Switch as following pages. -
Page 4: Dc Power Supply
For PCS 1900 MHz System * Shutdown Algorithm Detection Detection Detection Detection for 10 second for 1 second for 1 second for 1 second S/D for 10 seconds S/D for 10 seconds S/D for 30 m inutes S/D com pletely The embedded detector of repeater is designed to detect whether the RF output power of the repeater exceeds a prescribe limit on the downlink or uplink. - Page 5 For PCS 1900 MHz System 3. Instructions for using each device 1) Antenna set Antenna set is comprised of Donor & Service Antenna. To install Antenna set, follow the instructions as bellows. ① Donor Antenna ( Patch Antenna ) ② Assistant Device for installing donor Ant. * If necessary, you can use the fixing bracket differently provided.
- Page 6 For PCS 1900 MHz System (★★★ Warning ★★★) When connecting the Donor / Service antenna to the Repeater Body, Do not use too strong power. It is threaten to be connector defected. 2) Gain control switch For system optimizing, you can adjust the system gain through gain control switch according to the LED status and service quality of subscriber’s terminal.
-
Page 7: Troubleshooting
For PCS 1900 MHz System 5) Installation on the wall The bracket provided can be used to install repeater on the wall as a below figure. Installation Hole on the wall Repeater Mounting Holder 4. Trouble Shooting If the repeater is not normal status as followings, please remove power supply off to avoid additional damage and contact service center for repairs. -
Page 8: Technical Specification
For PCS 1900 MHz System 5. Technical Specification Parameters Forward path Reverse path Frequency Range 1930~1990 MHz 1850 ~ 1910 MHz Channel Bandwidth 60 MHz Output Level (Max) +7 dBm / 11FA +10 dBm / 1FA Input Level (Max) -120 ~ -43 dBm -120 ~ -40 dBm 50 dB ±... -
Page 9: Package Contains
For PCS 1900 MHz System 6. Package Contains Item Descriptions Q/ty Remarks Repeater Speed Home Repeater Patch antenna for outdoor Donor Antenna Dipole antenna for indoor Service Antenna Antenna Assistant device Screws Power supply AC_DC Adapter Assistants Fixing device Screws Assistant fixing device Picture Optional...
