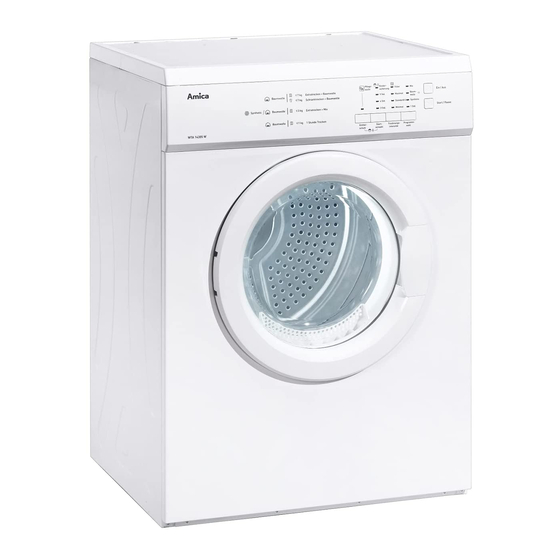

WTA 14305 W
OPERATING INSTRUCTIONS
DRYER
Please carefully read these Operating Instructions before using the appliance!
IO-WMS-0039
(11.2015/1)
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WTA 14305 W and is the answer not in the manual?

Questions and answers

Summary of Contents for Amica WTA 14305 W

  • Page 1 WTA 14305 W OPERATING INSTRUCTIONS DRYER Please carefully read these Operating Instructions before using the appliance! IO-WMS-0039 (11.2015/1)
  • Page 2: Table Of Contents

    CONTENTS Basic Information........................3 Safety instructions........................4 Install the dryer.......................7 Display and control panel..................11 Troubleshooting......................14 Maintenance and Cleaning..................16 Specification......................18 Product fiche......................19 In accordance with European Directive 2012/19/EC and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container.
  • Page 3: Basic Information

    BASIC INFORMATION Dear customer, From today, DRYING will be easier than ever before. Your Amica DRYER is exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy. Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.
  • Page 4: Safety Instructions

    NOTES ON SAFETY 1. Unique and luxury design: Uniquely styled front loading dryer. 2. Electronic Controls: Simple and convenient operation thanks to electronic controls. The appliance will automati- cally adjust the temperature when drying. 3. Large door opening: Observe the drying process clearly through the door window.
  • Page 5 NOTES ON SAFETY 13. Fabric softeners, or similar products, should be used as specified by the fabric softener instructions. 14. The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are cooled down to a lower temperature and they will not be dam- aged.
  • Page 6 NOTES ON SAFETY 22. This appliance can be used by children aged 8 years and older or persons with physical, mental or sensory handicaps, or those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with the associated risks.
  • Page 7: Install The Dryer

    INSTALL THE DRYER I. Install the appliance Features and components Top board Control panel Door Front panel Side panel Filter Flexible tube Power plug Switch Tumbling drum...
  • Page 8 INSTALL THE DRYER II. Before you use the appliance The first step: Power source and grounding. The dryer is powered by alternating current of rated voltage and frequency. When the volt- age fluctuates between 6% of rated voltage, the dryer can operate normally. For conveni- ence and safety connect the dryer to a dedicated wall power socket beside the dryer.
  • Page 9 INSTALL THE DRYER III. Connect to power supply This product is type I electronic appliance. Please take note of the following safety guidelines: 1. The appliance must be connected to a grounded power line that does not interfere with any public utility systems such as gas pipe or water pipe etc. Make sure the individual wires are connected properly.
  • Page 10 INSTALL THE DRYER IV. Simple installation Step 1: Dryer should be placed in a ventilated area with not less than 10 cm distance from the wall. If placed in a room such as bath room, make sure there are no obstacles within 1,5 m in front of dryer.
  • Page 11: Display And Control Panel

    DISPLAY AND CONTROL PANEL 1. On/Off 2. Start/Pause 3. Program (Mix/Cotton/Synthetic/1 hour) 4. Dryness Level (Extra/Standard/Less) 5. Delay (9H/6H/3H) 6. Anti-Crease 5 + 6. Child Lock Note: 1. Press the [ Program ] button to select the desired programme. 2. Press the [Dryness Level] button to select the desired programme. 3.
  • Page 12 DISPLAY AND CONTROL PANEL Operate your appliance 1. Before drying, thoroughly spin the laundry in washing machine. High spin speed can reduce the drying time and save energy consumption. 2. For uniform drying results, sort the laundry according to fabric type and drying pro- gramme.
  • Page 13 DISPLAY AND CONTROL PANEL Drying guidelines Clothing Appro- Capacity Programs Dryness Note Type ximate (kg) Level amount of remaining humidity Cotton 7/3.5 Cotton Extra Please select the 7/3.5 Cotton Standard most suita- 7/3.5 Extra ble Program 7/3.5 Standard Dryness Synthetic 3.5/1 Synthetic Extra...
  • Page 14: Troubleshooting

    TROUBLESHOOTING Problem Cause Solution Appliance will not Power outage. Wait until power is start The power plug is not plugged in cor- restored. rectly. Check the power socket, The load is too big. make plug is inserted The temperature safety device is ac- correctly.
  • Page 15: Error Codes

    TROUBLESHOOTING Error codes Error code Description Cause Result Failure indication Temperature Break in Program stops 3H and 6H LEDs Sensor error temperature and the appli- flashing sensor cir- ance enters fault cuit or PCB state is faulty Temperature Tempera- Program stops 3H and 6H LEDs Sensor error ture sensor...
  • Page 16: Maintenance And Cleaning

    MAINTENANCE AND CLEANING Clean the filter 1). Clean the lint filter before each use. Remove by pulling straight up. 2). Clean the filter Wipe the filter with a cloth. 3). Install filter If you clean the filter with a damp cloth or wash it in the water, thoroughly dry the filter be installing.
  • Page 17 MAINTENANCE AND CLEANING Safety reset 1. These dryers have a temperature activated safety cut out switch. 2. The safety reset button can be found on the backboard. If your dryer does not heat you need to push this button before the dryer will operate again. You may need to wait 10 min- utes for the appliance to cool down.
  • Page 18: Specification

    SPECIFICATION -Type WTA 14305 W -Rated voltage 220-240V / ~ 50Hz. -Rated power 2000 W - Ambient temperature + 5°C ~+ 35°C - Maximum Load max 7 kg - Dimensions Height x Depth x Width 840/595/550 [mm] - Weight 33 kg...
  • Page 19: Product Fiche

    (In accordance with Commission Delegated Regulation (EU) No. 392/2012 of 1 March 2012 supplementing Directive 2010/30/EU of the European Parliament and of the Council with regard to energy labelling of household tumble dryers). Amica Supplier's name or trade mark WTA 14305 W Type Rated load 7.0 kg...
