Page 1: Operating Instructions
ADV 7C LCW OPERATING INSTRUCTIONS DRYER Please carefully read these Operating Instructions before using the appliance! IO-WMS-0020 (01.2017/1) -
Page 2: Table Of Contents
CONTENTS Basic Information........................3 Safety instructions........................4 Installing the dryer.......................7 Understanding the symbols on clothes labels...............10 Display and control panel..................11 Using the appliance....................14 Table of programmes..................15 Troubleshooting........................16 Maintenance and Cleaning..................17 Safety Reset......................18 Specification......................19 Service and Warranty....................19 Product fiche....................20 In accordance with European Directive 2012/19/EC and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. -
Page 3: Basic Information
BASIC INFORMATION Dear customer, From today, DRYING will be easier than ever before. Your Amica DRYER is exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy. Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality. -
Page 4: Safety Instructions
NOTES ON SAFETY 1) Unique and luxury design: Uniquely styled front loading dryer. 2) Electronic Controls: Simple and convenient operation thanks to electronic controls. The appliance will automati- cally adjust the temperature when drying. 3) Large door opening: Observe the drying process clearly through the door window. - Page 5 NOTES ON SAFETY 14) The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are cooled down to a lower temperature and they will not be dam- aged. 15) WARNING: never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is allowed to escape safe- 16) The exhaust air must not be discharged into a flue...
- Page 6 NOTES ON SAFETY 22) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 7: Installing The Dryer
INSTALL THE DRYER I. Position and level the appliance For convenience, it is recommended to place the appliance near a washing machine. Do not place the appliance on a carpet! The dryer must be installed in a clean place, where dirt does not accumulate. - Page 8 INSTALL THE DRYER II. Water drain (option) Normally condensed water drains into the container in the upper left corner of the dryer. Optionally, you can use the drain hose in the accessory bag and con- nect it to the dryer. Connect the hose as shown here. III.
- Page 9 INSTALL THE DRYER IV. Tips 1. Spin the laundry in the washing machine before tumble drying. The high spin speed can reduce the drying time and save energy. 2. To make sure the drying effects are uniform, sort the laundry by fabric type and drying program.
-
Page 10: Understanding The Symbols On Clothes Labels
UNDERSTANDING THE SYMBOLS ON CLOTHES LABELS Before drying pay attention to the symbols on the apparel label. Failure to follow the symbol instructions may damage or destroy clothes to be dried. The symbols are explained in the following table: Dryer description 1. -
Page 11: Display And Control Panel
DISPLAY AND CONTROL PANEL ■ ■ ■ ■ ■ ■ ■ ■ 1. Programme selector dial 2. On/Off button 3. Start/Pause button 4. Anti-Crease button 5. Delay button 6. Intensity button 7. Signal button 4 + 5. Child Lock... - Page 12 DISPLAY AND CONTROL PANEL Programme selector dial Choose the appropriate drying programme as required, depending on the type and amount of laundry loaded, which ensures better results and more effective drying. Once the drying programme is started, turning the programme selector knob to another posi- tion is possible, however it does not change the previously selected programme.
- Page 13 DISPLAY AND CONTROL PANEL Intensity button Use this function to adjust clothes drying intensity. There are three intensities Drying intensity: The drying time is extended by 3 minutes for each higher intensity. The drying intensity can only be set before the start of the programme. Press the Intensity button repeatedly to select the drying time.
-
Page 14: Using The Appliance
USING THE APPLIANCE I. Select Programme 1. Press [On / Off]. When the LED display lights up turn the programme selection dial and select the desired programme 2. Select the additional option [Anti-Crease], [Delay], [Intensity] or [Signal] — if the pro- gramme allows you to select additional options. -
Page 15: Table Of Programmes
TABLE OF PROGRAMMES Programme name Weight Additional functions available Recommendations Time Energy consumption [KWh] (Max) [H:min] Delay Intensity Anti-Crease Extra Dry Option Option Option To dry cotton pieces of clothing. Drying level: less dry. 2:30 4,77 1:30 2,82 Standard Option Option 2:20 4,44... -
Page 16: Troubleshooting
TROUBLESHOOTING Problem Probable cause/Solution No information on the display - Make sure the plug is properly inserted into the wall outlet. - Check the main power supply. The dryer does not start - Check if the Start / Pause button is pressed. - Make sure the door is properly closed. -
Page 17: Maintenance And Cleaning
MAINTENANCE AND CLEANING Clean the filter 1. Clean the lint filter before each use. Remove by pulling straight up. 2. Cleaning filter Wipe the filter with a cloth. 3. Install filter If you clean the filter with a damp cloth or wash it in the water, thoroughly dry the filter before installing. -
Page 18: Safety Reset
SAFETY RESET Safety reset 1. These dryers have a temperature activated safety cut out switch. 2. The safety reset button can be found on the backboard. If your dryer does not heat you need to push this button before the dryer will operate again. You may need to wait 10 minu- tes for the appliance to cool down. -
Page 19: Specification
SPECIFICATION -Type ADV 7C LCW - Rated voltage 220-240V / ~ 50Hz. - Power rating [W] 2000 W - Power of heating element/compressor [W] 1800 W - Power of motor [W] 110 W - Energy Efficiency Index (EEI): 84,9 - Ambient temperature + 5°C ~+ 35°C... -
Page 20: Product Fiche
(In accordance with Commission Delegated Regulation (EU) No. 392/2012 of 1 March 2012 supplementing Directive 2010/30/EU of the European Parliament and of the Council with regard to energy labelling of household tumble dryers). Amica Supplier's name or trade mark ADV 7C LCW Type Rated load 7.0 kg... - Page 24 For the UK: please call 01949 862012 01 883 2010...
Need help?
Do you have a question about the ADV 7C LCW and is the answer not in the manual?
Questions and answers
How do I know what intensity I have selected when none lit
If none of the intensity indicators are lit on the Amica ADV 7C LCW tumble dryer, it means the drying intensity is set to "Normal." The intensity can only be adjusted before the start of the programme by pressing the Intensity button repeatedly.
This answer is automatically generated

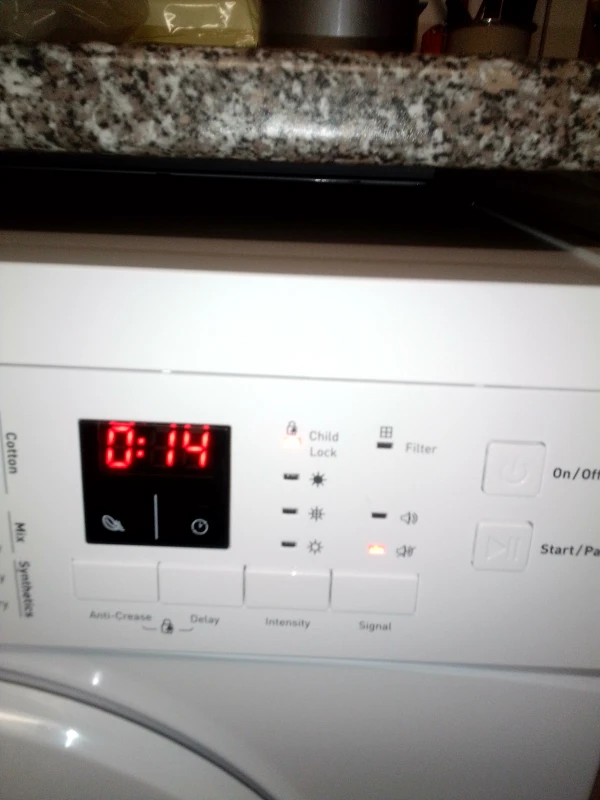

Intensity setting not lighting up
The intensity setting on the Amica ADV 7C LCW may not light up because it can only be set before the start of the programme. If the programme has already started, the intensity button will not function.
