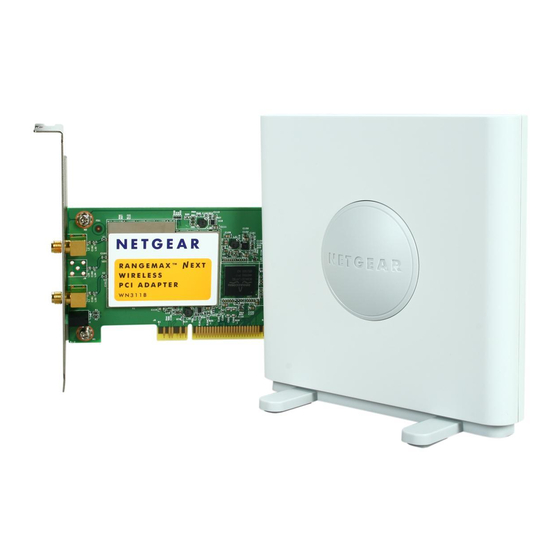

NETGEAR RangeMax™
NEXT Wireless PCI Adapter
WN311B User Manual
NETGEAR, Inc.
4500 Great America Parkway
Santa Clara, CA 95054 USA
202-10203-01
May 2006
