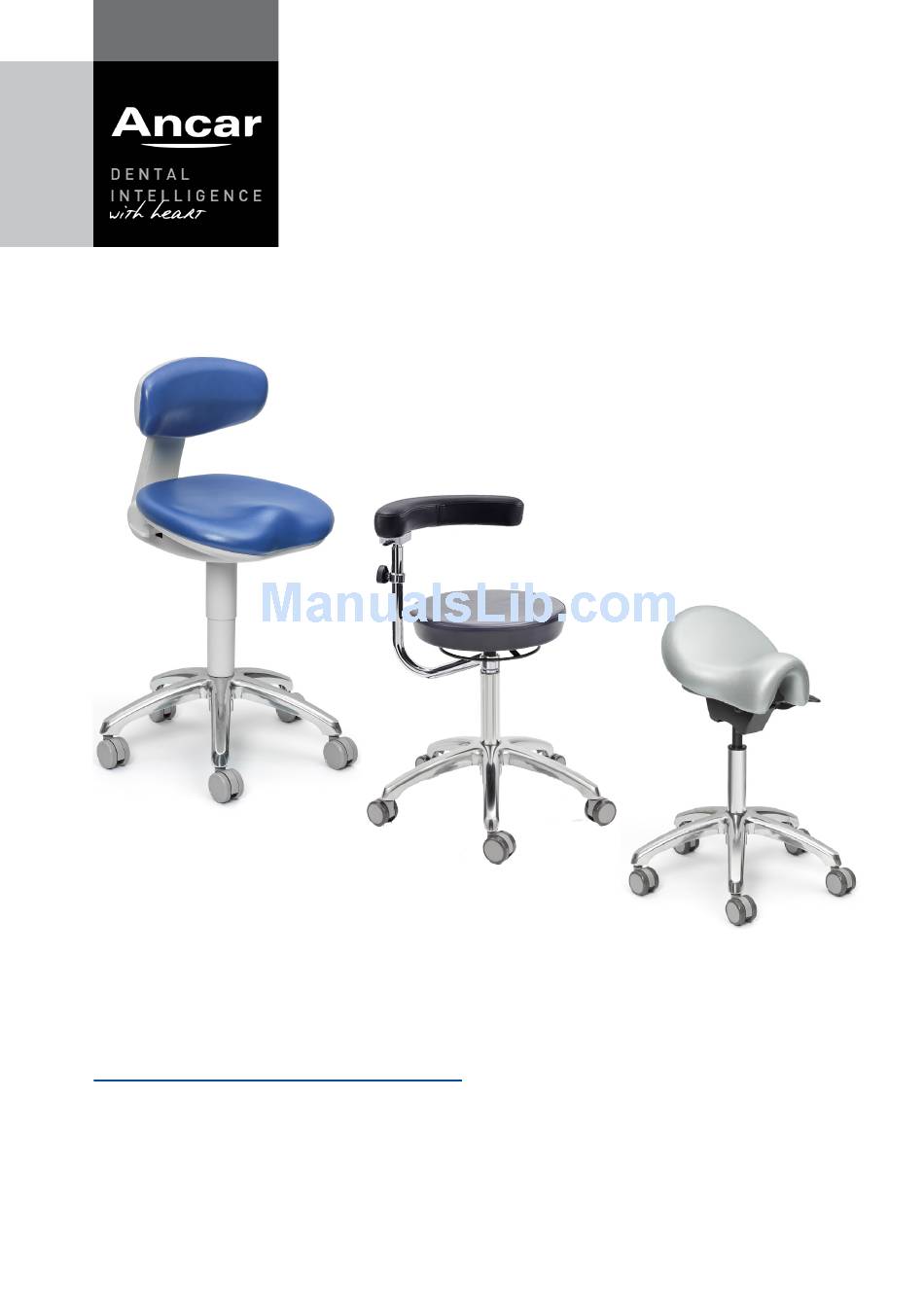

Page 1: User Manual
TD-700 TD-600 TD-500 DENTAL STOOLS USER MANUAL September 2015, QS4 692 v.1... - Page 3 USER MANUAL DENTAL STOOLS - QS4-692-01 / TD-700/600/500 Antoni Carles, S.A. Volta dels Garrofers, 41-42 T. (34) 93 754 07 97 Pol. Ind. Els Garrofers F. (34) 93 759 26 04 08340-Vilassar de Mar calidad@ancar-online.com (Barcelona-SPAIN) www.ancar-online.com EC Declaration of Conformity (Directive 93/42/EEC, annex VII) Manufacturer’s Name...
- Page 4 DENTAL STOOLS - QS4-692-01 / TD-700/600/500 USER MANUAL...
-
Page 5: Table Of Contents
USER MANUAL DENTAL STOOLS - QS4-692-01 / TD-700/600/500 TABLE OF CONTENTS 1.- GENERALITIES 2.- GUARANTEE 3.- IDENTIFICATION 4.- PRECAUTIONS 5.- CLEANING AND DISINFECTING 6.- INTENDED USE 7.- TD-700 STOOL 7.1.- TD-700 PACKAGING 7.2.- TD-700 ASSEMBLY 7.3.- TD-700 USE 7.4.- TD-700 TECHNICAL SPECIFICATION 8.- TD-600 STOOL... -
Page 6: Generalities
The stool must be used in accordance with the use instructions. 2.- GUARANTEE Ancar provides 2 year warranty. The Certificate of Guarantee must be completed. Please fill in form through website (Distributor’s zone / Guarantee Certificate) within 8 days of delivery of the device. -
Page 7: Precautions
USER MANUAL DENTAL STOOLS - QS4-692-01 / TD-700/600/500 This symbol means the equipment is certified under Directive 93/42/EEC (modified in 0434 accordance to 2007/47/EC). This symbol is only applicable for member countries of the European Union. In order to avoid potencial negative consequences for the environment or even human health, this equipment should be disposed of (i) in EU member countries –... -
Page 8: Td-700 Stool
DENTAL STOOLS - QS4-692-01 / TD-700/600/500 USER MANUAL 7.- TD-700 The Td-700 is a dentist / assistant dental stool that the user can adjust the seat position (sitting height and seat inclination) and the backrest position (height and inclination). 7.1.- TD-700 Packaging The TD-700 is delivered with one single packaging with the Ancar identification, the stool model name and the upholstery colour indicated on the box sides. - Page 9 USER MANUAL DENTAL STOOLS - QS4-692-01 / TD-700/600/500 STOOL HEIGHT ADJUSTMENT The seat stool height can be adjusted from 550 mm to 750 mm. - Sit down on the stool. - Pull up the lever B (Fig. 3 - Decrease the pressure on the seat to go on a high position or increase the presure to go on a lower position.
-
Page 10: Td-700 Technical Specification
DENTAL STOOLS - QS4-692-01 / TD-700/600/500 USER MANUAL 7.4.- Technical Specifications Ancar Identification TD-700 Base outside diameter 600 mm Seat height from the floor 550 to 750 mm Seat height adjustment 200 mm Seat tilting adjustment -5˚ to +10˚ Backrest height adjustment... -
Page 11: Td-600 Stool
The Td-600 is a dentist / assistant dental stool with height adjustment and an auxiliary support arm that can also be height and position adjusted. 8.1.- TD-600 Packaging The TD-600 is delivered with one single packaging with the Ancar identification, the stool model name and the upholstery colour indicated on the box sides. BOX DETAILS... - Page 12 DENTAL STOOLS - QS4-692-01 / TD-700/600/500 USER MANUAL ARM SUPPORT RING PLACEMENT - Introduce the metallic ring of the accessories bag through the piston axle A until the (Fig.11) position B (Fig.11) DO NOT TOUCH THE PISTON CAP - Insert and fix the x3 M6 grub screw of the...
-
Page 13: Td-600 Use
USER MANUAL DENTAL STOOLS - QS4-692-01 / TD-700/600/500 8.3.- TD-600 Use ADJUSTMENT LEVERS A - Stool height adjustment lever B - Arm height adjustment lever C - Arm turn adjusting lever Fig.19 STOOL HEIGHT ADJUSTMENT The seat stool height can be adjusted from 620 mm to 820 mm. -
Page 14: Td-600 Technical Specification
DENTAL STOOLS - QS4-692-01 / TD-700/600/500 USER MANUAL 8.4.- Technical Specifications Ancar Identification TD-600 Base outside diameter 600 mm Seat height from the floor 620 - 820 mm Seat height adjustment 200 mm Arm rest tilting adjustment 360˚ Arm rest height adjustment... -
Page 15: Td-500 Stool
The Td-500 is a dentist / assistant “saddle” type dental stool with adjustable height and seat tilting. 9.1.- TD-500 Packaging The TD-500 is delivered with one single packaging with the Ancar name, the model name and the upholstery colour indicated on the box sides. -
Page 16: Td-500 Use
DENTAL STOOLS - QS4-692-01 / TD-700/600/500 USER MANUAL 9.3.- TD-500 Use ADJUSTMENT LEVERS A - Stool height adjustment lever B - Seat tilting adjustment lever Fig.27 STOOL HEIGHT ADJUSTMENT The seat stool height can be adjusted from 560 mm to 760 mm. -
Page 17: Td-500 Technical Specification
USER MANUAL DENTAL STOOLS - QS4-692-01 / TD-700/600/500 9.4.- Technical Specifications Ancar Identification TD-600 Base outside diameter 600 mm Seat height from the floor 590 to 790 mm Seat height adjustment 200 mm Seat tilting adjustment -5˚ to +10˚ Wheels diameter... - Page 18 Volta dels Garrofers, 41-42 Polígono Industrial “Els Garrofers” September 2015 08340 Vilassar de Mar (Barcelona-SPAIN) Tel. (34) 93 754 07 97 Fax (34) 93 759 26 04 Subject to design and/or specification changes www.ancar-online.com / e-mail: ancar@ancar-online.com without prior warning. Made in Europe.
