Summary of Contents for Enpaix ETTB series

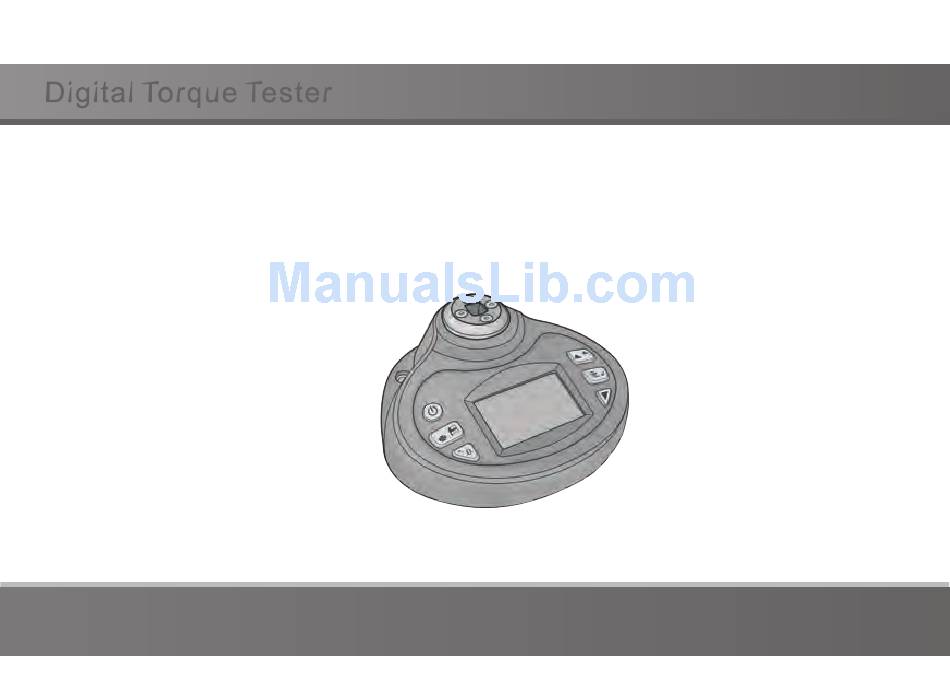

- Page 1 Digital Torque Tester User’s Manual User’s Manual...
-
Page 2: Table Of Contents
CONTENTS 1. Overview 3.3 Memory 1.1 Specifications 3.3.1 Browse Data 1.2 Models 3.3.2 Print Data 1.3 keystroke 3.3.3 Delete Data 1.4 LCD Screen 3.4 System Setting 3.4.1 Display Mode 2. Operation 3.4.2 Power Off 2.1 Installation 3.4.3 Back Light 2.2 Adapter Selection 3.4.4 Date/Time 2.2.1 Square Drive Adapter 3.4.5 Diagram Scale... -
Page 3: Overview
1. Overview 1.1 Specifications Accuracy ± 0.3% Selectable Units N.m, N.cm, kgf.cm, lbf.in , lbf.in Overload 120% of F.S. Display Matrix LCD with Backlight Data Memory 1000 data Measurement USB-B, Set point, Track, Peak , Preset, First Peak,Auto Peak Outputs Mode RS232 Power... -
Page 4: Lcd Screen
Down: During Measurement, Changes Test Mode. 1.4 LCD Screen ⑥ ⑤ ① ④ ① ① Test mode Track； Peak； ② ② Preset； First Peak; ④ Auto Peak;. Auto First ③ Peak ⑦ ② Analog bar and Direction Data display Diagram Display Icon Fig 1-1 Indicates current position... -
Page 5: Operation
2. Operation 2.1 Installation Please fix the torque tester on the workbench. See Appendix A-2 Installation dimensions. 2.2 Adapter Selection 2.2.1 Square Drive Adapter □ □ □ 1/2” (12.5mm) socket. accordance with the appropriate scale to provide 1/4 "(6.3) or Basic Adapter: 3/8"... -
Page 6: Zeroing
Peak: Peak readings will not change until a higher value is measured. Under this mode, press the zero key the torque gauge will update the display immediately. Preset:The tolerance limits can be set for GO/NG measurement also. If you set the alarm on and a valid limit, The icon will be displayed for within limit, lower than lower limit or exceed upper limit. -
Page 7: Menus
3. Menus 3.1 Menus Structure 3.2 Measurement Unit Measurement Group Test Mode Browse Print All Print Selected Memory Fig.3-1 Upload Delete Selected 3.2.1 Unit(Fig.3-1) Delete All 3.2.2 Group Display Mode When several test samples Auto Power Off Backlight need to be measured, the Key Tone samples can be coded into Language... -
Page 8: Memory
① Preset In the Tolerance menu, program upper and lower limit for GO/NG Measurement. The upper limit value must be greater than the lower limit, and both limit value cannot be greater than 110% of the rated capacity. Fig.3-4 ② First Peak With 5% increase or decrease in the drop ratio of the adjustment amount setting. -
Page 9: Delete Data
3.3.2 Print data You can print the data with "Print All" or "Print Select". 3.3.3 Delete data There are 2 methods to delete the data. Delete selected: Delete data in number range selected. Delete All. Fig.3-11 Fig.3-9 Before delete data, a warning window will pop up for further confirmation. -
Page 10: Date/Time
any operation. You can select this time or turn it on or off always. 3.4.4 Date/Time 3.4.5 Diagram scale The ordinate range selection When printing the chart. There are 4 kinds of type: 20%,50%,100% of F.S. Fig.3-15 3.4.6 Key Setting The key is a multifunction key. -
Page 11: Communication Ports
4. Communication Ports Table 4-1 Pin Assignment There are two kinds of port for recharging and communicating with PC and the other equipment. Description 4.1 USB/Recharge RS232 Use this port, you Setpoint Output B can connect the MultifunctionPort USB/Recharge gauge to the Common Fig.4-1 computer for... -
Page 12: Calibration
5. Calibration Because of the sensor material performance or the influence of external factors, there may be errors in a certain range after a period of time use. Should send the torque gauge to a specialized testing organization for calibration. If you have some standard force weights or the other standard load and some test stand, you may calibrate it also. -
Page 13: Appendix A-1 Packing List
Appendix A-1 Packing List A-2 Dimensions( mm) User's Manual Tester Recharge Square Drive USB Cable - 11 -...
