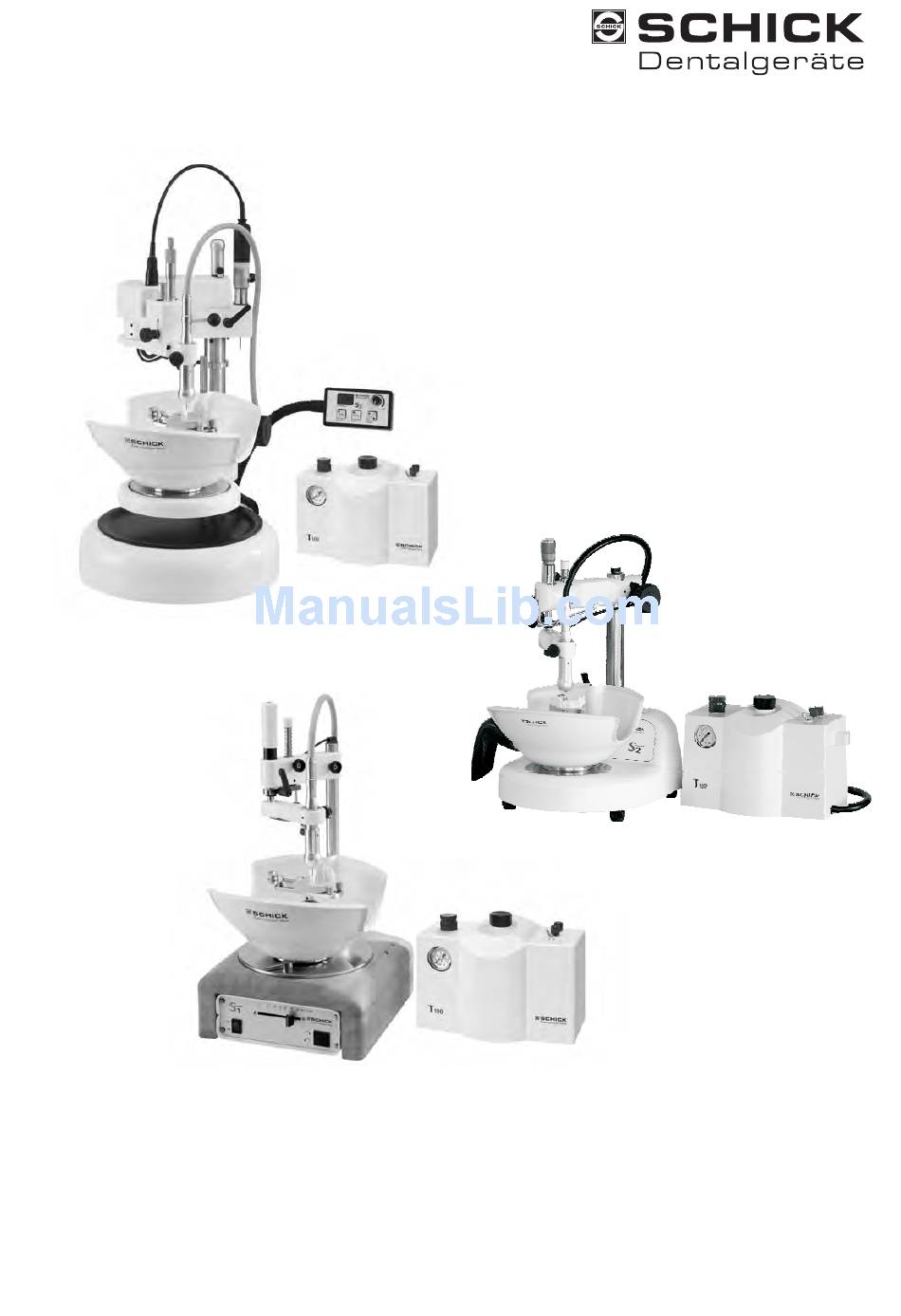

Page 1: Operating Instruction
Georg Schick Dental GmbH Lehenkreuzweg 12 D-88433 Schemmerhofen Telefon 07356/9500-0 Telefax 07356/9500-95 E-Mail info@schick-dental.de Internet www.schick-dental.de Original Operating Instruction SCHICK ceramic - milling set... - Page 3 - When using rotary tools the limits given by the tool manufacturer must be observed Repairs or other interventions must be carried out only by SCHICK or by technical personnel authorized by SCHICK SCHICK accepts no warranty if the ceramic milling set is not handled in...
- Page 4 3. List of contents - accessories S3 - Ceramic-milling set complete art.-no. 2650/01 S1 - Ceramic-milling set complete art.no. 2650/11 (without S1 Junior and base) (without S3 Master) turbine art.-no. 2640/1 turbine art.-no. 2640/1 S3 adapter for turbine art.-no. 2481 retaining clip art.-no.
- Page 5 S2 Ceramic-milling set complete art.no. 2650/41 (without S2 Master) turbine art.no. 2640/1 S2 adapter for turbine art.no. 2481 retaining clip art.no. 2793 light head for turbine art.-no. 2510/1 suction tub art.-no. 2470/1 separator art.-no. 2655 model table art.-no. 2407/9 diamont tool set turbine 1,6 mm (8 pieces art.-no.
- Page 6 4. Description / Illustration of construction Pic 1 Standard extractor Separator Suction tub The arrow must Pic 2 point to the side when assembling Suction tub Turbine side extractor hose Separator...
- Page 7 Pic 3 Pic 4 5.5- To use in a SCHICK S3 / S2 milling set, the supplied adapter sleeve must also be pushed on so that the turbine can be housed in the milling arm. For other manufacturers' milling devices, corresponding adapters are available on request.
- Page 8 5.7- Fix the milling arm to change the tool. The tool is ejected downward by firmly pressing down the upper part of the turbine (pic. 5-7). In order to insert a new tool, the upper part of the turbine should again be pushed down and the tool should be pushed in as far as it will go.
-
Page 9: Troubleshooting
6. Troubleshooting - If the delivery of the cooling agent is interrupted, check that there is a sufficient quantity of the cooling agent in the reservoir and the feed from the foot switch (8) should be checked for kinking. - If there is a drop in the turbine output or speed, the pressure setting should be checked at the station and the feed should be checked for sufficient compressed air. - Page 10 This declaration is not warranty of attributes within the Hersteller: meaning of the product Liability! Die Sicherheitshinweise der Produktdokumentation sind zu beachten! Georg Schick Dental GmbH The safety notes given in the product documentation Lehenkreuzweg 12 must be observed! D-88433 Schemmerhofen...
