KB 500 / KB 500 K
Operating instructions
Art.-Nr. der Bedienungsanleitung:
ZN der Bedienungsanleitung:
Erstellt am:
Erstellt von:
Datei:
®
GÖLZ
GmbH
Dommersbach 51
53940 Hellenthal-Blumenthal
Telefon: (02482) 120 / Telefax: (02482) 12135
E-Mail: info@goelz.de / Internet: www.goelz.de

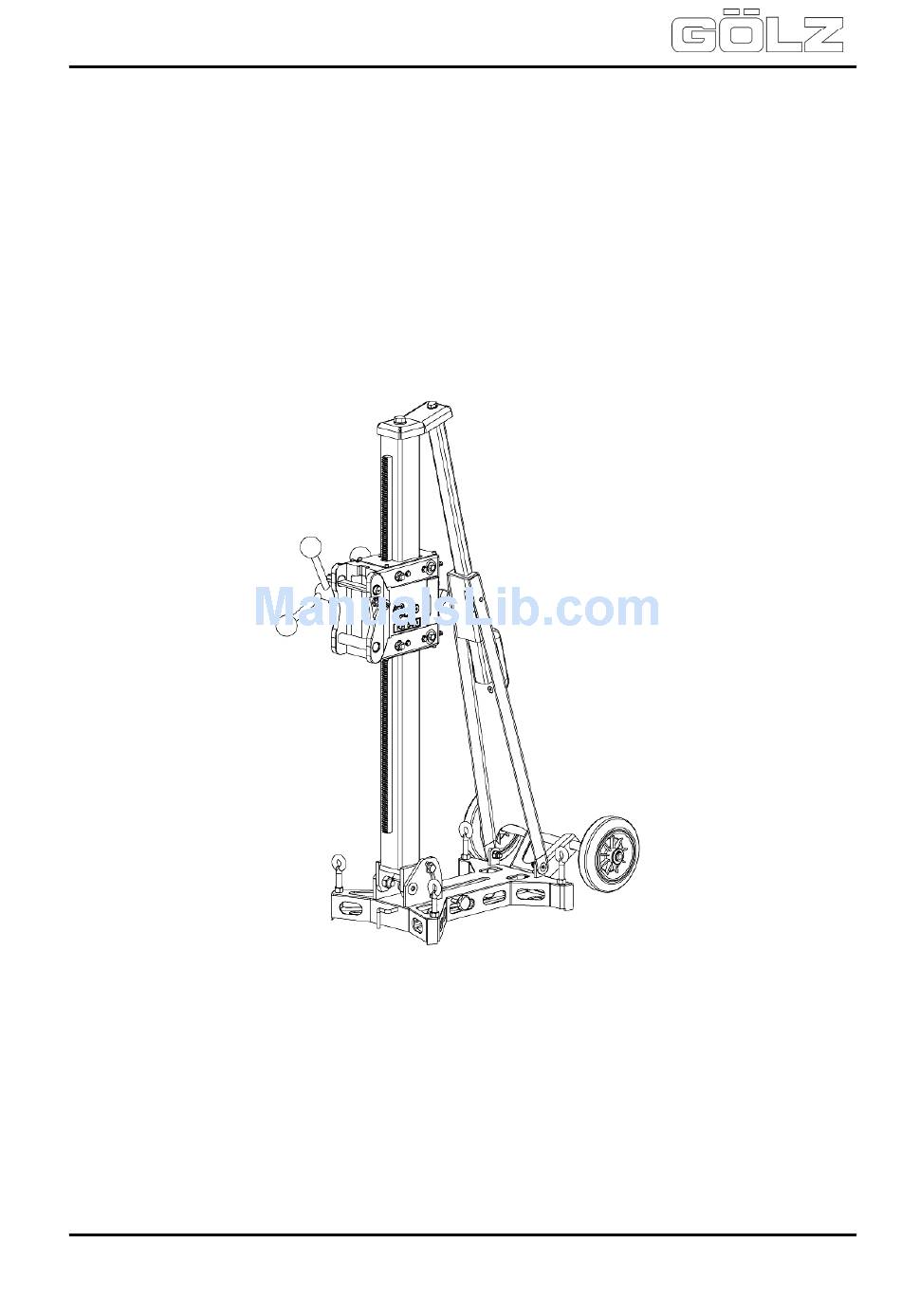

Drill rig
KB 500 / KB 500 K
02955010998
5006880-01
10 / 2012
Mireille Szidat
K:\KDV\5006xxx\5006880-Bedienungsanleitung\
5006880-01-Bedienungsanleitung-doc.doc
- 1-
®
02955010998
5006880-01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Golz KB 500
Summary of Contents for Golz KB 500
- Page 1 ® KB 500 / KB 500 K Operating instructions Drill rig KB 500 / KB 500 K Art.-Nr. der Bedienungsanleitung: 02955010998 ZN der Bedienungsanleitung: 5006880-01 Erstellt am: 10 / 2012 Erstellt von: Mireille Szidat Datei: K:\KDV\5006xxx\5006880-Bedienungsanleitung\ 5006880-01-Bedienungsanleitung-doc.doc ® GÖLZ GmbH...
- Page 2 ® KB 500 / KB 500 K Operating instructions EG-KONFORMITÄTSERKLÄRUNG EC-DECLARATION OF CONFORMITY DECLARATION DE CONFORMITE DE LA CE Die Firma Manufacturer La Société ® GÖLZ GmbH Dommersbach 51, 53940 Hellenthal - Blumenthal Tel.: (02482) 120 Fax: (02482) 12135 Erklärt in alleiniger Verantwortung, dass Hereby certifies on it’s sole responsibility...
-
Page 3: Table Of Contents
® KB 500 / KB 500 K Operating instructions Contents Preface ..............................4 General description ........................4 Intended use ......................... 5 Organizational measures ....................5 Selection and qualification of person ................6 Safety instructions governing specific operational phases ..........6 Special work related to the maintenance and repair of the machine ...... -
Page 4: Preface
® KB 500 / KB 500 K Operating instructions Preface ® Thanks for choosing a GÖLZ -product. This operating instruction is designed to familiarize the user with the machine and its designated use. The operating instruction contains important information on how to operate the product safely, properly and most efficiently. -
Page 5: Intended Use
® KB 500 / KB 500 K Operating instructions Intended use The machine has been built in accordance with state-of-the-art standards and the recognized safety rules. Nevertheless, its use may constitute a risk to life and limb of the user or of third parties, or cause damage to the machine and to other material property. -
Page 6: Selection And Qualification Of Person
® KB 500 / KB 500 K Operating instructions Do not remove or make inoperative any safety devices the product is equipped with. Never make any modifications, additions or conversions which might affect safety without the manufacturer’s / distribu- tor’s prior approval! This also applies to the installation and adjustment of safety devices as well as to welding and drilling work on supporting structures. -
Page 7: Special Work Related To The Maintenance And Repair Of The Machine
® KB 500 / KB 500 K Operating instructions ® Use only recommended drill bits from the GÖLZ GmbH! Do not operate when you are tired! Watch what you are doing! Prevent that water may enter any part of the drill motor! Never drill overhead... -
Page 8: Noise
® KB 500 / KB 500 K Operating instructions Caution, danger! Check out the prescribed safety distances. If your machine comes into contact with a live wire: warn others against approaching and touching the machine • have the live wire de-energized •... -
Page 9: Transport And Storing
® KB 500 / KB 500 K Operating instructions Use only suitable transport vehicles with sufficient load capacity! Secure the load carefully. Use suitable fastening points for securing! Before loading the machine or parts of it, secure the machine against inadvertent movement! Attach a... -
Page 10: Description
® KB 500 / KB 500 K Operating instructions Description Technische Daten KB 500 KB 500 K Stroke (mm-in.) 800 - 31.5 800 - 31.5 with handle (1:1) or Feed manuel handle with reduction gear (1:4) Angle drilling Continuous adjustable up to 45°... - Page 11 ® KB 500 / KB 500 K Operating instructions Mounting dowel base The machine can be provided with several drill motors and each of them allows different drill ranges. The machine equipment is only for drill motors that are mentioned by ®...
-
Page 12: Starting
® KB 500 / KB 500 K Operating instructions Starting Site Danger of down coming drilling cores when drilling trough ceilings and so on! Secure those places against entering! Bring the machine to the site. The site must have a solid ground and free of obstacles. Make sure the site is well lighted. -
Page 13: Drill Bit
® KB 500 / KB 500 K Operating instructions Eccentric shaft Fail safe Axle Mounting plate Drill bit ® The drill bits must be in accordance with the specification from GÖLZ GmbH. Use suitable drill - bits, depending on the processing material, the method of operation and the ®... -
Page 14: Adjusting The Drill Angle
® KB 500 / KB 500 K Operating instructions Adjusting the drill angle 1. Loosen clamping lever and screw (1) and the screws (2) at the column acceptance. 2. Turn the column into the wanted angle position. 3. The taper (3) on the dowel shows a 45° - angle. -
Page 15: How To Drill
® KB 500 / KB 500 K Operating instructions How to drill Using the crank handle the drilling head is brought to within 5 mm of the pipe. Push on the exhaust hose. Start the engine and open the water cock. -
Page 16: Rpm
® KB 500 / KB 500 K Operating instructions Drehzahl (min -1) / RPM / Nombre de tours (t/min) Bohrkronendurchmesser (mm) Drill bit diameter (mm) Diamètre de couronne (mm) - - - - Example: Drill bit Ø 200 mm at 3 m/s = approx. 300 RPM... -
Page 17: Wearing Parts
® KB 500 / KB 500 K Operating instructions Wearing parts Wearing parts for construction devices mentioned in the operating manual such as drilling and sawing machines Wearing parts are the parts subject to operation-related (natural) wear during proper use of the device. -
Page 18: Spare Parts List
® KB 500 / KB 500 K Operating instructions Spare parts list So bekommen Sie schnell und richtig Ihr Ersatzteil - für Maschine - Modell - Masch.-Nr. - Artikelnummer - Bezeichnung des Ersatzteiles - Anzahl der gewünschten Ersatzteile - Wohin liefern? - Womit liefern (Post, Eilpost etc.)? - Page 19 ® KB 500 / KB 500 K Operating instructions Pos. Artikelnummer Menge Norm Info Bezeichnung Description Désignation 0295 501 1000 KB500 Bohrständer kpl. Drill rig Foreuse carotteuse 0295 600 0645 Dübelfuss Dowel base Socle à cheviller 0295 600 1033 M 12 x 100 Eisengewindeöse Eyelet screw Piton vissé...
- Page 20 ® KB 500 / KB 500 K Operating instructions Pos. Artikelnummer Menge Norm Info Bezeichnung Description Désignation 0295 600 0653 Hub 800 Führungssäule Column Colonne de guidage DIN EN 0282 520 0004 M 16 x 45 Schraube Screw ISO 10642...
- Page 21 ® KB 500 / KB 500 K Operating instructions - 21- 02955010998 5006880-01...
- Page 22 ® KB 500 / KB 500 K Operating instructions Pos. Artikelnummer Menge Norm Info Bezeichnung Description Désignation 0295 501 1010 KB500K Bohrständer kpl. Drill rig Foreuse carotteuse Dübelfuss Dowel base Socle à cheviller 0295 600 0646 0295 600 1033 M 12 x 100 Eisengewindeöse Eyelet screw Piton vissé...
- Page 23 ® KB 500 / KB 500 K Operating instructions - 23- 02955010998 5006880-01...
- Page 24 ® KB 500 / KB 500 K Operating instructions Pos. Art.-Nr. Menge Norm Info Benennung Description Désignation 0295 630 0011 Bohrschlitten kpl. Drill carriage assy. Chariot complète 0295 630 0010 Bohrschlitten Drill carriage Chariot DIN EN 0283 300 0519 M 4 x 20 Gewindestift Grub screw Goujon filité...
- Page 25 ® KB 500 / KB 500 K Operating instructions - 25- 02955010998 5006880-01...
- Page 26 ® KB 500 / KB 500 K Operating instructions Pos. Art.-Nr. Menge Norm Info Benennung Description Désignation DIN EN 0282 250 0321 M 5 x 10 Schraube Screw ISO 4762 DIN EN 0295 000 3530 M 6 x 16 Schraube...
- Page 27 ® KB 500 / KB 500 K Operating instructions Pos. Artikelnummer Menge Norm Info Bezeichnung Description Désignation 0295 000 0849 Handrad kpl. Handle assy. Moyeu complète 0295 000 0853 DIN 1127 D 16 Griffrohr Handle bar Bras 0295 000 0827 DIN 319-M Ø...
- Page 28 ® KB 500 / KB 500 K Operating instructions Pos. Artikelnummer Menge Norm Info Bezeichnung Description Désignation 0295 000 2100 Werkzeugtasche Tool bag Havresac DIN 911 SW 6 Maulschlüssel Jaw wrench Clé mixte 0295 000 2011 0295 000 2032 DIN 895 SW 17 / 19 Maulschlüssel...
