Phason

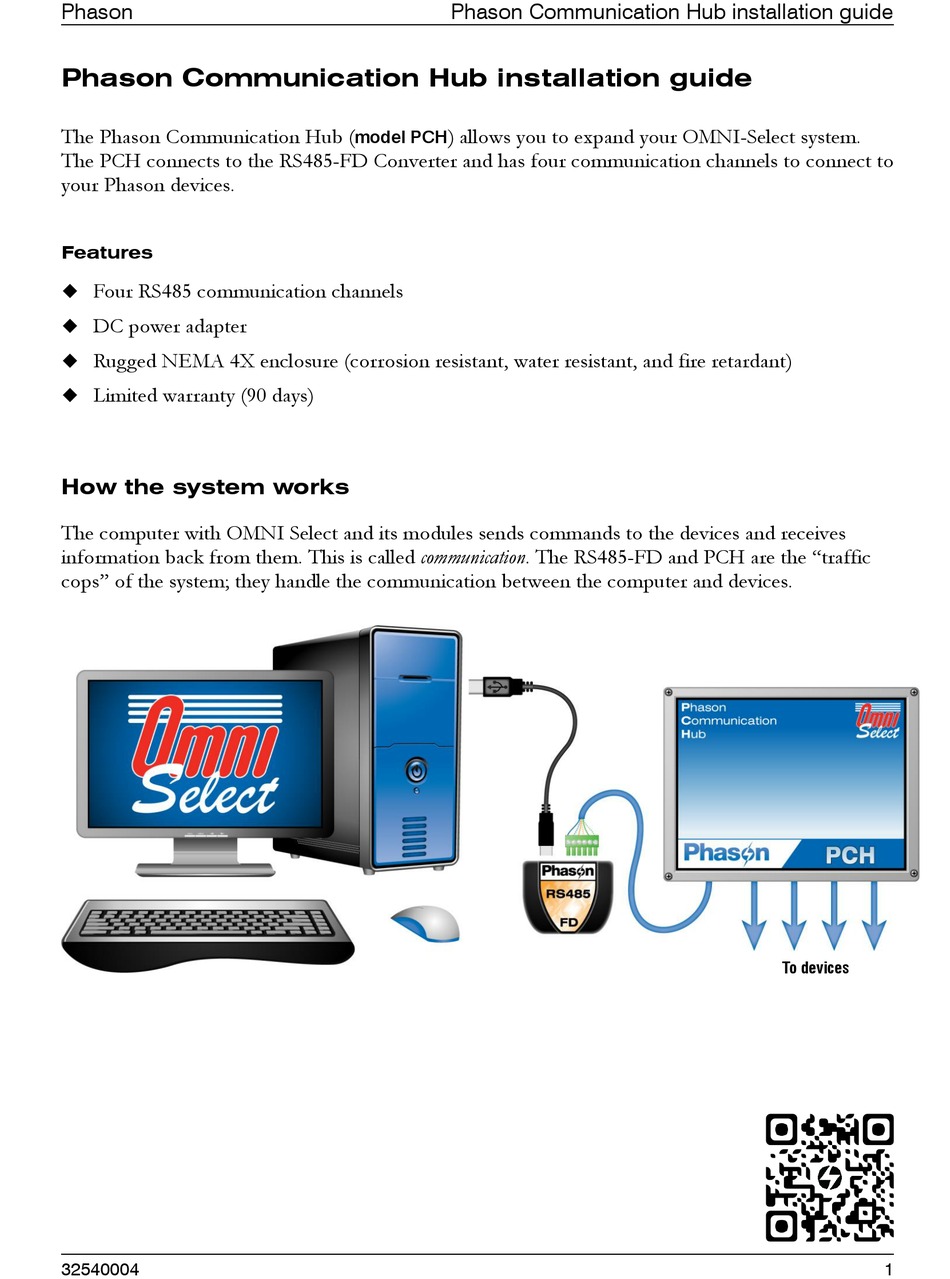

Phason Communication Hub installation guide
The Phason Communication Hub (
The PCH connects to the RS485-FD Converter and has four communication channels to connect to
your Phason devices.

Features

Four RS485 communication channels
DC power adapter
Rugged NEMA 4X enclosure (corrosion resistant, water resistant, and fire retardant)
Limited warranty (90 days)

How the system works

The computer with OMNI Select and its modules sends commands to the devices and receives
information back from them. This is called communication. The RS485-FD and PCH are the "traffic
cops" of the system; they handle the communication between the computer and devices.
32540004
Phason Communication Hub installation guide
) allows you to expand your OMNI-Select system.
model PCH
To devices
1
