IMPORTANT MANUAL
OPERATOR'S MANUAL
MODEL:
PK19H42LT

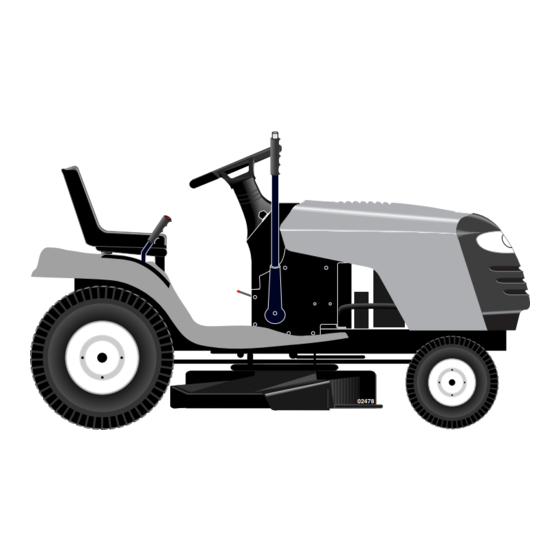

LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan-pro.com
Do Not Throw Away
02478
WARNING:
Read this Man u al and follow all Warnings and
Safety Instructions. Fail ure to do so can re sult
in serious in ju ry.
194831 10.11.04 TR
Printed in U.S.A.
Advertisement
Table of Contents
Related Manuals for Poulan Pro 194831
Summary of Contents for Poulan Pro 194831
- Page 1 OPERATOR'S MANUAL MODEL: PK19H42LT LAWN TRACTOR ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulan-pro.com Do Not Throw Away 02478 WARNING: Read this Man u al and follow all Warnings and Safety Instructions. Fail ure to do so can re sult in serious in ju ry.
-
Page 2: Safety Rules
Safe Operation Practices for Ride-On Mowers IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. WARNING: In order to prevent ac- ci den tal starting when setting up, trans port ing, ad just ing or making re- pairs, al ways dis con nect spark plug... - Page 3 Safe Operation Practices for Ride-On Mowers III. CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the ma chine and the mowing activity. Never assume that children will remain where you last saw them. •...
-
Page 4: Table Of Contents
PRODUCT SPECIFICATIONS Gasoline Capacity 2.0 Gallons and Type: Unleaded Regular Oil Type (API-SG-SL): SAE 10W30 (above 32°F) SAE 5W-30 (below 32°F) Oil Capacity: 3.0 Pints Spark Plug: Champion RC12YC (Gap: .030") Ground Speed (MPH): Forward: Reverse: Tire Pressure: Front: Rear: Charging System: 15 Amps @ 3600 RPM Battery:... -
Page 5: Unassembled Parts
UNASSEMBLED PARTS Steering Wheel Steering Boot Steering Wheel Adapter (1) Large Flat Washer (1) Hex Bolt 5/16-18 x 4 (4) Retainer Springs (double loop) (4) Locknut 3/8-16 (4) Shoulder Bolt (1) Washer 17/32 x 1-3/16 x 12 Gauge Steering Wheel Insert Steering Extension... -
Page 6: Assembly
Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness. TOOLS REQUIRED FOR ASSEMBLY A socket wrench set will make assembly easier. - Page 7 SEAT SEAT PAN FLAT WASHER ADJUSTMENT KNOB FIG. 2 CHECK BATTERY (See Fig. 3) • Lift seat pan to raised position. • If this battery is put into service after month and year indicated on label (label located between terminals) charge battery for minimum of one hour at 6-10 amps.
- Page 8 RETAINER SPRING SHOULDER BOLT AD JUST ING GAUGE WHEEL 3/8 WASH ER FIG. 4 CHECK TIRE PRESSURE The tires on your tractor were overinfl ated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance. •...
-
Page 9: Operation
These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their mean- ing. REVERSE NEUTRAL REVERSE ENGINE ON ENGINE OFF OPERATION SYSTEM (ROS) OIL PRESSURE FUEL OVER TEMP LIGHT ATTACHMENT ATTACHMENT CLUTCH DISENGAGED CLUTCH ENGAGED FREE WHEEL (Automatic Models only) - Page 10 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. LIGHT SWITCH THROTTLE/CHOKE CONTROL CLUTCH/BRAKE...
- Page 11 The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while op- erating your tractor or per form ing any adjustments or repairs. We rec om mend a wide vision safety mask over spectacles or stan dard safety glasses.
-
Page 12: To Operate On Hills
NOTE:Adjust gauge wheels with tractor on a fl at level surface. • Adjust mower to desired cutting height (See “TO AD- JUST MOWER CUT TING HEIGHT” in the Operation sec tion of this manual). • Remove retainer spring and clevis pin which secure each gauge wheel bar. -
Page 13: Before Starting The Engine
• Avoid stopping or changing speed on hills. • If slowing is necessary, move throttle control lever to slower position. • If stopping is absolutely necessary, push clutch/brake pedal quickly to brake position and engage parking brake. • Move motion control lever to neutral (N) position. IMPORTANT: THE MOTION CONTROL LEVER DOES NOT RETURN TO NEUTRAL (N) POSITION WHEN THE CLUTCH/... -
Page 14: Operation
• Insert key into ignition and turn key clockwise to “START” position and release key as soon as engine starts. Do not run starter continuously for more than fi fteen sec onds per minute. If the engine does not start after several at tempts, move throttle control to fast position, wait a few minutes and try again. -
Page 15: Maintenance Schedule
MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE Check Brake Operation Check Tire Pressure Check Operator Presence and ROS Systems Check for Loose Fasteners Sharpen/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Check V-Belts Check Engine Oil Level Change Engine Oil (with oil filter) -
Page 16: Maintenance
TRACTOR Always observe safety rules when per form ing any main- te nance. BRAKE OPERATION If tractor requires more than fi ve (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be checked and ad just ed. - Page 17 • Slide blade on to an unthreaded portion of the steel bolt or pin and hold the bolt or pin parallel with the ground. If blade is balanced, it should remain in a horizontal position. If either end of the blade moves downward, sharpen the heavy end until the blade is balanced.
- Page 18 • After oil has drained completely, close and lock the drain valve by pushing inward and turning clockwise until the pin is in the locked position as shown. • Remove the drain tube and replace the cap onto to the bottom fi...
-
Page 19: Service And Adjustments
SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER VICE OR AD JUST - MENTS: • Depress clutch/brake pedal fully and set parking brake. • Place motion control lever in neutral (N) position. • Place attachment clutch in “DISENGAGED” position. •... -
Page 20: To Replace Mower Blade Drive Belt
SERVICE AND ADJUSTMENTS SIDE-TO-SIDE ADJUSTMENT (See Figs. 18 and 19) • Raise mower to its highest position. • At the midpoint of both sides of mower, measure height from bot tom edge of mower to ground. Distance “A” on both sides of mower should be the same or within 1/4"... -
Page 21: To Replace Motion Drive Belt
SERVICE AND ADJUSTMENTS TO CHECK AND ADJUST BRAKE (See Fig. 23) Your tractor is equipped with an ad just able brake system which is mounted on the right side of the transaxle. If tractor requires more than fi ve (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be checked and ad just ed. - Page 22 SERVICE AND ADJUSTMENTS After above adjustment is made, if the tractor still creeps forward or backward while motion control lever is in neutral position, follow these steps: • Loosen the adjustment bolt. • Move the motion control lever 1/4 to 1/2 inch in the direction it is trying to creep.
- Page 23 SERVICE AND ADJUSTMENTS REPLACING BATTERY (See Figs. 28 and 29) WARNING: Do not short battery ter mi nals by allowing a wrench or any other object to contact both terminals at the same time. Before connect- ing battery, remove metal bracelets, wristwatch bands, rings, etc.
-
Page 24: Storage
Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. WARNING: Never store the trac tor with gas o line in the tank inside a building where fumes may reach an open fl... -
Page 25: Trou Ble Shoot Ing
TROUBLESHOOTING POINTS PROBLEM CAUSE Will not start Out of fuel. Engine not “CHOKED” properly. Engine fl ooded. Bad spark plug. Dirty air fi lter. Dirty fuel fi lter. 7. Water in fuel. Loose or damaged wiring. Carburetor out of adjustment. Engine valves out of adjustment. -
Page 26: Trou Ble Shoot Ing
TROUBLESHOOTING POINTS PROBLEM CAUSE Engine dies when 1. Reverse operation system tractor is shifted (ROS) is not "ON" while into reverse mower or other attachment is engaged. Engine continues to run Faulty operator-safety presence control system. when operator leaves seat with attachment clutch engaged Poor cut - uneven... - Page 27 The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materi- als and work man ship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we fi...
-
Page 28: Warranty
® Issued January 1980 Revised January 1991 NEW PEERLESS GEAR POWER TRAIN COMPONENTS Peerless Gear and Machine Division of Tecumseh Products Company (“Tecumseh”), subject to the limitations contained below, will, at its option, repair or replace, without charge for parts or labor only, any part of a new Power Train Component (which as used herein means and includes the transaxle, gear box, trans mis sion, differential and right angle drives, and any part of the Power Train Component), EXCEPT any new Power Train Component incorporated in equipment used for commercial or rental pur pos es, which is found upon examination by any Tecumseh Au tho rized Service Outlet or by Tecumseh’s factory in Grafton, Wis con sin, to be DEFECTIVE... - Page 29 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION WARNING: To avoid serious injury, operate your tractor up and down the face of slopes, never across the face. Do not mow slopes greater than 15 degrees. Make turns gradually to prevent tipping or loss of control.
-
Page 30: Parts And Service
