E.F. Johnson 2424310 Manual

4300 series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

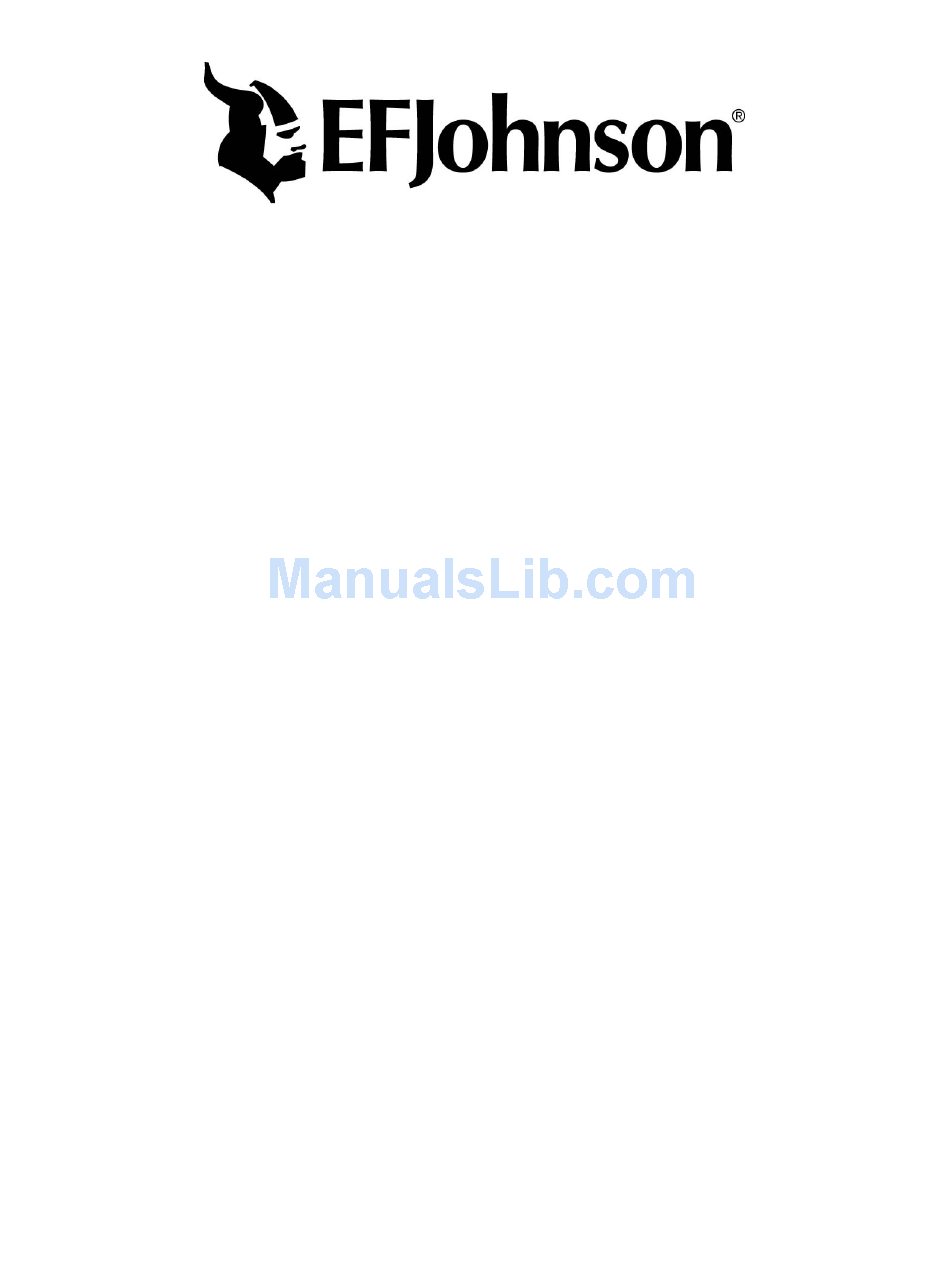

4300 SERIES
MOBILE RADIO
APCO Project 25 Conventional and Trunked
®
®
SMARTNET
/SmartZone
Analog (FM) Conventional
VHF 20 Watts Part No. 242-43xx-xxx
Copyright© 2004 by the E.F. Johnson Company
The EFJohnson Company, which was founded in 1923, provides wireless communication sys-
tems solutions for public safety, government, and commercial customers. The company designs,
manufactures, and markets conventional and trunked radio systems, mobile and portable
subscriber radios, repeaters, and Project 25 digital radio products. EFJohnson is a wholly owned
subsidiary of EFJ, Incorporated.
®
Viking Head/EFJohnson logo, Call Guard
, PCConfigure™, and PCTune™ are trademarks of the
®
EFJohnson Company. SMARTNET™ and SmartZone
are trademarks of Motorola, Inc. All other
1

Advertisement

Table of Contents
loading

Related Manuals for E.F. Johnson 2424310

Summary of Contents for E.F. Johnson 2424310

  • Page 1 Analog (FM) Conventional VHF 20 Watts Part No. 242-43xx-xxx Copyright© 2004 by the E.F. Johnson Company The EFJohnson Company, which was founded in 1923, provides wireless communication sys- tems solutions for public safety, government, and commercial customers. The company designs, manufactures, and markets conventional and trunked radio systems, mobile and portable subscriber radios, repeaters, and Project 25 digital radio products.
  • Page 2 company and/or product names used in this manual are trademarks and/or registered trademarks of their respective manufacturer. The IMBE™ voice coding technology embodied in this product is protected by intellectual property rights including patent rights of Digital Voice Systems, Inc. Information in this manual is subject to change without notice.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION 1 GENERAL INFORMATION ................ 6 1.1 SCOPE OF MANUAL..................... 6 1.2 TRANSCEIVER DESCRIPTION ................6 1.2.1 GENERAL......................6 1.2.2 ANALOG/DIGITAL OPERATION ..............6 1.2.3 OPERATING PROTOCOLS ................6 1.2.4 AVAILABLE MOUNTING OPTIONS............7 1.2.5 SYSTEMS, CHANNELS, AND ZONES ............7 1.2.6 PROGRAMMING....................
  • Page 4 2.2.4 POWER SOURCE ..................23 2.3 TRANSCEIVER INSTALLATION (FRONT AND REMOTE MOUNT)... 23 2.3.1 MOUNTING CONFIGURATIONS .............. 23 2.3.2 SELECTING A MOUNTING LOCATION ..........25 2.3.3 MOUNTING KITS..................25 2.3.4 MOUNTING STANDARD POWER TRANSCEIVER ........ 25 2.4 POWER CABLE INSTALLATION..............26 2.4.1 STANDARD MODELS .................
  • Page 5 SECTION 5 CIRCUIT DESCRIPTION ................44 5.1 GENERAL TRANSCEIVER DESCRIPTION............44 5.1.1 INTRODUCTION ..................44 5.1.2 PC BOARDS ....................44 5.1.3 CIRCUIT PROTECTION (FUSES)............... 45 5.1.4 ANALOG MODE................... 45 5.1.5 PROJECT 25 DIGITAL MODE ..............45 5.2 VHF BOARDS....................... 46 5.2.1 VHF RF BOARD ...................

  • Page 6: Section 1 General Information

    SECTION 1 GENERAL INFORMATION 1.1 SCOPE OF MANUAL This service manual contains operation, programming, alignment, and service information for the E.F. Johnson Company 4300 series VHF mobile radio. 1.2 TRANSCEIVER DESCRIPTION 1.2.1 GENERAL The 4300 series mobile transceivers operate on various types of channels and with various signaling protocols (see following information).

  • Page 7: Available Mounting Options

    1.2.4 AVAILABLE MOUNTING OPTIONS Front Mount - The operating controls are on the front on the radio, so the radio must be mounted within reach of the user. Remote Mount, Single Control Unit - The operating controls are located on a remote mounted control unit.

  • Page 8: Programming

    The warranty statement for this transceiver is available from your product supplier or from the Warranty Department, E.F. Johnson Company, 1440 Corporate Drive, Irving, TX 75038- 2401. This information may also be requested from the Warranty Department by phone as described in Section 1.7.
  • Page 9 M (Model) 3 - 4300 Series F (Frequency Band) 1 - VHF (136-174 MHz) T (Type of Installation) 7 - Standard Power, Dash Mount 8 - Standard Power, Remote Mount 9 - Standard Power, Dash Mount Public Works S (Signaling Protocol, Primary) 2 –...

  • Page 10: Serial Number Breakdown

    E (Encryption and Security Software Options) B - Default [no Over-The-Air-Rekeying (OTAR)] C - OTAR Project 25 Conventional D - OTAR Project 25 Trunked/Conventional * 1.5 SERIAL NUMBER BREAKDOWN The radio serial number is located on the radio identification label attached to the bottom cover (see Figure 1-1).
  • Page 11 environmental sealed with terminals for acc cable Handheld Control Unit and Siren Controller Handheld control unit with 250-5300-101 junction box and 17 ft control cable Siren controller kit (without 250-5300-100 loudspeaker) Siren loudspeaker, model TS100 585-5300-007 for light bar installation Siren loudspeaker, model MS100 585-5300-009 compact for behind-grill...

  • Page 12: Factory Customer Service

    Special programming using PCConfigure is also required as described in Section 4. 1.7 FACTORY CUSTOMER SERVICE The Customer Service Department of the E.F. Johnson Company provides customer assistance on technical problems and the availability of local and factory repair facilities. Regular Customer Service hours are 8:00 a.m.

  • Page 13: Returns For Repairs

    NOTE: Emergency 24-hour technical support is also available at the 800 and preceding numbers during off hours, holidays, and weekends. When your call is answered at the E.F. Johnson Company, you will hear a brief message informing you of numbers that can be entered to reach various departments. This number may be entered during or after the message using a tone-type telephone.

  • Page 14: Replacement Parts

    Irving, TX 75038-2401 1.10 INTERNET HOME PAGE The E.F. Johnson Company has a site on the World Wide Web that can be accessed for information on the company about such things as products, systems, and regulations. The address is http://www.efjohnson.com.

  • Page 15: Fips 140-2 Approved Encryption

    Digital Project 25 and SMARTNET/SmartZone Channels • DES-OFB (Output Feedback) • 1.11.2 FIPS 140-2 APPROVED ENCRYPTION All encrypted 4300 models are Federal Information Processing Standard (FIPS) certified for the DES-OFB and AES encryption modes. Encryption on analog channels is not FIPS certified. FIPS 140-02 is approved by the United States Secretary of Commerce.

  • Page 16: Federal Communications Commission Regulations

    energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, electric power, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly can cause biological damage.

  • Page 17: Exposure Compliance And Control Guidelines And Operating Instructions

    • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992. • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition. 1.12.3 EXPOSURE COMPLIANCE AND CONTROL GUIDELINES AND OPERATING INSTRUCTIONS To control exposure to yourself and others and ensure compliance with the occupational/controlled environment exposure limits always adhere to the following procedures.

  • Page 18: Approved Accessories

    c.) The installation manual should provide specific information of how to install the antennas to facilitate recommended operating distances to all potentially exposed persons. • Use only EFJohnson approved supplied antenna or EFJohnson approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations.
  • Page 19 Mounting Location Dash Mount (Remote mount optional) Zones/Channels Up to 16 zones with 16 channels per zone Transmit/Receive Separation Any frequency within the range Channel Spacing 12.5, 15, 25, and 30 kHz Maximum Deviation 25 kHz analog - 5 kHz 12.5 kHz analog - 2.5 kHz Frequency Stability Receive 2.5 PPM [–22°...

  • Page 20: Section 2 Installation

    SECTION 2 INSTALLATION 2.1 IMPORTANT DIGITAL RADIO INSTALLATION INFORMATION 2.1.1 INTRODUCTION With digital radios such as the 4300, electrical noise on the DC power line is heard as a “warbling” sound in messages received from a radio in a vehicle with this problem. It is not the typical alternator whine or ignition ticking heard with analog radios.
  • Page 22 Item Item Description Part No. Description Part No. Amplified dynamic mic 250-0740- Self-drilling screw (4) 575-9077- Screw, 4-20 x 5/8” thread frmg 575-5604- Knob (4) 547-0016- Screw, 4-24 x 1/4” sheet metal 575-3604- Power cable (22') and hardware 023-9750- Microphone hanger clip 023-3514- Accessory wire and hardware 023-9750-...

  • Page 23: General Information

    2.2 GENERAL INFORMATION 2.2.1 SCOPE OF INSTRUCTIONS Since each installation is somewhat unique, the following installation instructions are intended only as a general guide to installing this transceiver. Described are the intended use of the mounting hardware and the electrical connections that should be made. 2.2.2 PERFORMANCE TESTS Although each transceiver is carefully aligned and tested at the factory, shipment can alter these settings or damage the transceiver.
  • Page 24 Figure 2-2 Standard Remote Mount Installation Components Dual Control - The remote control unit is connected to a front-mount transceiver. This allows the transceiver to be controlled from both the transceiver front panel and the remote control unit. The displays on the transceiver and control unit indicate identical information. Dual Remote - Two remote control units are connected to a remote mount transceiver.

  • Page 25: Selecting A Mounting Location

    2.3.2 SELECTING A MOUNTING LOCATION Front-mount transceivers are designed for mounting in a location near the operator such as the dash, console, or transmission hump. Remote-mount transceivers are designed for mounting in an out-of-the-way location such as the trunk. WARNING The mounting location of the transceiver or control unit can affect safe operation of the vehicle.

  • Page 26: Power Cable Installation

    2.4 POWER CABLE INSTALLATION NOTE: As described in Section 2.1,connect the power cable directly to the vehicle battery, and to an unswitched power source so that it de-affiliates when power is turned off. 2.4.1 STANDARD MODELS Refer to Figures 2-1 or 2-2 and proceed as follows: Disconnect the negative cable from the battery to prevent damage from accidental short circuits.

  • Page 27: Ignition Sense Input (Pin 6)

    Figure 2-5 Accessory Jack 2.5.2 IGNITION SENSE INPUT (PIN 6) NOTE: As previously described, the ignition sense line must be connected to a switched or unswitched power source for the transceiver to power up. This ignition sense line is Pin 6 of the accessory connector, and it is connected using an included wire assembly.

  • Page 28: External Public Address (Pin 7)

    Horn Alert To use the horn alert, a Horn option switch, Cadence Style, and Auxiliary B Horn output must be programmed. Refer to Section 4.7 of the operating manual (see Section 3) and the programming manual referenced in Section 4 for more information. (The Aux B output is programmed on page 2 of the Global screen.) When the horn alert sounds, Pin 4 of the accessory connector goes low.

  • Page 29: Remote Control Unit Installation

    External Emergency Switch When this function is programmed, an emergency condition can be triggered using an external emergency switch such as a foot-operating type. PA Broadcast This function is used with the optional Transit Bus PA system to allow an external public address select switch to be used instead of the normal front panel option switch.
  • Page 30 Figure 2-7 Display Controller Board Figure 2-8 [not used] Audio PA Board The audio PA board has a 5-pin connector for connecting to the controller board. Table 2-1 Control Unit DIP Switch S1 Settings Configuration (see Section 2.6.1) Master/Slave Setting Volume Control Setting S1-2 (S1-8/S1-9) [1] Master*...

  • Page 31: Setting Master/Slave Switches

    Handheld Control Unit, Dual Remotes (HHC + remote control unit, two speakers available) HHC (controls external speaker) Master* Remote control unit (controls int. speaker) Slave * - Default setting, no change usually required. [1] Master = S1-8 Off/S1- 9 On; Slave = S1-8 On/S1-9 Off [2] S1-3 is always On and S1-10 is always Off.

  • Page 32: Connecting The Speaker

    Check the area behind the selected mounting location to make sure that there is nothing that will be damaged when the mounting screws are installed. Then install the mounting bracket using the included self-drilling screws or others if desired. Install the control unit in the bracket using the included plastic washers, spring washers, and knobs as shown in Figure 2-2.

  • Page 33: Transceiver Mounting Tray Installation

    transceiver or remote control unit. Refer to Table 2-1 and Section 2.6 for information on how to set up the control unit for each configuration. 2.9 TRANSCEIVER MOUNTING TRAY INSTALLATION 2.9.1 DESCRIPTION Optional Transceiver Locking Tray, Part No. 585-7000-185, is a lockable mounting bracket for 4300 and other transceivers that use the standard chassis.

  • Page 34: Handheld Control Unit Installation

    release the transceiver, press the button and at the same time push the transceiver rearward. The key locks the button so that it cannot be pressed. 2.10 HANDHELD CONTROL UNIT INSTALLATION 2.10.1 GENERAL The Handheld Control Unit replaces the standard control unit and DTMF microphone in remote mount applications.

  • Page 35: Installation Instructions

    is no PTT line associated with this jack, so the transmitter must still be keyed using the control unit PTT switch. Programming Jack - A standard eight-pin jack for connecting the computer and RPI to program the transceiver. NOTE: The junction box is required to program the transceiver when this control unit is used. 2.10.2 INSTALLATION INSTRUCTIONS Optional Junction Box Used (Figure 2-10) Install the transceiver as described in Sections 2.2 to 2.5.

  • Page 36: Using Hhc To Provide Dual Controls Or Dual Remotes36

    Figure 2-11 HHC Installation Components (Junction Box Not Used) Connect the external speaker to Pins 1 and 2 of the accessory pigtail as described in Step 4 of the preceding section. 2.10.3 USING HHC TO PROVIDE DUAL CONTROLS OR DUAL REMOTES Dual Control Configuration The handheld control unit can connected to a front mount transceiver to provide dual...

  • Page 37: Transceiver Programming With Hhc

    This kit connects to an E.F. Johnson 4300 mobile transceiver. The siren loudspeaker is optional, and the following models are available:...
  • Page 38 Figure 2-12 Siren Installation Diagram 1. Mount the siren amplifier near the transceiver [the connecting cable to the transceiver is approximately 3 feet (0.9 meters) long]. 2. Mount the siren controller in the desired location [the connecting cable to the amplifier is approximately 22 feet (6.7 meters) long].
  • Page 39 If the siren is to be automatically disabled when the vehicle is in Park or Neutral, connect the black wire coming from the siren controller connector to the neutral safety switch. If the vehicle horn is to sound with the siren, connect the green wire coming from the siren control head connector to the vehicle horn circuit.

  • Page 40: Section 3 Operation

    SECTION 3 OPERATION 3.1 GENERAL The operation description for the 4300 mobile transceiver is included on a separate manual.

  • Page 41: Section 4 Transceiver Programming

    SECTION 4 TRANSCEIVER PROGRAMMING 4.1 GENERAL 4.1.1 PROGRAMMING SETUP The following items are required to program the transceiver. The part numbers of this equipment are shown in Table 1-1 in Section 1. The programming setup is shown above. ® • A Windows -based computer (see next section) •...

  • Page 42: Connecting Computer To Transceiver

    • A CD-ROM drive • An available serial port 4.1.3 CONNECTING COMPUTER TO TRANSCEIVER NOTE: [What are the part numbers of the 4300 parts?] Only RPI, Part No. 023-5300-000, can be used to program the 5300-series transceiver. Other RPIs such as 023-9800-000 and 023-9750- 000 are not compatible with this transceiver.

  • Page 43: Siren Programming

    Unit is used. Set the “Controller Type” parameter on the Global screen of the PCConfigure programming software for “Handheld” instead of “Normal”. 4.1.5 SIREN PROGRAMMING When the optional siren feature is installed (see Section 2.11), one transceiver programming parameter may need to be changed for proper operation of the siren controller backlight. On the Global screen of the PCConfigure programming software, set the “Auxiliary B Toggle”...

  • Page 44: Section 5 Circuit Description

    5.1 GENERAL TRANSCEIVER DESCRIPTION 5.1.1 INTRODUCTION The E.F. Johnson 4300 is a microcontroller-based radio that uses a Digital Signal Processor (DSP) to provide the following modes of operation: Narrowband Analog - FM modulation with a maximum deviation of 2.5 kHz. This mode is usually used in systems where the channel spacing is 12.5 kHz.

  • Page 45: Circuit Protection (Fuses)

    5.1.3 CIRCUIT PROTECTION (FUSES) Circuit protection is provided as follows: • An 8- or 10-ampere fuse in the power cable provides overall transceiver protection. • A 2-ampere fuse on the RF board protects circuits on that board. • F700 (2-ampere) on the display controller board protects the Sw B+ output of the microphone connector.

  • Page 46: Vhf Boards

    In Project 25 Digital Mode, the carrier is modulated with four discrete deviation levels. These levels are ± 600 Hz and ± 1800 Hz. Digitized voice is created using an IMBE™ vocoder. (IMBE™ voice coding technology embodied in this product is protected by intellectual property rights including patent rights of Digital Voice Systems, Inc.) Receive Mode The signal is processed in the same way as an analog mode transmission until after the...
  • Page 47 Front End LNA and Bypass Switching The Low Noise Amplifier (LNA) is critical in determining the overall noise figure of the receiver chain. An MGA-71543 amplifier (U39) provides optimum noise figure, gain, intercept point, and power consumption. Post-LNA Bandpass Filters An additional bandpass filter is located after the LNA.

  • Page 48: Synthesizer

    A two-pole 64.455 MHz crystal filter (U2) is used to provide the desired level of adjacent channel rejection while providing minimal amplitude and phase distortion within a 25 KHz bandwidth. Shields are installed around the crystal filter to provide sufficient isolation to meet the second image response specifications and to minimize noise pickup by the impedance-matching inductors (L1, L2, L3, L4 and L7.) A transistor IF amplifier (Q1) and supporting circuitry is required to boost the signal...

  • Page 49: Transmitter

    The transmit PLL phase locks a transmit oscillator that is operating at an output frequency of 138 to 174 MHz. The RF signal into the PLL chip is created by mixing the transmit frequency with the receive PLL frequency to generate a mix frequency of 374.4 MHz. This provides low frequency modulation of the VCO by modulating the transmit PLL reference frequency.

  • Page 50: Vhf 20-Watt Pa Board

    The power amplifier (U3) is a Mitsubishi RA07M1317M module. This PA module provides the desired RF power output level and is stable over a wide range of VSWR conditions. The PA is driven by a SGA-6589 driver (U20) that typically provides +21 dBm output power. The PA is turned on and off by switching the power to this driver via transistor D10.
