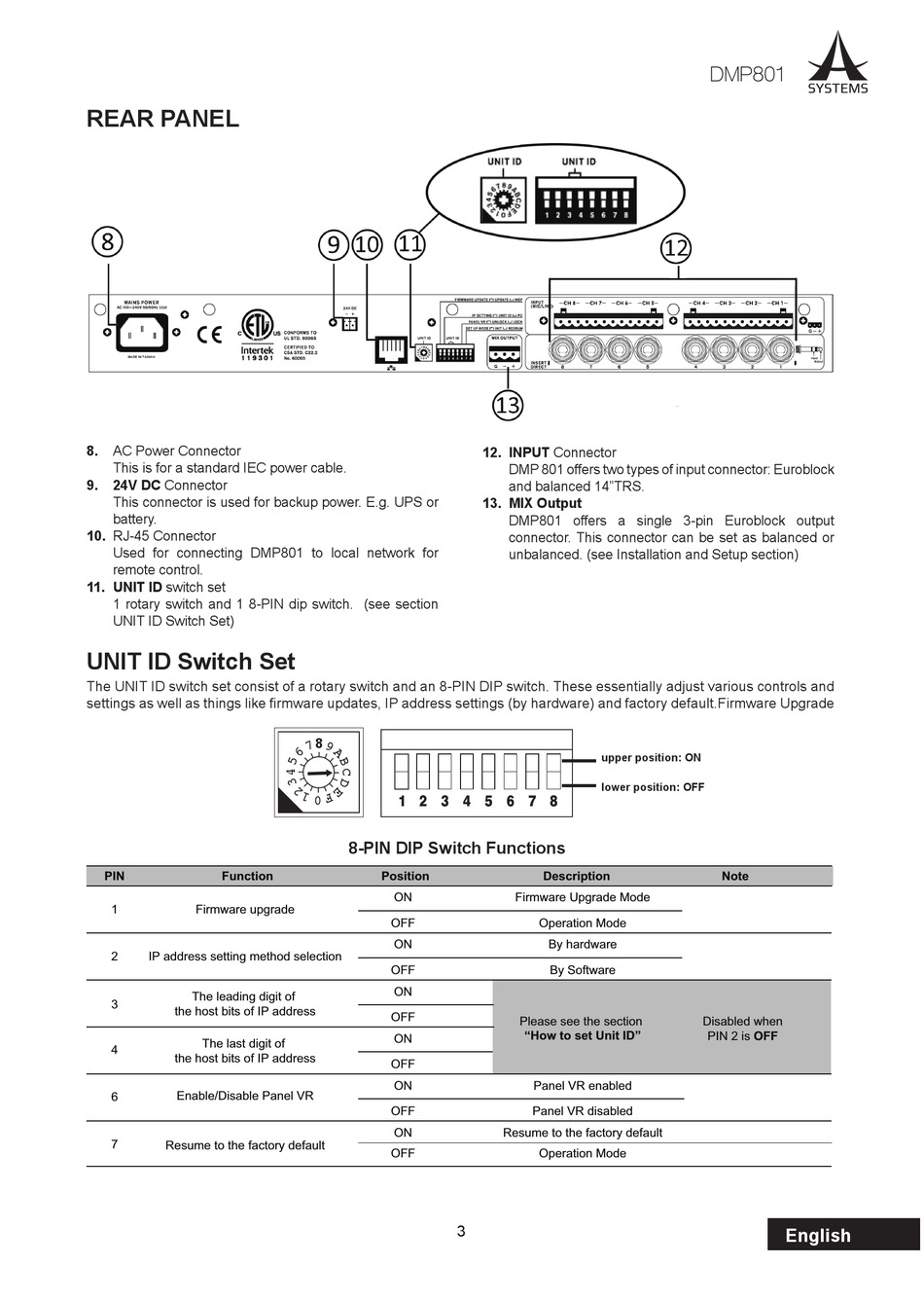

REAR PANEL

8. AC Power Connector
This is for a standard IEC power cable�
9. 24V DC Connector
This connector is used for backup power� E�g� UPS or
battery�
10. RJ-45 Connector
Used for connecting DMP801 to local network for
remote control�

11. UNIT ID switch set

1 rotary switch and 1 8-PIN dip switch. (see section
UNIT ID Switch Set)
UNIT ID Switch Set
The UNIT ID switch set consist of a rotary switch and an 8-PIN DIP switch� These essentially adjust various controls and
settings as well as things like firmware updates, IP address settings (by hardware) and factory default.Firmware Upgrade
PIN Function
1 Firmware upgrade
2 IP address setting method selection
The leading digit of
3
the host bits of IP address
The last digit of
4
the host bits of IP address
Enable/Disable Panel VR
6
7
Resume to the factory default
12. INPUT Connector
13. MIX Output
8
8-PIN DIP Switch Functions
Position
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
3
DMP 801 offers two types of input connector: Euroblock
and balanced 14"TRS�
DMP801 offers a single 3-pin Euroblock output
connector� This connector can be set as balanced or
unbalanced. (see Installation and Setup section)
upper position: ON
Iower position: OFF
Description
Firmware Upgrade Mode
Operation Mode
By hardware
By Software
Please see the section
"How to set Unit ID"
Panel VR enabled
Panel VR disabled
Resume to the factory default
Operation Mode
DMP801
Note
Disabled when
PIN 2 is OFF
