Mocet IG7200 Quick Installation Manual

Smart phone gateway
Hide thumbs Also See for IG7200:

Advertisement

Quick Links

Download this manual See also: User Manual
IG7200
Smart Phone Gateway
Quick Installation Guide
-1-

Advertisement

loading
Need help?

Need help?

Do you have a question about the IG7200 and is the answer not in the manual?

Questions and answers

Related Manuals for Mocet IG7200

Summary of Contents for Mocet IG7200

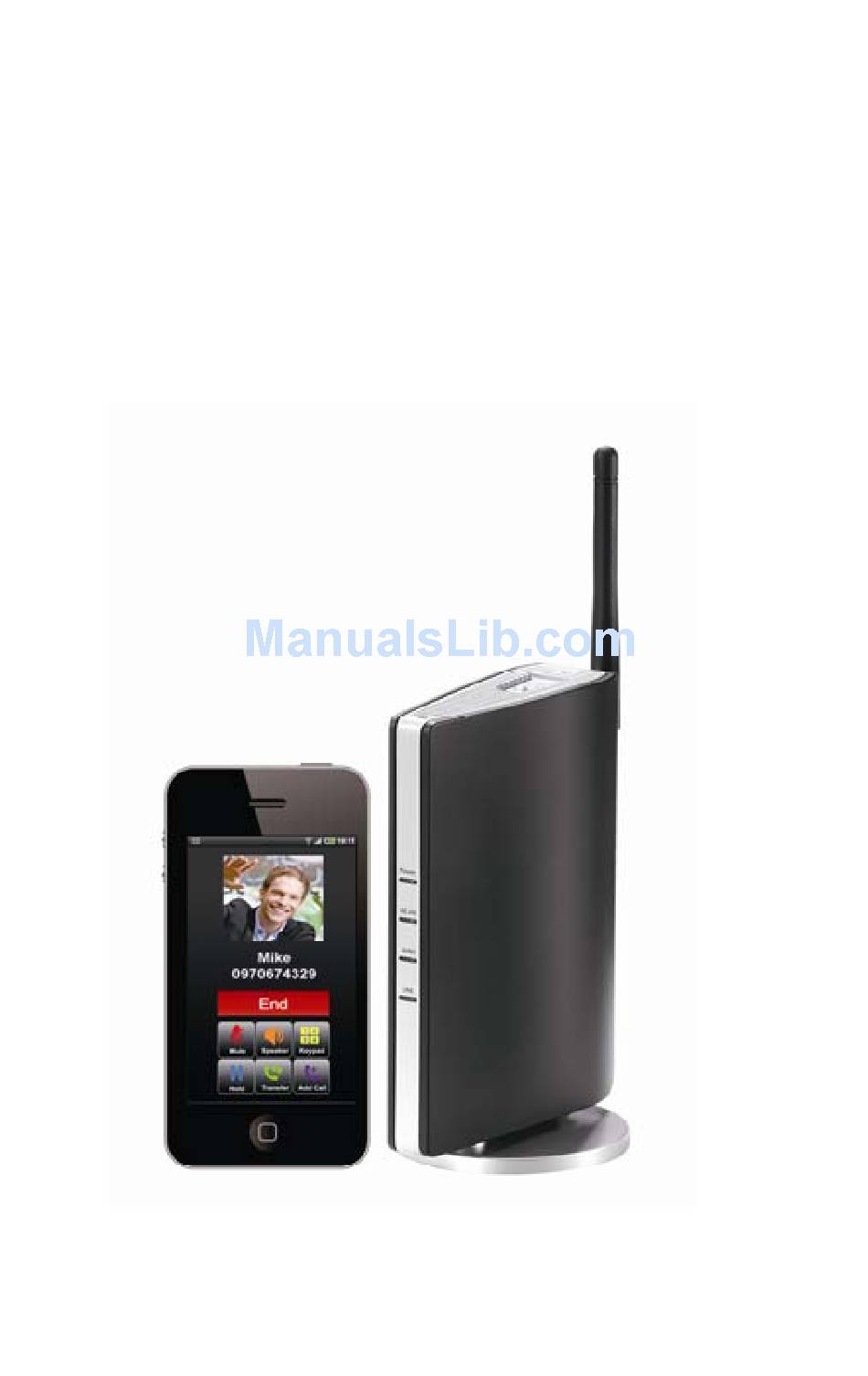

  • Page 1 IG7200 Smart Phone Gateway Quick Installation Guide...

  • Page 2: What's In The Box

     What’s in the Box...
  • Page 3  Connection Type A LINE MODEM PHONE 1. Plug “Power Adaptor”, set switch to ON (IG7200 will be ready for use after two minutes.) 2. Connect the “PHONE＂port of the ADSL splitter to the “LINE＂port of IG7200. 3. Connect the “WAN＂ port of IG7200 to Ethernet port of xDSL Modem.
  • Page 4 2. Connect the “PHONE”port of the xDSL Modem to the “LINE”port of IG7200. 3. Connect the “WAN” port of IG7200 to Ethernet port of xDSL Modem. 4. Connect the “LAN” port of IG7200 to Ethernet port of...
  • Page 5 2. Connect the wall phone jack to the “LINE” port of IG7200. 3. Connect the “WAN” port of IG7200 to Ethernet port of Cable Modem. 4. Connect the “LAN” port of IG7200 to Ethernet port of...
  • Page 6  use smart phone and press “All apps”  “Settings”  “Wireless & networks”  turn on Wi-Fi  press “Wi-Fi settings”  press ”7200_XXXXXX” (“XXXXXX” is the last 6 digits of MAC address which is labeled under the stand of IG7200.)  press “Connect”  Wi-Fi connection finished.(Figure 2)
  • Page 7 (Figure 2) Step 2: IP3051 detect IG7200 automatically：  press “Home page” key on smart phone  ”All apps”  select “IP3051” the screen press shows ”Searching for Gateway, please wait…”.(Figure 3) (Figure 3)

  • Page 8: If The Screen Shows "No Gateway Is Detected." (Figure

    Step 3 : Screen shows ”Gateway detected”  ”OK”。 (Figure 4) (If the screen shows “No Gateway is detected.” (Figure 5)  press ”Cancel”  back to step 1 to do again.) (Figure 4) (Figure 5) Step 4 : Key in “Mobile Number”  “Display name” (Your name)...
  • Page 9 Step 5 : Press button which is on the top of IG7200 (WLAN LED will flash with red and blue at this moment.)  press “Starting” on IP3051. (Figure 7) (Figure 7) Step 6: Screen shows ”IP3051 Registering…”. (Figure 8)
  • Page 10 Step 7 : Registration Successful. (Figure 9) (Figure 9)  IG7200 WAN IP Settings (Optional) Step 1 : Press “Menu” key on smart phone during IP3051’s screen ”Settings”. (Figure 10) (Figure 10) Step 2 : Press ”Gateway Settings” (Figure 11) ...
  • Page 11 Input ”admin1234” (Username) and “123456” (Password)  press ”Login”. (Figure 12) (Figure 11) (Figure 12) Step 3 : Press ”WAN IP Setting”. (Figure 13) (Figure 13) Step 4 : Press ”Network Type”. (Figure 14) -10-...
  • Page 12 (Figure 14) -11-...
  • Page 13 “Default Gateway” and “DNS 1” . b. PPPoE ： Input ”PPPoE Username” and “PPPoE Password”. c. DHCP：No need to input data. (Figure 15) Press “OK＂ after settings finished, IG7200 will reboot. After 2 minutes, “Power” LED of IG7200 is “solid on”. -12-...

  • Page 14: Step 2 : Press "Gateway Settings" (Figure

     IG7200 Wi-Fi settings (Optional) If you need to change the Wi-Fi settings or password, please follow the steps below： Step 1: IP3051’s screen  press ”Menu” key on smart phone  ”Settings”. (Figure 16) (Figure 16) Step 2 : Press ”Gateway Settings” (Figure 17) ...
  • Page 15 (Figure 19) Step 4 : Press ”Type”. (Figure 20) (Figure 20) Step 5 : Choose one security mode (Suggest to choose “ WPA-PSK” mode). (Figure 21) -14-...
  • Page 16 Step 6 : Press ＂Password＂ and key in the Wi-Fi password. (Figure 22) (Figure 22) Step 7 : Press ＂OK＂ ， IG7200 Wi-Fi password is changed immediately. (Remember to change the Wi-Fi settings on smart phone to re-connect IG7200.) Congratulations!! Setup is complete, you can use IG7200 now.
  • Page 17 “Keypad＂, “Contact List＂ and “Call Log＂. You can make free calls between IP3051s and receive / make call thru the PSTN line which connected to IG7200 everywhere. No doubt, you can save the roaming fee when you go abroad. -16-...
  • Page 18 **Note：** 3G phone will disable the roaming feature for data in general, to avoid the roaming bill, please make sure the roaming feature for data is disabled when you go abroad. (Settings  Mobile network  Off)，use the local free Wi-Fi network to save the cost. -17-...
  • Page 19 “INSTALLING”  back to home page of iphone  find “IP3051” in the list. (Figure 23) (Figure 23)  iphone (IP3051) auto pairing with IG7200 Step 1: iphone Wi-Fi access thru. IG7200：  use iphone and press “Settings”  “Wi-Fi”  turn on “Wi-Fi”...
  • Page 20 (Figure 24) Step 2: IP3051 detect IG7200 automatically：  press “Home page” key on iphone  select “IP3051” the screen shows ”Searching for Gateway, please wait…”.(Figure 25) (Figure 25) -19-...
  • Page 21 Screen shows ”Gateway detected”  ”Next”。(Figure Step 3 : (If the screen shows “No Gateway is detected.” (Figure 27)  press “Home page” key on iphone  back to step 1 to do again.) (Figure 26) (Figure 27) Step 4 : Key in “Mobile Number”  “Display name” (Your name)...
  • Page 22 Step 5 : Press button which is on the top of IG7200 (WLAN LED will flash with red and blue at this moment.)  press “Start Registration” on IP3051. (Figure 29) (Figure 29) Step 6: Screen shows ” Registering…”. (Figure 30)
  • Page 23 Step 7 : Registration Successful. (Figure 31) (Figure 31)  IG7200 WAN IP Settings (Optional) Step 1 : Press “Setup” button on IP3051 ” Gateway Settings”. (Figure 32) (Figure 32) -22-...

  • Page 24: Step 3 : Press "Wan Ip Setting". (Figure

    Step 2 : Input ”admin1234” (Username) and “123456” (Password)  press ”Login”. (Figure 33) (Figure 33) Step 3 : Press ”WAN IP Setting”. (Figure 34) (Figure 34) -23-...
  • Page 25 Step 4 : Press ”Network Type”. (Figure 35) (Figure 35) -24-...
  • Page 26 “Default Gateway” and “DNS 1” . b. PPPoE ： Input ”PPPoE Username” and “PPPoE Password”. c. DHCP：No need to input data. (Figure 36) Press “Done＂ after settings finished, IG7200 will reboot. After 2 minutes, “Power” LED of IG7200 is “solid on”. -25-...
  • Page 27  IG7200 Wi-Fi settings (Optional) If you need to change the Wi-Fi settings or password, please follow the steps below： Step 1: Press “Setup” button on IP3051 ” Gateway Settings”. (Figure 37) (Figure 37) Step 2 : Input ”admin1234” (Username) and “123456”...
  • Page 28 Step 3 : Press ＂Wi-Fi Security Setting＂. (Figure 39) (Figure 39) Step 4 : Press ”Type”. (Figure 40) (Figure 40) Step 5 : Choose one security mode (Suggest to choose “ WPA-PSK” mode). (Figure 41) -27-...
  • Page 29 (Figure 41) Step 6 : Press ＂Password＂ and key in the Wi-Fi password. (Figure 42) (Figure 42) -28-...
  • Page 30 Step 7 : Press ＂Done＂，IG7200 Wi-Fi password is changed immediately. (Remember to change the Wi-Fi settings on smart phone to re-connect IG7200.) Congratulations!! Setup is complete, you can use IG7200 now. At any time, you can check the registration icon of the IP3051.
  • Page 31 **Note：** iphone will disable the roaming feature for data in general, to avoid the roaming bill, please make sure the roaming feature for data is disabled when you go abroad. (Settings  General  Cellular  Data Roaming  OFF)，use the local free Wi-Fi network to save the cost.
  • Page 32 <For iphone users> Please remember to enable the following items in iphone. <Notifications>  iphone  “Settings”  “Notifications”  “IP3051”  “Notification Center”  “ON” <Privacy Policy> (To avoid IP3051 stop running.)  iphone  “Settings”  “Privacy”  “Contacts”  “IP3051”...
